Advantech PCA-6194 User Manual

PCA-6194

LGA 775 Intel® Core™ 2 Duo / Pentium® D / Pen­tium® 4 / Celeron® D Processor Card with PCI-ISA
Bus / IPMI / VGA / DVI / Dual Gigabit LAN

User Manual

Copyright

This document is copyrighted, 2007, by Advantech Co., Ltd. All rights
are reserved. Advantech Co., Ltd. reserves the right to make improve­ments to the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmit­ted in any form or by any means without the prior written permission of
Advantech Co., Ltd. Information provided in this manual is intended to
be accurate and reliable. However, Advantech Co., Ltd. assumes no
responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.

Acknowledgements

• AWARD is a trademark of Phoenix Technologies Ltd.

• IBM and PC are trademarks of International Business Machines Cor­poration.

• Intel®, Core™ 2 Duo, Pentium® D, Pentium® 4, and Celeron® D are
trademarks of Intel Corporation.

• WinBond is a trademark of Winbond Corporation.

• All other product names or trademarks are the properties of their
respective owners.

Part No. 2002619400 1st Edition
Printed in Taiwan November 2007

PCA-6194 User Manual ii

A Message to the Customer

Advantech Customer Services

Each and every Advantech product is built to the most exacting specifica­tions to ensure reliable performance in the harsh and demanding condi­tions typical of industrial environments. Whether your new Advantech
equipment is destined for the laboratory or the factory floor, you can be
assured that your product will provide the reliability and ease of operation
for which the name Advantech has come to be known.

Your satisfaction is our primary concern. Here is a guide to Advantech’s
customer services. To ensure you get the full benefit of our services,
please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if
you run into technical difficulties, we are here to help. For the most fre­quently asked questions, you can easily find answers in your product doc­umentation. These answers are normally a lot more detailed than the ones
we can give over the phone.

So please consult this manual first. If you still cannot find the answer,
gather all the information or questions that apply to your problem, and
with the product close at hand, call your dealer. Our dealers are well
trained and ready to give you the support you need to get the most from
your Advantech products. In fact, most problems reported are minor and
are able to be easily solved over the phone.

In addition, free technical support is available from Advantech engineers
every business day. We are always ready to give advice on application
requirements or specific information on the installation and operation of
any of our products.

iii

Certifications

This device complies with the requirements in part 15 of the FCC rules:
Operation is subject to the following two conditions:

• This device may not cause harmful interference

• This device must accept any interference received, including interfer­ence that may cause undesired operation

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer­ence when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
device in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his/her
own expense. The user is advised that any equipment changes or modifi­cations not expressly approved by the party responsible for compliance
would void the compliance to FCC regulations and therefore, the user's

authority to operate the equipment.

Caution! There is a danger of a new battery exploding if

it is incorrectly installed. Do not attempt to
recharge, force open, or heat the battery.
Replace the battery only with the same or
equivalent type recommended by the manufac­turer. Discard used batteries according to the
manufacturer’s instructions.

PCA-6194 User Manual iv

Memory Compatibility

Table 1.1: PCA-6194 Memory Tested for Compatibility

Brand Size Speed Type Memory

Apacer 1GB DDR2 533 DDR2 SAMSUNG K4T51083QB-

ZKD5 (128x4)

256MB DDR2 533 DDR2 SAMSUNG 443

K4T56083QF-GCD5 (32x8)

Transcend

DSL

Apacer
(RoHS)

Transcend
(RoHS)

Transcend
(RoHS)

DSL

512MB DDR2 533 DDR2 ELPIDA E5108AB-5C-E

(64x8)

1GB DDR2 533 DDR2 ELPIDA E5108AB-5C-E

(64x8)

512MB DDR2 533 DDR2 infineon HYB18T512

800AF37 FSS43331 (64x8)

1GB DDR2 533 DDR2 ELPIDA E5108AE-5C-E

(64x8)

1GB DDR2 533 DDR2 ELPIDA E5108AG-5C-E

(64x8)

512MB DDR2 667 DDR2 ELPIDA E5108AG-6E-E

(64x8)

1GB DDR2 667 DDR2 ELPIDA E5108AG-6E-E

(64x8)

256MB DDR2 533 DDR2 infineon

HYB18T512160AF3.7
3VV21710 (32x16)

512MB DDR2 533 DDR2 SEC K4T51083QC ZCD5

(64X8)

1GB DDR2 533 DDR2 SEC K4T51083QC ZCD5

(64X8)

512MB DDR2 667 DDR2 SEC K4T51083QC ZCE6

(64x8)

512MB DDR2 667 DDR2 Micron 5XB32D9DCL (64x8)

1GB DDR2 667 DDR2 SEC K4T51083QE ZCE6

(64x8)

2GB DDR2 667 DDR2 Micron 7HE12 D9HNL

(128x8)

1GB DDR2 800 DDR2 ProMOS V59C1512804QBF25

(64x8)

2GB DDR2 667 DDR2 SAMSUNG K4T1G084QA-

ZCE6 (128x8)

1GB DDR2 667 DDR2 ELPIDA E5108AGBG-6E-E

(64x8)

1GB DDR2 800 DDR2 ELPIDA E5108AHSE-8E-E

(64x8)

v

Network Feature Comparison

Table 1.2: PCA-6194 comparison table

LAN/Model PCA-6194F PCA-6194G2 PCA-6194VG

LAN1: Intel® 82566DM Yes Yes Yes

LAN2: Intel® 82573V Yes Yes No

IPMI Yes No No

DVI Yes No No

PCA-6194 User Manual vi

Product warranty

Advantech warrants to you, the original purchaser, that each of its prod­ucts will be free from defects in materials and workmanship for two years
from the date of purchase.

This warranty does not apply to any products which have been repaired or
altered by persons other than repair personnel authorized by Advantech,
or which have been subject to misuse, abuse, accident or improper instal­lation. Advantech assumes no liability under the terms of this warranty as
a consequence of such events.

If an Advantech product is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will
be billed according to the cost of replacement materials, service time and
freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For

example, type of PC, CPU speed, Advantech products used, other
hardware and software used, etc.) Note anything abnormal and list
any on-screen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your man-

ual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return

material authorization) number from your dealer. This allows us to
process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and

Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for war­ranty service.

5. Write the RMA number visibly on the outside of the package and

ship it prepaid to your dealer.

vii

Initial Inspection

Before you begin installing your single board computer, please make sure
that the following materials have been shipped:

• PCA-6194 Intel® Core™ 2 Duo/Pen­tium® D/Pentium® 4/Celeron® D proces­sor-based single board computer

• 1 PCA-6194 startup manual

• 1 CD with driver utility and manual
(in PDF format)

• 1 FDD cable P/N: 1700340640

• 1 Ultra ATA 66/100 HDD cable P/N: 1701400452

• 2 Serial ATA HDD data cable P/N: 1700003194

• 2 Serial ATA HDD power cable P/N: 1703150102

• 1 Printer (parallel) port & COM port cable kit

• 1 Dual COM port cable kit

P/N: 1701260305

P/N: 1701092300

(Dual LAN Port version only)

• 1 Y cable for PS/2 keyboard and PS/2 mouse

P/N: 1700060202

• 1 ATX 12V power converter cable P/N: 170304015K

• 1 DVI cable

P/N: 1700000821

(PCA-6194F & PCA-6194G2-D0 only)

• 1 USB cable with 4 ports P/N: 1700002314

• 1 warranty card P/N: 2190000902

If any of these items are missing or damaged, contact your distributor or
sales representative immediately. We have carefully inspected the PCA­6194 mechanically and electrically before shipment. It should be free of
marks and scratches and in perfect working order upon receipt. As you
unpack the PCA-6194, check it for signs of shipping damage. (For exam­ple, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet
the specifications, notify our service department or your local sales repre­sentative immediately. Also notify the carrier. Retain the shipping carton
and packing material for inspection by the carrier. After inspection, we
will make arrangements to repair or replace the unit.

PCA-6194 User Manual viii

Contents

Chapter 1 Hardware Configuration.................................2

1.1 Introduction....................................................................... 2

1.2 Features ............................................................................. 3

1.3 Specifications .................................................................... 3

1.3.1 System............................................................................. 3

1.3.2 Memory........................................................................... 4

1.3.3 VGA interface................................................................. 4

1.3.4 Input/Output.................................................................... 4

1.3.5 Ethernet LAN.................................................................. 4

1.3.6 Industrial features ........................................................... 4

1.3.7 Mechanical and environmental specifications................ 5

1.4 Jumpers and Connectors.................................................... 6

Table 1.1: Jumpers ....................................................... 6

Table 1.2: Connectors .................................................. 6

1.5 Board Layout: Jumper and Connector Locations.............. 8

Figure 1.1: Jumper and Connector locations ................. 8

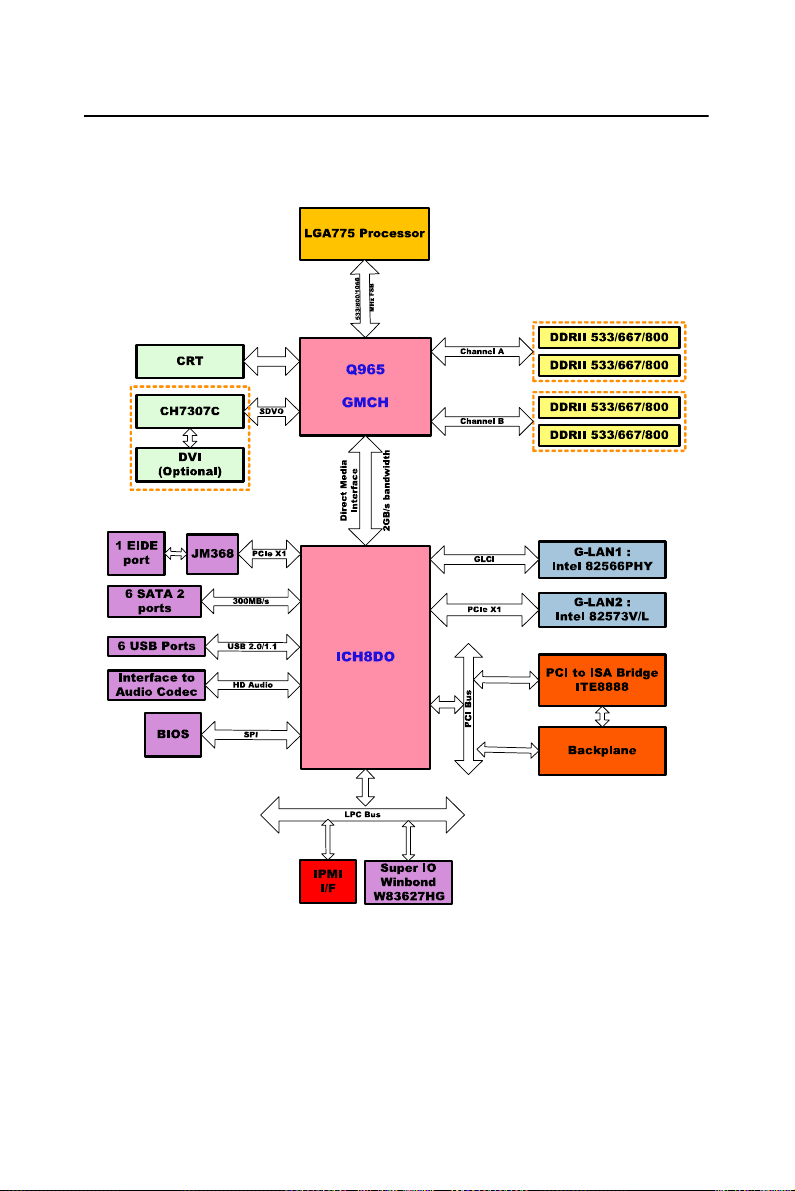

1.6 PCA-6194 Block Diagram ................................................ 9

Figure 1.2: PCA-6194 Block Diagram .......................... 9

1.7 Safety Precautions.......................................................... 10

1.8 Jumper Settings ............................................................... 11

1.8.1 How to set jumpers ....................................................... 11

1.8.2 CMOS clear (CMOS1) ................................................. 11

Table 1.3: CMOS (CMOS1) ...................................... 11

1.8.3 Watchdog timer output (JWDT1)................................. 12

Table 1.4: Watchdog timer output (JWDT1) ............. 12

1.8.4 COM2 RS 232/422/485 mode selector (JSETCOM2) . 13
Table 1.5: COM2 RS 232/422/485 mode selector

(JSETCOM2) ............................................ 13

1.9 System Memory .............................................................. 13

1.9.1 CPU FSB and memory speed ....................................... 13

1.10 Memory Installation Procedures ..................................... 13

1.11 Cache Memory................................................................ 14

1.12 Processor Installation ...................................................... 15

Chapter 2 Connecting Peripherals .................................18

2.1 Introduction..................................................................... 18

2.2 IDE Connectors (IDE1)................................................... 18

2.3 Floppy Drive Connector (FDD1).................................... 19

2.4 Parallel Port (LPT1)........................................................ 20

2.5 VGA Connector (VGA1) ................................................ 21

2.6 DVI connector (VCN1, PCA-6194F, PCA-6194G2-D0

ix

only) ................................................................................ 21

2.7 Serial Ports (COM1, COM2) .......................................... 22

2.8 PS/2 Keyboard and Mouse Connector (KBMS1) ........... 22

2.9 External Keyboard & Mouse (KBMS2)......................... 23

2.10 CPU Fan Connector (CPFAN1)...................................... 23

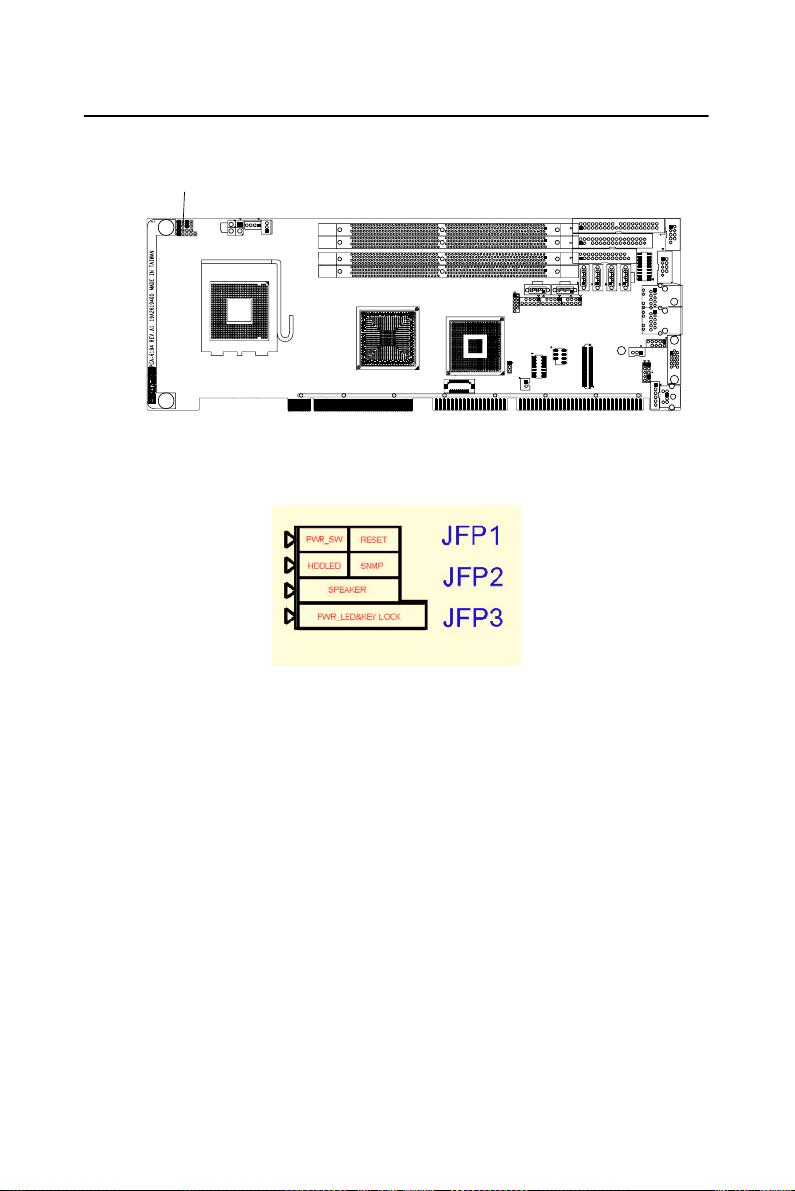

2.11 Front Panel Connectors (JFP1, JFP2, JFP3) ................... 24

2.11.1 ATX soft power switch (JFP1 / PWR_SW) ................. 24

2.11.2 Reset (JFP1 / RESET)................................................... 24

2.11.3 HDD LED (JFP2 / HDDLED)...................................... 24

2.11.4 SM Bus Connector (JFP2 / SNMP) .............................. 24

2.11.5 External speaker (JFP2 / SPEAKER) ........................... 25

2.11.6 Power LED and keyboard lock connector (JFP3 /

PWR_LED&KEY LOCK) ........................................... 25

Table 2.1: ATX power supply LED status (No support

for AT power) ........................................... 25

2.12 H/W Monitor Alarm (JOBS1)......................................... 26

Table 2.2: Hardware Monitor Alarm setting .............. 26

2.13 Gigabit LAN RJ45 connector (LAN1, LAN2)................ 26

2.14 Hi-definition Audio Link Connector (HDAUD1)........... 27

2.15 Serial ATA2 Interface..................................................... 27

2.16 LAN1 and LAN2 LED connector (LANLED1) ............. 28

2.17 BMC connector (BMC1)................................................. 28

2.18 IPMB connector (IPMB1)............................................... 29

2.19 USB (USB1~3) ............................................................... 29

2.20 Auxiliary 4-pin power connector (ATX1) ...................... 30

2.21 ATX feature connector (ATXF1).................................... 30

2.22 GPIO header (GPIO1)..................................................... 31

2.23 Case open (JCASE1)....................................................... 31

Chapter 3 Award BIOS Setup.........................................34

3.1 Introduction..................................................................... 34

3.1.1 CMOS RAM Auto-backup and Restore....................... 34

3.2 Entering Setup................................................................. 35

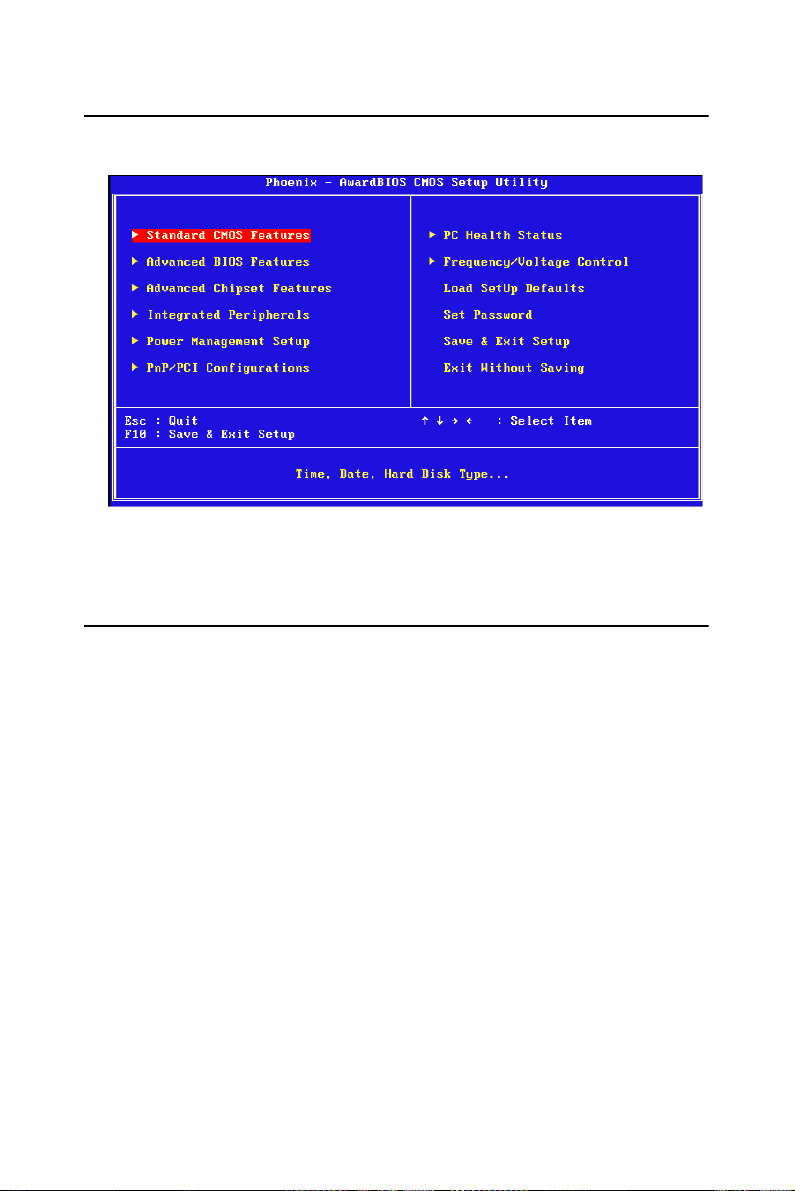

Figure 3.1: Award BIOS Setup initial screen .............. 35

3.3 Standard CMOS Setup .................................................... 35

3.3.1 Date............................................................................... 35

3.3.2 Time.............................................................................. 35

3.3.3 IDE channel 0~4 Master/Slave ..................................... 35

3.3.4 Drive A / Drive B.......................................................... 36

3.3.5 Halt On.......................................................................... 36

3.3.6 Memory......................................................................... 36

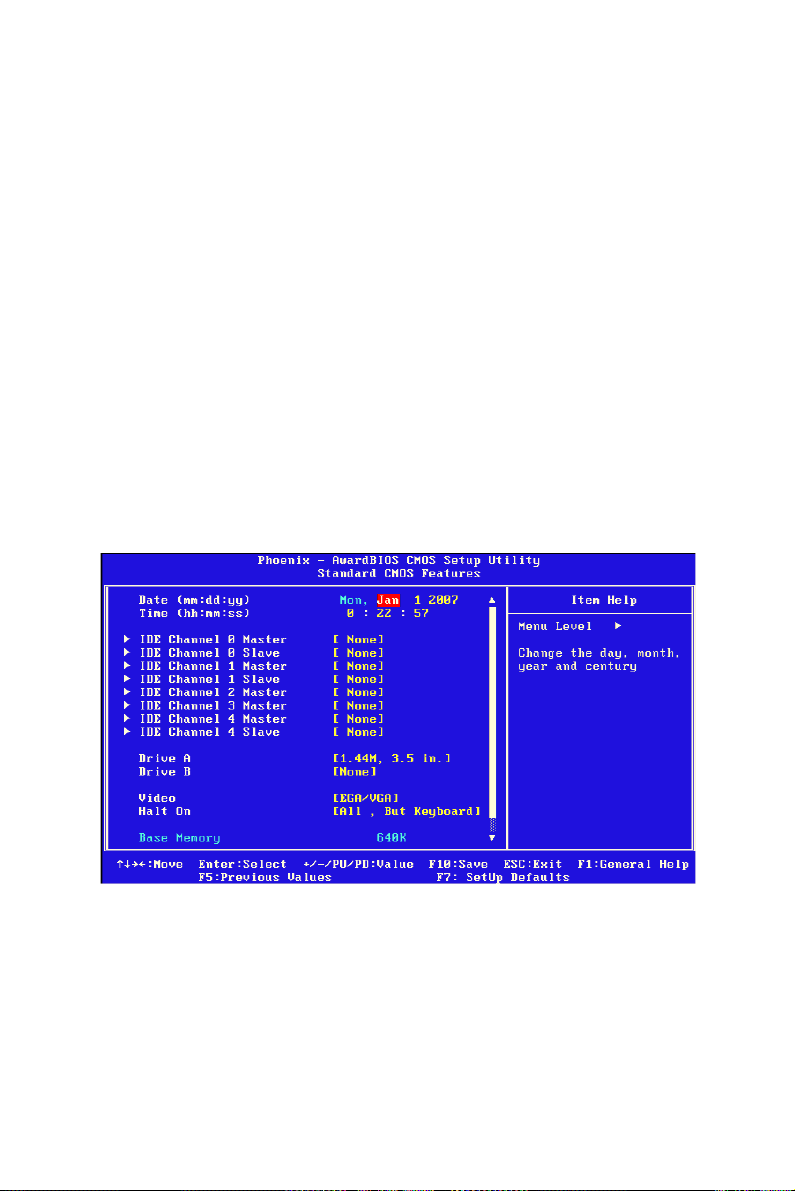

Figure 3.2: Standard CMOS Features Screen .............. 36

3.4 Advanced BIOS Features ................................................ 37

Figure 3.3: Advanced BIOS features screen................ 37

PCA-6194 User Manual x

3.4.1 CPU Features ................................................................ 37

3.4.2 Hard Disk Boot Priority................................................ 38

3.4.3 Virus Warning............................................................... 38

3.4.4 CPU L1, L2 & L3 Cache .............................................. 38

3.4.5 Quick Power On Self Test ............................................ 38

3.4.6 First/Second/Third Boot Device ................................... 38

3.4.7 Boot Other Device ........................................................ 38

3.4.8 Swap Floppy Drive....................................................... 38

3.4.9 Boot Up Floppy Seek.................................................... 38

3.4.10 Boot Up NumLock Status............................................. 38

3.4.11 Gate A20 Option ........................................................... 38

3.4.12 Typematic Rate Setting................................................. 38

3.4.13 Typematic Rate (Chars/Sec) ......................................... 39

3.4.14 Typematic Delay (msec) ............................................... 39

3.4.15 Security Option ............................................................. 39

3.4.16 APIC Mode ................................................................... 39

3.5 Advanced Chipset Features............................................. 40

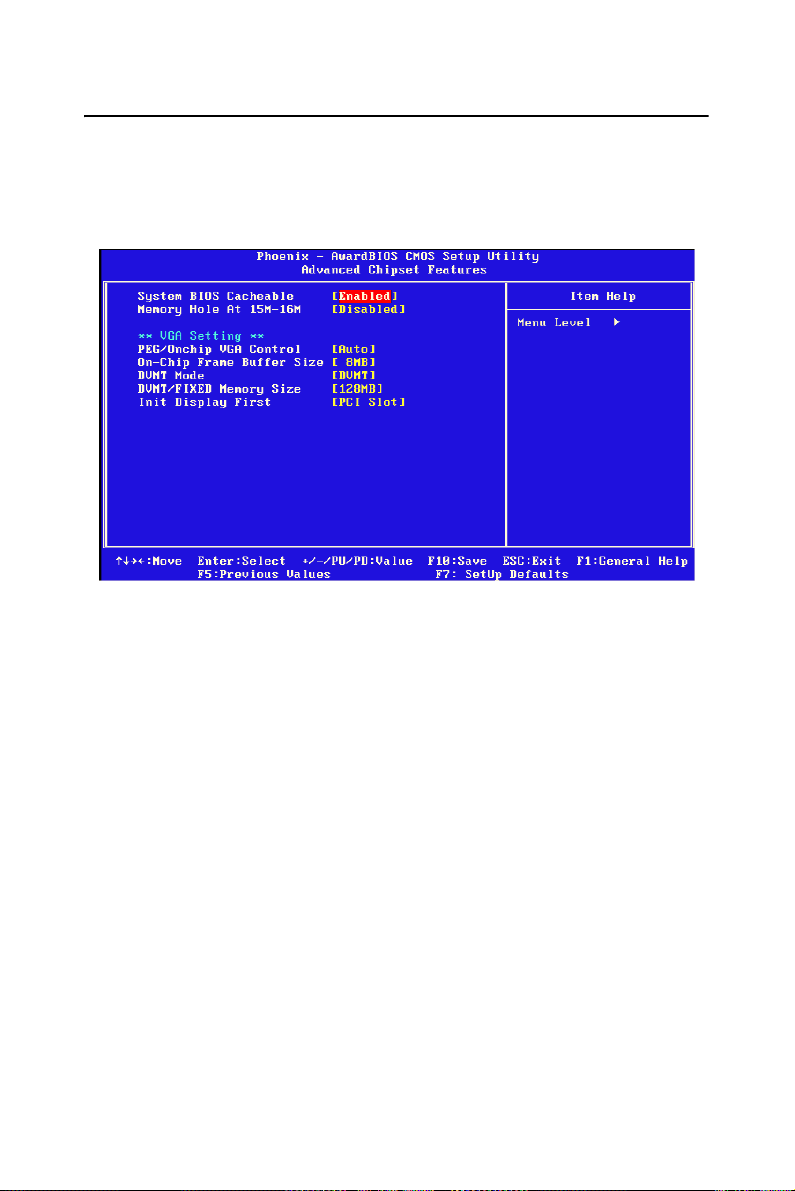

Figure 3.4: Advanced chipset features screen ............. 40

3.5.1 System BIOS Cacheable............................................... 40

3.5.2 Memory Hole At 15M-16M ......................................... 40

3.5.3 PEG / Onchip VGA Control ......................................... 40

3.5.4 On-Chip Frame Buffer Size.......................................... 40

3.5.5 DVMT Mode ................................................................ 40

3.5.6 DVMT / FIXED Memory Size ..................................... 41

3.5.7 Init Display First ........................................................... 41

3.6 Integrated Peripherals...................................................... 41

Figure 3.5: Integrated peripherals ................................ 41

Figure 3.6: On-Chip IDE Device................................. 42

3.6.1 IDE HDD Block Mode ................................................. 42

3.6.2 IDE DMA Transfer Access........................................... 42

3.6.3 On-Chip Primary / Secondary IDE Device................... 42

3.6.4 SATA Mode.................................................................. 43

3.6.5 Legacy mode support.................................................... 43

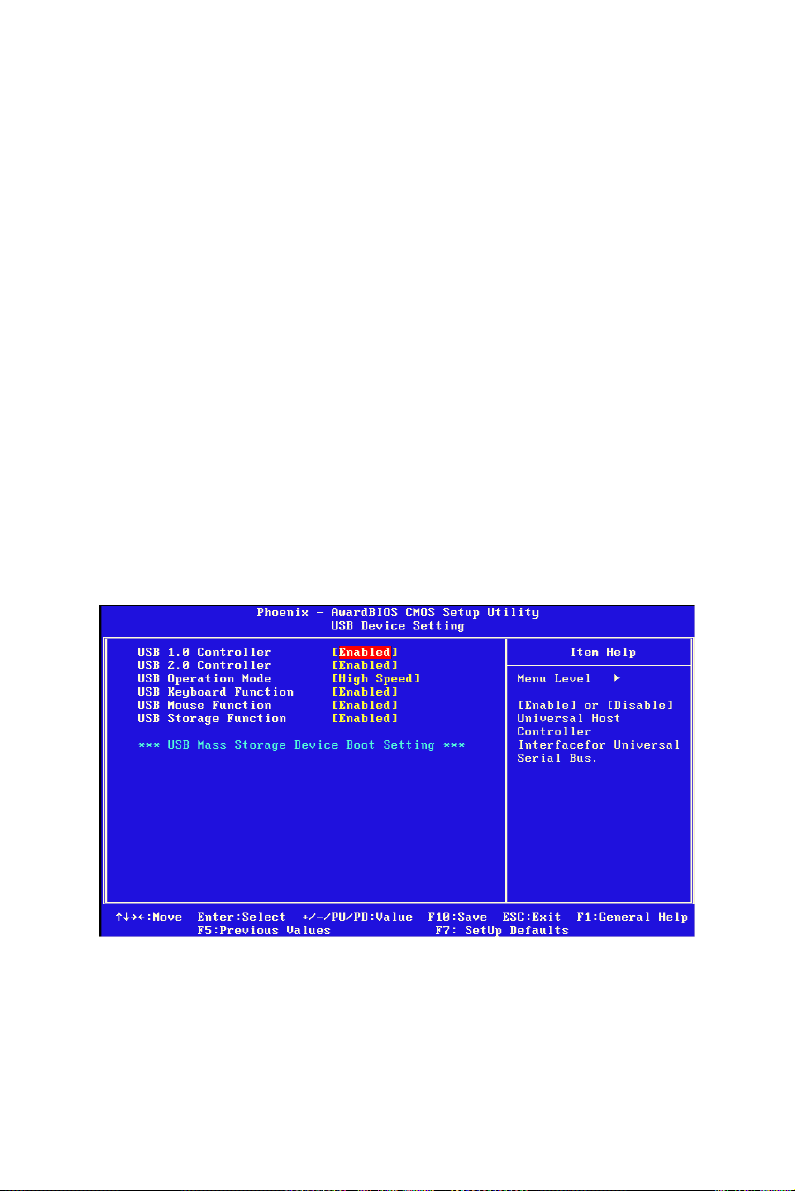

Figure 3.7: USB device setting .................................... 43

3.6.6 USB 1.0 Controller ....................................................... 43

3.6.7 USB 2.0 Controller ....................................................... 44

3.6.8 USB Operation mode.................................................... 44

3.6.9 USB Keyboard / Mouse Function................................. 44

3.6.10 USB storage function .................................................... 44

Figure 3.8: Onboard LAN devices............................... 44

3.6.11 Onboard LAN1 ROM ................................................... 44

3.6.12 Onboard LAN2 Control ................................................ 44

3.6.13 On board LAN2 ROM .................................................. 45

Figure 3.9: Super I/O Device ....................................... 45

3.6.14 Onboard FDC Controller .............................................. 45

xi

3.6.15 Onboard Serial Port 1 ................................................... 45

3.6.16 Onboard Serial Port 2 ................................................... 45

3.6.17 UART Mode Select ...................................................... 45

3.6.18 RxD, TxD Active .......................................................... 45

3.6.19 IR Transmission Delay ................................................. 46

3.6.20 UR2 Duplex Mode........................................................ 46

3.6.21 Use IR Pins ................................................................... 46

3.6.22 Onboard Parallel Port.................................................... 46

3.6.23 Parallel Port Mode ........................................................ 46

3.6.24 EPP Mode Select .......................................................... 46

3.6.25 ECP Mode Use DMA ................................................... 46

3.7 Power Management Setup............................................... 47

Figure 3.10:Power management setup screen (1)......... 47

3.7.1 PCI express PM Function ............................................. 47

3.7.2 Power Supply Type....................................................... 47

3.7.3 ACPI Function.............................................................. 47

3.7.4 Power Management ...................................................... 48

Table 3.1: Power Saving ............................................ 48

3.7.5 Video Off Method......................................................... 48

3.7.6 Video Off In Suspend ................................................... 48

3.7.7 Suspend Type................................................................ 48

3.7.8 Suspend Mode............................................................... 48

3.7.9 HDD Power Down........................................................ 48

3.7.10 Soft-Off by PWR-BTTN .............................................. 48

3.7.11 PowerOn by LAN ......................................................... 49

3.7.12 PowerOn by Modem ..................................................... 49

3.7.13 PowerOn by Alarm ....................................................... 49

3.7.14 Primary IDE 0 (1) and Secondary IDE 0 (1) ................ 49

3.7.15 FDD, COM, LPT PORT ............................................... 49

3.7.16 PCI PIRQ [A-D]# ......................................................... 49

3.8 PnP/PCI Configurations.................................................. 50

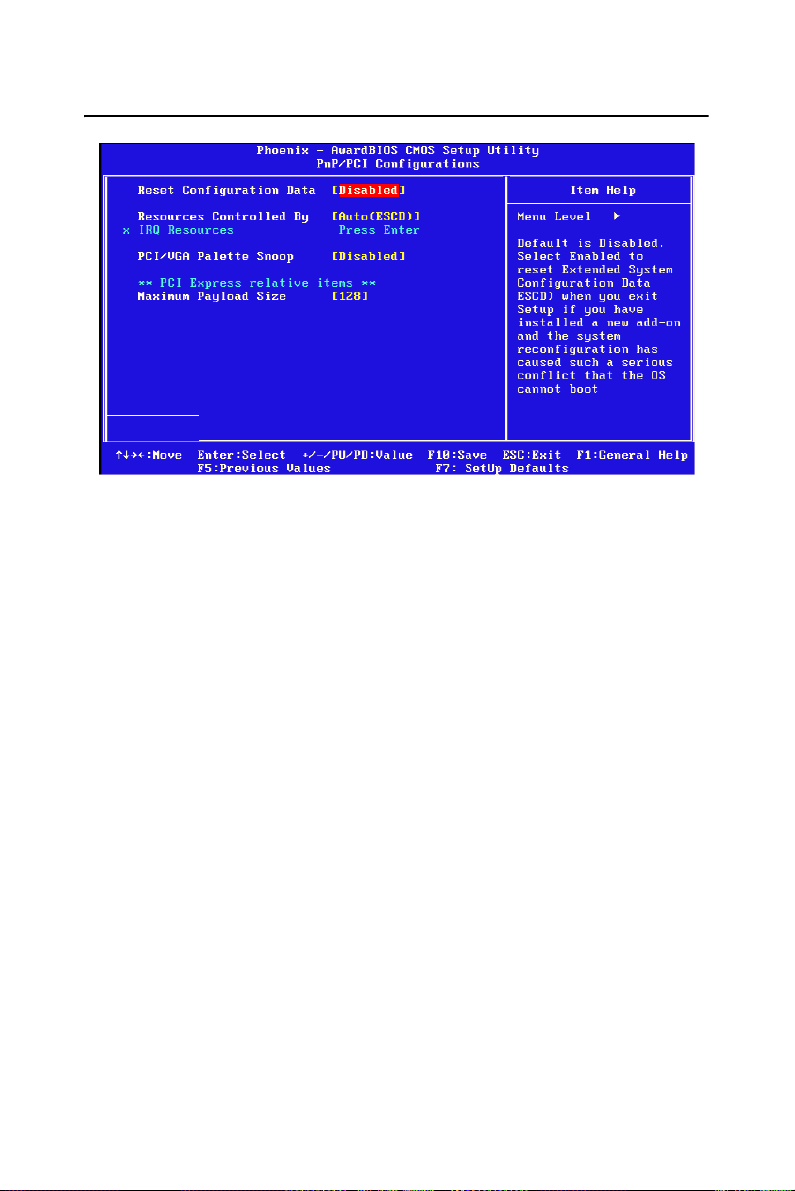

Figure 3.11:PnP/PCI configurations screen.................. 50

3.8.1 Reset Configuration Data.............................................. 50

3.8.2 Resources Controlled By .............................................. 50

3.8.3 PCI / VGA Palette Snoop ............................................. 50

3.8.4 Maximum Payload Size................................................ 50

3.9 PC Health Status.............................................................. 51

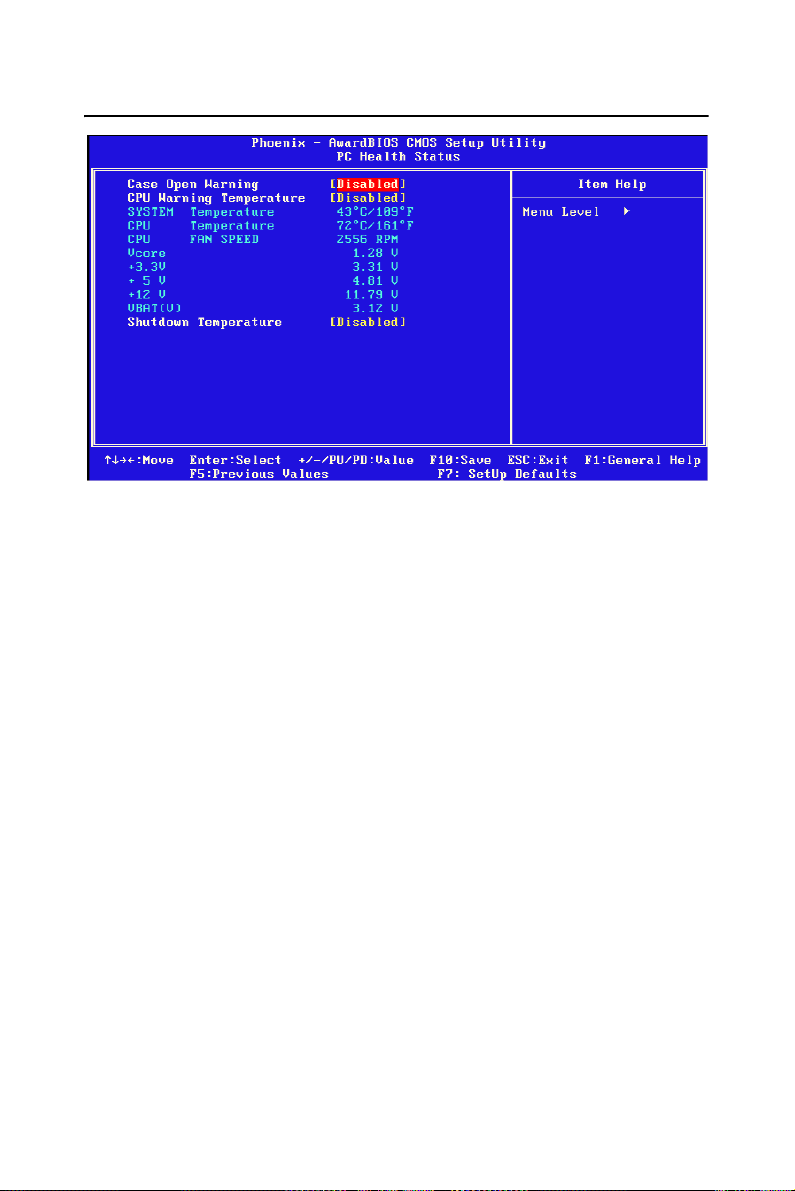

Figure 3.12:PC Health Status Screen ........................... 51

3.9.1 Case Open Warning...................................................... 51

3.9.2 CPU Warning Temperature .......................................... 51

3.9.3 System Temperature ..................................................... 51

3.9.4 CPU Temperature ......................................................... 51

3.9.5 CPU FAN Speed........................................................... 51

3.9.6 VCORE and Other Voltages......................................... 51

3.9.7 Shutdown Temperature................................................. 51

PCA-6194 User Manual xii

3.10 Frequency / Voltage Control........................................... 52

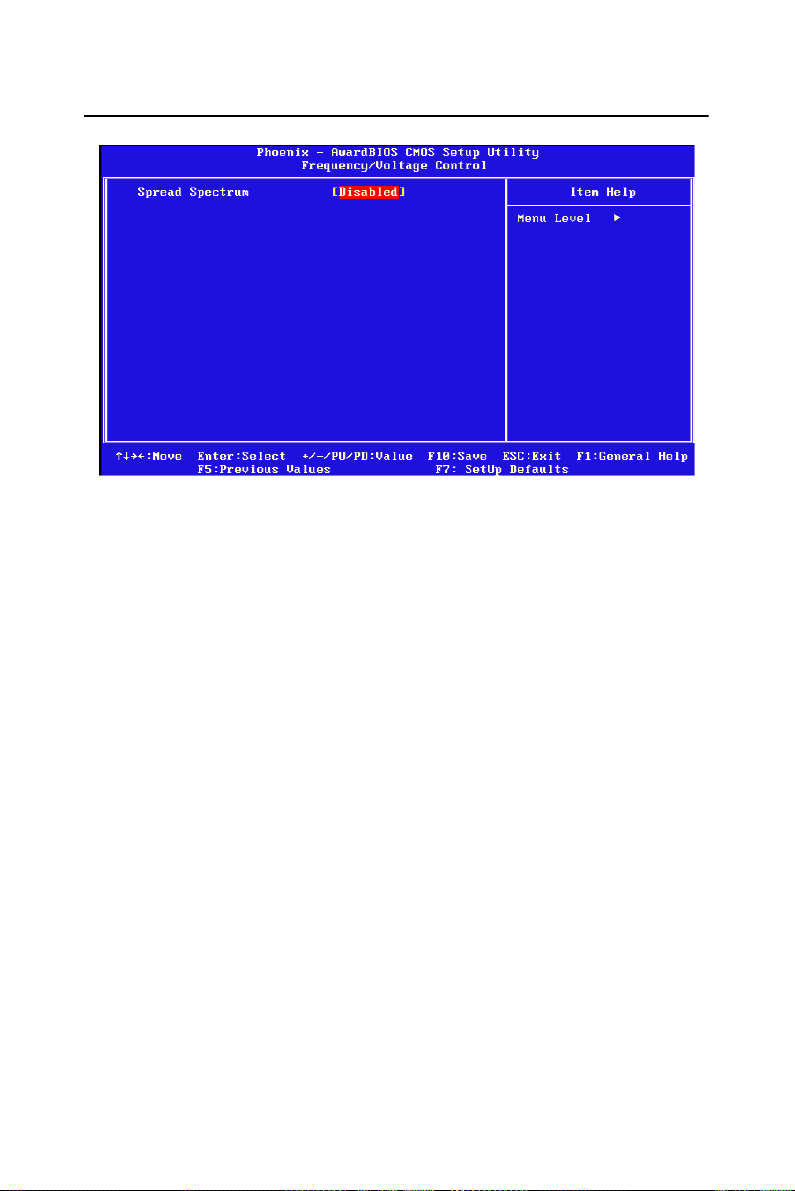

Figure 3.13:Spread Spectrum Control screen............... 52

3.10.1 Spread Spectrum ........................................................... 52

3.11 Load Setup Defaults........................................................ 53

Figure 3.14: Load Setup Defaults screen...................... 53

3.12 Password Setting............................................................. 53

3.13 Save & Exit Setup........................................................... 54

Figure 3.15:Save & exit setup ...................................... 54

3.14 Exit Without Saving........................................................ 55

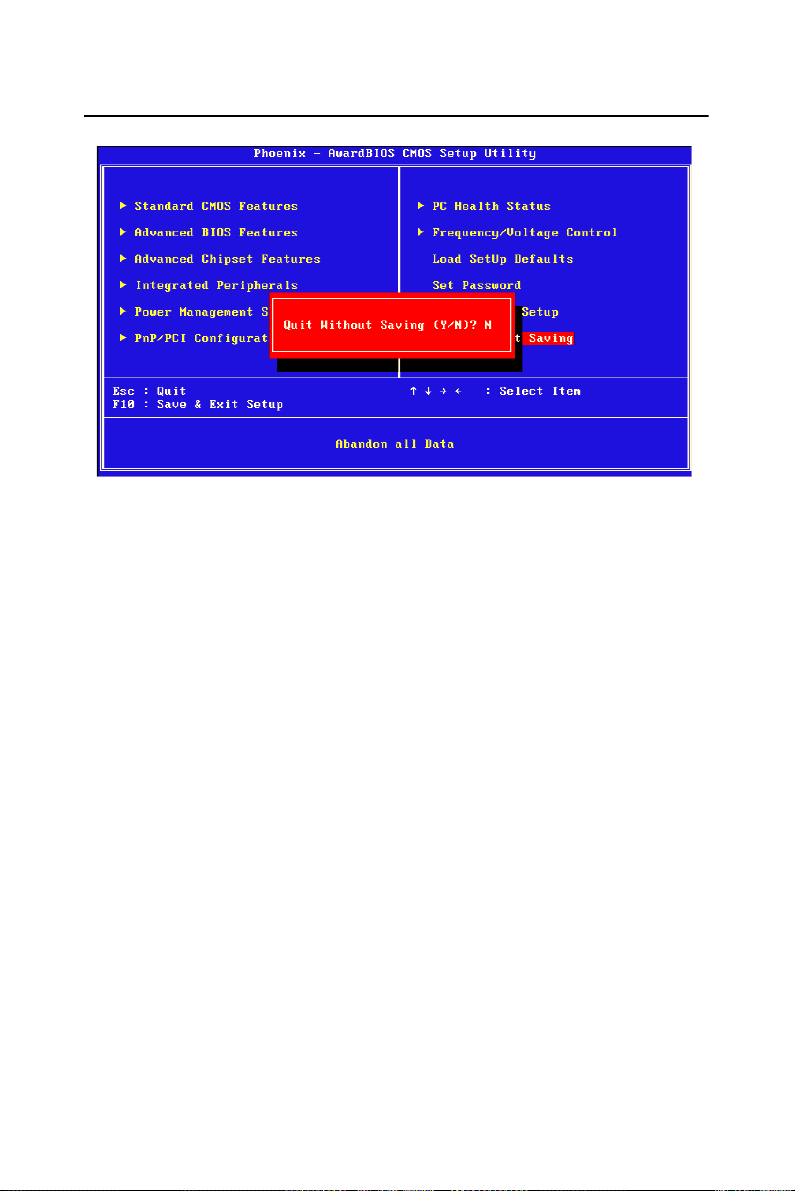

Figure 3.16:Exit without saving ................................... 55

Chapter 4 Chipset Software Install Utility.....................58

4.1 Before you begin............................................................. 58

4.2 Introduction..................................................................... 58

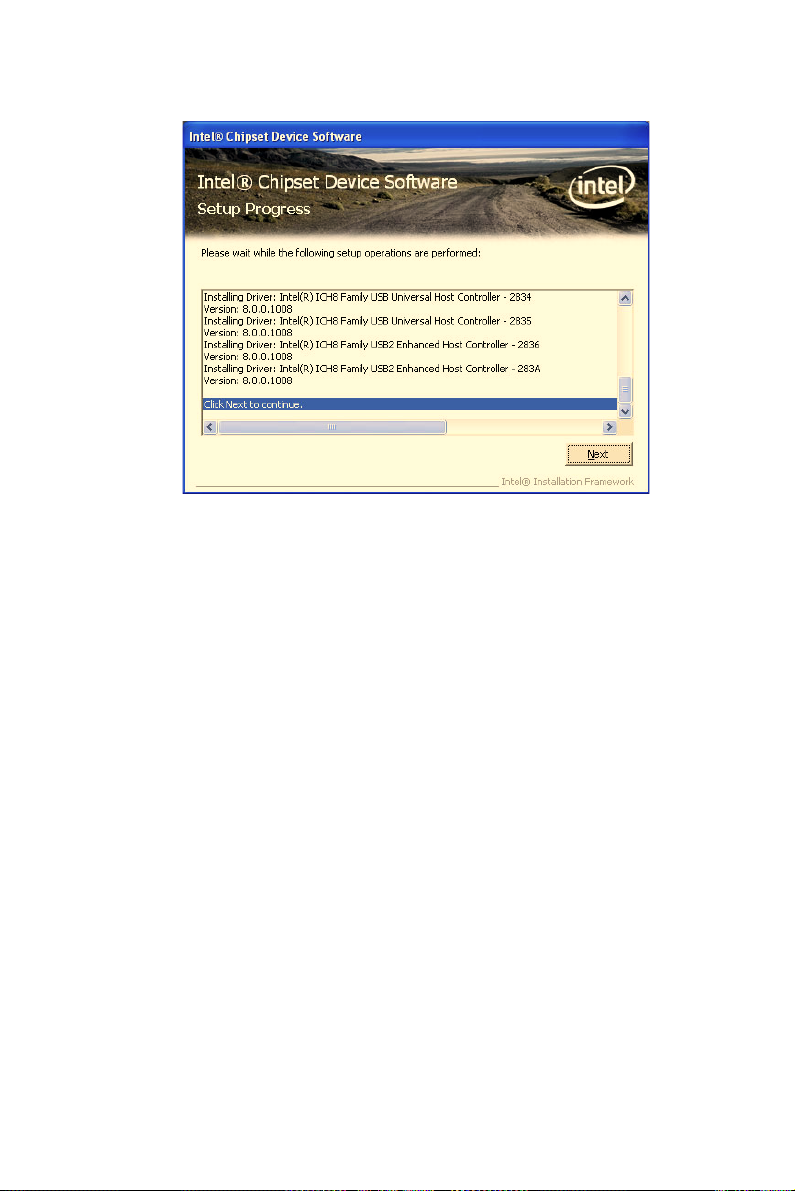

4.3 Windows XP Driver Setup.............................................. 59

Chapter 5 VGA Setup ......................................................64

5.1 Introduction..................................................................... 64

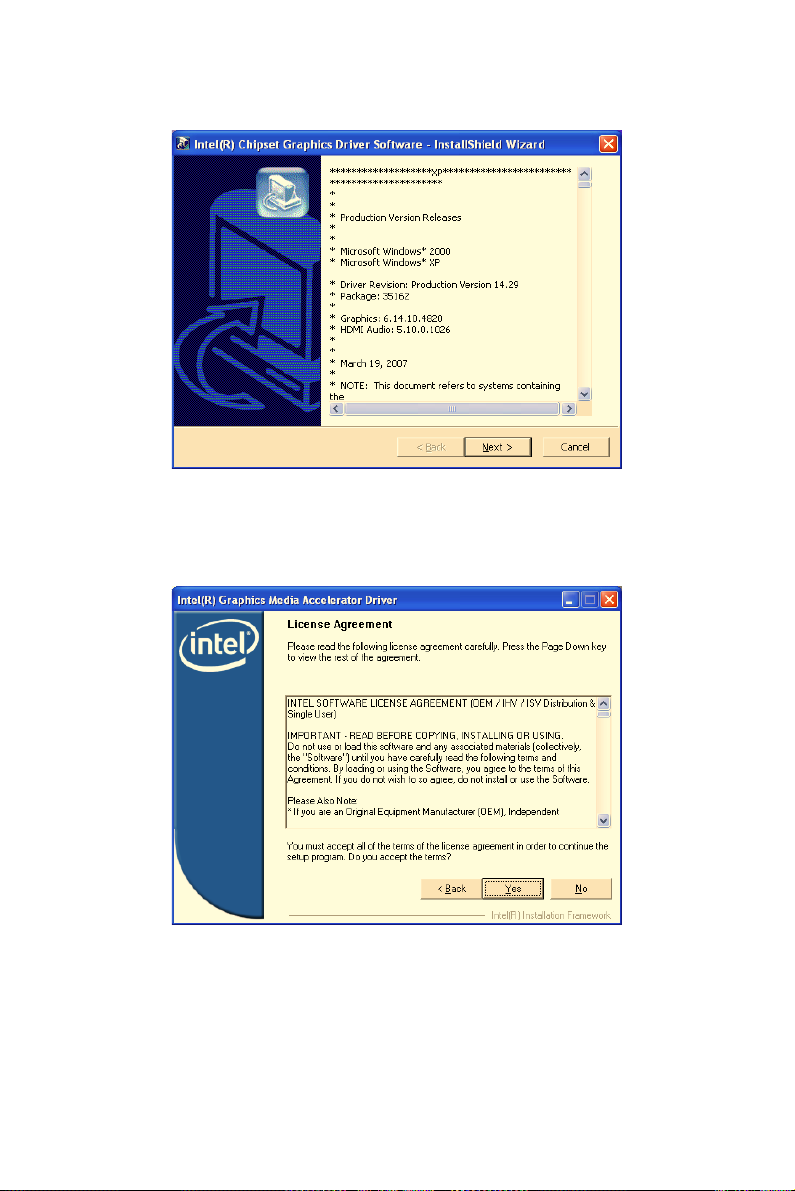

5.2 Windows XP Driver Setup.............................................. 64

Chapter 6 Onboard Security Setup ................................70

6.1 Introduction..................................................................... 70

6.2 Windows XP Driver Setup.............................................. 70

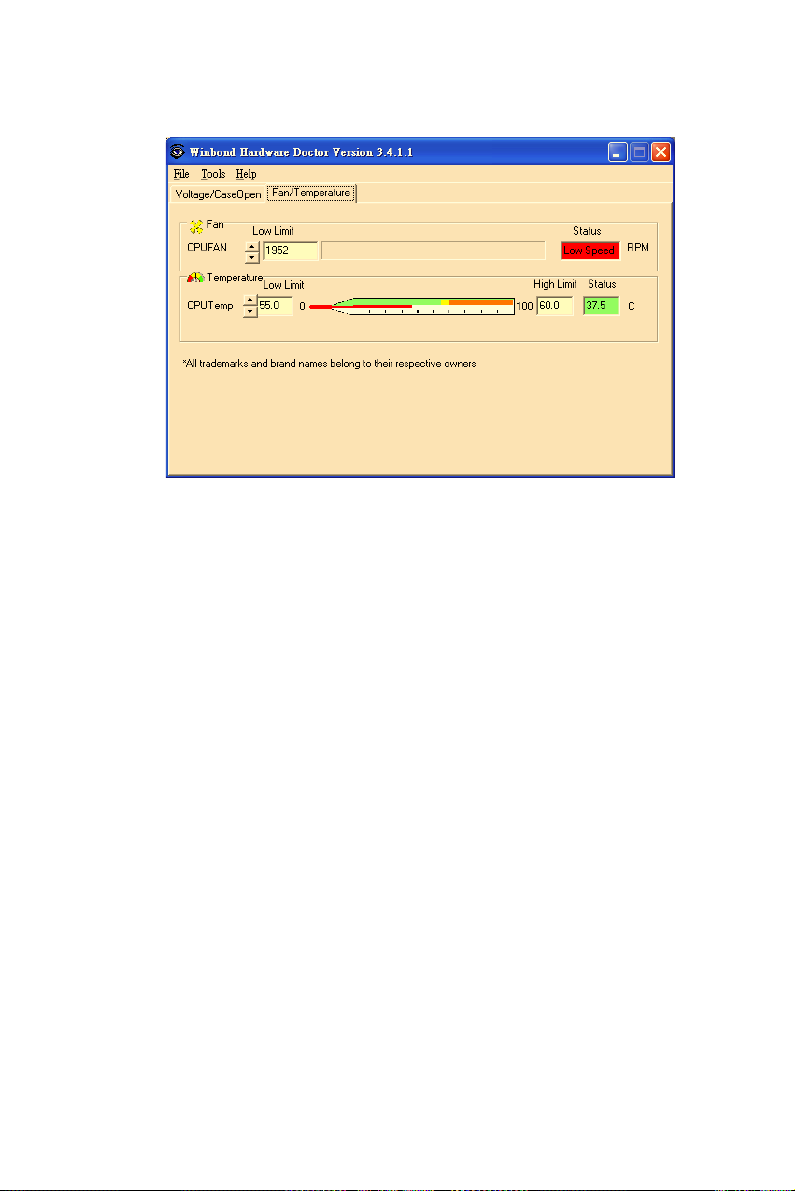

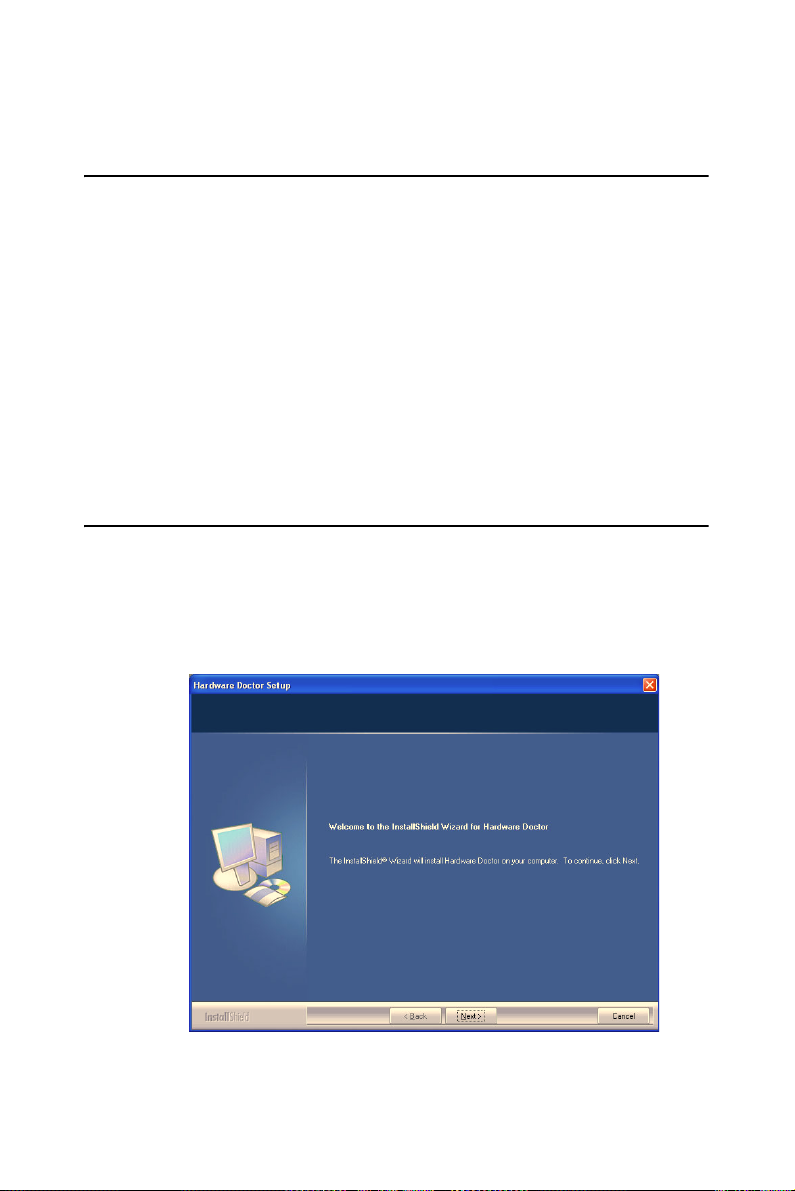

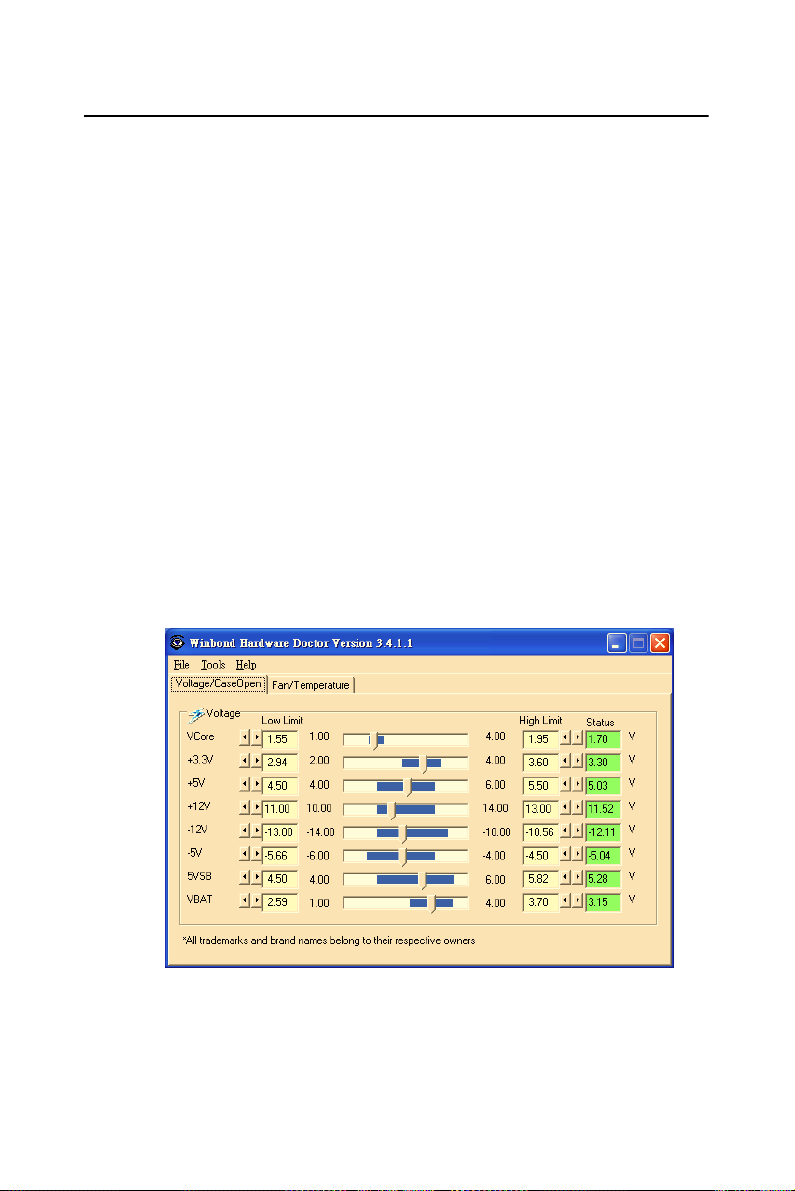

6.3 Using the OBS Hardware Doctor Utility ........................ 73

Chapter 7 LAN Configuration ........................................76

7.1 Introduction..................................................................... 76

7.2 Features ........................................................................... 76

7.3 Installation....................................................................... 76

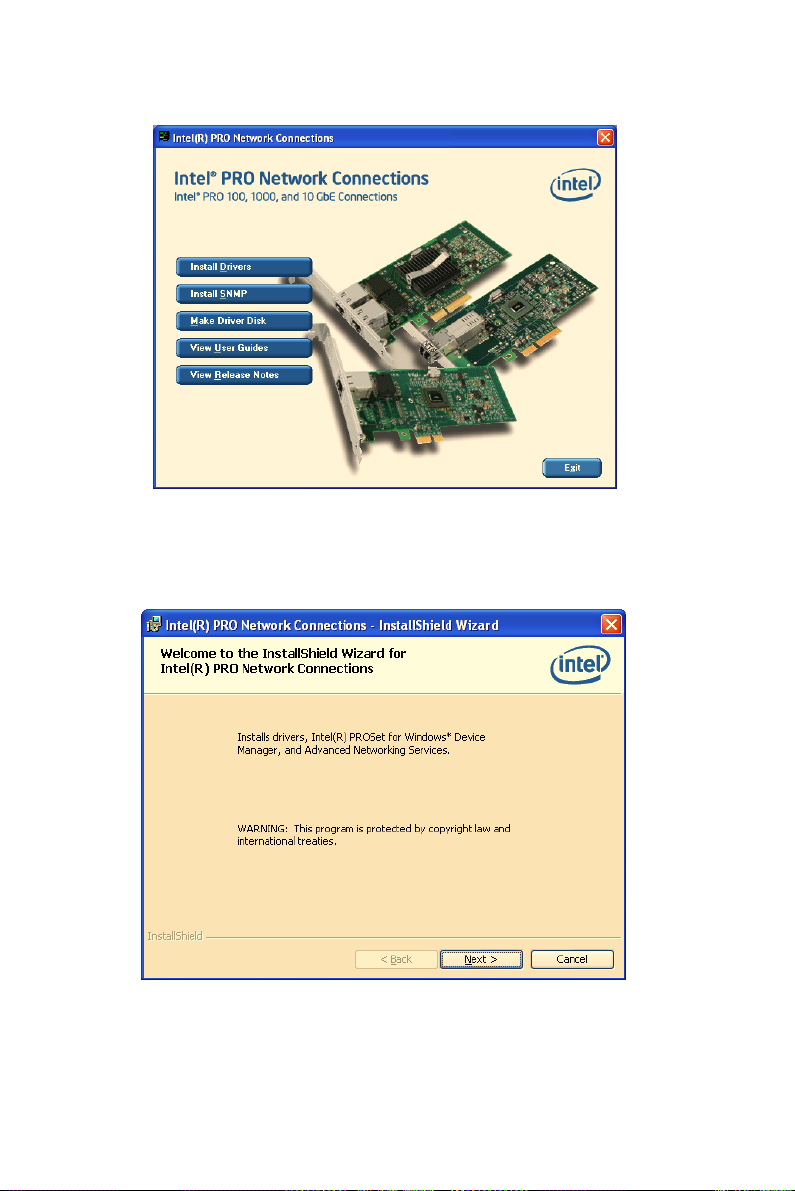

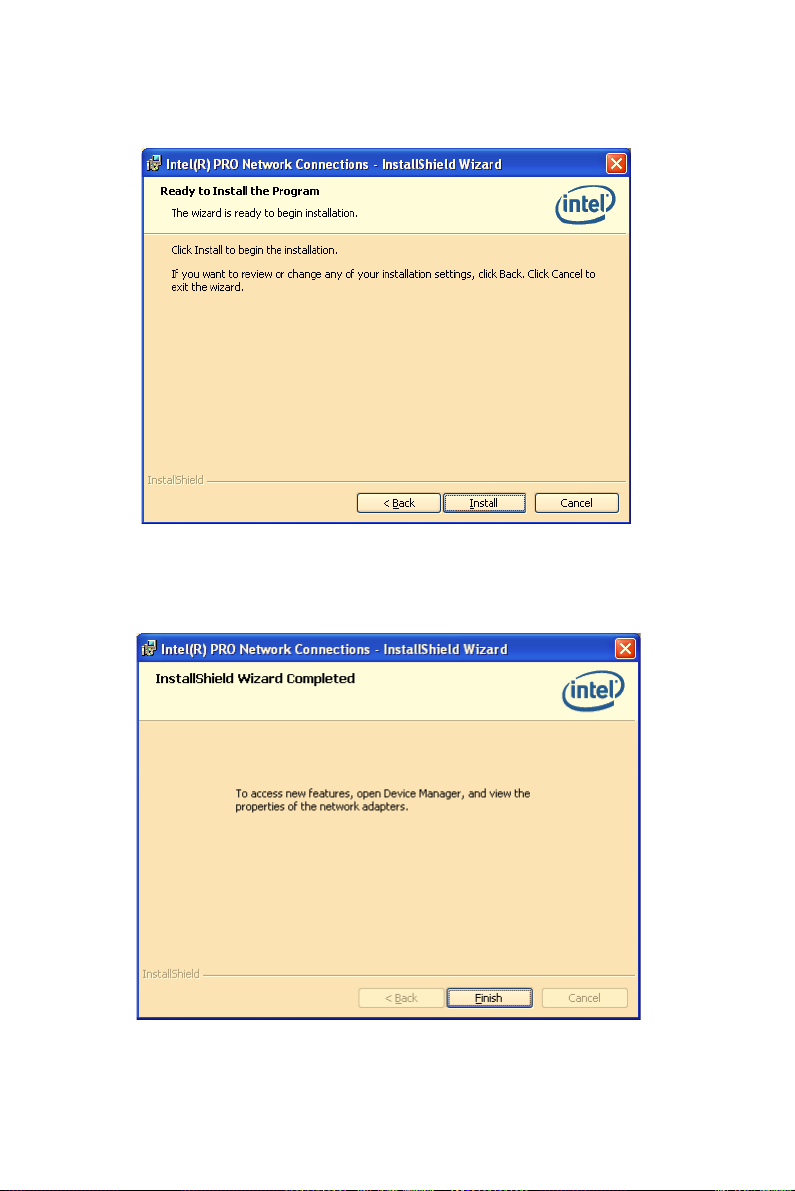

7.4 Win XP Driver Setup (LAN) .......................................... 77

Chapter 8 SATA RAID Setup .........................................82

8.1 Introduction..................................................................... 82

8.2 SATA RAID Driver and Utility Setup............................ 82

Chapter 9 IPMI ................................................................84

9.1 IPMI introduction............................................................ 84

9.2 Definitions....................................................................... 84

9.3 IPMI function list............................................................ 84

Table 9.1: Supported IPMI commands ...................... 84

9.4 IPMI OEM command lists .............................................. 88

Table 9.2: OEM Commands list................................. 88

Appendix A Watchdog Timer.............................................90

A.1 Programming the Watchdog Timer ................................. 90

A.1.1 Watchdog timer overview............................................. 90

A.1.2 Jumper selection ........................................................... 90

xiii

A.1.3 Programming the Watchdog Timer .............................. 90

Table A.1: Watchdog timer registers .......................... 92

A.1.4 Example Program ......................................................... 93

Appendix B I/O Pin Assignments.....................................100

B.1 IDE Hard Drive Connector (IDE1) ............................... 100

Table B.1: IDE hard drive connector (IDE1)............ 100

B.2 Floppy Drive Connector (FDD1) .................................. 101

Table B.2: Floppy drive connector (FDD1).............. 101

B.3 Parallel Port Connector (LPT1)..................................... 102

Table B.3: Parallel port connector (LPT1)................ 102

B.4 VGA Connector (VGA1) .............................................. 103

Table B.4: VGA connector (VGA1) ......................... 103

B.5 DVI Connector (VCN1) ................................................ 103

Table B.5: DVI Connector (VCN1) .......................... 103

B.6 RS-232 Serial Port (COM1, COM2)............................. 104

Table B.6: RS-232 serial port (COM1, COM2) ....... 104

B.7 PS/2 Keyboard/Mouse Connector (KBMS1) ................ 105

Table B.7: PS/2 keyboard/mouse connector

(KBMS1)................................................. 105

B.8 External Keyboard Connector (KBMS2)...................... 105

Table B.8: External keyboard connector (KBMS2).. 105

B.9 CPU Fan Power Connector (CPUFAN1)...................... 106

Table B.9: CPU Fan Power Connector

(CPUFAN1) ............................................ 106

B.10 Power LED and Keyboard Lock Connector (JFP3 /

PWR_LED & KEY LOCK).......................................... 106

Table B.10: Power LED and Keyboard Lock Connector

(JFP3 / PWR_LED & KEY LOCK) ....... 106

B.11 External Speaker Connector (JFP2 / SPEAKER) ......... 107

Table B.11: External Speaker Connector (JFP2 / SPEAK-

ER) .......................................................... 107

B.12 Reset Connector (JFP1 / RESET) ................................. 107

Table B.12: Reset connector (JFP1 / RESET) ............ 107

B.13 HDD LED (JFP2 / HDDLED) ...................................... 108

Table B.13: HDD LED (JFP2 / HDDLED)................ 108

B.14 ATX Soft Power Switch (JFP1 / PWR_SW) ................ 108

Table B.14: ATX soft power switch

(JFP1 / PWR_SW) .................................. 108

B.15 Hi-definition Audio Link Connector (HDAUD1) ........ 109

Table B.15: Hi-definition audio link connector

(HDAUD1).............................................. 109

B.16 SM Bus Connector (JFP2 / SNMP)............................... 109

Table B.16: SM bus connector (JFP2 / SNMP).......... 109

PCA-6194 User Manual xiv

B.17 LAN1 and LAN2 LED connector (LANLED1) ........... 110

Table B.17: LAN1 and LAN2 LED connector

(LANLED1) ............................................ 110

B.18 ATX Feature Connector (ATXF1)................................ 110

Table B.18: ATX feature connector (ATXF1)............ 110

B.19 GPIO header (GPIO1) ................................................... 111

Table B.19: GPIO header (GPIO1)............................. 111

B.20 System I/O Ports............................................................ 112

Table B.20: System I/O ports...................................... 112

B.21 DMA Channel Assignments.......................................... 113

Table B.21: DMA channel assignments ..................... 113

B.22 Interrupt Assignments ................................................... 114

Table B.22: Interrupt assignments .............................. 114

B.23 1st MB Memory Map.................................................... 114

Table B.23: 1st MB memory map............................... 114

B.24 PCI Bus Map ................................................................. 115

Table B.24: PCI bus map ............................................ 115

Appendix C Programming GPIO.....................................118

C.1 Supported GPIO Register.............................................. 118

C.1.1 GPIO Registers ........................................................... 118

C.1.2 GPIO Example program-1 .......................................... 119

xv

PCA-6194 User Manual xvi

Hardware
Configuration

1

CHAPTER

1 Chapter 1

Chapter 1 Hardware Configuration

1.1 Introduction

The PCA-6194 is designed with the Intel® Q965 chipset and ICH8DO (I/
O controller) to support Core™ 2 Duo, Dual-Core Pentium® D / Pen­tium® 4 / Celeron® D processors with a 533/800/1066 MHz front side
bus and DDR2 533/667/800 MHz memory up to 8 GB. It follows the
PICMG 1.0 specification and is the best solution for high-performance
computing and applications in which a wide I/O bandwidth is demanded.

The PCA-6194 supports IPMI 2.0 for enhanced system management.
With this feature users may manage and monitor the system health status
remotely. Another remote management port allows users to monitor the
system health status and control the system remotely through standard
SNMP/HTTP protocols when used with Advantech’s ACMM-1000 and
SNMP-1000 Intelligent System Manager modules.

The PCA-6194 offers a high-performance cost-saving integrated graphics
unit, built into the Intel® Q965 chipset, and features the unique Intel®
Extreme Graphics architecture to maximize VGA performance and share
up to 256 MB of system memory. In addition, the PCA-6194 has a single/
dual Gigabit Ethernet LAN via dedicated PCI Express x 1 bus, which
offers bandwidths up to 500 MB/sec., eliminating the network data flow
bottlenecks, and incorporating Gigabit Ethernet to operate at 1000 Mbps.
High reliability and outstanding performance make the PCA-6194 the
ideal platform for industrial networking applications.

By using the Intel® ICH8DO chipset, the PCA-6194 offers six on-board
SATA2 interfaces (bandwidth = 300 MB/sec) with software RAID 0, 1,
5, 10 functions; and six USB 2.0 connections. These powerful I/O capa­bilities ensure even more reliable data storage capabilities and suitable for
work with high-speed I/O peripherals.

The ICH8DO provides a new high definition audio interface. Combined
with Advantech's PCA-AUDIO-HDA1E module, the PCA-6194 offers
excellent audio functions for the industrial environment.

The PCA-6194 is designed with considerations for extended reliability,
and is built especially to suit demanding industrial environments. The
CMOS data backup and restore function protects the BIOS setup data
from loss due to battery failure. A 256-level watchdog timer prevents the
system from hanging up if a program cannot be executed normally.

PCA-6194 User Manual 2

The PCA-6194 also adopts Advantech's unique patented “Sleep Mode
Control Circuit” for AT Power Mode. With this thoughtful design, users
need NOT clear the CMOS after the system enters S3 mode. With all
these excellent features and outstanding performance, the PCA-6194 is
definitely the ideal platform for today's industrial applications.

1.2 Features

• Supports LGA 775 Intel® Core 2 Duo / Pentium D / Pentium 4 / Cele­ron D FSB 1066/800/533 MHz processors

• Supports Dual-channel DDR II 800/667/533 SDRAM up to 8 GB

• Dual Gigabit Ethernet via two PCI Express x1 port

• Supports IPMI 2.0 with on board BMC module

• 6 SATA II HDDs

• Supports software SATA Raid 0, 1, 5 & 10

• 6 USB 2.0 ports

• 2 COM ports. COM2 port can be configured to support RS-232/422/
485 through a pin header

• CMOS automatic backup and restore to prevent accidental data loss of
BIOS setup

1.3 Specifications

1.3.1 System

• CPU: Intel® LGA 775 Core™ 2 Duo, Pentium D, Pentium 4, Celeron
D up to 2.66/3.6/3.8/3.33 GHz, FSB 533/8001066 MHz.

• L2 Cache: CPU has built-in 4 MB (for Core™ 2 Duo), 2 x 1024KB/2 x
2048KB (for Pentium D CPU), 1024KB/2048KB (for Pentium 4
CPU), 256KB/512 KB (For Celeron D CPU) full-speed L2 cache.

• BIOS: Award Flash BIOS (16 Mb Flash via SPI bus)

• System Chipset: Intel Q965 with ICH8DO

• SATA/EIDE hard disk drive interface: Six on-board SATA2 connec-
tors with data transmission rate up to 300 MB/s and supporting
Advanced Host controller interface (AHCI) technology. One on-board
IDE connector supporting up to two
PIO mode 4 (16.67MB/s data transfer rate) and ATA 33/66/100 (33/66/
100MB/s data transfer rate.)

enhanced IDE devices. Supports

3 Chapter 1

• Floppy disk drive interface: Supports one floppy disk drive, 5¼" (360
KB and 1.2 MB) or 3½" (720 KB, 1.44 MB). BIOS enable/disable

1.3.2 Memory

• RAM:

Up to 8 GB in four 240-pin DIMM sockets. Supports dual-chan-

nel DDRII 533/667/800 SDRAM.

1.3.3 VGA interface

• Controller: Intel Q965 chipset integrated

• Display memory: Share system memory up to 256 MB

• Resolution: up to 2048x1536 @ 75Hz

1.3.4 Input/Output

• Bus interface: PICMG 1.0 compliant PCI/ISA bus interface.

• PCI Bus: 32-bit / 33 MHz

• ISA bus: Supports ISA high drive (ITE IT8888 PCI-to-ISA bridge)

• Enhanced parallel port: Configured to LPT1, LPT2, LPT3, or dis­abled. Standard DB-25 female connector provided. Supports EPP/SPP/
ECP

• Serial ports: Two serial ports on-board pin header, COM2 port can be
configured for support RS-232/422/485.

• Keyboard and PS/2 mouse connector:
is located on the mounting bracket for easy connection to a keyboard or
PS/2 mouse. An on board keyboard pin header connector is also avail­able

• USB port: Supports up to six USB 2.0 ports with transmission rate up
to 480Mbps.

• Audio: PCA-6194 can provide audio with the optional PCA-AUDIO­HDA1E audio extension module

One 6-pin mini-DIN connector

1.3.5 Ethernet LAN

• Supporting single/dual 10/100/1000Base-T Ethernet port(s) via PCI
Express x1 bus which provides 500 MB/s data transmission rate.

• Controller:

LAN 1: Intel® 82566DM (G2 version or VG version)

LAN 2: Intel® 82573V (G2 Version)

1.3.6 Industrial features

PCA-6194 User Manual 4

• Watchdog timer: Can generate a system reset. The watchdog timer is
programmable, with each unit equal to one second or one minute (255
levels)

1.3.7 Mechanical and environmental specifications

• Operating temperature: 0 ~ 60° C (32 ~ 140° F, Depending on CPU)

• Storage temperature: -20 ~ 70° C (-4 ~ 158° F)

• Humidity: 20 ~ 95% non-condensing

• Power supply voltage: +3.3V, +5V, +12V, +5VSBY

• Power consumption:
Configuration 1: Intel Pentium D 960 (3.60 GHz,130 W) & 4 GB of
DDRII 800
Configuration 2: Intel Core 2 Duo E6700 (2.66 GHz, 65W) & 4 GB of
DDRII 800

• Tes t pro g ram : Intel Max power 100% + BurnIn Test 4.0
+12 V Config1: 13 A / Config2: 6.6 A
+5 V 10 A
+3.3 V 0 A
+5 VSB 0.7 A

-12 V 0 A

-5 V 0 A

• Board size: 338 x 122 mm (13.3" x 4.8")

• Board weight: 0.5 kg (1.2 lb)

5 Chapter 1

1.4 Jumpers and Connectors

Connectors on the PCA-6194 single board computer link it to external
devices such as hard disk drives and a keyboard. In addition, the board has a
number of jumpers used to configure your system for your application.

The tables below list the function of each of the board jumpers and connec­tors. Later sections in this chapter give instructions on setting jumpers. Chap­ter 2 gives instructions for connecting external devices to your motherboard.

Table 1.1: Jumpers

Label Function

CMOS1 CMOS Clear

JWDT1 Watchdog timer output selection

JSETCOM2 COM2 RS 232/422/485 mode selector

Table 1.2: Connectors

Label Function

IDE1 Primary IDE connector

FDD1 Floppy Drive Connector

LPT1 Parallel port

VGA1 VGA1 VGA connector

VCN1 DVI connector

COM1 Serial port: COM1 (9-pin connector)

COM2 Serial port: COM2 (9-pin connector)

KBMS1 PS/2 keyboard and mouse connector

KBMS2 External keyboard/mouse connector

ATX1 ATX 12V Auxiliary power connector (for CPU)

CPUFAN1 CPU1 fan connector

ATXF1 ATX feature connector

JFP1 Power and Reset Button connector

JFP2 HDD LED/SNMP SMbus/Speaker connector

JFP3 Power LED and keyboard lock connector

JIR Reserved

PCA-6194 User Manual 6

Table 1.2: Connectors

Label Function

JOBS1 HW Monitor Alarm

Close: Enable OBS Alarm
Open: Disable OBS Alarm

LAN1~2 Giga LAN RJ45 connectors

IPMB1 IPMB connector

HDAUD1 Hi-definition audio link connector

SATA1~6 Serial ATA1~6

LANLED1 LAN1 and LAN2 LED connector

BMC1 BMC connector

USB1~3 USB port pin headers

SPI BIOS SPI Interface

GPIO1 GPIO pin header (SMD pitch-2.0 mm)

JCASE1 Case open

7 Chapter 1

1.5 Board Layout: Jumper and Connector Locations

1

JFP2

JFP1

JFP3

ATX1

CPU1

CPUFAN1

ATXF1

DIMMB1

DIMMB2

DIMMA2

DIMMA1

VCN1

LANLED1

HDAUD1

SATA1 SATA2

USB3 USB2

USB1

LPT1

FDD1

SATA3

SATA4

SATA5

SATA6

JSETCOM2

LAN2

LAN1

COM1

IDE1

COM2

KBMS

JCASE1

KBMS2

CMOS1

JIR1

JOBS1

GPIO1

SPI

BMC1

IPMB1

JWDT1

VGA1

Figure 1.1: Jumper and Connector locations

PCA-6194 User Manual 8

1.6 PCA-6194 Block Diagram

Figure 1.2: PCA-6194 Block Diagram

9 Chapter 1

1.7 Safety Precautions

Warning!

Caution! Always ground yourself to remove any static

Caution! The computer is provided with a battery-pow-

Always completely disconnect the power cord
from your chassis whenever you work with the
hardware. Do not make connections while the
power is on. Sensitive electronic components
can be damaged by sudden power surges. Only
experienced electronics personnel should open
the PC chassis.

charge before touching the boards. Modern
electronic devices are very sensitive to static
electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all elec­tronic components on a static-dissipative sur­face or in a static-shielded bag when they are
not in the chassis.

ered Real-time Clock circuit. There is a danger
of explosion if battery is incorrectly replaced.
Replace only with same or equivalent type rec­ommended by the manufacturer. Discard used
batteries according to manufacturer's instruc­tions.

Caution! There is a danger of a new battery exploding if

it is incorrectly installed. Do not attempt to
recharge, force open, or heat the battery.
Replace the battery only with the same or
equivalent type recommended by the manufac­turer. Discard used batteries according to the
manufacturer’s instructions.

PCA-6194 User Manual 10

1.8 Jumper Settings

This section provides instructions on how to configure your PCA-6194
by setting the jumpers. It also includes the PCA-6194's default settings
and your options for each jumper.

1.8.1 How to set jumpers

You can configure your PCA-6194 to match the needs of your applica-
tion by setting the jumpers. A jumper is a metal bridge that closes an elec­trical circuit. It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect them. To
“close” (or turn ON) a jumper, you connect the pins with the clip. To
“open” (or turn OFF) a jumper, you remove the clip. Sometimes a jumper
consists of a set of three pins, labeled 1, 2, and 3. In this case you connect
either pins 1 and 2, or 2 and 3. A pair of needle-nose pliers may be useful
when setting jumpers.

1.8.2 CMOS clear (CMOS1)

The PCA-6194 single board computer contains a jumper that can erase
CMOS data and reset the system BIOS information. Normally this
jumper should be set with pins 1-2 closed. If you want to reset the CMOS
data, set CMOS1 to 2-3 closed for just a few seconds, and then move the
jumper back to 1-2 closed. This procedure will reset the CMOS to its
default setting.

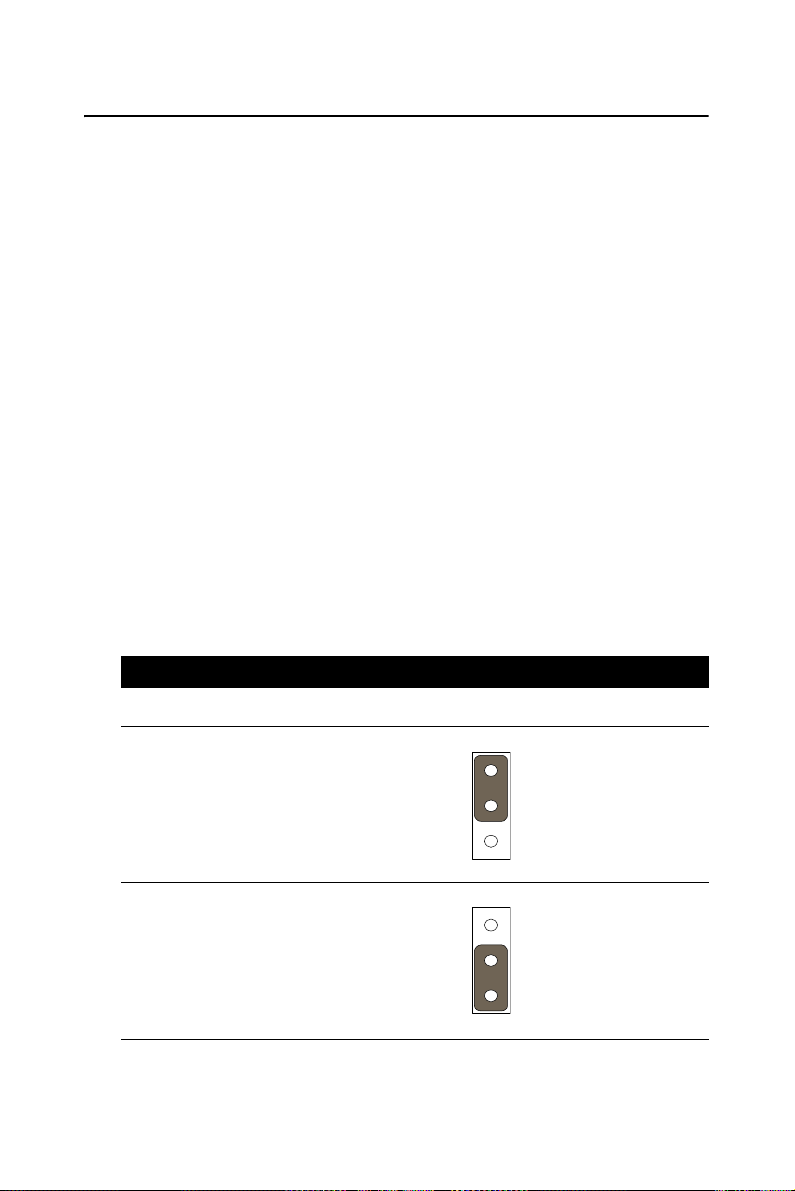

Table 1.3: CMOS (CMOS1)

Function Jumper Setting

* Keep CMOS data

1

2
3

Clear CMOS data

1

2
3

* default setting

11 Chapter 1

1-2 closed

2-3 closed

1.8.3 Watchdog timer output (JWDT1)

The PCA-6194 contains a watchdog timer that will reset the CPU in the
event the CPU stops processing. This feature means the PCA-6194 will
recover from a software failure or an EMI problem. The JWDT1 jumper
settings control the outcome of what the computer will do in the event the
watchdog timer is tripped.

Table 1.4: Watchdog timer output (JWDT1)

Function Jumper Setting

Reserved

1

2

1-2 closed

3

* Reset

1

2

2-3 closed

3

*default setting

PCA-6194 User Manual 12

1.8.4 COM2 RS 232/422/485 mode selector (JSETCOM2)

Users can use JSETCOM2 to select among RS 232/422/485 modes for
COM2. The default setting is RS 232.

Table 1.5: COM2 RS 232/422/485 mode selector (JSETCOM2)

RS-232 * RS-422 RS-485

*default setting

1.9 System Memory

The PCA-6194 has four sockets for 240-pin dual inline memory modules
(DIMMs) in two memory channels.

All these sockets use 1.8 V unbuffered double data rate synchronous
DRAMs (DDR SDRAM). They are available in capacities of 256, 512,
1024 and 2048 MB. The sockets can be filled in any combination with
DIMMs of any size, giving a total memory size between 256 MB and 8
GB.

1.9.1 CPU FSB and memory speed

The PCA-6194 can accept DDR2 SDRAM memory chips without parity.
Also note: The PCA-6194 accepts DDR2 533/667/800 MHz SDRAM.
The PCA-6194 does NOT support ECC (error checking and correction).

1.10 Memory Installation Procedures

To install DIMMs, first make sure the two handles of the DIMM socket
are in the “open” position. i.e. The handles lean outward. Slowly slide the

13 Chapter 1

DIMM module along the plastic guides on both ends of the socket. Then
press the DIMM module right down into the socket, until you hear a
click. This is when the two handles have automatically locked the mem­ory module into the correct position of the DIMM socket. To remove the
memory module, just push both handles outward, and the memory mod­ule will be ejected by the mechanism in the socket.

1.11 Cache Memory

The CPU that PCA-6194 supports built-in 4 MB (for Core™ 2 Duo), 2 x
1024KB/2 x 2048KB cache memory (for Pentium D CPU), and 1024KB/
2048KB (for Pentium 4 CPU), and 256KB/512 KB (For Celeron D CPU)
full-speed L2 cache. The built-in second-level cache in the processor
yields much higher performance than conventional external cache memo­ries.

PCA-6194 User Manual 14

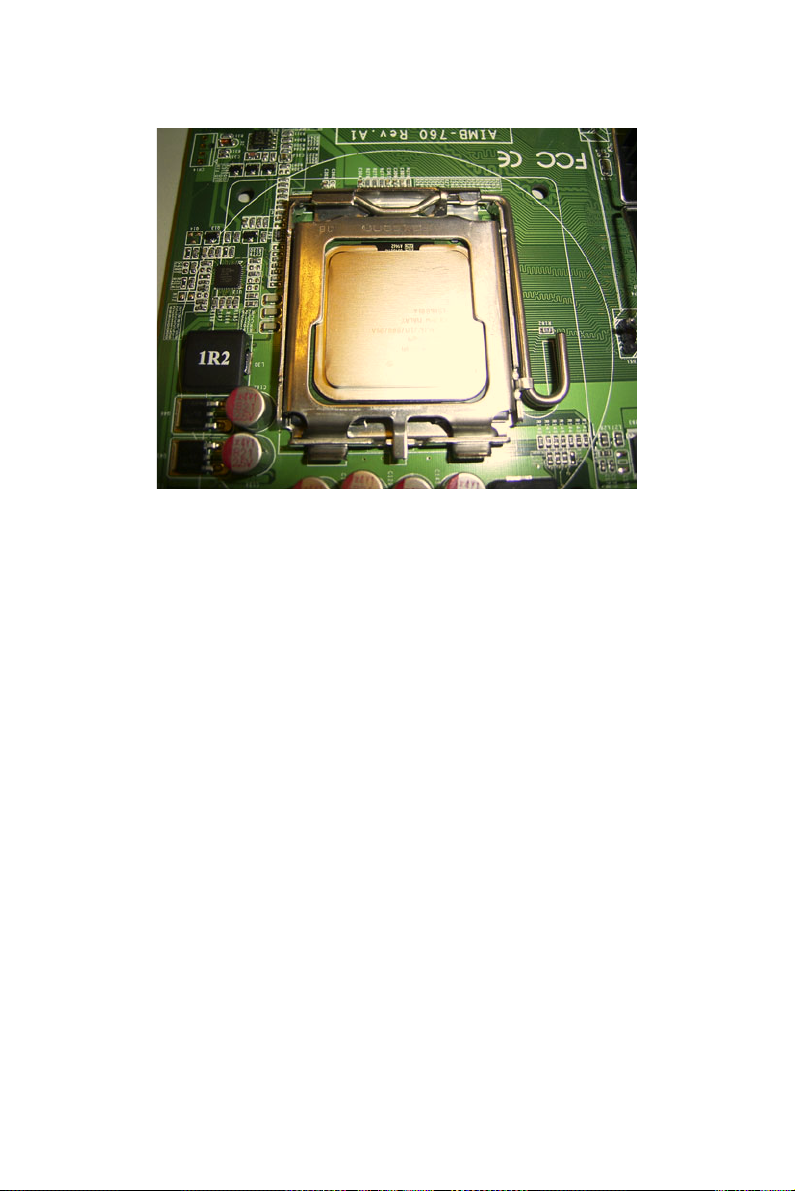

1.12 Processor Installation

The PCA-6194 is designed for Intel® LGA 775 socket CPUs.

Step 1: Pull the bar besides the CPU socket outward and lift it.

Step 2: Align the triangular marking on the processor with the cut edge of
the socket.

15 Chapter 1

Step 3: Put back the socket cap and press down the bar to fix it.

CHAPTER

Connecting
Peripherals

2

17 Chapter 2

Chapter 2 Connecting Peripherals

1

2.1 Introduction

You can access most of the connectors from the top of the board while it
is installed in the chassis. If you have a number of cards installed or have
a packed chassis, you may need to partially remove the card to make all
the connections.

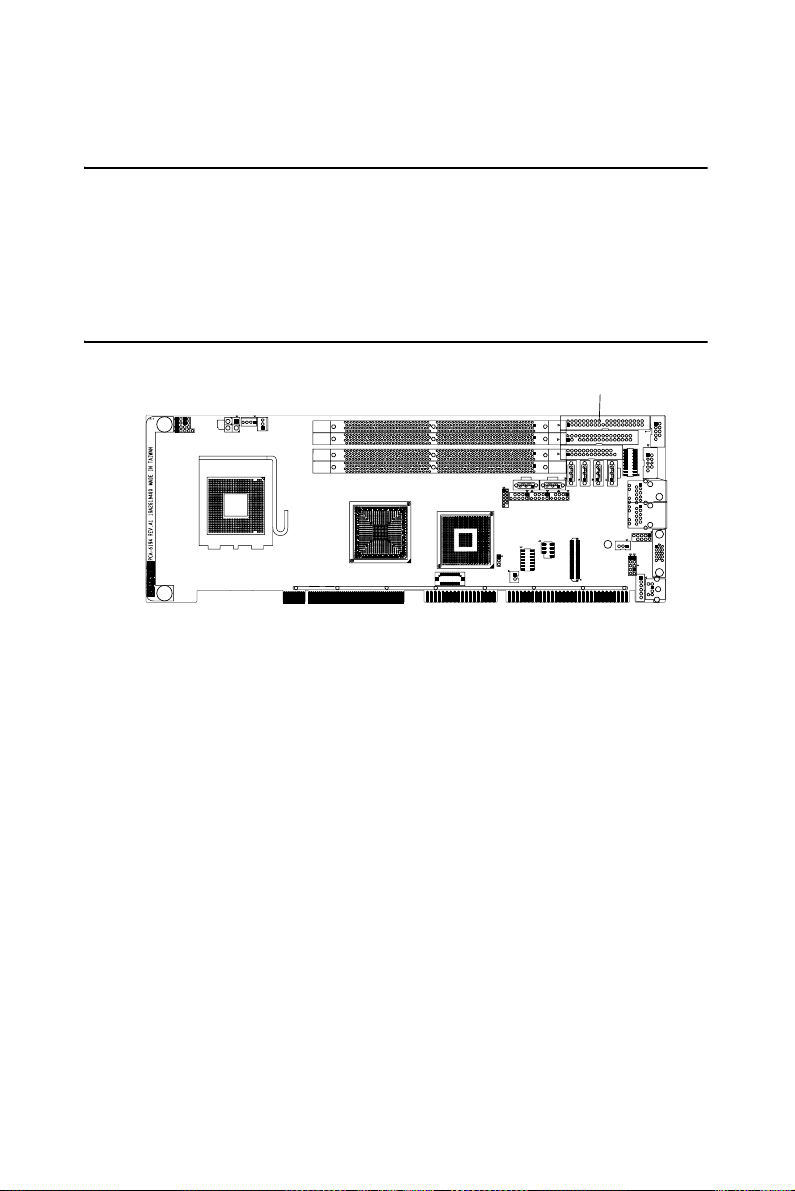

2.2 IDE Connectors (IDE1)

IDE1

CPUFAN1
JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

You can attach up to two IDE (Integrated Drive Electronics) drives to the
PCA-6194's built-in controller.

Wire number 1 on the cable is red or blue and the other wires are gray.
Connect one end to connector IDE1 on the single board computer. Make
sure that the red/blue wire corresponds to pin 1 on the connector (in the
upper right hand corner). See Chapter 1 for help finding the connector.

Unlike floppy drives, IDE hard drives can connect in either position on
the cable. If you install two drives to a single connector, you will need to
set one as the master and the other as the slave. You do this by setting the
jumpers on the drives. If you use just one drive per connector, you should
set each drive as the master. See the documentation that came with your
drive for more information.

Connect the first hard drive to the other end of the cable. Wire 1 on the
cable should also connect to pin 1 on the hard drive connector, which is
labeled on the drive circuit board. Check the documentation that came
with the drive for more information.

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA6

SATA5

USB1

BMC1

SPI

IPMB1

JIR1

KBMS2

LANLED1

COM2

JSETCOM2

COM1

LAN2

LAN1

VGA1

JWDT1

JOBS1

KBMS

PCA-6194 User Manual 18

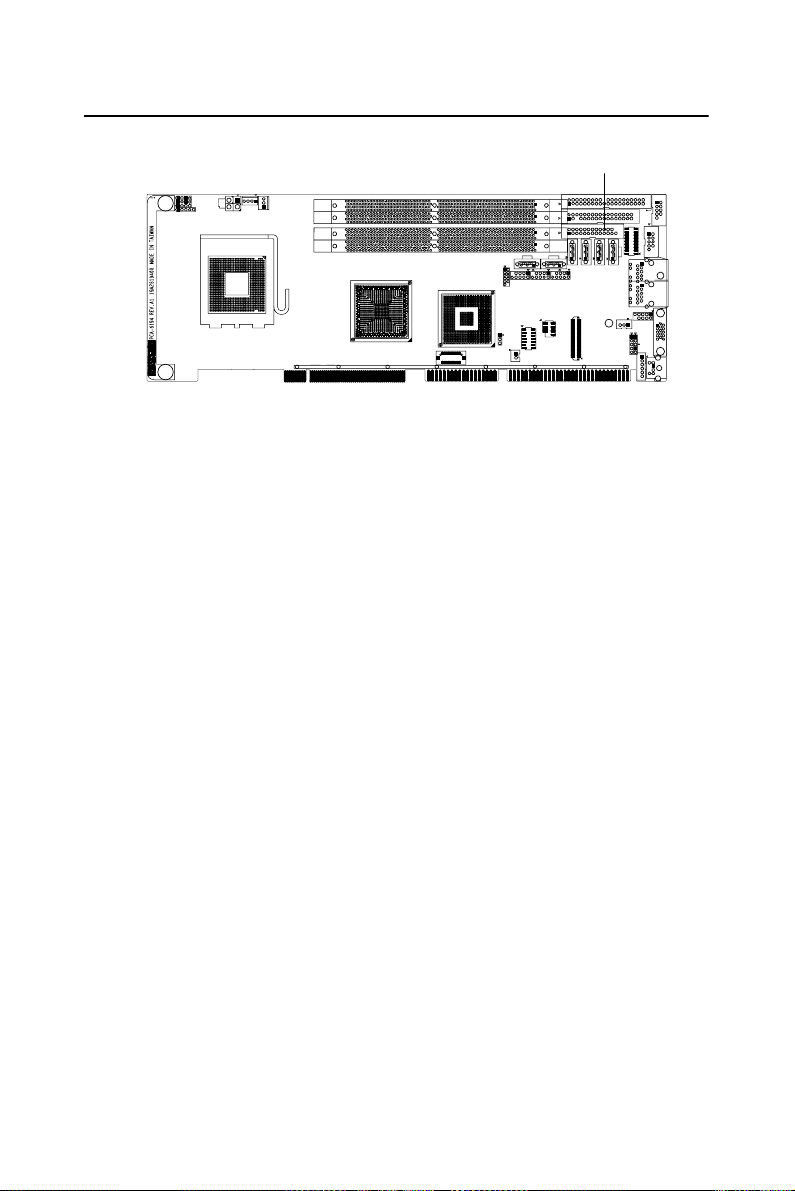

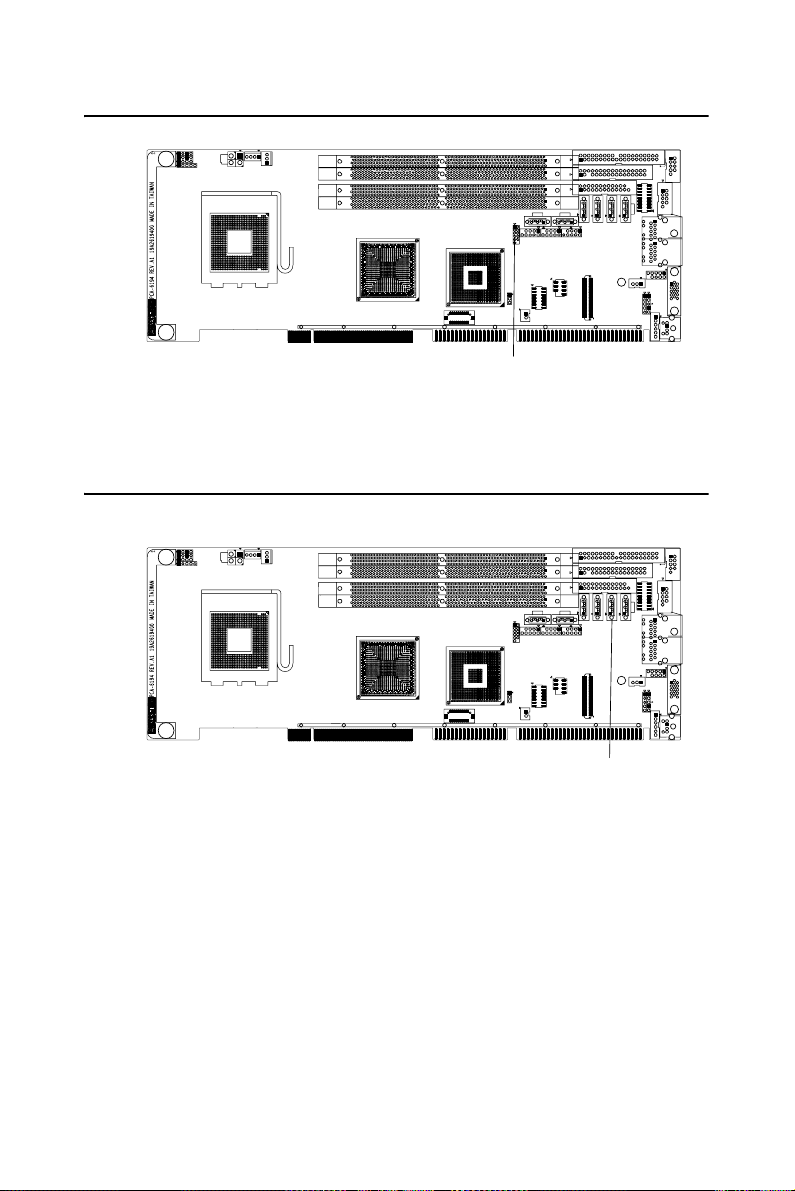

2.3 Floppy Drive Connector (FDD1)

1

FDD1

CPUFAN1
JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

You can attach up to two floppy disk drives to the PCA-6194's on board
controller. You can use 3.5" (720 KB, 1.44 MB) drives.

The single board computer comes with a 34-pin daisy-chain drive con­nector cable. On one end of the cable is a 34-pin flat-cable connector. On
the other end are two sets of 34-pin flat-cable connector (usually used for

3.5" drives). The set on the end (after the twist in the cable) connects to
the A: floppy drive. The set in the middle connects to the B: floppy drive.

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA6

SATA5

USB1

BMC1

SPI

IPMB1

JIR1

KBMS2

LANLED1

COM2

JSETCOM2

COM1

LAN2

LAN1

VGA1

JWDT1

JOBS1

KBMS

19 Chapter 2

2.4 Parallel Port (LPT1)

1

LPT1

CPUFAN1
JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

The parallel port is normally used to connect the single board computer to
a printer. The PCA-6194 includes an onboard parallel port, accessed
through a 26-pin flat-cable connector, LPT1. The card comes with an
adapter cable which lets you use a traditional DB-25 connector. The cable
has a 26-pin connector on one end and a DB-25 connector on the other,
mounted on a retaining bracket. The bracket installs at the end of an
empty slot in your chassis, giving you access to the connector.

The parallel port is designated as LPT1, and can be disabled or changed
to LPT2 or LPT3 in the system BIOS setup.

To install the bracket, find an empty slot in your chassis. Unscrew the
plate that covers the end of the slot. Screw in the bracket in place of the
plate. Next, attach the flat-cable connector to LPT1 on the CPU card.
Wire 1 of the cable is red or blue, and the other wires are gray. Make sure
that wire 1 corresponds to pin 1 of LPT1. Pin 1 is on the upper right side
of LPT1.

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA6

SATA5

USB1

BMC1

SPI

IPMB1

JIR1

KBMS2

LANLED1

COM2

JSETCOM2

COM1

LAN2

LAN1

VGA1

JWDT1

JOBS1

KBMS

PCA-6194 User Manual 20

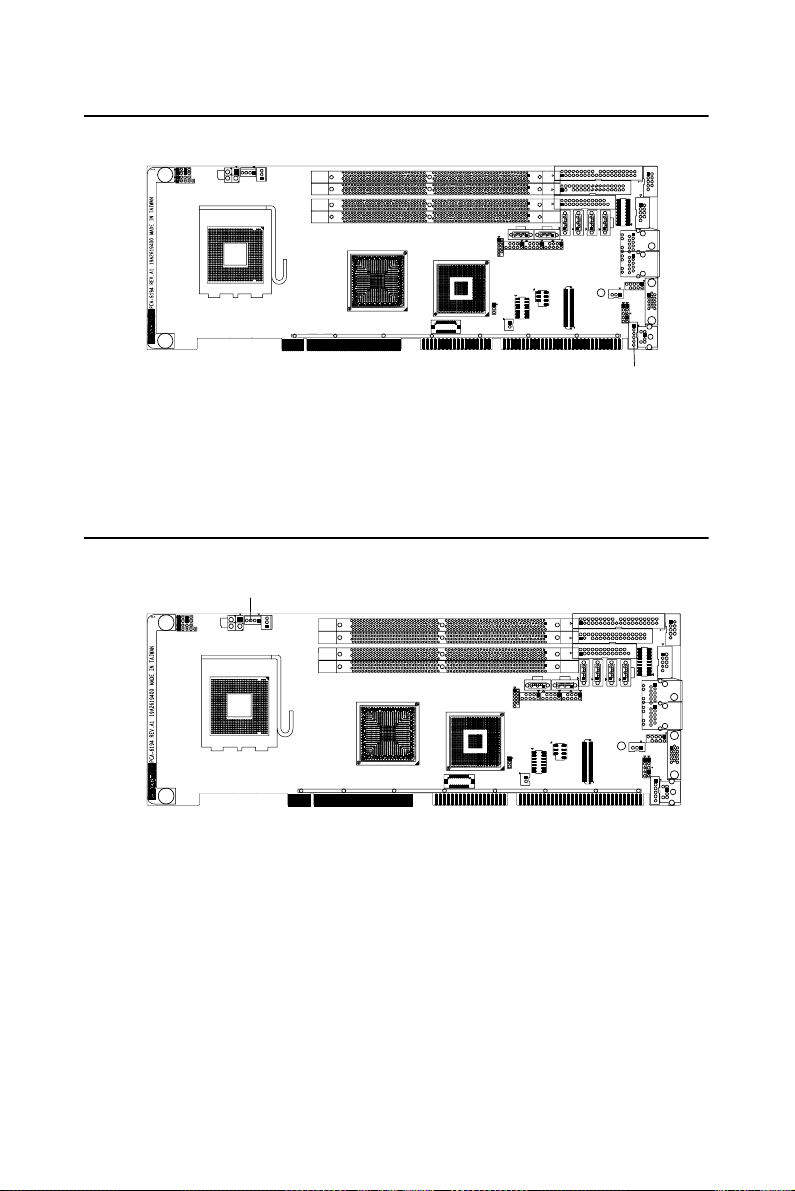

2.5 VGA Connector (VGA1)

The PCA-6194 includes a VGA interface that can drive conventional
CRT displays. VGA1 is a standard 15-pin D-SUB connector commonly
used for VGA. Pin assignments for CRT connector VGA1 are detailed in
Appendix B.

CPUFAN1

JFP1
JFP2

JFP3

ATX1

DIMMB2

ATXF1

DIMMB1

DIMMA2

DIMMA1

CPU1

HDAUD1

VCN1

CMOS1

SATA1 SATA2

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

USB1

BMC1

SPI

COM2

JSETCOM2

COM1

LAN2

SATA6

SATA5

LAN1

LANLED1

IPMB1

VGA1

JWDT1

JIR1

JOBS1

KBMS2

2.6 DVI connector (VCN1, PCA-6194F, PCA-6194G2-D0 only)

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

USB1

BMC1

SPI

COM2

JSETCOM2

COM1

LAN2

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

VCN1

The PCA-6194 provides a DVI interface that supports DVI display
(PCA-6194F, PCA-6194G2-D0 only). The user can choose 26-pin to 20­pin DVI cable (p/n: 1700000821) for providing DVI connector. Pin
assignments for DVI connector VCN1 are detailed in Appendix B.

21 Chapter 2

2.7 Serial Ports (COM1, COM2)

CPUFAN1

JFP1
JFP2

JFP3

ATX1

DIMMB2

ATXF1

DIMMB1

DIMMA2

DIMMA1

CPU1

HDAUD1

VCN1

CMOS1

SATA1 SATA2

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

USB1

BMC1

SPI

COM2

COM2

COM1

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

The PCA-6194 offers two serial ports. These ports can connect to serial
devices, such as a mouse or to a communications network. The COM2
port can be configured to support RS-232/422/485 by pin header
(JSETCOM2) setting, please refer to 1.8.4 for the information.

The IRQ and address ranges for all ports are fixed. However, if you want
to disable the port or change these parameters later, you can do this in the
system BIOS setup.

Different devices implement the RS-232 standard in different ways. If
you are having problems with a serial device, be sure to check the pin
assignments for the connector.

2.8 PS/2 Keyboard and Mouse Connector (KBMS1)

CPUFAN1

JFP1
JFP2

JFP3

ATX1

DIMMB2

ATXF1

DIMMB1

DIMMA2

DIMMA1

CPU1

HDAUD1

VCN1

CMOS1

SATA1 SATA2

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

USB1

BMC1

SPI

COM2

JSETCOM2

COM1

LAN2

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

KBMS1

One 6-pin mini-DIN connectors (KBMS1) on the card mounting bracket
provide connection to a PS/2 keyboard or a PS/2 mouse, respectively.
KBMS1 can also be connected to an adapter cable (P/N: 1700060202) for
connecting to both a PS/2 keyboard and a PS/2 mouse.

PCA-6194 User Manual 22

2.9 External Keyboard & Mouse (KBMS2)

CPUFAN1
JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA6

SATA5

USB1

BMC1

SPI

IPMB1

JIR1

KBMS2

KBMS2

In addition to the PS/2 mouse/keyboard connector on the PCA-6194's rear
plate, there is also an extra onboard external keyboard and mouse connector.
This gives system integrators greater flexibility in designing their systems.

2.10 CPU Fan Connector (CPFAN1)

CPUFAN1

USB3 USB2 USB1

SPI

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

BMC1

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

LANLED1

IPMB1

COM2

JSETCOM2

COM1

LAN2

LAN1

JWDT1

JOBS1

COM2

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

JWDT1

JIR1

JOBS1

KBMS2

If a fan is used, this connector supports cooling fans of 12V/1A (12W) or
less.

23 Chapter 2

2.11 Front Panel Connectors (JFP1, JFP2, JFP3)

JFP1~3

USB3 USB2 USB1

SPI

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

BMC1

COM2

JSETCOM2

COM1

LAN2

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

There are several external switches to monitor and control the PCA-6194.

2.11.1ATX soft power switch (JFP1 / PWR_SW)

If your computer case is equipped with an ATX power supply, you should
connect the power on/off button on your computer case to (JFP1 /
PWR_SW). This connection enables you to turn your computer on and
off.

2.11.2Reset (JFP1 / RESET)

Many computer cases offer the convenience of a reset button. Connect the
wire for the reset button.

2.11.3HDD LED (JFP2 / HDDLED)

You can connect an LED to connector (JFP2 / HDDLED) to indicate
when the HDD is active.

2.11.4SM Bus Connector (JFP2 / SNMP)

This connector is reserved for Advantech's SNMP-1000 HTTP/SNMP
Remote System Manager. The SNMP-1000 allows users to monitor the
internal voltages, temperature and fans from a remote computer through
an Ethernet network.

PCA-6194 User Manual 24

(JFP2 / SNMP) can be connected to CN19 of SNMP-1000. Please be
careful about the pin assignments, pin 1 must be connected to pin 1 and
pin 2 to pin 2 on both ends of cable.

2.11.5External speaker (JFP2 / SPEAKER)

(JFP2 / SPEAKER) is a 4-pin connector for an external speaker. If there
is no external speaker, the PCA-6194 provides an onboard buzzer as an
alternative. To enable the buzzer, set pins 3-4 as closed.

2.11.6Power LED and keyboard lock connector (JFP3 / PWR_LED&KEY LOCK)

(JFP3 / PWR_LED&KEY LOCK) is a 5-pin connector for the power on
LED and Key Lock function. Refer to Appendix B for detailed informa­tion on the pin assignments. The Power LED cable should be connected
to pin 1-3. The key lock button cable should be connected to pin 4-5.

There are 3 modes for the power supply connection. The first is “ATX
power mode”, system is on/off by a tentative power button. The second is
“AT Power Mode”, system is on/off by the switch of the Power supply.
The third is another “AT Power Mode” which is using the front panel
power switch. The power LED status is indicated as following table:

:

Table 2.1: ATX power supply LED status (No support for AT power)

Power mode LED (ATX

Power Mode)

(On/off by tentative
button)

PSON1(On
Back plane)
Jumper setting

System On On On On

System Sus­pend

System Off Slow flashes Off Off

2-3 pin closed 1-2 pin closed Connect 1-2 pin

Fast flashes Fast flashes Fast flashes

LED (AT power
Mode)

(On/off by switch­ing power supply)

LED (AT power
Mode)

(On/off by front
panel switch)

cable with
switch

25 Chapter 2

2.12 H/W Monitor Alarm (JOBS1)

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

USB1

BMC1

SPI

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

USB3 USB2

VCN1

CMOS1

(JOBS1) is a 2-pin connector for setting enable/disable alarm while the
On Board security event acts.

Table 2.2: Hardware Monitor Alarm setting

Pin setting Function

Close Enable OBS alarm

open Disable OBS alarm

2.13 Gigabit LAN RJ45 connector (LAN1, LAN2)

USB3 USB2 USB1

SPI

GPIO1

JCASE1

IDE1

FDD1

LPT1

JSETCOM2

COM1

SATA3

BMC1

LAN2

SATA4

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

JFP1
JFP2

JFP3

ATX1

DIMMB2

ATXF1

DIMMB1

DIMMA2

DIMMA1

CPU1

VCN1

SATA1 SATA2

HDAUD1

CMOS1

SATA6

IPMB1

JIR1

KBMS2

JOBS1

COM2

LANLED1

JWDT1

JOBS1

LAN2

LAN1

COM2

JSETCOM2

COM1

LAN2

LAN1

PCA-6194 uses the Intel 82566DM and 82573V Gigabit LAN chips
which are interfaced with PCIe x1 links. With this chip PCA-6194 may
provide high throughputs for heavy loading networking environment. It
provides two or one RJ-45 connectors in the rear side and is convenient
for most industrial applications.

PCA-6194 User Manual 26

2.14 Hi-definition Audio Link Connector (HDAUD1)

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

USB3 USB2 USB1

SPI

GPIO1

VCN1

CMOS1

JCASE1

HDAUD1

The PCA-6194 provides Hi-definition audio through PCA-AUDIO­HDA1E module from Advantech.

2.15 Serial ATA2 Interface

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

USB3 USB2

GPIO1

JCASE1

USB1

SPI

IDE1

FDD1

LPT1

SATA3

SATA4

BMC1

IDE1

FDD1

LPT1

SATA3

SATA4

BMC1

COM2

JSETCOM2

COM1

LAN2

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

COM2

JSETCOM2

COM1

LAN2

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

SATA1~6

In addition to the EIDE interfaces (up to two devices), the PCA-6194 fea­tures a high performance serial ATA2 interface (up to 300MB/s) which
eases cabling to hard drives with thin and long cables. These six ports can
be configured for RAID 0, 1, 5 and 10 applications.

27 Chapter 2

2.16 LAN1 and LAN2 LED connector (LANLED1)

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

JSETCOM2

COM1

SATA3

USB1

BMC1

SPI

LAN2

SATA4

SATA6

SATA5

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

JFP1
JFP2

JFP3

ATX1

DIMMB2

ATXF1

DIMMB1

DIMMA2

CPU1

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

LANLED1

PCA-6194 provides an external LAN LED Pin header for connecting to
the front side of the chassis. With this convenient design users may know
whether the LAN port is acting or not easily. Refer to Appendix B for
detailed information on the pin assignments.

2.17 BMC connector (BMC1)

USB3 USB2 USB1

SPI

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

BMC1

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

COM2

COM2

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

BMC1

PCA-6194 is designed for supporting IPMI 2.0. The BMC module is
mounted on board through this connector. For more detail operating
information, please refer to Chapter 9.

PCA-6194 User Manual 28

2.18 IPMB connector (IPMB1)

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

USB1

BMC1

SPI

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

USB3 USB2

VCN1

CMOS1

IPMB1

PCA-6194 provides an IPMB connector which is followed the IPMI 2.0
specification. It could be linked to Advantech's ACMM-1000 remote con­trol module. With the ACMM-1000 module, users can monitoring and
control the PCA-6194 easily.

2.19 USB (USB1~3)

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

USB1

BMC1

SPI

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

COM2

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

COM2

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

USB1~3

The PCA-6194 provides four on board USB 2.0 ports which support
transmission rate up to 480 Mbps and is fuse-protected. To install the
USB cable (p/n: 1700002314) bracket, find an empty slot in your chassis
and unscrew the plate that covers the end of the slot. Screw in the bracket
in place of the plate. Next, attach the USB connector to USB12 and
USB34 on the CPU card.

29 Chapter 2

2.20 Auxiliary 4-pin power connector (ATX1)

ATX1

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA6

SATA5

USB1

BMC1

SPI

IPMB1

JIR1

KBMS2

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

To ensure the sufficiency of power supply for single board computer, one
auxiliary 4 pin power connector is available on PCA-6194. This connec­tor must be connected to the power supply, otherwise the system may
become unstable.

2.21 ATX feature connector (ATXF1)

ATX F1

USB3 USB2 USB1

SPI

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA6

SATA5

BMC1

IPMB1

JIR1

KBMS2

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

LANLED1

LANLED1

COM2

JSETCOM2

COM1

LAN2

LAN1

JWDT1

JOBS1

COM2

JSETCOM2

COM1

LAN2

LAN1

JWDT1

JOBS1

Connect to the CN1 on the Advantech backplane to enable the ATX func­tion, 5V stand-by.

PCA-6194 User Manual 30

2.22 GPIO header (GPIO1)

USB3 USB2 USB1

SPI

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

BMC1

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

GPIO1

PCA-6194 provides 14-Pins pin header for Digital I/O usage. Refer to
Appendix B for detailed information on the pin assignments and pro­gramming guide in Appendix C..

2.23 Case open (JCASE1)

USB3 USB2

GPIO1

JCASE1

IDE1

FDD1

LPT1

SATA3

SATA4

SATA5

USB1

BMC1

SPI

JFP1
JFP2

JFP3

ATX1

CPU1

ATXF1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

SATA1 SATA2

HDAUD1

VCN1

CMOS1

COM2

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

COM2

JSETCOM2

COM1

LAN2

SATA6

LAN1

LANLED1

IPMB1

JWDT1

JIR1

JOBS1

KBMS2

JCASE1

PCA-6194 provides 2-Pins pin header for case open detection. This func­tion could be enabled or disabled in BIOS setting. When the PIN is
shorted, it will cause the on board buzzer alarm.

31 Chapter 2

PCA-6194 User Manual 32

Award BIOS Setup

CHAPTER

3

33 Chapter 3

Chapter 3 Award BIOS Setup

3.1 Introduction

Award’s BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This type of information is stored
in battery backed-up memory (CMOS RAM) so that it retains the setup
information when the power is turned off.

3.1.1 CMOS RAM Auto-backup and Restore

The CMOS RAM is powered by an onboard button cell battery. When
you finish BIOS setup, the data in CMOS RAM will be automatically
backed up to Flash ROM. If operation in harsh industrial environments
causes a soft error, BIOS will recheck the data in CMOS RAM and auto­matically restore the original data in Flash ROM to CMOS RAM for
booting.

Note: If you intend to change the CMOS setting with-

out restoring the previous backup, you have to
click on “DEL” within two seconds of the
“CMOS checksum error...” display screen mes­sage appearing. Then enter the “Setup” screen
to modify the data. If the “CMOS checksum
error...” message appears again and again,
please check to see if you need to replace the
battery in your system.

PCA-6194 User Manual 34

3.2 Entering Setup

Turn on the computer and press <Del> to enter the BIOS setup.

Figure 3.1: Award BIOS Setup initial screen

3.3 Standard CMOS Setup

3.3.1 Date

The date format is <week>, <month>, <day>, <year>.

3.3.2 Time

The time format is <hour> <minute> <second>, based on the 24-hour
clock.

3.3.3 IDE channel 0~4 Master/Slave

• IDE HDD Auto-Detection: Press “Enter” to select this option for

automatic device detection.

• IDE Device Setup:

Auto: Automatically detects IDE devices during POST
None: Select this when no IDE device is used. The system will skip the

auto-detection step to make system start up faster.
Manual: User can manually input the correct settings.

• Access Mode: The options are CHS/LBA/Large/Auto

• Capacity: Capacity of currently installed hard disk.

• Cylinder: Number of cylinders

35 Chapter 3

• Head: Number of heads

• Precomp: Write precomp

• Landing Zone: Landing zone

• Sector: Number of sectors

3.3.4 Drive A / Drive B

This category identifies the types of floppy disk drives installed in the
system. The options are: None/360K, 5.25"/1.2M, 5.25"/720K, 3.5"/

1.44M, 3.5"/2.88M, 3.5".

3.3.5 Halt On

This category determines whether system start-up will halt or not when
an error is detected during power up.

The options are: No Errors/All Errors/All, But Keyboard/All, But Dis­kette/All, But Disk/Key

3.3.6 Memory

This category displays base memory, extended memory, and total mem­ory detected during POST (Power On Self Test).

Figure 3.2: Standard CMOS Features Screen

PCA-6194 User Manual 36

3.4 Advanced BIOS Features

The “Advanced BIOS Features” screen appears when choosing the
“Advanced BIOS Features” item from the “Initial Setup Screen” menu. It
allows the user to configure the PCA-6194 according to his particular
requirements. Below are some major items that are provided in the
Advanced BIOS Features screen. A quick booting function is provided
for your convenience. Simply enable the Quick Booting item to save
yourself valuable time.

Figure 3.3: Advanced BIOS features screen

3.4.1 CPU Features

Limit CPUID MaxVal

Set Limit CPUID MaxVa1 to 3. This should be disabled for WinXP.

C1E Function

To enable the C1 Enhance Mode function, the process will reduce the
core clock frequency to system bus ratio and VID while it entered the C1
status.

Execute Disable Bit

When disabled, forces the XD feature flag to always return 0.

Virtualization Technology

This selection item only shows up when the CPU supports the Virtualiza­tion Technology Function.

Core Multi-Processing

37 Chapter 3

This selection item only shows up when using the multi-core processors.

3.4.2 Hard Disk Boot Priority

Set hard disk boot device priority.

3.4.3 Virus Warning

Enables or disables the virus warning.

3.4.4 CPU L1, L2 & L3 Cache

Enabling this feature speeds up memory access. The commands are
“Enabled” or “Disabled.”

3.4.5 Quick Power On Self Test

This allows the system to skip certain tests to speed up the boot-up proce­dure.

3.4.6 First/Second/Third Boot Device

The BIOS tries to load the OS with the devices in the sequence selected.
Choices are: “Floppy”, “LS120”, “Hard Disk”, “CDROM”, “ZIP100”,
“USB-FDD”, “USB-ZIP”, “USB-CDROM”, “Legacy LAN” and “Dis­abled”.

3.4.7 Boot Other Device

Use this to boot another device. The options are “Enabled” and “Dis­abled”.

3.4.8 Swap Floppy Drive

If the system has two floppy drives, choose “Enabled” to assign physical
drive B to logical drive A and vice-versa. The commands are “Enabled”
or “Disabled”.

3.4.9 Boot Up Floppy Seek

Selection of the command “Disabled” will speed the boot up. Selection of
“Enabled” searches disk drives during boot up.

3.4.10 Boot Up NumLock Status

Sets the boot up status Num Lock. The options are “On” and “Off”.

3.4.11 Gate A20 Option

“Normal”: A pin in the keyboard controller controls GateA20. Fast
(Default) lets chipset control GateA20.

3.4.12 Typematic Rate Setting

The typematic rate is the rate key strokes repeat as determined by the key­board controller. The commands are “Enabled” or “Disabled”. Enabling
allows the typematic rate and delay to be selected.

PCA-6194 User Manual 38

3.4.13 Typematic Rate (Chars/Sec)

The BIOS accepts the following input values (characters/second) for
typematic rate: 6, 8, 10, 12, 15, 20, 24, and 30.

3.4.14 Typematic Delay (msec)

Typematic delay is the time interval between the appearances of two con­secutive characters, when the key is continuously depressed. The input
values for this category are: 250, 500, 750, and 1000 (ms).

3.4.15 Security Option

This category determines whether the password is required when the sys­tem boots up or only when entering setup. The options are:

• System: The system will not boot, and access to Setup will be also

denied unless the correct password is entered at the prompt.

• Setup: The system will boot, but access to Setup will be denied unless

the correct password is entered at the prompt.

Note: To disable security, select PASSWORD SET-

TING in the main menu. Then, you will be asked
to enter a password. Simply press <Enter> to
disable security. When security is disabled, the
system will boot and you can enter Setup freely.

3.4.16 APIC Mode

This setting allows you to enable the APIC mode. The choices are “Dis­abled” or “Enabled.”

39 Chapter 3

3.5 Advanced Chipset Features

By choosing the “Advanced Chipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed. This sample
screen contains the manufacturer’s default values for the PCA-6194, as
shown in Figure 3-4:

Figure 3.4: Advanced chipset features screen

3.5.1 System BIOS Cacheable

Selecting “Enabled” allows caching of the system BIOS ROM at
F0000h-FFFFFh, resulting in better system performance. However, if any
program writes data to this memory area, a system error may occur. The
Choices are “Enabled” and “Disabled”.

3.5.2 Memory Hole At 15M-16M

Enabling this feature reserves 15 MB to 16 MB memory address space
for ISA expansion cards that specifically require this setting. This makes
memory from 15 MB and up unavailable to the system. Expansion cards
can only access memory up to 16 MB. The default setting is “Disabled”.

3.5.3 PEG / Onchip VGA Control

Use this field to select PEG or Onchip VGA. The default is AUTO.

3.5.4 On-Chip Frame Buffer Size

The On-Chip Frame Buffer Size can be set to 1 MB or 8 MB. This mem­ory is shared with the system memory.

3.5.5 DVMT Mode

Displays the active system memory mode.

PCA-6194 User Manual 40

3.5.6 DVMT / FIXED Memory Size

Specify the size of DVMT / FIXED system memory to allocate for video
memory.

3.5.7 Init Display First

Choose the first display interface to initiate while booting. The choice is
“PCI Slot” or “Onboard”.

3.6 Integrated Peripherals

Figure 3.5: Integrated peripherals

41 Chapter 3

Figure 3.6: On-Chip IDE Device

3.6.1 IDE HDD Block Mode

If your IDE hard drive supports block mode select Enabled for automatic
detection of the optimal number of block read/writes per sector the drive
can support.

3.6.2 IDE DMA Transfer Access

Use this field to enable or disable IDE DMA transfer access.

3.6.3 On-Chip Primary / Secondary IDE Device

IDE Primary Master/Slave PIO/UDMA Mode (Auto). The channel has
both a master and a slave, making four IDE devices possible. Because
two IDE devices may have a different Mode timing (0, 1, 2, 3, 4), it is
necessary for these to be independent. The default setting “Auto” will
allow auto detection to ensure optimal performance.

PCA-6194 User Manual 42

3.6.4 SATA Mode

The setting choices for the SATA Mode are IDE, RAID and AHCI Mode.
Select [IDE] if you want to have SATA function as IDE. Select [AHCI]
for Advanced Host Controller Interface (AHCI) feature, with improved
SATA performance and native command queuing. Select [RAID] to use

SATA for RAID.

Note: Please refer to the PDF-format Intel (R) Matrix

Storage Technology Quick Start Guide and
Intel (R) Matrix Storage Manager User's Manual
in this CD (in the MANUAL folder) to know the
necessary steps to build and configure your
RAID 0, 1, 10, 5 system using Intel (R) Matrix
Storage Technology and Matrix Storage Man­ager.

3.6.5 Legacy mode support

This allows SATA system to support PATA mode. The choices are “Dis­abled” and “Enabled”.

Figure 3.7: USB device setting

3.6.6 USB 1.0 Controller

Select Enabled if your system contains a Universal Serial Bus (USB) con­troller and you have USB peripherals. The choices are “Enabled” and
“Disabled”.

43 Chapter 3

3.6.7 USB 2.0 Controller

This entry is to disable/enable the USB 2.0 controller only. The BIOS
itself may/may not have high-speed USB support. If the BIOS has high
speed USB support built in, the support will automatically turn on when a
high speed device is attached. The choices are “Enabled” or “Disabled”.

3.6.8 USB Operation mode

Set the USB 2.0 controller to Hi Speed (480 Mbps) or Full Speed (12
Mbps).

3.6.9 USB Keyboard / Mouse Function

Select Enabled if you plan to use an USB keyboard. The choices are
“Enabled” and “Disabled”.

3.6.10 USB storage function

Select Enabled if you plan to use an external USB storage device to boot
the system under DOS mode. The choices are “Enabled” and “Disabled”.

Figure 3.8: Onboard LAN devices

3.6.11 Onboard LAN1 ROM

Options are “Enabled” and “Disabled”. Select “Disabled” if you don’t
want to use onboard LAN1 option ROM.

3.6.12 Onboard LAN2 Control

Options are “Enabled” and “Disabled”. Select Disabled if you don’t want
to use the onboard LAN controller2.

PCA-6194 User Manual 44

3.6.13 On board LAN2 ROM

Options are “Enabled” and “Disabled”. Select “Disabled” if you don’t
want to use onboard LAN2 option ROM.

Figure 3.9: Super I/O Device

3.6.14 Onboard FDC Controller

When enabled, this field allows you to connect your floppy disk drives to
the onboard floppy disk drive connector instead of a separate controller
card. If you want to use a different controller card to connect the floppy
disk drives, set this field to Disabled.

3.6.15 Onboard Serial Port 1

The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”,
and “Disabled” for the on-board serial connector.

3.6.16 Onboard Serial Port 2

The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”,
and “Disabled” for the on-board serial connector.

3.6.17 UART Mode Select

This item allows you to select UART mode. The choices: “IrDA”,
“ASKIR”, and “Normal”.

3.6.18 RxD, TxD Active

This item allows you to determine the active level of the RxD and TxD
serial lines. The Choices: “Hi, Hi”, “Lo, Lo”, “Lo, Hi”, and “Hi, Lo”.

45 Chapter 3

3.6.19 IR Transmission Delay

This item allows you to enable/disable IR transmission delay. The
choices are “Enabled” and “Disabled”.

3.6.20 UR2 Duplex Mode

This item allows you to select the IR half/full duplex function. The
choices are “Half” and “Full”.

3.6.21 Use IR Pins

The choices are “RxD2, TxD2” and “IR-Rx2Tx2”.

3.6.22 Onboard Parallel Port

This field sets the address of the on-board parallel port connector. You
can select “378/IRQ7”, “278/IRQ5”, “3BC/IRQ7”, or “Disabled”. If you
install an I/O card with a parallel port, make sure there is no conflict in
the address assignments. The single board computer can support up to
three parallel ports.

3.6.23 Parallel Port Mode

This field allows you to set the operation mode of the parallel port. The
setting “Normal” allows normal speed operation, but in one direction
only. “EPP” allows bidirectional parallel port operation at maximum
speed. “ECP” allows the parallel port to operate in bidirectional mode and
at a speed faster than the maximum data transfer rate. “ECP + EPP”
allows normal speed operation in a two-way mode.

3.6.24 EPP Mode Select

This field allows you to select EPP port type 1.7 or 1.9. The choices are
“EPP1.9” and “EPP1.7”.

3.6.25 ECP Mode Use DMA

This selection is available only if you select “ECP” or “ECP + EPP” in
the Parallel Port Mode field. In ECP Mode, you can select DMA channel
1 or DMA channel 3. Leave this field on the default setting.

PCA-6194 User Manual 46

3.7 Power Management Setup

The power management setup controls the single board computer's
“green” features to save power. The following screen shows the manufac­turer’s defaults.

Figure 3.10: Power management setup screen (1)

3.7.1 PCI express PM Function

This is to setup PCI Express's PME function “Enable” or “Disable”.

3.7.2 Power Supply Type

PCA-6194 can support both “ATX” and “AT” power supplies. Customers
can choose the PSU type through this selection. The choices are “ATX”
and “AT”.

3.7.3 ACPI Function

The choices are: “Enabled” and “Disabled”.

47 Chapter 3

3.7.4 Power Management

This category allows you to select the type (or degree) of power saving
and is directly related to the following modes:

• HDD Power Down

• Suspend Mode

There are three selections for Power Management, and they have fixed
mode settings.

Table 3.1: Power Saving

Saving Mode Function

Min Saving Minimum power management., Suspend Mode = 1

hr., and HDD Power Down = 15 min.

Max Saving Maximum power management., Suspend Mode = 1

min., and HDD Power Down = 1 min.

User Defined
(Default)

Allows you to set each mode individually. When not
disabled, each of the ranges are from 1 min. to 1 hr.
except for HDD Power Down which ranges from 1
min. to 15 min., and disabled.

3.7.5 Video Off Method

Use this to select the method to turn off the video. The choices are “Blank
Screen”, “V/H SYNC+ Blank”, and “DPMS”.

3.7.6 Video Off In Suspend

When the system is in suspend mode, the video will turn off. The choices
are “No” and “Yes”.

3.7.7 Suspend Type

The choices are “Stop Grant” and “PwrOn Suspend”.

3.7.8 Suspend Mode

Please refer to 3.7.3

3.7.9 HDD Power Down

Please refer to 3.7.3

3.7.10 Soft-Off by PWR-BTTN

If you choose “Instant-Off”, then pushing the ATX soft power switch but­ton once will switch the system to “system off” power mode. You can
choose “Delay 4 sec”. If you do, then pushing the button for more than 4
seconds will turn off the system, whereas pushing the button momentarily
(for less than 4 seconds) will switch the system to “suspend” mode.

PCA-6194 User Manual 48

3.7.11 PowerOn by LAN

This item allows you to power on the system by LAN. The choices are
“Enabled” and “Disabled”.

3.7.12 PowerOn by Modem

To enabled or disable the function to power on the system via a Modem
connection from a remote host. The choice “Enabled” and “Disabled”.

3.7.13 PowerOn by Alarm

The choices are “Enabled” and “Disabled”. Fields that follow below indi­cate date of current month and time of alarm settings, if enabled.

3.7.14 Primary IDE 0 (1) and Secondary IDE 0 (1)

When Enabled, the system will resume from suspend mode if Primary
IDE 0 (1) or Secondary IDE 0 (1) becomes active. The choices are
“Enabled” and “Disabled”.

3.7.15 FDD, COM, LPT PORT

When Enabled, the system will resume from suspend mode if the FDD,
interface, COM port, or LPT port is active. The choices are “Enabled”
and “Disabled”.

3.7.16 PCI PIRQ [A-D]#

When Enabled, the system resumes from suspend mode if an interrupt
occurs. The choices are “Enabled” and “Disabled”.

49 Chapter 3

3.8 PnP/PCI Configurations

Figure 3.11: PnP/PCI configurations screen

3.8.1 Reset Configuration Data

The default is Disabled. Select Enabled to reset Extended System Config­uration Data (ESCD) if you have installed a new add-on card, and system
configuration is in such a state that the OS cannot boot.

3.8.2 Resources Controlled By

The commands here are “Auto (ESCD)” or “Manual”. Choosing “Man­ual” requires you to choose resources from the following sub-menu.
“Auto (ESCD)” automatically configures all of the boot and Plug and
Play devices, but you must be using Windows 95 or above.

3.8.3 PCI / VGA Palette Snoop

This is set to “Disabled” by default.

3.8.4 Maximum Payload Size

This allows you to set the maximum TLP payload size for PCI Express
devices. The option is [128 bytes].

PCA-6194 User Manual 50

3.9 PC Health Status

Figure 3.12: PC Health Status Screen

3.9.1 Case Open Warning

Enable this to detect if the case is open or closed.

3.9.2 CPU Warning Temperature

This item will prevent the CPU from overheating. The choices are “Dis­abled”, “60C/140F”, “63C/145F”, “66C/151F”, “70C/158F”, “75C/
167F”, “80C/176F”, “85C/185F”, “90C/194F”, and “95C/205F”.

3.9.3 System Temperature

This shows you the current temperature of system.

3.9.4 CPU Temperature

This shows the current CPU temperature.

3.9.5 CPU FAN Speed

This shows the current CPU FAN operating speed.

3.9.6 VCORE and Other Voltages

This shows the voltage of VCORE, +1.5V, +3.3, +5V, +12V, VBAT(V),
and 5VSB(V).

3.9.7 Shutdown Temperature

The system will shut down automatically when the CPU temperature is
over the selected setting. This function can prevent CPU damage caused
by overheating.

51 Chapter 3

3.10 Frequency / Voltage Control

Figure 3.13: Spread Spectrum Control screen

3.10.1 Spread Spectrum

This setting allows you to reduce EMI by modulating the signals the CPU
generates so that the spikes are reduced to flatter curves. This is achieved
by varying the frequency slightly so that the signal does not use any par­ticular frequency for more than a moment. The choices are “Disabled”
and “Enabled”.

PCA-6194 User Manual 52

3.11 Load Setup Defaults

Figure 3.14: Load Setup Defaults screen

When you press <Enter> on this item, you get a confirmation dialog box
with a message similar to:

• Load setup Defaults (Y/N)? N

Pressing 'Y' loads the default values that are factory settings for optimal
performance system operations.

3.12 Password Setting

Follow these steps to change the password.

1. Choose the “Set Password” option from the “Initial Setup Screen”

menu and press <Enter>. The screen displays the following mes­sage:

Please Enter Your Password

2. Press <Enter>.

3. If the CMOS is good and this option has been used to change the

default password, the user is asked for the password stored in the
CMOS. The screen displays the following message:

Please Confirm Your Password

53 Chapter 3

4. Type the current password and press <Enter>.

5. After pressing <Enter> (ROM password) or the current password

(user-defined), you can change the password stored in the CMOS.
The password must be no longer than eight (8) characters. Remem­ber, to enable the password setting feature, you must first select
either “Setup” or “System” from the “Advanced BIOS Features”
menu.

3.13 Save & Exit Setup

Figure 3.15: Save & exit setup

If you select this and press <Enter>, the values entered in the setup utili­ties will be recorded in the CMOS memory of the chipset. The processor
will check this every time you turn your system on and compare this to
what it finds as it checks the system. This record is required for the sys­tem to operate.

PCA-6194 User Manual 54

3.14 Exit Without Saving

Figure 3.16: Exit without saving

Selecting this option and pressing <Enter> lets you exit the setup program
without recording any new values or changing old ones.

55 Chapter 3

PCA-6194 User Manual 56

4

CHAPTER

Chipset Software
Installation Utility

57 Chapter 4

Chapter 4 Chipset Software Install Utility

4.1 Before you begin

To facilitate the installation of the enhanced display drivers and utility
software, read the instructions in this chapter carefully. The drivers for
the PCA-6194 are located on the software installation CD. The Intel
Chipset Software Installation Utility is not required on any systems run­ning Windows NT 4.0. Updates are provided via Service Packs from
Microsoft.

Note: The files on the software installation CD are

compressed. Do not attempt to install the driv­ers by copying the files manually. You must use
the supplied SETUP program to install the driv­ers.

Before you begin, it is important to note that most display drivers need to
have the relevant software application already installed in the system
prior to installing the enhanced display drivers. In addition, many of the
installation procedures assume that you are familiar with both the rele­vant software applications and operating system commands. Review the
relevant operating system commands and the pertinent sections of your
application software’s user manual before performing the installation.

4.2 Introduction

The Intel Chipset Software Installation (CSI) utility installs the Windows
INF files that outline to the operating system how the chipset components
will be configured. This is needed for the proper functioning of the fol­lowing features:

• Core PCI and ISAPNP Services

• PCIe Support

• IDE/ATA33/ATA66/ATA100 Storage Support

• SATA Storage Support

• USB Support

PCA-6194 User Manual 58

• Identification of Intel (R) Chipset Components in the Device Manager

Note: This utility is used for the following versions of

Windows, and it has to be installed before
installing all the other drivers:

• Microsoft Windows* Server 2003 with Ser­vice Pack 1

• Microsoft Windows Server 2003 x64 Edi­tion*

• Microsoft Windows XP Professional x64
Edition

• Microsoft Windows XP with Service Pack 2

• Microsoft Windows 2000 with Service Pack

4.3 Windows XP Driver Setup

1. Insert the driver CD into your system’s CD-ROM drive. Select the
folder “Intel INF” then click “infinst_autol.exe”. A message pops
up telling you to install the CSI utility before other device drivers.
Windows XP is used as an example in the following steps.

2. Click “Next” when you see the following message.

59 Chapter 4

3. Click “Yes” when you see the following message.

4. Click “Next” when you see the following message.

PCA-6194 User Manual 60

5. When the following message appears, click “Finish” to complete
the installation and restart Windows.

61 Chapter 4

VGA Setup

CHAPTER

5

63 Chapter 5

Chapter 5 VGA Setup

5.1 Introduction

The Intel Q965 integrated graphics controller provides an analog display
port and DVI interface through SDVO ports. You need to install the VGA
driver to enable the function.

The Intel Q965 integrated graphics controller includes the following fea­tures.

• Intel GMA 3000 GPU Integrated: Incorporating the latest Microsoft

DirectX 10 support capabilities, the Intel GMA 3000 GPU allows soft­ware developers to create lifelike environments and characters. Dual
independent display, enhanced display modes for widescreen flat pan­els, and optimized 3D support deliver an intense and realistic visual
experience without requiring a separate graphics card.

• Intel Serial Digital Video Output (SDVO): The PCA-6194 provides

DVI interface through SDVO ports. It supports CRTs via a VGA con­nector with a maximum pixel lock of 400 MHz (up to 2048 x 1536 res­olution @ 75 Hz refresh rate)

5.2 Windows XP Driver Setup

Note: Before installing this driver, make sure the CSI

utility has been installed in your system. See
Chapter 4 for information on installing the CSI
utility.

Insert the driver CD into your system’s CD-ROM drive. Select the folder
“VGA” then click the proper VGA driver for the OS. Windows XP is
used as an example in the following steps.

PCA-6194 User Manual 64

1. Click “Next” to continue the installation.

2. You will see a welcome window. Please click “Yes” to continue the
installation.

.

65 Chapter 5

3. Click “Finish” to complete the installation and restart the computer
now or later.

PCA-6194 User Manual 66

67 Chapter 5

Onboard Security
Setup

CHAPTER

6

69 Chapter 6

Chapter 6 Onboard Security Setup

6.1 Introduction

The PCA-6194's hardware monitor is based on the Winbond W83627HG
chip. Onboard security (OBS) functions monitor key hardware to help
you maintain system stability and durability. The PCA-6194 can monitor
five sets of positive system voltages, two sets of system negative volt­ages, CPU cooling fan speed, and CPU temperature. The positive system
voltages that can be monitored include:

• CPU core voltage: 1.3 ~ 3.3 V, according to Intel specifications.

• Transmission voltage from CPU to chipset: typically 1.8 V.

• Chipset voltage: typically 3.3 V.

• Main voltage: +5 V, +12 V.

6.2 Windows XP Driver Setup

1. Insert the driver CD into your system’s CD-ROM drive. Selecting
the folder “OBS” then click the “setup.exe”. Windows XP is used
as an example in the following steps.

2. Click “Next” when you see the following message.

PCA-6194 User Manual 70

3. Click “Next” when you see the following message.

71 Chapter 6

4. Click “Next” when you see the following message..

5. Click “Finish” when you see the following message.

PCA-6194 User Manual 72

6.3 Using the OBS Hardware Doctor Utility

After completing the setup, all the OBS functions are permanently
enabled. When a monitored reading exceeds safe limits, a warning mes­sage will be displayed and an error beep will sound to attract your atten­tion.

OBS Hardware Doctor will show an icon on the right side of the bottom
window bar. This icon is the “Terminate and Stay Resident” (TSR) icon.
It will permanently remain in the bottom window bar, and will activate
warning signals when triggered by the onboard security system.

You can view or change values for various OBS settings by following
these steps.

From Windows desktop, click on “Start” and select “Programs”, select
“Win bond HWDoctor” and click “HWDOCTOR”. It is recommended
that you load the default values for all the OBS settings. However, if
desired, you can establish new conditions for voltage, fan speed and tem­perature.

73 Chapter 6

PCA-6194 User Manual 74

7

CHAPTER

LAN Configuration

75 Chapter 7

Chapter 7 LAN Configuration

7.1 Introduction

The PCA-6194 has a single/dual Gigabit Ethernet LAN interface (Intel
82566DM and 82573V) that is connected to a dedicated PCIe x1 link to
eliminating network bottlenecks by offering a bandwidth of up to 500
MB/s.

7.2 Features

• Integrated 10/100/1000Base-T transceiver

• 10/100/1000Base-T triple-speed MAC

• High-speed RISC core with 24-KB cache

• On-chip voltage regulation

• Wake-on-LAN (WOL) support

• PCIe x1 host interface

7.3 Installation

Note: Before installing the LAN drivers, make sure the

CSI utility has been installed on your system.
See Chapter 4 for information on installing the
CSI utility.

The integrated PCA-6194 Intel gigabit Ethernet controller supports all
major network operating systems. However, the installation procedure
varies with different operating systems. In the following sections, refer to
the one that provides the driver setup procedure for the operating system
you are using.

PCA-6194 User Manual 76

7.4 Win XP Driver Setup (LAN)

1. Insert the driver CD into your system’s CD-ROM drive. Selecting
the folder “LAN” then click the proper LAN driver for the OS.
Windows XP is used as an example in the following steps.

2. You will see a welcome window. Click “Next” to continue the
installation.

3. Click “Install Driver” to start the installation procedure.

77 Chapter 7

4. Click “Yes” to continue the installation.

PCA-6194 User Manual 78

5. Select “I accept the terms in the license agreement” and click
“Next” to continue.

6. Select “Complete” and click “Next” to continue.

79 Chapter 7

7. Click “Install” to begin the installation.

8. Click “Finish” to complete the installation.

PCA-6194 User Manual 80

8

CHAPTER

SATA RAID Setup

81 Chapter 8

Chapter 8 SATA RAID Setup

8.1 Introduction

To support demanding disk I/O, Intel ICH8DO chipset integrates six
Serial ATA controllers with software RAID 0, 1, 5, 10 capabilities.

RAID 0 stripping increases the storage performance and is designed to
speed up data transfer rates for disk-intensive applications.

RAID 1 mirroring protects valuable data that might be lost in the event of
a hard drive failure.

RAID 5 array contains three or more hard drives where the data is divided
into manageable blocks called strips. Parity is a mathematical method for
recreating data that was lost from a single drive, which increases fault-tol­erance. The data and parity are striped across all the hard drives in the
array. The parity is striped in a rotating sequence to reduce bottlenecks
associated with the parity calculations.

RAID 10 array uses four hard drives to create a combination of RAID
levels 0 and 1. The data is striped across a two-drive array forming the
RAID 0 component. Each of the drives in the RAID 0 array is then mir­rored by a RAID 1 component.

8.2 SATA RAID Driver and Utility Setup

Note: For the detail installation guide of SATA RAID

driver & utility please check the User Guide in
the driver CD. Path: \RAID\Manual

Note: Before you install the Intel(R) Matrix Storage

Manager Please read the "readme.txt" which is
in the folder “RAID”.

The driver is in the CD’s “RAID” folder.You may go to the directory of
the CD and follow Intel's installation guide to install the driver and Util­ity.

PCA-6194 User Manual 82

9

CHAPTER

IPMI

83 Chapter 9

Chapter 9 IPMI

9.1 IPMI introduction

This product fully supports Intelligent Platform Management Interface

2.0 (IPMI 2.0) specifications. It uses a micro-controller (Hitachi H8/

2167) to run an IPMI firmware.

9.2 Definitions

• BMC - (Baseboard Management Controller) This is the common abbre-

viation for an IPMI Baseboard Management Controller

• IPMB – (Intelligent Platform Management Bus) Protocol defined for

passing IPMI messages over a public I2C bus.

• IPMI - (Intelligent Platform Management Interface) A standardized

system management interface. Please refer to the IPMI Specification
for more detail.

• IPMIv2.0 – Specifically version 2.0 of IPMI

9.3 IPMI function list

The following standard IPMI commands will be supported. The 5th col­umn (Mandatory / Optional) is the record to distinguish the command is
mandatory or optional based on the definitions of Intel IPMI specification
(Intelligent Platform Management Interface Specification v2.0, revision

1.0, Intel, HP, NEC and Dell).

Table 9.1: Supported IPMI commands

IPMI Device Global
Commands

Get Device Id App 0x01 M

Cold Reset App 0x02 O

Get Self Test Results App 0x04 M

Manufacturing Test On App 0x05 O

Set ACPI Power State App 0x06 O

Get ACPI Power State App 0x07 O

Get Device GUID App 0x08 O

BMC Device and
Messaging Commands

NetFn Cmd Mandatory /

Optional

NetFn Cmd Mandatory /

Optional

PCA-6194 User Manual 84
