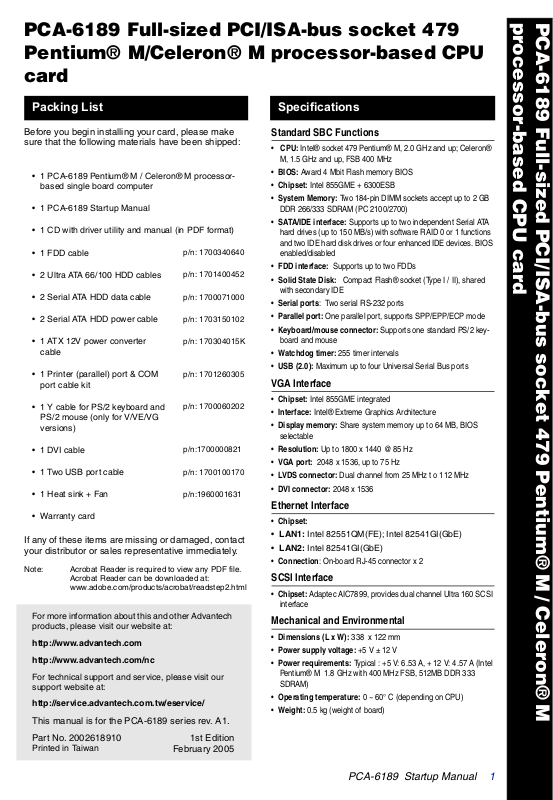

PCA-6189 Full-sized PCI/ISA-bus socket 479
Pentium® M/Celeron® M processor-based CPU
card
Packing List Specifications
processor-based CPU card
PCA-6189 Full-sized PCI/ISA-bus socket 479 Pentium® M / Celeron® M
Before you begin installing your card, please make
sure that the following materials have been shipped:
• 1 PCA-6189 Pentium® M / Celeron® M processorbased single board computer
• 1 PCA-6189 Startup Manual
• 1 CD with driver utility and manual (in PDF format)
• 1 FDD cable
• 2 Ultra ATA 66/100 HDD cables
• 2 Serial ATA HDD data cable
• 2 Serial ATA HDD power cable
• 1 ATX 12V power converter
cable
• 1 Printer (parallel) port & COM
port cable kit
• 1 Y cable for PS/2 keyboard and
PS/2 mouse (only for V/VE/VG
versions)
• 1 DVI cable
• 1 Two USB port cable
• 1 Heat sink + Fan
• Warranty card
If any of these items are missing or damaged, contact
your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
www.adobe.com/products/acrobat/readstep2.html
For more information about this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/nc
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/eservice/
p/n: 1700340640
p/n: 1701400452
p/n: 1700071000
p/n: 1703150102
p/n: 170304015K
p/n: 1701260305
p/n: 1700060202
p/n:1700000821
p/n: 1700100170
p/n:1960001631
This manual is for the PCA-6189 series rev. A1.
Part No. 2002618910
Printed in Taiwan
1st Edition
February 2005
Standard SBC Functions
•
CPU:
Intel® socket 479 Pentium® M, 2.0 GHz and up; Celeron®
M, 1.5 GHz and up, FSB 400 MHz
BIOS:
Award 4 Mbit Flash memory BIOS
•
Chipset:
Intel 855GME + 6300ESB
•
•
System Memory:
DDR 266/333 SDRAM (PC 2100/2700)
SATA/IDE interface:
•
hard drives (up to 150 MB/s) with software RAID 0 or 1 functions
and two IDE hard disk drives or four enhanced IDE devices. BIOS
enabled/disabled
•
FDD interface:
Solid State Disk:
•
with secondary IDE
Serial ports:
•
•
Parallel port:
Keyboard/mouse connector:
•
board and mouse
Watchdog timer:
•
•
USB (2.0):
Two 184-pin DIMM sockets accept up to 2 GB
Supports up to two independent Serial ATA
Supports up to two FDDs
Compact Flash® socket (Type I / II), shared
Two serial RS-232 ports
One parallel port, suppor ts SPP/EPP/ECP mode
Supports one standard PS/2 key-
255 timer intervals
Maximum up to four Universal Serial Bus ports
VGA Interface
•
Chipset:
Intel 855GME integrated
Interface:
Intel® Extreme Graphics Architecture
•
Display memory:
•
selectable
•
Resolution:
VGA port:
•
LVDS connector:
•
•
DVI connector:
Share system memory up to 64 MB, BIOS
Up to 1800 x 1440 @ 85 Hz
2048 x 1536, up to 75 Hz
Dual channel from 25 MHz t o 112 MHz
2048 x 1536
Ethernet Interface
•
Chipset:
• LAN1: Intel 82551QM(FE); Intel 82541GI(GbE)
• LAN2: Intel 82541GI(GbE)
•
Connection
: On-board RJ-45 connector x 2
SCSI Interface
•
Chipset:
Adaptec AIC7899, provides dual channel Ultra 160 SCSI
interface
Mechanical and Environmental
•
Dimensions (L x W):
Power supply voltage:
•
Power requirements:
•
Pentium® M 1.8 GHz with 400 MHz FSB, 512MB DDR 333
SDRAM)
•
Operating temperature:
Weight:
0.5 kg (weight of board)
•
338 x 122 mm
+5 V ± 12 V
Typical : +5 V: 6.53 A, + 12 V: 4.57 A (Intel
0 ~ 60° C (depending on CPU)
PCA-6189 Startup Manual 1
Jumpers and Connectors
The board has a number of jumpers that allow you to
configure your system to suit your application.
The table below lists the function of each of the jumpers and connectors.
Label Function
J1 CMOS clear
J2 Watchdog timer output selection
Label Function
CN1 Primary IDE connector
CN2 Secondary IDE connector
CN3 Floppy drive connector
CN4 Parallel port
CN6 USB port (share with CN32)
CN7 VGA connector
VCN2 LVSD connector
VCN3 DVI connector
CN8 Ethernet connector 1
CN9 Serial port: COM1
CN10 Serial port: COM2
CN11 PS/2 keyboard and mouse connector
CN12 External keyboard connector
CN13 Reserved
CN14 CPU FAN connector
CN16 Power LED
CN17 External speaker
CN18 Reset connector
CN19 HDD LED connector
CN20 ATX feature connector
CN21 ATX soft power switch
CN22 HW Monitor Alarm
CN27 Extension I/O board connector
CN28 Extension I/O board connector
CN29 SM BUS Connector
CN30 Extension PCI connector (for SCSI daughter
CN43 AC97 Link connector
CN44 CF Socket (On Back Side)
SA0 Serial ATA0
SA1 Serial ATA1
ATX1 ATX 12V Auxiliary power connector
VP1 LCD inverter power connector
Close: Enable OBS Alarm
Open: Disable OBS Alarm
board)
On Board Switch
S1,S2 USB connector (CN6 or CN32) selection
SW1 PCI bus selection switch
J1: CMOS clear function
Pins Result
1-2 (closed) Keep CMOS data*
2-3 (closed) Clear CMOS
switch
*default setting
J2: Watchdog timer output option
Closed pins Result
1-2 IRQ11
2-3 System reset *
Software Installation
• The CD disc contains a driver installer program that will
lead you through the installation of various device drivers needed to take full advantage of your CPU card.
Caution
The computer is provided with a battery-powered
Real-time Clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only
with same or equivalent type recommended by the
manufacturer. Discard used batteries according to
manufacturer's instructions.
Extension I/O board
Daughter board 1
CN31 USB port 0, 1
CN32 USB port 2, 3
CN34 Ethernet connector 2
SCSI Daughter Board Connectors
CN1 Channel A 68-pin Ultra 160 SCSI connector
CN2 Channel B 68-pin Ultra 160 SCSI connector
CN3 Channel B 50-pin Ultra Wide SCSI connec-
tor
2 PCA-6189 Startup Manual
Board Layout: Jumper and Connector Locations
PCA-6189 Startup Manual 3
CN32
CN31
CN34
CN9
CN8
CN7
CN11
Extension I/O connector
4 PCA-6189 Startup Manual
