PCA-6181
Full-sized PCI/ISA-bus
socket 370 Pentium III
processor-based CPU card
Copyright notice
This document is copyrighted, 2002, by Advantech Co., Ltd. All rights
are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of Advantech Co., Ltd. Information provided in this manual
is intended to be accurate and reliable. However, Advantech Co., Ltd.
assumes no responsibility for its use, nor for any infringements upon
the rights of third parties which may result from its use.
Acknowledgements
• AWARD is a trademark of AWARD Software, Inc.
• IBM and PC are trademarks of International Business Machines
Corporation.
• Intel® and Pentium® III are trademarks of Intel Corporation.
• Windows is a trademark of Microsoft Corporation.
• WinBond is a trademark of Winbond Corporation.
• ATI is a registered trademark of ATI Technologies, Inc.
• VIA is a registered trademark of VIA Technologies Inc.
• Realtek is a trademark of Realtek Semiconductor Corporation
All other product names or trademarks are the properties of their
respective owners.
Part No. 2002618101
1st Edition Printed in Taiwan May. 2002
A Message to the Customer
Advantech customer services
Each and every Advantech product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new Advantech equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name Advantech has
come to be known.
Your satisfaction is our primary concern. Here is a guide to
Advantech’s customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully.
Technical support
We want you to get the maximum performance from your products. So
if you run into technical difficulties, we are here to help. For the most
frequently asked questions, you can easily find answers in your
product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the answer,
gather all the information or questions that apply to your problem, and
with the product close at hand, call your dealer. Our dealers are well
trained and ready to give you the support you need to get the most
from your Advantech products. In fact, most problems reported are
minor and are able to be easily solved over the phone.
In addition, free technical support is available from Advantech
engineers every business day. We are always ready to give advice on
application requirements or specific information on the installation and
operation of any of our products.
ledoM--L1816-ACP
MARDSBM23
:NAL
,T-esaB001/01
C9318LTR
:ISCS cetpadA
ASIH
elbatnosirapmocseires1816-ACP
--V1816-ACP
1A00
:)X4PGA(AGV
✕✓ ✓ ✓✓✓
1A00
1A00
--EV1816-ACP
-1816-ACP
1A00-2E
-1816-ACP
1A00-SE
1A00
--F1816-ACP
htiwLX4egaRiTA
✕✕
elgniSlauDelgniSlauD
✕✕ ✕ ✕✓✓
ISCS061U9987
✓✓ ✓ ✓✓✓
Product warranty
Advantech warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for two
years from the date of purchase.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel authorized
by Advantech, or which have been subject to misuse, abuse, accident
or improper installation. Advantech assumes no liability under the
terms of this warranty as a consequence of such events.
If an Advantech product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs, you
will be billed according to the cost of replacement materials, service
time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, type of PC, CPU speed, Advantech products used, other
hardware and software used, etc.) Note anything abnormal and list
any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
material authorization) number from your dealer. This allows us to
process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.
Initial Inspection
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCA-6181 PCI/ISA single board computer
• 1 Pentium III® processor (optional)
• 1 PCA-6181 startup Manual
• 1 CD driver utility and manual (in PDF format)
• 1 FDD cable, P/N: 1701340703
• 2 UDMA 66/100 HDD cables, P/N: 1701400452
• 1 printer (parallel port) cable & COM port cable kit, P/N: 1700060305
• 1 ivory cable for PS/2 keyboard and PS/2 mouse, P/N: 1700060202
• 1 USB cable (optional), P/N 1700100170
• 1 single-slot bracket (optional), P/N: 1962159010
If any of these items are missing or damaged, contact your distributor
or sales representative immediately.
We have carefully inspected the PCA-6181 mechanically and
electrically before shipment. It should be free of marks and scratches
and in perfect working order upon receipt.
As you unpack the PCA-6181, check it for signs of shipping damage.
(For example, damaged box, scratches, dents, etc.) If it is damaged or it
fails to meet the specifications, notify our service department or your
local sales representative immediately. Also notify the carrier. Retain
the shipping carton and packing material for inspection by the carrier.
After inspection, we will make arrangements to repair or replace the
unit.
Content
Chapter 1 Hardware Configuration ............................... 1
1.1 Introduction .......................................................................... 2
1.2 Features................................................................................. 3
1.3 Specifications ........................................................................ 4
1.3.1 System .........................................................................4
1.3.2 Memory .......................................................................4
1.3.3 Input/Output ................................................................4
1.3.4 VGA interface ............................................................. 5
1.3.5 Ethernet LAN ............................................................. 5
1.3.6 Industrial features ........................................................ 5
1.3.7 Mechanical and environmental specifications .............5
1.4 Jumpers and Connectors .................................................... 6
1.5 Board Layout: Jumper and Connector Locations .......... 8
1.6 Safety Precautions .............................................................. 1 0
1.7 Jumper Settings ................................................................. 10
1.7.1 How to set jumpers ........................................................ 10
1.7.2 CMOS clear (J1) ....................................................... 11
1.7.3 Watchdog timer output (J2) ...................................... 11
1.8 System Memory ................................................................. 12
1.8.1 Supplementary information about DIMMs ................ 12
1.9 Memory Installation Procedures..................................... 13
1.10 Cache Memory ................................................................. 1 3
1.11 CPU Installation ............................................................... 14
Chapter 2 Connecting Peripherals ............................. 15
2.1 Primary (CN1) and Secondary (CN2) IDE Connectors 16
2.2 Floppy Drive Connector (CN3) ....................................... 17
2.3 Parallel Port (CN4) ............................................................ 1 7
2.4 USB Port (CN6) ................................................................. 1 8
2.5 VGA Connector (CN7) ...................................................... 19
2.6 10/100Base-T Ethernet Connector (CN8) .................... 1 9
2.7 Serial Ports (CN9: COM1; CN10: COM2) ................... 19
2.8 PS/2 Keyboard and Mouse Connector (CN11) ............. 20
2.9 External Keyboard Connector (CN12) .......................... 2 1
2.10 Infrared (IR) Connector (CN13) ................................... 21
2.11 CPU Fan Connector (CN14) .......................................... 21
2.12 Front Panel Connectors (CN16, CN17, CN18, CN19,
CN21 and CN29) ...................................................................... 2 2
2.12.1 Keyboard lock and power LED (CN16) ................. 22
2.12.2 External speaker (CN17) ........................................ 22
2.12.3 Reset (CN18) .......................................................... 23
2.12.4 HDD LED (CN19) ................................................. 23
2.12.5 SM Bus Connector (CN29)..................................... 23
2.12.6 Connecting to SNMP-1000 remote manager .......... 23
2.13 ATX Power Control Connectors (CN20 and CN21) .. 24
2.13.1 ATX feature connector (CN20) and soft power
switch connector (CN21) ...................................................24
2.13.2 Controlling the soft power switch ............................ 25
Chapter 3 Award BIOS Setup ...................................... 27
3.1 Introduction ........................................................................ 2 8
3.2 Entering Setup .................................................................... 2 8
3.3 Standard CMOS Setup ...................................................... 29
3.3.1 CMOS RAM backup ................................................ 29
3.4 Advanced BIOS Features................................................. 30
3.4.1 Virus Warning ............................................................ 30
3.4.2 CPU Internal Cache / External Cache...................... 30
3.4.3 CPU L2 Cache ECC Checking ................................ 31
3.4.4 First/Second/Third/Other Boot Device...................... 31
3.4.5 Swap Floppy Drive ....................................................31
3.4.6 Boot UP Floppy Seek ................................................ 31
3.4.7 Boot Up NumLock Status .........................................31
3.4.8 Gate A20 Option ....................................................... 31
3.4.9 Typematic Rate Setting ............................................. 31
3.4.10 Typematic Rate (Chars/Sec) ................................... 32
3.4.11 Typematic Delay (msec) ......................................... 32
3.4.12 Security Option ........................................................ 32
3.4.13 OS Select for DRAM > 64MB ............................... 32
3.4.14 Video BIOS Shadow ...............................................32
3.5 Advanced Chipset Features ............................................. 33
3.5.1 DRAM Clock ............................................................33
3.5.2 SDRAM Cycle Length.............................................. 33
3.5.3 Bank Interleave .........................................................34
3.5.4 Memory Hole ............................................................ 34
3.5.5 System BIOS Cacheable........................................... 34
3.5.6 AGP Aperture Size ................................................... 34
3.5.7 Onboard USB ............................................................ 34
3.5.8 USB Keyboard Support ............................................ 34
3.5.9 USB Mouse Support ................................................. 35
3.5.10 CPU to PCI Write Buffer ....................................... 35
3.5.11 PCI Dynamic Bursting ............................................ 35
3.5.12 PCI Master 0 WS Write.......................................... 35
3.5.13 PCI Delay Transaction ........................................... 35
3.5.14 AGP Master 1 WS Write ........................................ 35
3.5.15 Memory Parity/ ECC Check ................................... 35
3.6 Integrated Peripherals ...................................................... 3 6
3.6.1 On-Chip Primary/Secondary PCI IDE...................... 36
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode, IDE
Secondary Master/Slave PIO/UDMA Mode (Auto) ......... 36
3.6.3 Init Display First ........................................................ 36
3.6.4 IDE HDD Block Mode .............................................36
3.6.5 Onboard FDD Controller........................................... 37
3.6.6 Onboard Serial Port 1 (3F8H/IRQ4) ......................... 37
3.6.7 Onboard Serial Port 2 (2F8H/IRQ3) ......................... 37
3.6.8 UART 2 Mode Select ............................................... 37
3.6.9 Onboard Parallel Port (378H/IRQ7) ......................... 38
3.6.10 Onboard Parallel Port Mode (ECP + EPP) ............ 38
3.6.11 ECP Mode Use DMA ............................................. 38
3.6.12 Parallel Port EPP Type ........................................... 38
3.7 Power Management Setup ............................................... 3 9
3.7.1 Power-Supply Type ..................................................39
3.7.2 ACPI function ........................................................... 39
3.7.3 Power Management .................................................. 39
3.7.4 PM Control by APM ................................................. 40
3.7.5 Video Off Option .......................................................40
3.7.6 Video Off Method ..................................................... 40
3.7.7 MODEM Use IRQ ...................................................41
3.7.8 Soft-Off by PWRBTN .............................................. 41
3.7.9 State After Power Failure ......................................... 41
3.8 Wake Up Event ................................................................. 42
3.8.1 VGA .......................................................................... 42
3.8.2 LPT & COM............................................................. 42
3.8.3 HDD & FDD ............................................................ 42
3.8.4 Power On by LAN.................................................... 42
3.8.5 Power On by Modem ................................................ 43
3.8.6 Power On by Alarm .................................................. 43
3.9 PnP/PCI Configurations .................................................... 43
3.9.1 PnP OS Installed ....................................................... 43
3.9.2 Reset Configuration Data .......................................... 43
3.10 PC Health Status .............................................................. 4 4
3.10.1 Current CPU Temperature ...................................... 44
3.10.2 Current CPUFAN Speed ........................................ 44
3.10.3 VCORE ................................................................... 44
3.10.4 +2.5/ +3.3V/ + 5V/ +12V ........................................ 44
3.11 Load Setup Defaults ........................................................ 4 5
3.12 Password Setting .............................................................. 4 5
3.13 Save & Exit Setup ........................................................... 4 6
3.14 Exit Without Saving ......................................................... 46
Chapter 4 AGP SVGA Setup ........................................ 47
4.1 Before You Begin ............................................................... 4 8
4.2 Features............................................................................... 4 8
4.3 VGA Installation ................................................................. 49
4.4 AGP Installation ................................................................. 5 0
Chapter 5 LAN Configuration ...................................... 53
5.1 Introduction ........................................................................ 5 4
5.2 Features............................................................................... 5 4
5.3 Driver Installation .............................................................. 5 5
5.4 Windows 9X Drivers Setup Procedure .......................... 5 6
5.5 Windows NT Drivers Setup Procedure .......................... 62
5.6 Windows 2000 Drivers Setup Procedure ....................... 6 7
Chapter 6 SCSI Setup and Configurations ................ 75
6.1 Introduction ........................................................................ 7 6
6.2 Understanding SCSI .......................................................... 76
6.3 SCSI IDs .............................................................................. 77
6.4 Terminating the SCSI Bus ................................................ 7 8
6.5 Configuring the SCSI interface with SCSISelect .......... 7 9
6.6 Starting SCSISelect ........................................................... 8 1
6.7 Using SCSISelect Settings ............................................... 82
6.8 Using SCSI Disk Utilities ................................................. 86
6.9 Installation under Windows NT/Windows 2000 ............ 8 6
6.10 Windows 9X Driver setup procedure ........................... 8 7
6.11 Windows NT Driver Setup Procedure .......................... 92
Appendix A Programming the Watchdog Timer ........ 95
A.1 Programming the Watchdog Timer ................................ 96
Appendix B Pin Assignments ..................................... 99
B.1 IDE Hard Drive Connector (CN1, CN2) ..................... 10 0
B.2 Floppy Drive Connector (CN3) .................................... 10 1
B.3 Parallel Port Connector (CN4)...................................... 1 02
B.4 USB Connector (CN6) ................................................... 1 03
B.5 VGA Connector (CN7) ................................................... 1 03
B.6 Keyboard and Mouse Connnector (CN11) ................. 104
B.7 External Keyboard Connector (CN12) ........................ 104
B.8 IR Connector (CN13) ..................................................... 105
B.9 CPU Fan Power Connector (CN14) ............................. 105
B.10 Power LED and Keylock Connector (CN16) ........... 106
B.11 External Speaker Connector (CN17) ........................ 106
B.12 Reset Connector (CN18)............................................. 10 7
B.13 HDD LED Connector (CN19) .................................... 10 7
B.14 ATX Feature Connector (CN20) ................................ 107
B.15 ATX Soft Power Switch (CN21) .................................. 10 8
B.16 SM Bus Connector (CN29) ......................................... 108
B.17 System I/O Ports ........................................................... 109
B.18 DMA Channel Assignments ....................................... 110
B.19 Interrupt Assignments ................................................. 110
B.20 1st MB Memory Map ................................................... 111
B.21 PCI Bus Map ..................................................................111
Table
Table 1-1: Jumpers ........................................................................................................ 6
Table 1-2: Connectors ....................................................................................................6
Table 1-3: SCSI Daughter board: ................................................................................... 7
Table 1-4: CMOS clear (J1) .........................................................................................11
Table 1-5: Watchdog timer output (J2)........................................................................ 11
Table 1-6: DIMM module allocation table .................................................................. 12
Table 2-1: Serial port connections (COM1, COM2) .................................................. 20
Table 2-2: PS/2 or ATX power supply LED status .................................................... 22
Table B-1: IDE hard drive connector (CN1, CN2) .................................................... 100
Table B-2: Floppy drive connector (CN3) ................................................................ 101
Table B-3: Parallel port connector (CN4) ..................................................................102
Table B-4: USB1/USB2 connector (CN6) ................................................................. 103
Table B-5: VGA connector (CN7) .............................................................................103
Table B-6: Keyboard and mouse connector (CN11) ................................................. 104
Table B-7: External keyboard connector (CN12) ...................................................... 104
Table B-8: IR connector (CN13) ............................................................................... 105
Table B-9: CPU fan power connector (CN14) .......................................................... 105
Table B-10: Power LED and keylock connector (CN16) .......................................... 106
Table B-11: External speaker (CN17) ........................................................................106
Table B-12: Reset connector (CN18) ........................................................................ 107
Table B-13: HDD LED connector (CN19) ................................................................107
Table B-14: ATX feature connector (CN20) ............................................................. 107
Table B-15: ATX soft power switch (CN21) ........................................................... 108
Table B-16: ATX soft power switch (CN21) ........................................................... 108
Table B-17: System I/O ports ................................................................................... 109
Table B-18: DMA channel assignments .................................................................... 110
Table B-19: Interrupt assignments ............................................................................ 110
Table B-20: 1st MB memory map ............................................................................ 111
Table B-21: PCI bus map .......................................................................................... 111
Figure
Figure 1-1: Board layout: jumper and connecter locations ............................................ 8
Figure 1-2: SCSI daughter board layout .........................................................................9
Figure 1-3: Extension I/O daughter board ...................................................................... 9
Figure 3-1: Award BIOS Setup initial screen ...............................................................28
Figure 3-2: Standard CMOS features screen ............................................................... 29
Figure 3-3: Advanced BIOS features screen ................................................................ 30
Figure 3-4: Advanced chipset features screen ............................................................. 33
Figure 3-5: Integrated peripherals ................................................................................36
Figure 3-6: Power management setup screen ...............................................................39
Figure 3-7: Wake-up event screen................................................................................ 42
Figure 3-8: PnP/PCI configurations screen .................................................................. 43
Figure 3-9: PC health status screen ............................................................................. 44
CHAPTER
1
Hardware Configuration
This chapter gives background information on the PCA-6181. It then shows you
how to configure the card to match your
application and prepare it for installation
into your PC.
Sections include:
• Introduction
• Features
• Specifications
• Board Layout
• Jumpers and Connectors
• Safety Precautions
• Jumper Settings
• System Memory
• Memory Installation Procedures
• Cache Memory
• CPU Installation
1.1 Introduction
The PCA-6181 Series all-in-one industrial grade single board computer
is a high performance and full-featured computing engine. It meet
most of the requirements of industrial applications.
The PCA-6181 supports Intel's Pentium III and Celeron processor. The
CPU provides 128/256/512 KB on-CPU L2 cache, eliminating the need
for external SRAM chips. It has two PCI EIDE interfaces (for up to four
devices) and a floppy disk drive interface (for up to two devices).
Other features include two RS-232 serial ports (16C550 UARTs with
16-byte FIFO or compatible), one enhanced parallel port (supports
EPP/ECP) and two USB (Universal Serial Bus) ports. The PCI enhanced IDE controller supports Ultra DMA/33/66/100 and PIO Mode 4
operation. This provides data transfer rates of 33/66/100 MB/sec.
System BIOS supports boot-up from an IDE CD-ROM, SCSI CD-ROM,
LS-120, IDE HDD, SCSI HDD, ZIP-100, LAN, and FDD.
A backup of CMOS data is stored in the Flash memory, which protects
data even after a battery failure. Also included is a 63-level watchdog
timer, which resets the CPU or generates an interrupt if a program
cannot be executed normally. This enables reliable operation in
unattended environments.
The PCA-6181 Series offers several impressive industrial features such
as chipset built-in VGA (AGP) interface, dual 10/100Base-T networking
controller, two DIMM slots for a total of 1.5 GB RAM memory, and a
high driving ISA bus.
The remote management interface enables the PCA-6181 to be
managed through Ethernet when it is connected to the SNMP-1000
Remote HTTP/SNMP System Manager.
Note: Some of the features mentioned above are not
available with all models. For more information about
the specifications of a particular model, see Section
1.3: Specifications.
2
PCA-6181 User's Manual
1.2 Features
1. On-board hardware monitoring: System healthy status including
CPU fan, CPU temperature and system voltages levels are monitored to ensure stable operation. proper system configuration and
management. A remote monitoring interface is reserved for remote
management through Ethernet by using Advantech's SNMP-1000
system management module.
2. ATX soft power switch: Through the BIOS, the power button can
be defined as the "Standby" (aka "Suspend" or "Sleep") button or
as the "Soft-Off" button. Regardless of the setting, pushing the
power button for more than 4 seconds will enter the Soft-Off mode.
3. Power-on by modem (requires modem): This allows a computer to
be turned on remotely through an internal or external modem. Users
can thus access information on their computers from anywhere in
the world.
4. Power-on by LAN: This allows you to remotely power up your
system through your network by sending a wake-up frame or
signal. With this feature, you can remotely upload/ download data
to/from systems during off-peak hours.
5. Message LED: Chassis LEDs now act as information providers.
The way a particular LED illuminates indicates the stage the
computer is in. A single glimpse provides useful information to the
user.
6. More:
• Additional metal bracket for board stabilization
• Power On by Alarm: Powers up your computer at a certain
time
• Virus warning: During and after system boot-up, any attempt
to write to the boot sector or partition table of the hard disk
drive will halt the system. In this case, a warning message will
be displayed. You can then run your anti-virus program to
locate the problem
Chapter 1 Hardware Configuration 3
1.3 Specifications
1.3.1 System
• CPU: Intel Celeron 533 MHz ~ 1.2 GHz, Pentium® III up to 1.26 GHz,
FSB 66/100/133 MHz
• BIOS: Award Flash BIOS, 2 Mb
• System Chipset: VIA Apollo Pro 133T (VT82C694T + VT82C686B)
• PCI enhanced IDE hard disk drive interface: Supports up to four
IDE large hard disk drives or other enhanced IDE devices. Supports
PIO mode 4 (16.67 MB/s data transfer rate) and Ultra DMA/33/66/100
(33/66/100 MB/s data transfer rate). BIOS enabled/disabled
• Floppy disk drive interface: Supports up to two floppy disk drives,
5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB, and 2.88
MB). BIOS enabled/disabled
1.3.2 Memory
• RAM: Up to 1.5 GB in two available 168-pin DIMM sockets. Supports PC100/ PC133-compliant SDRAMs
• ECC (parity DRAM only): Modules can detect multi-bit memory
errors. Correction of 1-bit memory errors
1.3.3 Input/Output
• Bus interface: PCI/ISA bus, PICMG compliant
• Enhanced parallel port: Configurable to LPT1, LPT2, LPT3, or
disabled. Standard DB-25 female connector provided. Supports EPP/
ECP
• Serial ports: Two RS-232 ports with 16C550 UARTs (or
compatible) with 16-byte FIFO buffer. Supports speeds up to 115.2
Kbps. Ports can be individually configured to COM1, COM2 or
disabled
4
PCA-6181 User's Manual
• Keyboard and PS/2 mouse connector: A 6-pin mini-DIN
connector is located on the mounting bracket for easy connection to
a keyboard or PS/2 mouse. An onboard keyboard pin header
connector is also available
• ISA driving current: 16 mA (High Drive)
1.3.4 VGA interface
• Controller: ATI Rage 128 Pro 4XL, AGP 4X
• Display memory: 32 MB
• Resolution up to 1600 X 1200 X 64K colors
1.3.5 Ethernet LAN
• Supports dual 10/100Base-T Ethernet networking
• Chipset: Realtek 8139C
1.3.6 Industrial features
• Watchdog timer: Can generate a system reset or IRQ11. The watchdog timer is programmable, with each unit equal to one second (63
levels). The program uses I/O port hex 443h to control the watchdog
timer
1.3.7 Mechanical and environmental specifications
• Operating temperature: 0 ~ 60° C (32 ~ 140° F), depending on CPU
• Storage temperature: -20 ~ 70° C (-4 ~ 158° F)
• Humidity: 20 ~ 95% non-condensing
• Power supply voltage: +5 V, ±12 V
• Power consumption:
+5 V @ 6.8 A, +12V @ 400 mA (typical, with Pentium III 1 GHz and
256 MB SDRAM)
• Board size: 338 x 122 mm (13.3" x 4.8")
• Board weight: 0.5 kg (1.2 lb)
Chapter 1 Hardware Configuration 5
1.4 Jumpers and Connectors
Connectors on the PCA-6181 board link it to external devices such as
hard disk drives and a keyboard. In addition, the board has a number
of jumpers used to configure your system for your application.
The tables below list the function of each of the board jumpers and
connectors. Later sections in this chapter give instructions on setting
jumpers. Chapter 2 gives instructions for connecting external devices
to your card.
Table 1-1: Jumpers
Label Function
J1 CMOS clear
J2 Watchdog timer output
Table 1-2: Connectors
Label Function
CN1 Primary IDE connector
CN2 Secondary IDE connector
CN3 Floppy drive connector
CN4 Parallel port
CN6 USB port
CN7 VGA connector
CN8 10/100Base-T Ethernet connector
CN9 Serial port: COM1
CN10 Serial port: COM2
CN11 PS/2 keyboard and mouse connector
CN12 External keyboard connector
CN13 Infrared (IR) connector
CN14 CPU fan connector
CN16 Power LED
6
PCA-6181 User's Manual
CN17 External speaker
CN18 Reset connector
CN19 HDD LED connector
CN20 ATX feature connector
CN21 ATX soft power switch
CN27 Extension I/O board connector
CN28 Extension I/O board connector
CN29 External SM bus connector
CN33 PS/2 mouse connector
CN34 10/100Base-T Ethernet connector 2
Table 1-3: SCSI Daughter board:
CN50 68-pin U160 SCSI connector
CN51 68-pin Ultra wide SCSI Connector
CN52 50-pin Ultra Wide SCSI Connect
Chapter 1 Hardware Configuration 7
1.5 Board Layout: Jumper and Connector
Locations
CN20
CN 6
CN 9
CN 8
CN 7
CN 11
CN 3
CN1
CN 4
DIMM1
DIMM2
CN2
CN 10
CN 28
DIMM3
J2
J1
CN 13
CN 12
CN 27
Figure 1-1: Board layout: jumper and connecter locations
8
PCA-6181 User's Manual
CN18
CN29
CN21
CN 14
CN 19
CN 17
CN 16
Adaptec
AIC-7892
50 Pin for Ultra Wide SCSI
68 pin for Ultra 160/ Ultra 2 SCSI
68 Pin for Ultra Wide SCSI
Figure 1-2: SCSI daughter board layout
Figure 1-3: Extension I/O daughter board
Chapter 1 Hardware Configuration 9
1.6 Safety Precautions
Warning! Always completely disconnect the power cord from
your chassis whenever you work with the hardware.
Do not make connections while the power is on.
Sensitive electronic components can be damaged by
sudden power surges. Only experienced
electronics personnel should open the PC chassis.
Caution! Always ground yourself to remove any static charge
before touching the CPU card. Modern electronic
devices are very sensitive to static electric charges.
As a safety precaution, use a grounding wrist strap
at all times. Place all electronic components in a
static-dissipative surface or static-shielded bag when
they are not in the chassis.
1.7 Jumper Settings
This section provides instructions on how to configure your card by
setting jumpers. It also includes the card's default settings and your
options for each jumper.
1.7.1 How to set jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge that closes an electrical
circuit. It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect them.
To “close” (or turn ON) a jumper, you connect the pins with the clip.
To “open” (or turn OFF) a jumper, you remove the clip. Sometimes a
jumper consists of a set of three pins, labeled 1, 2, and 3. In this case
you connect either pins 1 and 2, or 2 and 3.
A pair of needle-nose pliers may be useful when setting jumpers.
10
PCA-6181 User's Manual
1.7.2 CMOS clear (J1)
The PCA-6181 CPU card contains a jumper that can erase CMOS data
and reset the system BIOS information. Normally this jumper should be
set with pins 1-2 closed. If you want to reset the CMOS data, set J1 to
2-3 closed for just a few seconds, and then move the jumper back to 12 closed. This procedure will reset the CMOS to its default setting.
Table 1-4: CMOS clear (J1)
Function Jumper setting
1
* Keep CMOS data 1-2 closed
11
Clear CMOS data 2-3 closed
1
* default setting
1.7.3 Watchdog timer output (J2)
The PCA-6181 contains a watchdog timer that will reset the CPU or
send a signal to IRQ11 in the event the software fails to reset the
watchdog timer. The J2 jumper settings control the outcome of what
the computer will do in the event the watchdog timer is tripped.
Table 1-5: Watchdog timer output (J2)
Function Jumper setting
1
IRQ11 1-2 closed
* Reset 2-3 closed
* default setting
1
Chapter 1 Hardware Configuration 11
1.8 System Memory
The PCA-6181 has three sockets for 168-pin dual inline memory
modules (DIMMs). All these sockets use 3.3 V unbuffered synchronous DRAMs (SDRAM). DIMMs are available in capacities of 16, 32,
64, 128, 256 or 512 MB. The sockets can be filled in any combination
with DIMMs of any size, giving a total memory size between 16 MB
and 1.5 GB. Use the following table to calculate the total DRAM
memory within your computer:
Table 1-6: DIMM module allocation table
Socket number 168-pin DIMM memory
1 (16, 32, 64, 128, 256 or 512 MB) x 1
2 (16, 32, 64, 128, 256 or 512 MB) x 1
3 (16, 32, 64, 128, 256 or 512 MB) X 1
1.8.1 Supplementary information about DIMMs
Your PCA-6181 can accept SDRAM memory chips with or without
parity. Also note:
• If the PCA-6181 operates at 133/100 MHz, only use PC-133/ PC-100
compliant DIMMs. Most systems will not even boot if non-compliant modules are used. This is due to strict timing issues involved at
this speed.
• SDRAM chips are usually thinner and have higher pin density than
EDO chips.
• Chips with 9 chips/side support ECC; chips with 8 chips/side do not
support ECC.
12
PCA-6181 User's Manual
1.9 Memory Installation Procedures
To install DIMMs, first make sure the two handles of the DIMM
socket are in the "open" position. i.e. The handles lean outward.
Slowly slide the DIMM module along the plastic guides on both ends
of the socket. Then press the DIMM module right down into the
socket, until you hear a click. This is when the two handles have
automatically locked the memory module into the correct position of
the DIMM socket. To remove the memory module, just push both
handles outward, and the memory module will be ejected by the
mechanism in the socket.
1.10 Cache Memory
Since the second level (L2) cache has been embedded into the Intel
Pentium III/Celeron processor, you do not have to take care of either
SRAM chips or SRAM modules. The built-in second level cache in the
Pentium III/Celeron processor yields much higher performance than
the external cache memories. The cache size in the Intel® Pentium III
processor is 256 KB or 512 KB, for Celeron processor is 128 or 256 KB.
®
Chapter 1 Hardware Configuration 13
1.11 CPU Installation
The CPU on the board must have a fan or heat sink attached, to
prevent overheating.
Warning: Without a fan or heat sink, the CPU will overheat and
cause damage to both the CPU and the motherboard.
To install a CPU, first turn off your system and remove its cover.
Locate the processor socket 370.
1. Make sure the socket 370 lever is in the upright position. To raise
the lever, pull it out to the side a little and raise it as far as it will go.
2. Place the CPU in the empty socket. Follow the instructions that
came with the CPU. If you have no instructions, complete the
following procedure. Carefully align the CPU so it is parallel to the
socket and the notches on the corners of the CPU correspond with
the notches on the inside of the socket. Gently slide the CPU in. It
should insert easily. If it does not insert easily, pull the lever up a
little bit more.
3. Press the lever down. The plate will slide forward. You will feel
some resistance as the pressure starts to secure the CPU in the
socket. This is normal and will not damage the CPU.
When the CPU is installed, the lever should snap into place at the side
of the socket.
Note: To remove a CPU, pull the lever out to the side a
little and raise it as far as it will go. Lift out the CPU.
14
PCA-6181 User's Manual
CHAPTER
2
Connecting Peripherals
This chapter tells how to connect peripherals, switches and indicators to the
PCA-6181 board. You can access most of
the connectors from the top of the board
while it is installed in the chassis. If you
have a number of cards installed, or your
chassis is very tight, you may need to
partially remove the card to make all the
connections.
2.1 Primary (CN1) and Secondary (CN2) IDE
Connectors
CN1
CN2
You can attach up to four IDE (Integrated Device Electronics) drives to
the IDE connectors. The primary (CN1) and secondary (CN2) connectors can each accommodate two drives.
Wire number 1 on the cable is red or blue and the other wires are gray.
Connect one end to connector CN1 or CN2 on the CPU card. Make
sure that the red/blue wire corresponds to pin 1 on the connector (in
the upper right hand corner). See Chapter 1 for help finding the
connector.
Unlike floppy drives, IDE hard drives can connect in either position on
the cable. If you install two drives to a single connector, you will need
to set one as the master and one as the slave. You do this by setting
the jumpers on the drives. If you use just one drive per connector, you
should set each drive as the master. See the documentation that came
with your drive for more information.
Connect the first hard drive to the other end of the cable. Wire 1 on the
cable should also connect to pin 1 on the hard drive connector, which
is labeled on the drive circuit board. Check the documentation that
came with the drive for more information.
Connect the second hard drive to the remaining connector (CN2 or
CN1), in the same way as described above.
16
PCA-6181 User's Manual
2.2 Floppy Drive Connector (CN3)
You can attach up to two floppy disk drives to the PCA-6181's
onboard controller. You can use any combination of 5.25" (360 KB / 1.2
MB) and/or 3.5" (720 KB / 1.44/2.88 MB) drives.
The card comes with a 34-pin daisy-chain drive connector cable. On
one end of the cable is a 34-pin flat-cable connector. On the other end
are two sets of floppy disk drive connectors. Each set consists of a
34-pin flat-cable connector (usually used for 3.5" drives) and a printed
circuit-board connector (usually used for 5.25" drives). You can use
only one connector in each set. The set on the end (after the twist in
the cable) connects to the A: floppy drive. The set in the middle
connects to the B: floppy drive.
2.3 Parallel Port (CN4)
CN3
CN4
The parallel port is normally used to connect the CPU card to a printer.
The onboard parallel port can be accessed through a 26-pin flat-cable
connector, CN4. The card comes with an adapter cable which lets you
use a traditional DB-25 connector. The cable has a 26-pin connector on
one end and a DB-25 connector on the other, mounted on a retaining
Chapter 2 Connecting Peripherals
17
bracket. The bracket installs at the end of an empty slot in your
chassis, giving you access to the connector.
The parallel port is designated as LPT1, and can be disabled or
changed to LPT2 or LPT3 in the system BIOS setup.
To install the bracket, find an empty slot in your chassis. Unscrew the
plate that covers the end of the slot. Screw in the bracket in place of
the plate. Next, attach the flat-cable connector to CN4 on the CPU card.
Wire 1 of the cable is red or blue, and the other wires are gray. Make
sure that wire 1 corresponds to pin 1 of CN4. Pin 1 is on the upper right
side of CN4.
2.4 USB Port (CN6)
The PCA-6181 provides four USB (Universal Serial Bus) interfaces,
which give complete Plug & Play and hot attach/detach for up to 127
external devices.The USB interface complies with USB Specification
Rev. 1.0 and is fuse-protected.
CN6
Pin 1
The USB interface is accessed through a 10-pin flat-cable connector,
CN6. The adapter cable has a 10-pin connector on one end and two
USB connectors on the bracket.
The USB interface can be disabled in the system BIOS setup.
18
PCA-6181 User's Manual
2.5 VGA Connector (CN7)
CN7
The PCA-6181 includes an AGP SVGA interface that can drive
conventional CRT displays. CN7 is a standard 15-pin D-SUB connector
commonly used for VGA. Pin assignments for CRT connector CN7 are
detailed in Appendix B.
2.6 10/100Base-T Ethernet Connector (CN8)
CN8
The PCA-6181 is equipped with a high-performance 32-bit PCI-bus
Ethernet interface, which is fully compliant with IEEE 802.3/u 10/100
Mbps CSMA/CD standards. It is supported by all major network
operating systems and is 100% Novell NE-2000 compatible. An
onboard RJ-45 jack provides convenient 10/100Base-T RJ-45 operation.
2.7 Serial Ports (CN9: COM1; CN10: COM2)
CN10
The PCA-6181 offers two serial ports, CN9 as COM1 and CN10 as
COM2. These ports can connect to serial devices, such as a mouse or
printers, or to a communication network.
Chapter 2 Connecting Peripherals
CN9
19
Table 2-1: Serial port connections (COM1, COM2)
Connector Ports Address Interrupt
CN 9 COM1 3F8*, 3E8 IRQ4
CN10 COM2 2F8*, 2E8 IRQ3
* default settings
The IRQ and address ranges for both ports are fixed. However, if you
want to disable the port or change these parameters later, you can do
this in the system BIOS setup.
Different devices implement the RS-232 standard in different ways. If
you are having problems with a serial device, be sure to check the pin
assignments for the connector.
2.8 PS/2 Keyboard and Mouse Connector
(CN11)
CN11
The PCA-6181 board provides a keyboard connector. A 6-pin mini-DIN
connector (CN11) on the card mounting bracket supports single-board
computer applications. The card comes with an adapter to convert
from the 6-pin mini-DIN connector to a standard DIN connector and to
a PS/2 mouse connector.
20
PCA-6181 User's Manual

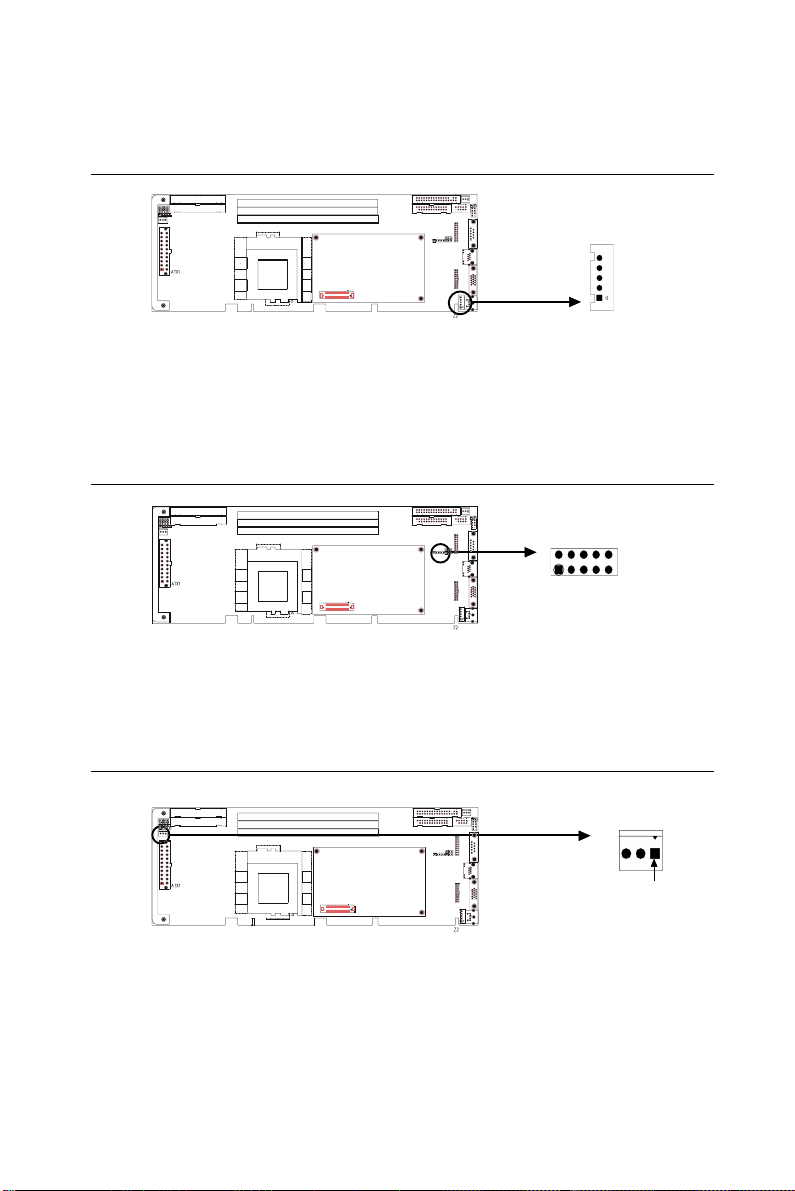

2.9 External Keyboard Connector (CN12)
CN12
In addition to the PS/2 mouse/keyboard connector on the PCA-6181's
rear plate, there is also an extra onboard external keyboard connector.
This gives system integrators greater flexibility in designing their
systems.
2.10 Infrared (IR) Connector (CN13)
CN13
This connector supports the optional wireless infrared transmitting
and receiving module. This module mounts on the system case. You
must configure the setting through the BIOS setup (see Chapter 3).
2.11 CPU Fan Connector (CN14)
This connector supports a cooling fan with tachometer output.
Chapter 2 Connecting Peripherals
CN14
PIN 1
21
2.12 Front Panel Connectors (CN16, CN17,
CN18, CN19, CN21 and CN29)
There are several external switches to monitor and control the
PCA-6181.
CN21
CN18
CN19
CN17
2.12.1 Keyboard lock and power LED (CN16)
CN16 is a 5-pin connector for the keyboard lock and power on LED.
Refer to Appendix B for detailed information on the pin assignments. If
a PS/2 or ATX power supply is used, the system's power LED status
will be as indicated below:
Table 2-2: PS/2 or ATX power supply LED status
Power mode LED (PS/2 power) LED (ATX power)
System On On On
System Suspend Fast flashes Fast flashes
System Off Off Slow flashes
2.12.2 External speaker (CN17)
CN17 is a 4-pin connector for an extenal speaker. If there is no external
speaker, the PCA-6181 provides an onboard buzzer as an alternative.
To enable the buzzer, set pins 3-4 as closed.
CN29
CN16
22
PCA-6181 User's Manual
2.12.3 Reset (CN18)
Many computer cases offer the convenience of a reset button.
Connect the wire from the reset button.
1
2.12.4 HDD LED (CN19)
You can connect an LED to connector CN19 to indicate when the HDD
is active.
1
2.12.5 SM Bus Connector (CN29)
This connector is reserved for Advantech's SNMP-1000 HTTP/SNMP
Remote System Manager. The SNMP-1000 allows users to monitor the
internal voltages, temperature and fans from a remote computer
through an Ethernet network.
2.12.6 Connecting to SNMP-1000 remote manager
Use the 6-pin to 8-pin cable to connect the CPU card to SNMP-1000.
This cable comes with the SNMP-1000.
PIN 1
CN21 CN18
CN19 CN29
CPU Card
CN19
PIN 1
SNMP-1000
Chapter 2 Connecting Peripherals
23
2.13 ATX Power Control Connectors (CN20
and CN21)
CN20
2.13.1 ATX feature connector (CN20) and soft power switch
connector (CN21)
The PCA-6181 can support an advanced soft power switch function if
an ATX power supply is used. To enable the soft power switch
function:
1. Take the specially designed ATX-to-PS/2 power cable out of the
accessory bag.
2. Connect the 3-pin plug of the cable to CN20 (ATX feature connector).
3. Connect the power on/off button to CN21. (A momentary type of
button should be used.)
Note: If you will not be using an A TX po wer connector,
make sure that pins 2-3 of CN20 are closed.
Warnings: 1. Make sure that you unplug your power supply
when adding or removing expansion cards or other
system components. Failure to do so may cause
severe damage to both your CPU card and expansion cards.
2. ATX power supplies ma y po wer on if certain
motherboard components or connections are touched
by metallic objects.
24
PCA-6181 User's Manual
Important: Make sure that the ATX power supply can take at
least a 720 mA load on the 5 V standb y lead (5VSB).
If not, you may have difficulty powering on your
system and/or supporting the "Wake-on-LAN"
function.
2.13.2 Controlling the soft power switch
Users can also identify the current power mode through the system's
power LED (see Section 2.13.1).
Chapter 2 Connecting Peripherals
25
26
PCA-6181 User's Manual
CHAPTER
3
Award BIOS Setup
This chapter describes how to set the
card’s BIOS configuration data.
3.1 Introduction
Award’s BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This type of information is
stored in battery-backed memory (CMOS RAM) so that it retains the
setup information when the power is turned off.
3.2 Entering Setup
Turn on the computer and check for the “patch code”. If there is a
number assigned to the patch code, it means that the BIOS supports
your CPU.
If there is no number assigned to the patch code, please contact
Advantech’s applications engineer to obtain an up-to-date patch code
file. This will ensure that your CPU’s system status is valid.
After ensuring that you have a number assigned to the patch code,
press <Del> to allow you to enter the setup.
Figure 3-1: Award BIOS Setup initial screen
28 PCA-6181 User’s Manual
3.3 Standard CMOS Setup
Choose the “Standard CMOS Features” option from the “Initial Setup
Screen” menu, and the screen below will be displayed. This menu
allows users to configure system components such as date, time, hard
disk drive, floppy drive, display, and memory.
Figure 3-2: Standard CMOS features screen
3.3.1 CMOS RAM backup
The CMOS RAM is powered by an onboard button cell battery.
When BIOS CMOS Setup has been completed, CMOS RAM data is
automatically backed up to Flash ROM. If conditions in a harsh
industrial enviroment cause a soft error, BIOS will recheck the data and
automatically restore the original data for booting.
Note: If you intend to update CMOS RAM data, you have
to click on “DEL” within two seconds of the “CMOS
checksum error....” display screen message appear-
ing. Then enter the “Setup” screen to modify the data.
If the “CMOS checksum error....” message appears
again and again, please check to see if you need to
replace the battery in your system.
Chapter 3 Award BIOS Setup 29
3.4 Advanced BIOS Features
The “Advanced BIOS Features” screen appears when choosing the
“Advanced BIOS Features” item from the “Initial Setup Screen”
menu. It allows the user to configure the CPU card according to his
particular requirements.
Below are some major items that are provided in the Advanced BIOS
Features screen.
A quick booting function is provided for your convenience. Simply
enable the Quick Booting item to save yourself valuable time.
Figure 3-3: Advanced BIOS features screen
3.4.1 Virus Warning
If enabled, a warning message and alarm beep activates if someone
attempts to write here. The commands are “Enabled” or “Disabled.”
3.4.2 CPU Internal Cache / External Cache
Enabling this feature speeds up memory access. The commands are
“Enabled” or “Disabled.”
30 PCA-6181 User’s Manual
3.4.3 CPU L2 Cache ECC Checking
Enabling allows CPU L2 cache checking. The commands are “Enabled”
or “Disabled.”
3.4.4 First/Second/Third/Other Boot Device
The BIOS tries to load the OS with the devices in the sequence
selected.
Choices are: Floppy, LS/ZIP, HDD, SCSI, CDROM, LAN, Disabled.
3.4.5 Swap Floppy Drive
Logical name assignments of floppy drives can be swapped if there is
more than one floppy drive. The commands are “Enabled” or “Disabled.”
3.4.6 Boot UP Floppy Seek
Selection of the command “Disabled” will speed the boot up. Selection
of “Enabled” searches disk drives during boot up.
3.4.7 Boot Up NumLock Status
This feature selects the “power on” state for NumLock. The commands are “Enabled” or “Disabled.”
3.4.8 Gate A20 Option
Normal The A20 signal is controlled by the keyboard
controller.
Fast (Default) The A20 signal is controlled by the chipset.
3.4.9 Typematic Rate Setting
The typematic rate is the rate key strokes repeat as determined by the
keyboard controller. The commands are “Enabled” or “Disabled.”
Enabling allows the typematic rate and delay to be selected.
Chapter 3 Award BIOS Setup 31
3.4.10 Typematic Rate (Chars/Sec)
BIOS accepts the following input values (characters/second) for
typematic rate: 6, 8, 10, 12, 15, 20, 24, 30.
3.4.11 Typematic Delay (msec)
Typematic delay is the time interval between the appearance of two
consecutive characters, when holding down a key. The input values
for this category are: 250, 500, 750, 1000 (msec).
3.4.12 Security Option
This setting determines whether the system will boot up if the
password is denied. Access to Setup is, however, always limited.
System The system will not boot, and access to Setup will be
denied if the correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be denied if
the correct password is not entered at the prompt.
Note: To disable security, select “PASSWORD SETTING”
in the main menu. At this point, you will be asked to
enter a password. Simply press <Enter> to disable
security. When security is disabled, the system will
boot, and you can enter Setup freely.
3.4.13 OS Select for DRAM > 64MB
This setting allows selecting an OS with greater than 64MB of RAM.
Commands are “Non-OS2” or “OS2.”
3.4.14 Video BIOS Shadow
Enable copies video BIOS to sharow RAM for performnace improving.
Choices are Enable, Disable.
32 PCA-6181 User’s Manual
3.5 Advanced Chipset Features
By choosing the “Advanced Cipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed. This sample
screen contains the manufacturer’s default values for this CPU card, as
shown in Figure 3-5:
Note: DRAM default timings have been carefully chosen
and should ONLY be changed if data is being lost.
Please first contact technical support.
Figure 3-4: Advanced chipset features screen
3.5.1 DRAM Clock
This item allows you to control the DRAM speed. The Choice: Host
Clock, CLK-33M.
3.5.2 SDRAM Cycle Length
When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing. Do not reset this field
from the default value specified by the system designer. The Choice:
2, 3.
Chapter 3 Award BIOS Setup 33
3.5.3 Bank Interleave
This item allows you to select the value in this field, depending on
whether the board has paged DRAMs or EDO (extended data output)
DRAMs. The Choice: EDO 50ns, EDO 60ns,Slow, Medium, Fast,
Turbo.
3.5.4 Memory Hole
In order to improve performance, certain space in memory is reserved
for ISA cards. This memory must be mapped into the memory space
below 16MB. The Choice: 15M-16M, Disabled.
3.5.5 System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result. The
choice: Enabled, Disabled.
3.5.6 AGP Aperture Size
Select the size of Accelerated Graphics Port (AGP) aperture. The
aperture is a portion of the PCI memory address range dedicated for
graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. The Choice:
4M, 8M, 16M, 32M, 65M, 128M, 256M.
3.5.7 Onboard USB
This should be enabled if your system has a USB installed on the
system board and you want to use it. Even when so equipped, if you
add a higher performance controller, you will need to disable this
feature. The choice: Enabled, Disabled.
3.5.8 USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard. The choice: Enabled,
Disabled.
34 PCA-6181 User’s Manual
3.5.9 USB Mouse Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB mouse. The choice: Enabled, Disabled.
3.5.10 CPU to PCI Write Buffer
When this field is Enabled, writes from the CPU to the PCI bus are
buffered, to compensate for the speed differences between the CPU
and the PCI bus. When Disabled, the writes are not buffered and the
CPU must wait until the write is complete before starting another write
cycle. The choice: Enabled, Disabled..
3.5.11 PCI Dynamic Bursting
When Enabled, every write transaction goes to the write buffer.
Burstable transactions then burst on the PCI bus and nonburstable
transactions don’t. The choice: Enabled, Disabled
3.5.12 PCI Master 0 WS Write
When Enabled, writes to the PCI bus are executed with zero wait
states. The choice: Enabled, Disabled
3.5.13 PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with
PCI specification version 2.1. The choice: Enabled, Disabled
3.5.14 AGP Master 1 WS Write
When Enabled, writes to the AGP(Accelerated Graphics Port) are
executed with one wait states. The choice: Enabled, Disabled
3.5.15 Memory Parity/ ECC Check
Enabled add a parity check to the boot-up memory test. Select
Enabled when only system DRAM contains parity. The Choice:
Enable, Disable.
Chapter 3 Award BIOS Setup 35
3.6 Integrated Peripherals
Figure 3-5: Integrated peripherals
3.6.1 On-Chip Primary/Secondary PCI IDE
If you enable IDE HDD Block Mode, the enhanced IDE driver will be
enabled. Leave IDE HDD Block Mode on the default setting.
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode,
IDE Secondary Master/Slave PIO/UDMA Mode (Auto)
Each channel (Primary and Secondary) has both a master and a slave,
making four IDE devices possible. Because each IDE device may have
a different Mode timing (0, 1, 2, 3, 4), it is necessary for these to be
independent. The default setting “Auto” will allow autodetection to
ensure optimal performance.
3.6.3 Init Display First
This item allows you to choose which one to activate first, PCI Slot or
AGP. The choices: PCI Slot, AGP.
3.6.4 IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or
multiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
36 PCA-6181 User’s Manual
optimal number of block read/writes per sector the drive can support.
The choice: Enabled, Disabled
3.6.5 Onboard FDD Controller
When enabled, this field allows you to connect your floppy disk
drives to the onboard floppy disk drive connector instead of a
separate controller card. If you want to use a different controller card
to connect the floppy disk drives, set this field to Disabled.
3.6.6 Onboard Serial Port 1 (3F8H/IRQ4)
The settings are Auto 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, and
Disabled for the on-board serial connector.
3.6.7 Onboard Serial Port 2 (2F8H/IRQ3)
The settings are Auto 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, and
Disabled for the on-board serial connector.
3.6.8 UART 2 Mode Select
This item allows you to select UART mode. The choices: HPSIR,
ASKIR, Standard.
Chapter 3 Award BIOS Setup 37
3.6.9 Onboard Parallel Port (378H/IRQ7)
This field sets the address of the on-board parallel port connector. You
can select either 3BC/IRQ7, 378/IRQ7, 278/IRQ5 or Disabled. If you
install an I/O card with a parallel port, make sure there is no conflict in
the address assignments. The CPU card can support up to three
parallel ports, as long as there are no conflicts for each port.
3.6.10 Onboard Parallel Port Mode (ECP + EPP)
This field allows you to set the operation mode of the parallel port.
The setting “Normal” allows normal speed operation, but in one
direction only. “EPP” allows bidirectional parallel port operation at
maximum speed. “ECP” allows the parallel port to operate in bidirectional mode and at a speed faster than the maximum data transfer rate.
“ECP + EPP” allows normal speed operation in a two-way mode.
3.6.11 ECP Mode Use DMA
This selection is available only if you select “ECP” or “ECP + EPP” in
the Parallel Port Mode field. In ECP Mode Use DMA, you can select
DMA channel 1, DMA channel 3, or Disable. Leave this field on the
default setting.
3.6.12 Parallel Port EPP Type
This field allows you to select EPP port type 1.7 or 1.9. The choices:
EPP1.7, 1.9.
38 PCA-6181 User’s Manual
3.7 Power Management Setup
The power management setup controls the CPU card’s “green”
features to save power. The following screen shows the manufacturer’s defaults:
Figure 3-6: Power management setup screen
3.7.1 Power-Supply Type
Choice: AT, ATX
3.7.2 ACPI function
This item allows you to enable/disable the Advanced Configuration
and Power Management (ACPI). The choice: Enabled, Disabled.
3.7.3 Power Management
This category allows you to select the type (or degree) of power
saving and is directly related to the following modes:
1. HDD Power Down
2. Doze Mode
3. Suspend Mode
There are four selections for Power Management, three of which have
fixed mode settings.
Chapter 3 Award BIOS Setup 39
)tluafed(elbasiDsedomruofllaselbasiD.tnemeganamrewopoN
gnivaSrewoP.niM ,.rh1=edoMybdnatS.rh1=edoMezoD.tnemeganamrewopmuminiM
gnivaSrewoP.xaM 1=edoMybdnatS,.nim1=edoMezoD.tnemeganamrewopmumixaM
denifeDresU ehtfohcae,delbasidtonnehW.yllaudividniedomhcaetesotuoyswollA
.elbasiddna.nim51ot.nim1morf
.nim51=nwoDrewoPDDHdna,.rh1=edoMdnepsuS
.nim1=nwoDrewoPDDHdna,.nim1=edoMdnepsuS,.nim
segnarhcihwnwoDrewoPDDHroftpecxe.rh1ot.nim1morferasegnar
3.7.4 PM Control by APM
When enabled, an Advanced Power Management device will be
activated to enhance the Max. Power Saving mode and stop the CPU
internal clock. If Advance Power Management (APM) is installed on
your system, selecting Yes gives better power savings. If the Max.
Power Saving is not enabled, this will be preset to No.
3.7.5 Video Off Option
When enabled, this feature allows the VGA adapter to operate in a
power saving mode.
nOsyawlAsedomgnivasrewopgnirudnoniamerlliwrotinoM
ffO>---NdnepsuS .edomdnepsuSehtsretnesmetsysehtnehwdeknalbrotinoM
ffO>---NybtS,psuS .sedomybdnatSrodnepsuSrehtiesretnemetsysehtnehwdeknalbrotinoM
ffO>ÑsedoMllA .edomgnivasrewopynasretnemetsysehtnehwdeknalbrotinoM
3.7.6 Video Off Method
This determines the manner in which the monitor is blanked.
knalB+CNYSH/V latnozirohdnalacitrevehtffonrutotmetsysehtesuaclliwnoitcelessihT
neercSknalB.reffuboedivehtotsknalbsetirwylnonoitposihT
SMPD tnemeganaMrewoPyalpsiDehtstroppusrotinomruoyfinoitposihttceleS
.seulavtnemeganamrewopoediv
40 PCA-6181 User’s Manual
.reffuboedivehtotsknalbetirwdnastropnoitazinorhcnys
tcelesotsdradnatSscinortcelEoediVehtfodradnats)SMPD(gnilangiS
3.7.7 MODEM Use IRQ
This determines the IRQ in which the MODEM can use.The choices: 3,
4, 5, 7, 9, 10, 11, NA.
3.7.8 Soft-Off by PWRBTN
If you choose “Instant-Off”, then pushing the ATX soft power switch
button once will switch the system to “system off” power mode. You
can choose “Delay 4 sec.” If you do so, then pushing the button for
more than 4 seconds will turn off the system, whereas pushing the
button momentarily (for less than 4 seconds) will switch the system to
“suspend” mode.
3.7.9 State After Power Failure
This field lets you to determine the state that your computer returns
after a power failure. If sets to Off, the PC will not boot after a power
failure. If sets to On, the PC will restart after a power failure. If sets to
Auto, the PC will go back to the previous state before a power failure
occurred. For instance, if the PC is power-on when power system fails,
the PC will restart when power system is working again. If the PC is
power-ff when power system fails, the PC will not boot when power
system is working again. The Choice: Off, On, Auto.
Chapter 3 Award BIOS Setup 41
3.8 Wake Up Event
Figure 3-7: Wake-up event screen
3.8.1 VGA
When Enabled, you can set the VGA awakens the system.
3.8.2 LPT & COM
When On of LPT & COM, any activity from one of the listed system
peripheral devices or IRQs wakes up the system.
3.8.3 HDD & FDD
When On of HDD & FDD, any activity from one of the listed system
peripheral devices wakes up the system.
3.8.4 Power On by LAN
This shows you to wake up the system via LAN from the remote host.
The Choice: Enable, Disable.
42 PCA-6181 User’s Manual
3.8.5 Power On by Modem
When enabled, an input signal on the serial Ring Indicator (RI) line (in
other words, an incoming call on the modem) awakens the system from
a soft off state. The Choice: Enable, Disable.
3.8.6 Power On by Alarm
When enabled, you can set the date and time at which the RTC (realtime clock) alarm awakens the system from Suspend mode. The
Choice: Enable, Disable.
3.9 PnP/PCI Configurations
3.9.1 PnP OS Installed
This features allows you to install the PnP OS. The commands are
“yes” or “no.”
3.9.2 Reset Configuration Data
Note: This is left “Disabled.” Select “Enabled” to reset
Extended System Configuration Data (ECSD) if you
have installed a new add-on and your OS won’t boot
and you need to reconfigure.
Figure 3-8: PnP/PCI configurations screen
Chapter 3 Award BIOS Setup 43
3.10 PC Health Status
Figure 3-9: PC health status screen
3.10.1 Current CPU Temperature
This shows you the current CPU1 temperature.
3.10.2 Current CPUFAN Speed
This shows you the current CPUFAN speed.
3.10.3 VCORE
This shows CPU1 core voltage.
3.10.4 +2.5/ +3.3V/ + 5V/ +12V
This shows you the voltage of +2.5/ +3.3V/ + 5V/ +12V
44 PCA-6181 User’s Manual
3.11 Load Setup Defaults
“LOAD SETUP DEFAULTS” loads the values required by the system
for maximum performance.
3.12 Password Setting
To change the password:
1. Choose the “Set Password” option from the “Initial Setup Screen”
menu and press <Enter>.
The screen will display the following message:
Enter Password:
Press <Enter>.
2. If the CMOS is good or if this option has been used to change the
default password, the user is asked for the password stored in the
CMOS. The screen will display the following message:
Confirm Password:
Enter the current password and press <Enter>.
3. After pressing <Enter> (ROM password) or the current password
(user-defined), you can change the password stored in the CMOS.
The password must be no longer than eight (8) characters.
Remember, to enable the password setting feature, you must first
select either “Setup” or “System” from the “Advanced BIOS Features” menu.
Chapter 3 Award BIOS Setup 45
3.13 Save & Exit Setup
If you select this and press <Enter>, the values entered in the setup
utilities will be recorded in the CMOS memory of the chipset. The
microprocessor will check this every time you turn your system on
and compare this to what it finds as it checks the system. This record
is required for the system to operate.
3.14 Exit Without Saving
Selecting this option and pressing <Enter> lets you exit the setup
program without recording any new values or changing old ones.
CHAPTER
4
AGP SVGA Setup
The PCA-6181 features an onboard PCI
AGP/VGA interface. This chapter provides
instructions for installing and operating
the software drivers on the display driver
CD included in your package.
4.1 Before You Begin
To facilitate the installation of the enhanced display device drivers and
utility software, you should read the instructions in this chapter
carefully before you attempt installation. The enhanced display
drivers for the PCA-6181 board are located on the software installation
CD. You must install the drivers and utility software by using the
supplied SETUP program for DOS drivers.
Note: The files on the software installation CD are com-
pressed. Do not attempt to install the drivers by
copying the files manually. You must use the supplied
SETUP program to install the drivers.
Before you begin, it is important to note that most display drivers
need to have the relevant software application already installed in the
system prior to installing the enhanced display drivers. In addition,
many of the installation procedures assume that you are familiar with
both the relevant software applications and operating system commands. Review the relevant operating system commands and the
pertinent sections of your application software’s user’s manual before
performing the installation.
4.2 Features
• Built-in ATI RAGE 128 PRO™ 4XL multimedia accelerator
• Supports AGP 4X mode with sideband addressing and AGP texturing
• Superior 3D performance achieved through a floating point setup
engine rated at 1.5 million triangles/sec
• Integrated 250 MHz DAC allows 85 Hz refresh at 1600 x 1200
resolution
• Complete local language support
• Power management for full VESA DPMS and EPA Energy Star
compliance
• User-friendly installation for Windows 95 and Windows NT
48
PCA-6181 User's Manual
• AGP 1.0 interface
• Integrates superior video features. These include filtered sealing of
720 pixel DVD content, and MPEG-2 motion compensation for
software DVD
4.3 VGA Installation
First, insert CD drive. Then follow the Icons for your PCA Series model
number.
Click on the right driver for the auto-installation.
If you are using Win98 or Win2000, please install AGP4x driver first.
Chapter 4 PCI SVGA Setup
49
4.4 AGP Installation
First, insert CD drive. Then follow the Icons for your PCA Series model
number.
Click on AGP Drivers "Auto" for Auto-installation.
50
PCA-6181 User's Manual
1. In the Setup, click on "next."
Chapter 4 PCI SVGA Setup
51
2.In the Installation Information, choose turbo mode or standard.
Then click on "Next."
3. The installaion is complete click on "Yes" to restart the system.
52
PCA-6181 User's Manual
CHAPTER
5
LAN Configuration
The PCA-6181 features an onboard LAN
interface. This chapter gives detailed
information on Ethernet configuration. It
shows you how to configure the card to
match your application requirements.
5.1 Introduction
The PCA-6181 features an optional single/dual 32-bit 10/100 Mbps
Ethernet network interface. This interface supports bus mastering
architecture and auto-negotiation features. Therefore standard
twisted-pair cabling with RJ-45 connectors for both 10 Mbps and 100
Mbps connections can be used. Extensive driver support for
commonly-used network systems is also provided.
5.2 Features
• Realtek RTL8139C Ethernet LAN controller
(fully integrated 10Base-T/100Base-TX)
• Supports Wake-on-LAN remote control function
• Supports up to128 K bytes Boot ROM
• PCI Bus Master complies with PCI Rev. 2.2
• MAC & PHY (10/100 Mbps) interfaces
• Complies to IEEE 802.3X 10Base-T and IEEE 802.3u 100Base-T
interfaces
• 3.3 V power supply with 5 V tolerant I/Os
• Single RJ-45 connector gives auto-detection of 10 Mbps or 100
Mbps network data transfer rates and connected cable types
• Enhancements on ACPI, PCI power management
• Compliant to PC99 standard
54
PCA-6181 User's Manual
5.3 Driver Installation
The PCA-6181's onboard Ethernet interface supports all major network
operating systems.
The BIOS automatically detects the LAN while booting, and assigns
an IRQ level and I/O address. No jumpers or switches are required for
user configuration.
The drivers and installation instructions are located in the following
directories of the utility CD:
• Dos: Drivers for DOS platforms
• Info: Installation instructions
• Nwserver: Drivers for Novell NetWare
• Wfw: Drivers for Windows 3.11 for Workgroups
Please refer to the text files in the Info directory for detailed information about installing the drivers.
Note: Operating system vendors may post driver updates
on their websites. Please visit the websites of OS
vendors to download updated drivers.
Chapter 5 LAN Configuration
55
5.4 Windows 9X Drivers Setup
Procedure
Note 1: If you are using Windows 98SE, your system will find
the LAN device "PCI Ethernet Controller". You must
first remove this device from your system, and then
restart your computer. Then you will be ready to
install the correct driver by following the procedure
below.
Note 2: The CD-ROM drive is designated as "D" throughout
this section.
1. In the "Windows" screen, click on "Start" and select "Settings".
Then click on the "Control Panel" icon to select "System".
56
PCA-6181 User's Manual
2. In the "System Properties" window, select the "Device Manager"
tab. Select "View devices by type", and navigate to:
Computer\Other devices\PCI Ethernet Controller. Highlight "PCI
Ethernet Controller" and click on "Properties".
Chapter 5 LAN Configuration
57
3. In the "PCI Ethernet Controller Properties" window, select the
"Driver" tab. Then click on "Update Driver...".
4. In the "Update Device Driver Wizard" window, click on "Next".
58
PCA-6181 User's Manual
5. Click "Next".
6. In the following "Update Device Driver Wizard" window, select
"Specify a location:". Type in: "D:\Drv_LAN\RTL8139C\WIN98".
Then click on "Next".
Chapter 5 LAN Configuration
59
7. In the following "Update Device Driver Wizard" window, select
"The updated driver ...". Then click on "Next".
8. In the following "Update Device Driver Wizard" window, click on
"Next".
60
PCA-6181 User's Manual
9. When the "Insert Disk" window appears, insert the utility CD into
the CD-ROM drive. Then click on "OK".
10. When the "Update Device Driver Wizard" window shows, click on
finish.
11. In the "System Settings change" window, select click on "Yes".
Chapter 5 LAN Configuration
61
5.5 Windows NT Drivers Setup Procedure
Note: The CD-ROM drive is designated as "E" throughout
this section.
1. In the "Windows NT" screen, click on "Start" and select "Settings". Then click on the "Control Panel" icon to select "Network".
2. In the "Network" window, select the "Adapters" tab. Then click
on "Add...".
62
PCA-6181 User's Manual
3. In the "Select Network Adapter" window, click on "Have Disk...".
4. When the "Insert Disk" window appears, insert the utility CD into
the CD-ROM drive. The correct file path is;
D:\Drv_LAN\RTL8139C\WINNT4. When you have the correct file
path, click on "OK".
Chapter 5 LAN Configuration
63
5. In the "Select OEM Option" window, click on "OK".
6. In the "Duplex mode", click "OK".
64
PCA-6181 User's Manual
7. In the "Network" window, select the "Adapters" tab. Under
"Network Adapters:", highlight "Realtek RTL8139CA/B/C(8130).
8. In the "Microsoft TCP/IP Properties" window, select the "IP
Address" tab. Then select "Specify an IP address". Type in the IP
Address and Subnet Mask details. Then click on "OK".
Chapter 5 LAN Configuration
65
9. In the "Network Settings Change" window, click on "Yes".
66
PCA-6181 User's Manual
5.6 Windows 2000 Drivers Setup Procedure
Note: The CD-ROM drive is designed as "E" throughout
this section.
1. In the "Windows 2000" screen, click on " Start" and select "
settings". Then click on the " Control Panel" icon to select
"system".
Chapter 5 LAN Configuration
67
2. In the " System Properties" window, select the " Device Manager".
68
PCA-6181 User's Manual
3. In "Device Manager" screen, follow the screen instructions, to
click on "Properties".
4. In the following screen, to click on "Update Driver".
Chapter 5 LAN Configuration
69
5. Click on "Next".
6. Following the highlighted item, and click on "Next".
70
PCA-6181 User's Manual
7. Click on "Have Disk".
8. Key in "E:\Drv__LAN\RTL8139C\WIN2000", then click on "OK".
Chapter 5 LAN Configuration
71
9. To highlight the following item, and click "Next".
10. Click "Next".
72
PCA-6181 User's Manual
11. Click "Finish" to complete the installation.
Chapter 5 LAN Configuration
73
74
PCA-6181 User's Manual
CHAPTER
6
SCSI Setup and
Configurations
The PCA-6181 features an onboard SCSI
interface. This chapter provides basic
SCSI concepts and instructions for
installing the software drivers with the
SCSI driver disks/CD included in your
package.
6.1 Introduction
The PCA-6181 is equipped with an Adaptec AIC-7899 single-chip PCIto-SCSI host adapter which provides a dual channel Ultra 160 multitasking interface between your computer’s PCI bus and SCSI devices
(disk drives, CD-ROM drives, scanners, tape backups, removable
media drives, etc.). Ultra 160 is a new generation of SCSI technology
that expands SCSI performance from 80 MBytes/sec to 160 MBytes/
sec. Up to a total of 15 SCSI devices can be connected to each of the
SCSI connectors.
The AIC-7899 combines this Ultra 160 SCSI technology with
Adaptec’s SpeedFlex™ technology. SpeedFlex allows the Adaptec
SCSI card to be backwards compatible with previous generations of
SCSI products, while allowing newer Ultra 160 SCSI devices to operate
at the higher 160 MBytes/sec rate.
There are 3 SCSI connectors on the CPU card: CN50 and CN51 for
Ultra 160 devices, and CN52 for 50-pin SCSI devices. You can use
Ultra 160 and Ultra wide devices simultaneously without compromising
the performance.
If you need to configure the SCSI, the onboard SCSI Select configuration utility allows you to change host adapter settings without opening
the computer or handling the board. The SCSI Select utility also
contains a utility to low-level format and verifies the disk media on
your hard disk drives.
Note: If any peripheral is running at SE mode, the
Ultra 160 SCSI segment will run at speeds up
to 40 MBytes/sec only instead of 160 MBytes/
sec.
6.2 Understanding SCSI
SCSI (pronounced “scuzzy”) stands for Small Computer Systems
Interface. SCSI is an industry standard computer interface for connecting SCSI devices to a common SCSI bus.
A SCSI bus is an electrical pathway that consists of a SCSI interface
76
PCA-6181 User’s Manual
installed in a computer and one or more SCSI devices. SCSI cables are
used to connect the devices to the SCSI interface. For the SCSI bus to
function properly, a unique SCSI ID must be assigned to the SCSI
interface and each SCSI device connected to it, and the SCSI bus must
be properly terminated.
6.3 SCSI IDs
Each device attached to the SCSI bus, as well as the SCSI controller
itself, must be assigned a unique SCSI ID number from 0 to 15. A SCSI
ID uniquely identifies each SCSI device on the SCSI bus and determines priority when two or more devices are trying to use the SCSI bus
at the same time.
Refer o the device’s documentation to set the SCSI ID. Here are some
general guidelines for SCSI IDs:
• For internal SCSI devices, the SCSI ID usually is set by configuring a
jumper on the device.
• For external SCSI devices, the SCSI ID usually is set with a swetch
on the back of the device.
• SCSI ID numbers don’t have to sequential, as long as the SCSI
controller and each device has a different number.
• For example, you can have an internal SCSI device with ID 0, and an
external SCSI device with ID 6.
• SCSI ID 7 has the highest priority on the SCSI bus. The priority of
the remianing IDs, in descending order, is 6 to 0, then 15 to 8.
• The on-boards SCSI interface is preset to SCSI ID 7 and should not
be changed. This gives it the highest priority on the SCSI bus.
• Most internal SCSI hard disk drives come from the factory pre-set to
SCSI ID 0.
• If you have 8-bit (or Narrow) SCSI deveices, they must use SCSI IDs
0, 1, 2, 3, 4, 5, or 6. SCSI ID 0 is recommended for the first SCSI hard
disk drive.
Chapter 6 SCSI Setup and Configurations
77
• If you are booting your computer from a SCSI hards disk drive
connected to the SCSI bus, the Boot SCSI ID setting in the
SCSISelect utility must correspond to the SCSI ID of the deveice
from which you are booting. By default, the Boot SCSI ID is set to 0.
We recommend that you do not change this setting.
• In Windows
which SCSI ID is assigned to each installed SCSI device.
©
95/98, you can use the Device Manager to determine
6.4 Terminating the SCSI Bus
To ensure reliable communication on the SCSI bus, the ends of the
SCSI bus must be properly terminated. This is accomplished when the
device at the end of the each cable, or the end of the cable itself, has a
terminator installed (or enabled). Terminators must be removed, or
termination must be disabled, on devices between the ends of each
cable.
Since the method for terminating a SCSI device can vary widely, refer
to the device’s documentation for instructions on how to enable or
disable termination. Here are some general guidelines for termination:
• Internal Ultra 160 and Ultra 2 SCSI devices come from the factory
with termination disabled and cannot be changed. Proper termination
for internal Ultra 160 and Ultra2 SCSI devices is provided by a 68-pin
Internal LVD (low voltage differential) SCSI cable, which has a builtin terminator at its end.
• Termination on non-Ultra 160 and Ultra2 internal SCSI devices
usually is controlled by manually setting a jumper or a switch on the
device, or by physically removing or installing one or more resistor
modules on the device.
• Termination on most external SCSI devices is controlled by installing
or removing a SCSI terminator. However, termination on some
external SCSI devices is enable or disabled by setting a swetich on
the back of the SCSI device.
• The last external Ultra160 or Ultra2 SCSI device must be terminated
with an LVD/SE (low voltage differential/single ended) terminator
78
PCA-6181 User’s Manual
plug to ensure that the device will operate at its maximum speed. If
you use a different kind of terminator plug, the data I/O rate will
decrease.
By default, termination on the SCSI controller itself is set to Automatic
(the preferred method). We recommend that you do not change this
default setting.
6.5 Configuring the SCSI interface with
SCSISelect
SCSISelect, included with the CPU card, enables you to change SCSI
settings without opening the computer. SCSISelect also enables you
to low-level format or verify the disk media of your SCSI hard disk
drives. The following table lists the available and default settings for
each SCSISelect option.
Note: The default settings are appropriate for most systems.
Run SCSISelect if you need to change or view current
settings, or if you would like to run the SCSI disk
utilities. See the descriptions of each option starting on
next page.
Chapter 6 SCSI Setup and Configurations
79
SCSISelect Options Available Settings Default Setting
SCSI Bus Interface
Definitions:
Host Adapter SCSI ID 0-15 7
SCSI Parity Checking Enable, Disabled Enabled
Host Adapter SCSI Termination
LVD/SE Connectors Automatic, Automatic
Enabled,
Disabled
SE Connectors Automatic Automatic
Low On/High On
Low Off/High Off
Low Off/High On
Boot Device Options:
Boot SCSI ID 0-15 0
Boot LUN Number
1
0-7 0
SCSISelect Options Available Settings Default Setting
SCSI Device Configuration:
Sync Transfer Rate (MBytes/sec) 160, 80.0, 53.4, 40.0, 160
32.0, 26.8, 20.0,
16.0, 13.4, 10.0
ASYN
Initiate Wide Negotiation Yes, No Yes (enabled)
Enable Disconnection Yes, No Yes (enabled)
Send Start Unit Command Yes, No Yes (enabled)
Enable Write Back Cache
BIOS Multiple LUN Support
Include in BIOS Scan
Advanced Configuration Options:
Reset SCSI Bus at IC Initialization Enabled, Disabled Enabled
Display <Ctrl><A> Messages Enabled, Disabled Enabled
during BIOS Initialization
Extended BIOS Translation for Enabled, Disabled Enabled
DOS Drives > 1 GByte
Verbose/Silent Mode Verbose, Silent Verbose
Host Adapter BIOS Enabled Enabled
2
N/C (No Change) N/C (No Change)
Yes, No
2
2
Disabled : Not Scan
Disabled: Scan Bus
Yes, No No (disabled)
Yes, No Yes (enabled)
80
PCA-6181 User’s Manual
Domain Validation
Support Removable Disks Under Disabled Disabled
BIOS as Fixed Disks
BIOS Support for Bootable Enabled, Disabled Enabled
CD_ROM
BIOS Support for Int 13 Enabled, Disabled Enabled
Extensions
1
2
2
Setting is valid only if Multiple LUN Support is enabled.
Settings are valid only if host adapter BIOS is enabled.
2
2
2
Enabled, Disabled Enabled
Boot Only,
All Disks
6.6 Starting SCSISelect
Follow these steps to start SCSISelect:
1.Turn on or restart your system.
During the startup process, pay careful attention to the messages
that appear on your screen.
2.When the following message appears on your screen, press the
Ctrl-A keys simultaneously (this message appearsfor only a few
seconds):
Press <Ctrl><A> for SCSISelect (TM) Utility!
3.From the menu that appears, use the arrow keys to move the cursor
to the option you want to select, then press ENTER.
Note: If you have difficulty viewing the display, press F5 to
toggle between color and monochrome modes. (This
feature maye not work on some monitors.)
Exiting SCSISelect
Follow these steps to exit SCSISelect:
1. Press ESC until a message prompts you to exit (if you changed
any settings, you are prompted to save the changes before you
exit.)
2. At the prompt, select YES to exit, then press any key to reboot the
computer. Any changes you made in SCSISelect take effect after
the computer boots.
Chapter 6 SCSI Setup and Configurations
81
6.7 Using SCSISelect Settings
To select an option, use the arrow keys to move the cursor to the
option, then press ENTER.
In some cases, selecting an option displays another meny. You can
return to the previous menu at any time by pressing ESC.
To restore the original SCSISelect default values, press F6 from the
main SCSISelect screen.
SCSI Bus Interface Definitions
• Host Adapter SCSI ID-(Default: 7) Sets the SCSI ID for
the SCSI controller. The Adaptec SCSI controller AIC-7899 is set
at 7, which gives t the highest priority on the SCSI bus. We
recommend that you do not change this setting.
• SCSI Parity Checking-(Default: Enabled) When set to Enabled,
verifies the accuracy of data transfer on the SCSI bus. Leave this
setting enabled unless any SCSI device does not support SCSI
parity.
• Host Adapter SCSI Termination-(Default: Automatic) Determines
the termination setting for the SCSI card. The default setting for
both the LVD/SE (low voltage differential/single ended) connec
tors and SE connectors is Automatic, which allows the SCSI card
to adjust the termination as needed depending on the finfiguration
of the connected SCSI devices. We recommend that you do not
change these settings.
Boot Device Options
• Boot SCSI ID-(Default: 0) Specifies the SCSI ID of your boot
device. We recommend that you dono t change the default
setting.
• Boot LUN Number-(Default: 0) Specifies which LUN (Logical Unit
Number) to boot from on your boot device. This setting is not
valid unless Multiple LUN Support is Enabled
82
PCA-6181 User’s Manual
SCSI Device Configuration
SCSI Device Configuration options can be set individually for each
connected SCSI device.
Note: To configure settings for a SCSI device, you must
know it’s SCSI ID (see Using Disk Utilities on page
23.)
• Sync Transfer Rate-(Default: 160) Determines the maximum
synchronous data transfer rate that the SCSI card supports. Use
the mazimum value of 160 MBytes/sec.
• Initiate Wide Negotiation-(Default: Ye s) When set to Ye s, the
SCSI card attempts 16-bit data transfer (wide negotiation.) When
set to No, the SCSI card uses 8-bit data transfer unless the SCSI
device requests wide negotiation.
Note: Set Initiate Wide Negotiation to NO if you are using an
8-bit SCSI device that hangs or exhibits other perfor
mance problems with 16-bit data transfer rate enabled.
• Enable Disconnection-(Default: Yes) When set to Yes , allows the
SCSI device to disconnect from the SCSI bus. Leave the setting at
Yes if two or more SCSI device is connected, changing the setting
to No results in slightly better performance.
• Send Start Unit Command-(Default: Yes ) When set to Ye s, the
Start Unit Command is sent to the SCSI device at bootup.
The following three options have no effect if the SCSI Card BIOS is
disabled. (The SCSI Cards BIOS is normally enabled by default.)
• Enable Write Back Cache-(Default: N/C) Can be used to enable
or disable the write-back cache on SCSI disk drives connected to
the host adapter. Leave this option at its default setting of N/C
(no change), which usually allow for optimum drive performance.
• BIOS Multiple LUN Support-(Default: No) Leave this setting at
No if the device does not have multiple Logical Unit Numbers
(LUNs.) When set to Ye s , the SCSI card BIOS provides boot
support for a SCSI device with multiple LUNs (for example, a CD
Chapter 6 SCSI Setup and Configurations
83
“juke box” device in which mulitple CDs can be accessed
simultaneously.)
• Include in BIOS Scan-(Default: Yes) When set to Ye s, the SCSI
card BIOS includes the device as part of its BIOS scan at bootup.
Advanced Configuration Options
Note: Do not change the Advanced Configuration Options
unless absolutely necessary.
• Reset SCSI Bus at IC Initialization-(Default: Enabled) When set
to Enabled, the SCSI card generates a SCSI bus reset during its
power-on initialization and after a hard reset.
• Display <Ctrl> <A> Messages during BIOS Initialization (Default: Enabled) When set to Enabled, the SCSI card BIOS
displays the Press <Ctrl> <A> for SCSISelect (TM) Utility!
message on your screen during system bootup. If this setting
disabled, you can still invoke the SCSISelect Utility by pressing
<Ctrl> <A> after the SCSI card BIOS banner appears.
• Extended BIOS Translation for DOS Drives > 1 GByte-(Default:
Enabled) When set to Enabled, provides an extended translation
scheme for SCSI hard disks with capacities greater than 1 GByte.
This setting is necessary only for MS-DOS 5.0 or above; it is not
required for other operating systems, such as NetWare of UNIX.
Caution: Changing the translation scheme destroys all data
Use the MS-DOS Fdisk command to partition a disk laster than
1GByte controlled by the SCSI card BIOS, when using DOS, Win
dows 3.1.x, ro Windows 95/98.
• Verbose/Silent Mode-(Default: Verbose) When set to Verbose,
the SCSI card BIOS displays the host adapter model on the screen
during sustem buildup. When set to Silent, the message is not
displayed during bootup.
84
PCA-6181 User’s Manual
on the drive. Bue sure to back your disk drives
before changing the translation scheme.
• Host Adapter BIOS (Configuration Utility Reserves BIOS
Space)-(Default: Enabled) Enables or disables the SCSI card
BIOS.
• Leave at Enabled to allow the SCSI card BIOS to scan and
initialize all SCSI devices.
• Set to Disabled: Not scan if the devices on the SCSI bus
(for example, CD-ROM drives) are controlled by software
drivers and do not need the BIOS, and you do not want
the BIOS to scan the SCSI bus.
• Set to Disabled: Scan Bus if you do not need the BIOS,
but you want it to scan the SCSI devices on the bus and
you need to spin up the devices.
The following four options have no effect when the SCSI Card
BIOS is disabled. (The SCSI Card BIOS is normally enabled by
default.)
• Domain Validation—(Default: Enabled) Determines the optimal
transfer rate for each device on the SCSI bus and sets transfer
rates accordingly. Displays the resulting data transfer rate.
• Support Removable Disks Under BIOS as Fixed Disks—
(Default: Disabled) Determines which removable-media drives are
supported by the SCSI card BIOS. Choices are as follows:
• Disabled— No removable-media drives are treated as hard disk
drives. Software drivers are required because the drives are not
controlled by the BIOS.
• Boot Only—Only the removable-media drive designated as the
boot device is treated as a hard disk drive.
• All Disks—All removable-media drives supported by the BIOS
are treated as hard disk drives.
Caution: You may lose data if you remove a removable-media
cartridge from a SCSI drive controlled by the SCSI
card BIOS while the drive is on. If you want to be able
to remove the media while the drive is on, install the
removable-media software driver and set Support
Removable Disks Under BIOS as Fixed Disks to
Disabled.
Chapter 6 SCSI Setup and Configurations
85
• BIOS Support for Bootable CD-ROMs—(Default: Enabled)
When set to Enabled, the SCSI card BIOS allows the computer to
boot from a CD-ROM drive.
• BIOS Support for Int 13 Extensions—(Default: Enabled) When
set to Enabled, the SCSI card BIOS supports Int 13h extensions as
required by Plug-and-Play. The setting can be either enabled or
disabled if your system is not Plug-and-Play.
6.8 Using SCSI Disk Utilities
To access the SCSI disk utilities, follow these steps:
1. Select the SCSI Disk Utilities option from the menu that
appears after starting SCSISelect. SCSISelect scans the SCSI bus
(to determine the devices installed) and displays a list of all SCSI
6.9 Installation under Windows NT/Windows 2000
If you are only using SCSI hard drives without any IDE HDD drive
installed. Please follow these steps:
1. Insert Windows NT/Windows 2000 CD Disk.
2. Press F6 immediately when it displays: “Set up is inspecting your
computer’s hardware configuration.”
3. Then it enter SCSI installation. Please insert SCSI driver floppy disk.
86
PCA-6181 User’s Manual
