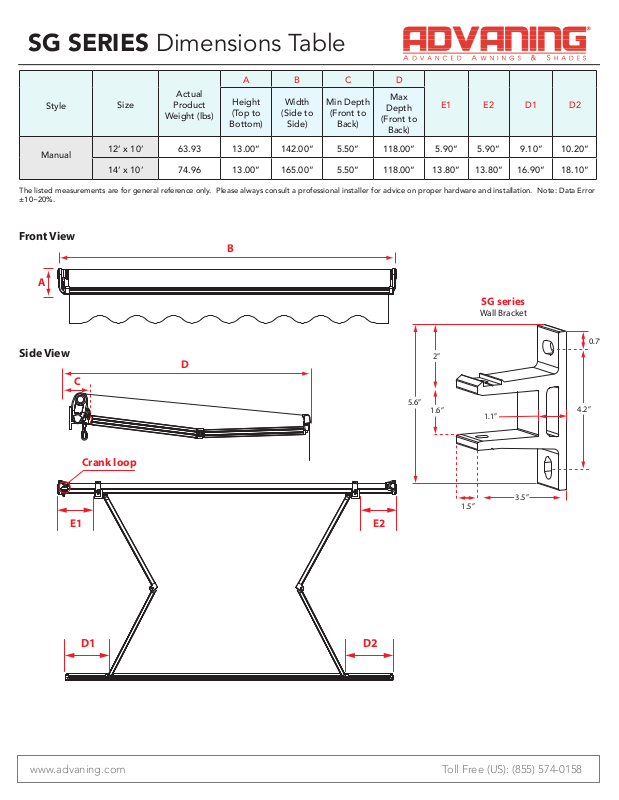

SG SERIES Dimensions Table
SG series
Wall Bracket
5.6”
2”
1.6”
1.1”
3.5”
1.5”
4.2”
0.7”
E2
D2
B
D
A B C D
Style
Size
Actual
Product
Weight (lbs)
Height
(Top to
Bottom)
Width
(Side to
Side)
Min Depth
(Front to
Back)
Max
Depth
(Front to
Back)
E1 E2 D1 D2
Manual
The listed measurements are for general reference only. Please always consult a professional installer for advice on proper hardware and installation. Note: Data Error
±10~20%.
12’ x 10’ 63.93 13.00” 142.00” 5.50” 118.00” 5.90” 5.90” 9.10” 10.20”
14’ x 10’ 74.96 13.00” 165.00” 5.50” 118.00” 13.80” 13.80” 16.90” 18.10”
Front View
B
A
Side View
D
C
Crank loop
E1
D1
E2
D2
www.advaning.com Toll Free (US): (855) 574-0158
