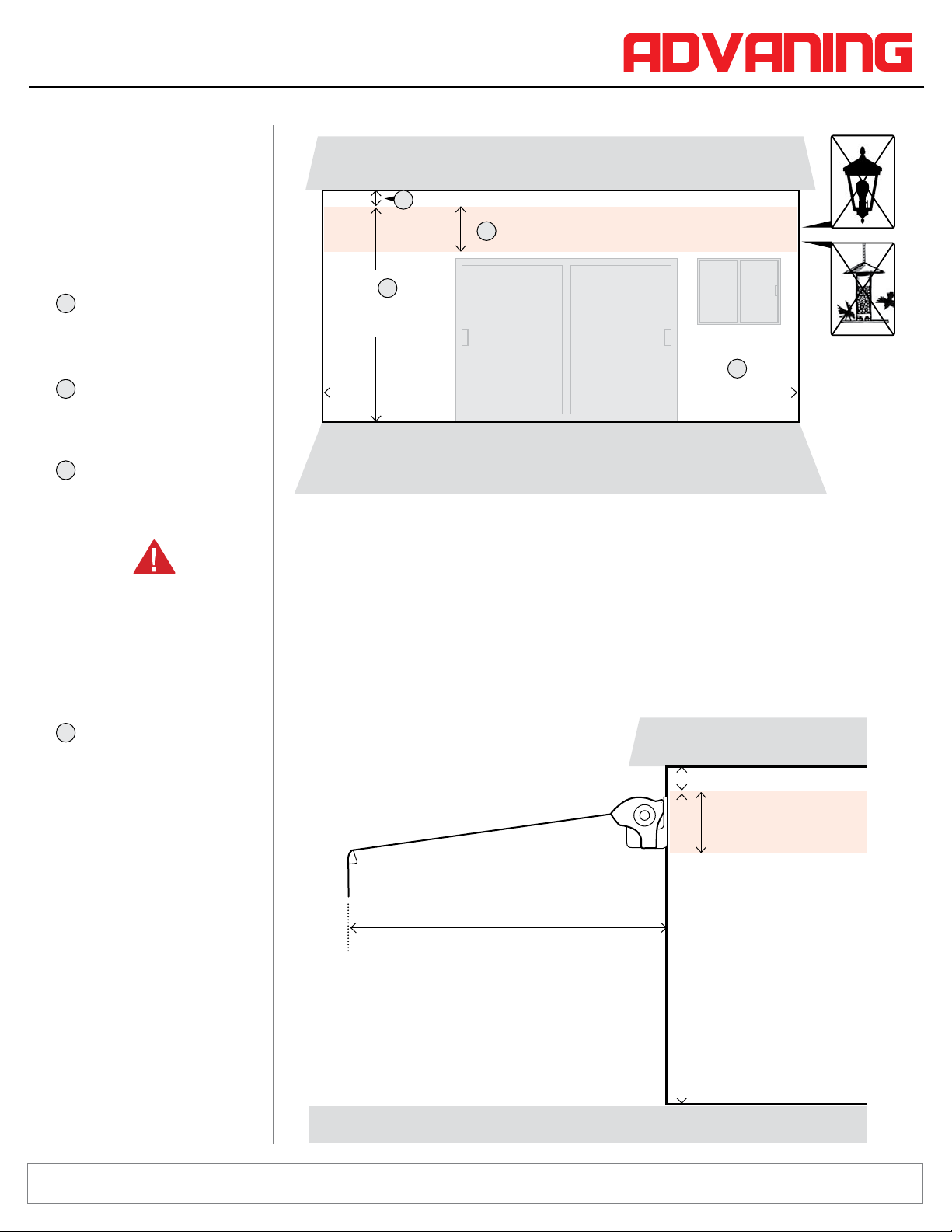

Pre-Installation Measuring Guide
DETERMINE
WHERE TO
INSTALL YOUR
AWNING
Locate a position that is
A
Recommended
8~10 feet above the
ground/oor/deck.
B
Minimum 1 inch clearance below the roof/
eave/overhang.
Minimum 1 inch
B
A
Recommended
8~10 feet
Roof, eave or overhang
Minimum 12 inches clear space
C
D
Minimum
8 feet
C
With at least 12 vertical inch of clear
space.
The surface should be
free and clear of any
obstructions along the
entirety of the awning.
D
Minimum 8 feet
width.

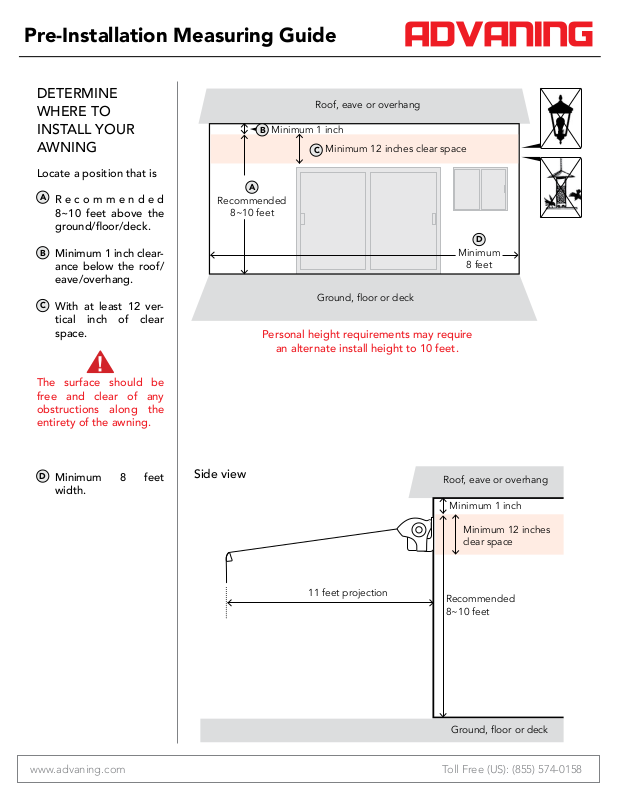

Side view
Ground, oor or deck
Personal height requirements may require
an alternate install height to 10 feet.
Roof, eave or overhang
Minimum 1 inch
Minimum 12 inches
clear space
11 feet projection
Recommended
8~10 feet
Ground, oor or deck
