ADVANCE VISION ELECTRONICS V120 User Manual

V120 Assets GPS Tracker

User Manual

V0.93

ADVANCE VISION ELECTRONICS CO., LTD.

6F., No.,199, Lide St., Zhonghe Dist., Ne w Taipei City 23556, Taiwan, R.O.C

TEL: [phone] FAX: [phone]

www.avecl.com [e-mail]

TABLE OF CONTENTS

1. Warning……………………………………..………………3

2. Features……………………………………..……………...4

3. Specification……………………………………………….5

4. Introduction………………………………………………..6

5. Battery Charging………………………………………….7

6. SIM Card Installation……………………………………..8

7. Operating………………………………………………….10

2

1. Warning:

USE RESPONSIBLY. READ ALL INSTRUCTIONS AND SAFETY
INFORMATION BEFORE USE TO AVOID INJURY.

Advance Vision Electronics Co., Ltd. will not accept any responsibility whatsoever
for accidents resulting from failure to observe common sense precautions. Your
personal judgment, traffic regulations, and common sense must always take
precedence over any directions produced by GPS tracker or the mapping software
of backend.

WARNING:

Be certain GPS tracker is secure for position of installation and does not interfere
driving safety.
It is your responsibility as the vehicle operator to securely place the GPS unit and
antenna so that they will not interfere with driving and prevent operations of any
safety device, i.e. vehicle’s airbag. Do not mount the devices in a place where the
driver or passengers may receive injury during vehicle operation or collision. For
your safety, take care to route all cables away from shifters, pedals, accessory
controls and mechanisms.

3

2. Features:

 GSM/SMS/GPRS Communication.
 Quad-Band GSM (850/900/1800/1900MHz) / GPRS Class10.
 Support Quick GPS Fix (AGPS).
 Real-Time tracking.
 Buffer Storage for recording 5,000 data positions.
 Geofence Function.
 Impact Detection / Movement / Low Battery / Over Speed Alert.
 Firmware Upgrade over the Air (OTA).
 Configuration via SMS or TCP/IP (GPRS).
 Long Battery Life.
 Quick Installation (Strong Magnet).
 IP67 Water-Resistance.

Goods Investigate Assets

4

3. Specification:

GSM Frequency GSM 850/900/1800/1900 system
GPS Channels 50-channel acquisition

14-channel tracking
GPS Start Time Hot Start: 1 sec, Warm Start: 32 sec, Cold Start: 32 sec
Position Accuracy Position 2.5m CEP
Default Datum WGS84
Operating Temperature -20°C~ 55°C
Humidity 5%~ 95% Non-condensing
Dimension 131mm x 71.5 mm x 36.5mm
Weight 420g
Battery Rechargeable 12000 mAh Li-ion battery (3.7V)
External Power Source
Power Consumption Operating(GPS ON, GSM ON) : 110mAh

LED Power / GSM (Orange/Green)

Water-Resistance IP67
Certification CE, FCC, PTCRB, NCC, BSMI
Accessories

12V、24V DC

Power Save (GPS OFF, GSM ON): 10mAh

Sleep (GPS OFF, GSM OFF): 2mAh

GPS (Blue)

AC Adaptor

Option:

Power Cable (Support 12V / 24V DC Input)

5

4. Introduction:









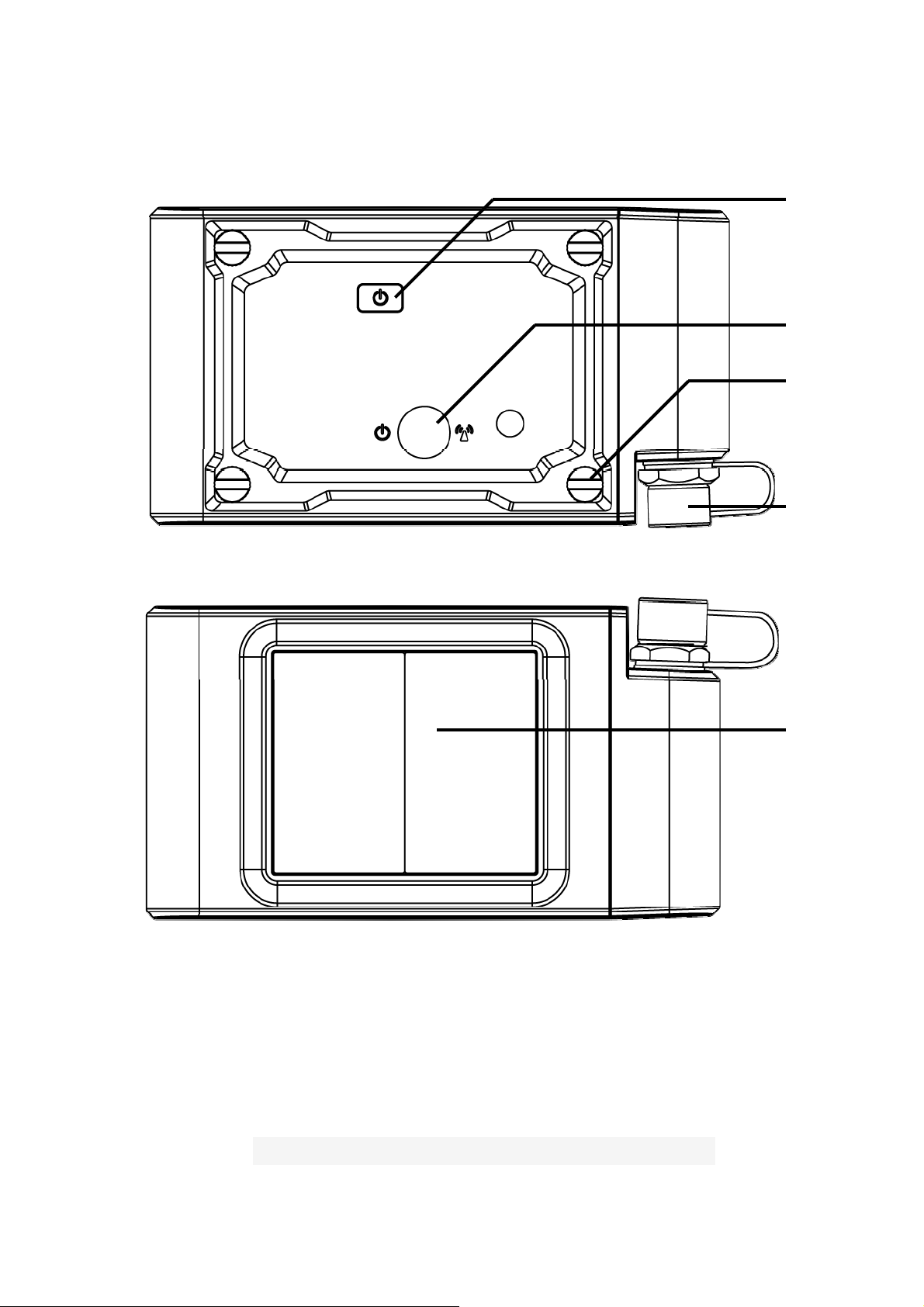

Front



Back

 Power Key
 LED
 Screw


DC Connector

 Magnet

6

5. Battery Charging:

First time to use:

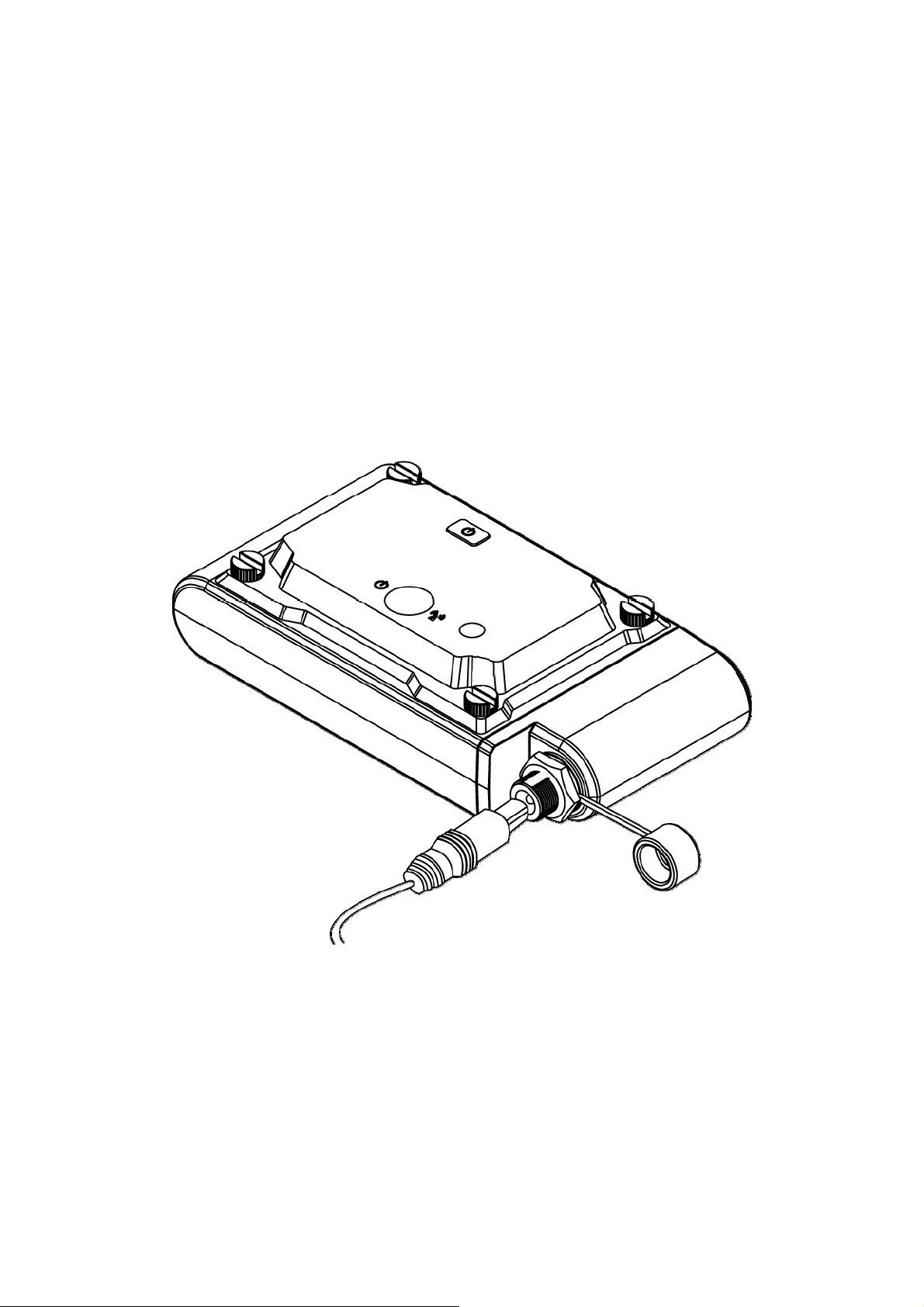

Please make sure that rechargeable battery is completely charged. (to charge over
12 hours)

Charging:
The orange LED will start flashing when the device is low battery, at this time please
put the charger into the device and then the orange LED lights will become constant
light, to be fully charged after orange LED will extinguish and return to the green LED
flashing.

7

6. SIM Card Installation:

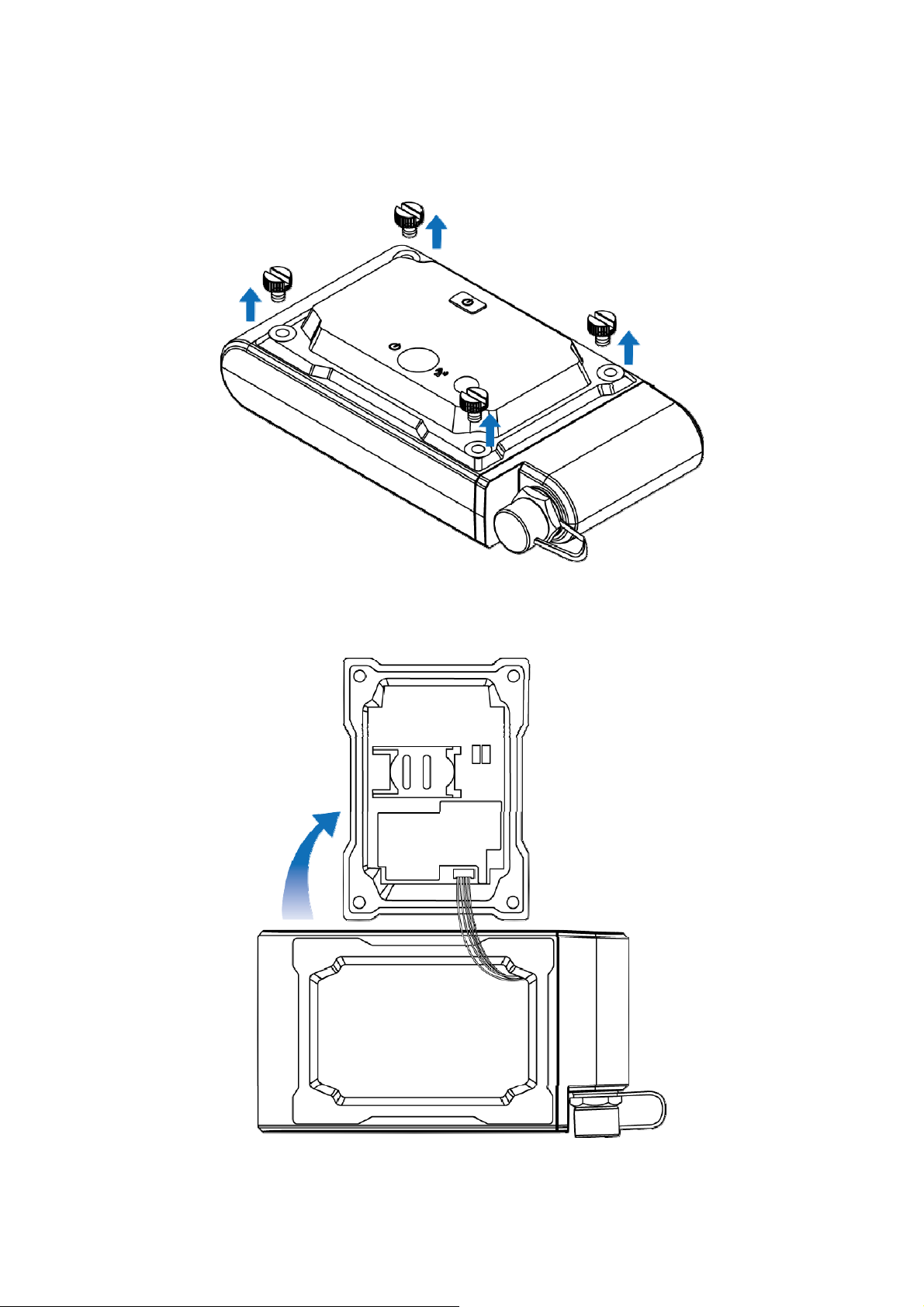

Open the screw

Open the top cover

8

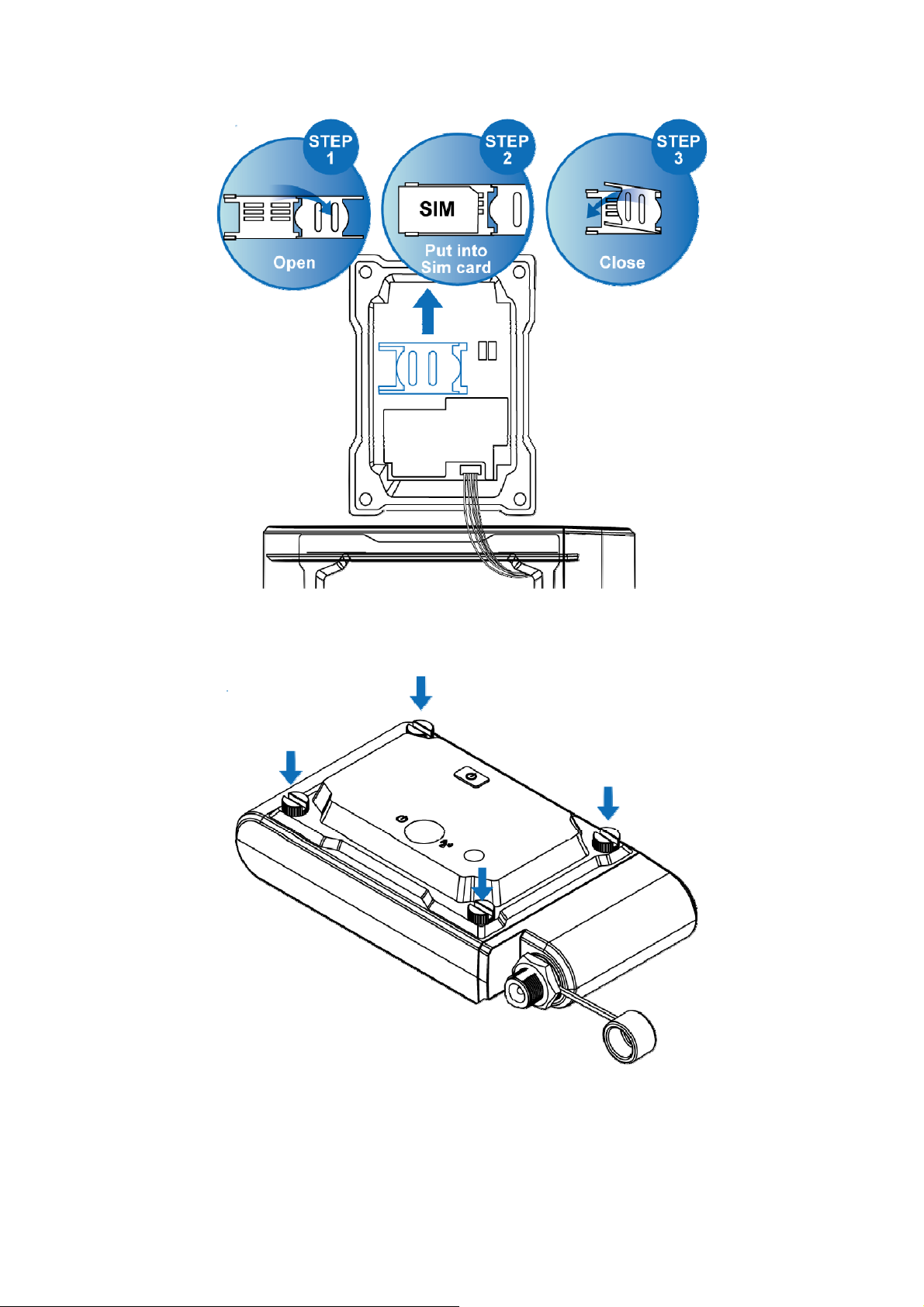

Install the SIM card

Close the top cover and tighten the screws

9

7. Operating

Turn on: Hold the power key until the LED is lit up
Turn off: Hold the power key until the LED is light off

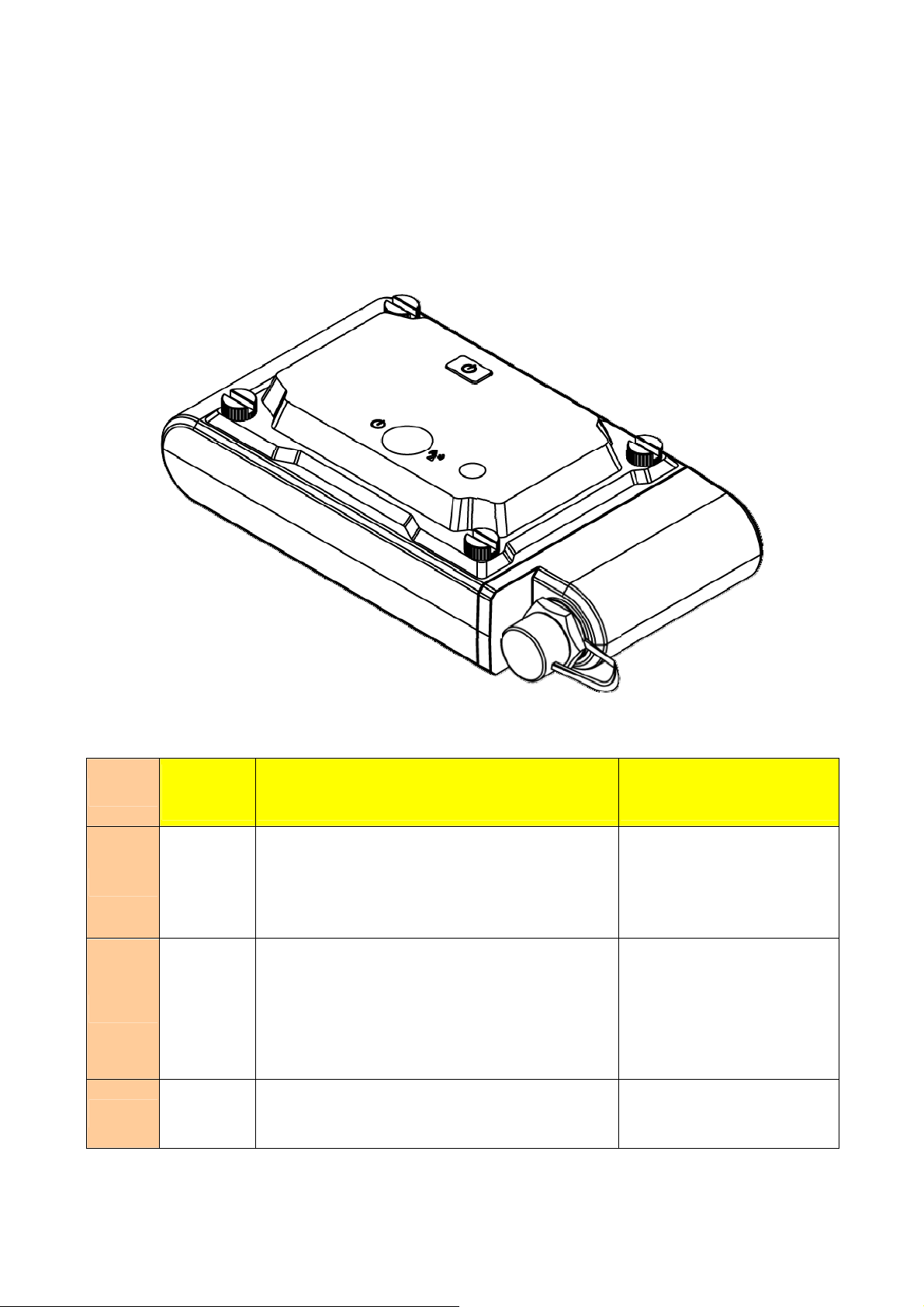

LED status:

LED

Green x

Orange

Blue x Device does not get GPS fix GPS fixed

Constant

Light

Device is
being
charged

1. No SIM card inserted

2. Device is searching GSM network

3. SIM card is registering to GSM
network

1. Low battery and no SIM card inserted

2. Low battery and device is searching
GSM network

3. Low battery and SIM card is
registering to GSM network

Blink Quickly

(Once per second)

Blink Slowly

(Once every 3 seconds)

SIM card is registered to
GSM network

Low battery and SIM
card is registered to
GSM network

10
