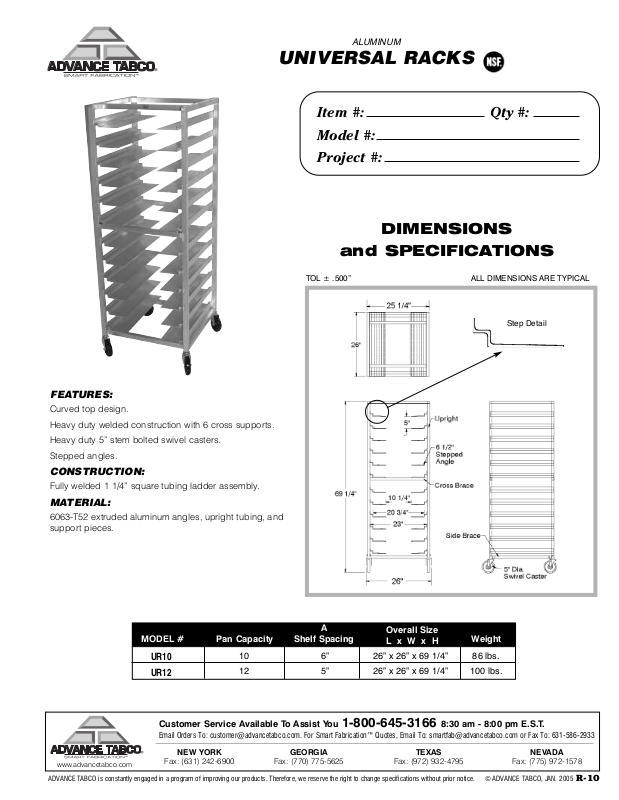

ALUMINUM
UNIVERSAL RACKS
Item #: Qty #:
Model #:
Project #:
DIMENSIONS
and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
Step Detail
FEATURES:
Curved top design.
Heavy duty welded construction with 6 cross supports.
Heavy duty 5” stem bolted swivel casters.
Stepped angles.
CONSTRUCTION:
Fully welded 1 1/4” square tubing ladder assembly.
MATERIAL:
6063-T52 extruded aluminum angles, upright tubing, and
support pieces.
MODEL # Pan Capacity Shelf Spacing
UR10
UR12
10 6” 26” x 26” x 69 1/4” 86 lbs.
12 5” 26” x 26” x 69 1/4” 100 lbs.
A
Overall Size
L x W x H
Weight
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
www.advancetabco.com
ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, JAN. 2005
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
R-10
