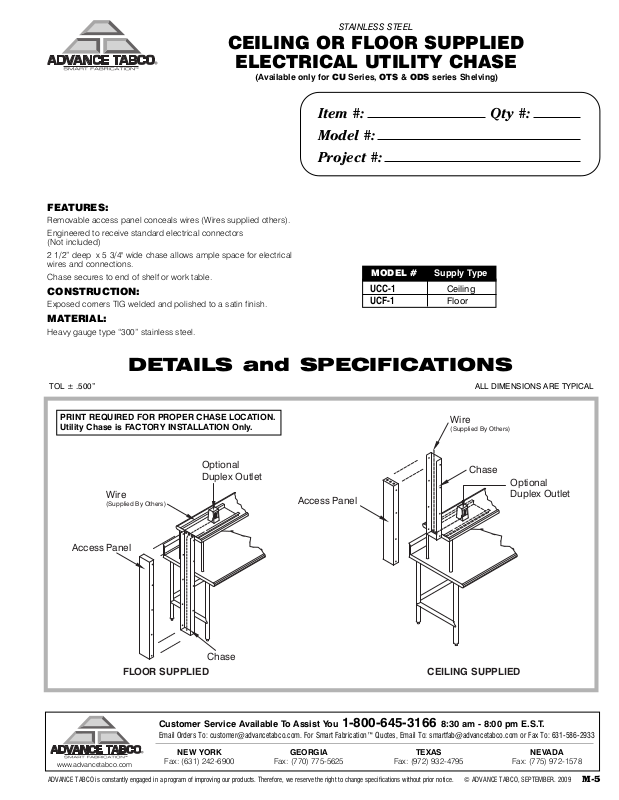

Advance Tabco UCC-1 Specifications

CEILING OR FLOOR SUPPLIED

Access Panel

Chase

Optional
Duplex Outlet

Optional
Duplex Outlet

CEILING SUPPLIEDFLOOR SUPPLIED

Wire

(Supplied By Others)

Wire

(Supplied By Others)

Access Panel

Chase

ELECTRICAL UTILITY CHASE

(Available only for CU Series, OTS & ODS series Shelving)

FEATURES:

Removable access panel conceals wires (Wires supplied others).
Engineered to receive standard electrical connectors

Not included)

(
2 1/2” deep x 5 3/4" wide chase allows ample space for electrical

wires and connections.
Chase secures to end of shelf or work table.

CONSTRUCTION:

Exposed corners TIG welded and polished to a satin finish.

MATERIAL:

Heavy gauge type “300” stainless steel.

STAINLESS STEEL

Item #: Qty #:

Model #:

Project #:

MODEL # Supply Type

UCC-1
UCF-1

Ceiling
Floor

DETAILS and SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

PRINT REQUIRED FOR PROPER CHASE LOCATION.
Utility Chase is FACTORY INSTALLATION Only.

www.advancetabco.com

ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, SEPTEMBER. 2009

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Email Orders To: [e-mail]. For Smart Fabrication™ Quotes, Email To: [e-mail] or Fax To: 631-586-2933

NEW YORK GEORGIA TEXAS NEVADA

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

M-5
