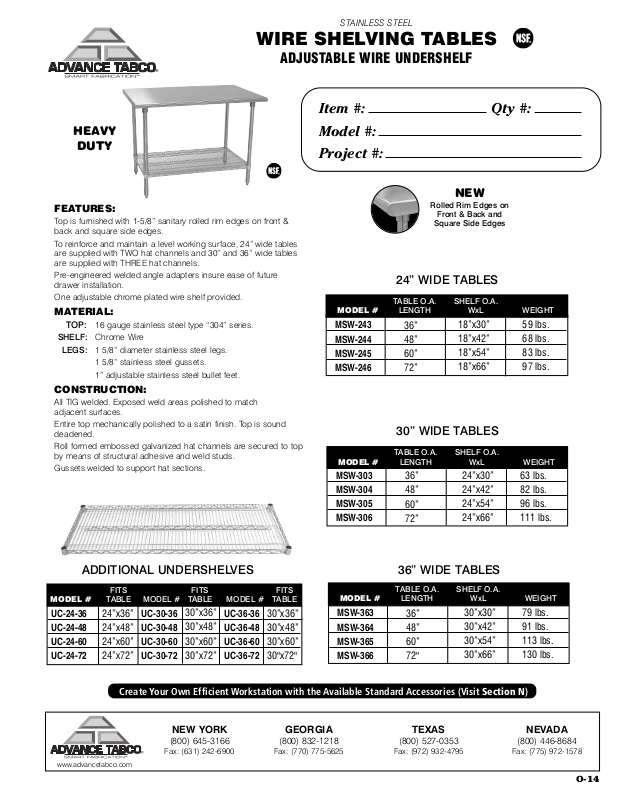

Advance Tabco UC-24-72, UC-36-36 Specifications

STAINLESS STEEL

WIRE SHELVING TABLES

ADJUSTABLE WIRE UNDERSHELF

Item #: Qty #:

HEAVY

DUTY

FEATURES:

Top is furnished with 1-5/8” sanitary rolled rim edges on front &
back and square side edges.

To reinforce and maintain a level working surface, 24” wide tables
are supplied with TWO hat channels and 30” and 36” wide tables
are supplied with THREE hat channels.

Pre-engineered welded angle adapters insure ease of future
drawer installation.

One adjustable chrome plated wire shelf provided.

MATERIAL:

TOP: 16 gauge stainless steel type “304” series.

SHELF: Chrome Wire

LEGS: 1 5/8” diameter stainless steel legs.

1 5/8” stainless steel gussets.
1” adjustable stainless steel bullet feet.

CONSTRUCTION:

All TIG welded. Exposed weld areas polished to match
adjacent surfaces.

Entire top mechanically polished to a satin finish. Top is sound
deadened.

Roll formed embossed galvanized hat channels are secured to top
by means of structural adhesive and weld studs.

Gussets welded to support hat sections.

Model #:

Project #:

NEW

Rolled Rim Edges on

Front & Back and

Square Side Edges

24” WIDE TABLES

MODEL # LENGTH WxL WEIGHT

MSW-243

MSW-244

MSW-245

MSW-246

MODEL # LENGTH WxL WEIGHT

MSW-303

MSW-304

MSW-305

MSW-306

TABLE O.A. SHELF O.A.

36”
48”
60”
72”

18”x30”
18”x42”
18”x54”
18”x66”

30” WIDE TABLES

TABLE O.A. SHELF O.A.

36”
48”
60”
72”

24”x30”
24”x42”
24”x54”
24”x66”

59 lbs.
68 lbs.
83 lbs.
97 lbs.

63 lbs.
82 lbs.
96 lbs.
111 lbs.

ADDITIONAL UNDERSHELVES

MODEL # TABLE MODEL # TABLE MODEL # TABLE

UC-24-36

UC-24-48

UC-24-60

UC-24-72

FITS

24”x36”
24”x48”
24”x60”
24”x72”

UC-30-36

UC-30-48

UC-30-60

UC-30-72

Create Your Own Efficient Workstation with the Available Standard Accessories (Visit Section N)

www.advancetabco.com

FITS FITS

30”x36”
30”x48”
30”x60”
30”x72”

NEW Y

[phone] [phone] [phone] [phone]

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

ORK

UC-36-36

UC-36-48

UC-36-60

UC-36-72

30”x36”
30”x48”
30”x60”
30"x72"

GEORGIA

36” WIDE TABLES

ABLE O.A. SHELF O.A.

MODEL # LENG

MSW-363

MSW-364

MSW-365

MSW-366

T

36”
48”
60”
72"

TH

TEXAS

WxL

30”x30”
30”x42”
30”x54”
30”x66”

WEIGHT

79 lbs.
91 lbs.
113 lbs.
130 lbs.

NEV

AD

A

O-14

DIMENSIONS and SPECIFICATIONS

Wire Undershelf

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

O-14a

Front

Wire shelving is 6" less than overall table size

200 Heartland Boulevard, Edgewood, NY 11717-8380

Side

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, SEPTEMBER 2005
