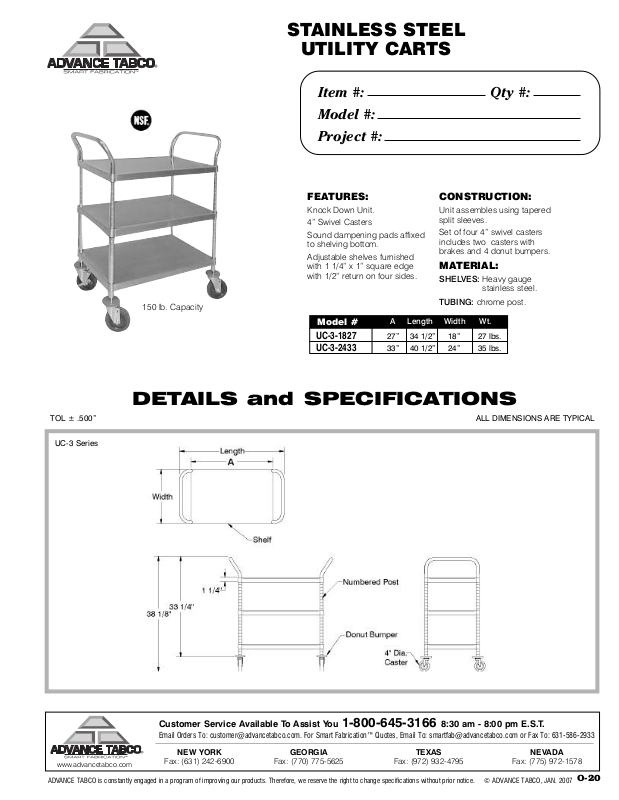

STAINLESS STEEL
UTILITY CARTS
Item #: Qty #:
Model #:
Project #:
150 lb. Capacity
FEATURES:
Knock Down Unit.
4” Swivel Casters
Sound dampening pads affixed
to shelving bottom.
Adjustable shelves furnished
with 1 1/4” x 1” square edge
with 1/2” return on four sides.
Model #
UC-3-1827
UC-3-2433
A Length Width Wt.
27”
33”
CONSTRUCTION:
Unit assembles using tapered
split sleeves.
Set of four 4” swivel casters
includes two casters with
brakes and 4 donut bumpers.
MATERIAL:
SHELVES: Heavy gauge
TUBING: chrome post.
34 1/2”
40 1/2”
18”
24”
stainless steel.
27 lbs.
35 lbs.
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
UC-3 Series
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
www.advancetabco.com
ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, JAN. 2007
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
