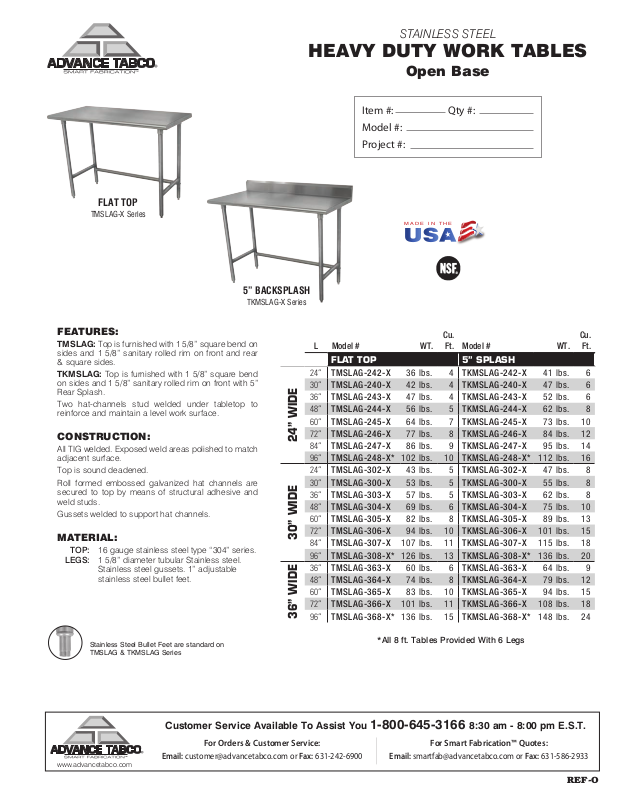

Advance Tabco TMSLAG368X, TMSLAG308X, TKMSLAG308X, TMSLAG245X, TKMSLAG248X Specifications
...
FLAT TOP
TMSLAG-X Series
STAINLESS STEEL
HEAVY DUTY WORK TABLES
Open Base
Item #: Qty #:
Model #:
Project #:
MADE IN THE
5” BACKSPLASH
TKMSLAG-X Series
FEATURES:
TMSLAG: Top is furnished with 1 5/8” square bend on
sides and 1 5/8” sanitary rolled rim on front and rear
& square sides.
TKMSLAG: Top is furnished with 1 5/8” square bend
on sides and 1 5/8” sanitary rolled rim on front with 5”
Rear Splash.
Two hat-channels stud welded under tabletop to
reinforce and maintain a level work surface.
CONSTRUCTION:
All TIG welded. Exposed weld areas polished to match
adjacent surface.
Top is sound deadened.
Roll formed embossed galvanized hat channels are
secured to top by means of structural adhesive and
weld studs.
Gussets welded to support hat channels.
MATERIAL:
TOP: 16 gauge stainless steel type “304” series.
LEGS: 1 5/8” diameter tubular Stainless steel.
Stainless steel gussets. 1” adjustable
stainless steel bullet feet.
L Model # WT.
FLAT TOP 5” SPLASH
24”
TMSLAG-242-X
30”
TMSLAG-240-X
36”
TMSLAG-243-X
48”
TMSLAG-244-X
60”
TMSLAG-245-X
72”
24” WIDE
30” WIDE
36” WIDE
TMSLAG-246-X
84”
TMSLAG-247-X
96”
TMSLAG-248-X*
24”
TMSLAG-302-X
30”
TMSLAG-300-X
36”
TMSLAG-303-X
48”
TMSLAG-304-X
60”
TMSLAG-305-X
72”
TMSLAG-306-X
84”
TMSLAG-307-X
96”
TMSLAG-308-X*
36”
TMSLAG-363-X
48”
TMSLAG-364-X
60”
TMSLAG-365-X
72”
TMSLAG-366-X
96”
TMSLAG-368-X*
Cu.
Ft. Model # WT.
36 lbs. 4
42 lbs. 4
47 lbs. 4
56 lbs. 5
64 lbs. 7
77 lbs. 8
86 lbs. 9
102 lbs. 10
43 lbs. 5
53 lbs. 5
57 lbs. 5
69 lbs. 6
82 lbs. 8
94 lbs. 10
107 lbs. 11
126 lbs. 13
60 lbs. 6
74 lbs. 8
83 lbs. 10
101 lbs. 11
136 lbs. 15
TKMSLAG-242-X
TKMSLAG-240-X
TKMSLAG-243-X
TKMSLAG-244-X
TKMSLAG-245-X
TKMSLAG-246-X
TKMSLAG-247-X
TKMSLAG-248-X*
TKMSLAG-302-X
TKMSLAG-300-X
TKMSLAG-303-X
TKMSLAG-304-X
TKMSLAG-305-X
TKMSLAG-306-X
TKMSLAG-307-X
TKMSLAG-308-X*
TKMSLAG-363-X
TKMSLAG-364-X
TKMSLAG-365-X
TKMSLAG-366-X
TKMSLAG-368-X*
Cu.
Ft.
41 lbs. 6
47 lbs. 6
52 lbs. 6
62 lbs. 8
73 lbs. 10
84 lbs. 12
95 lbs. 14
112 lbs. 16
47 lbs. 8
55 lbs. 8
62 lbs. 8
75 lbs. 10
89 lbs. 13
101 lbs. 15
115 lbs. 18
136 lbs. 20
64 lbs. 9
79 lbs. 12
94 lbs. 15
108 lbs. 18
148 lbs. 24
Stainless Steel Bullet Feet are standard on
TMSLAG & TKMSLAG Series
www.advancetabco.com
*All 8 ft. Tables Provided With 6 Legs
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-O
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
TMSLAG-X SERIES
35
"W"
1
2
"L"
Square Side Edges
Rolled Edge Front & Rear
4"
4"
Clearance
1
"
L - 9
2
"
12"
S/S Rear & Side
Cross Bracing
5
1
" Rear Brace
8
10"
TKMSLAG-X SERIES
35
"W"
5"
"L"
Square Side Edges
Rolled Edge Front & Rear
4"
4"
Clearance
1
L - 9
"
2
1
"
2
12"
S/S Rear & Side
Cross Bracing
5
1
" Rear Brace
8
10"
REF-O
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, MAY 2016
