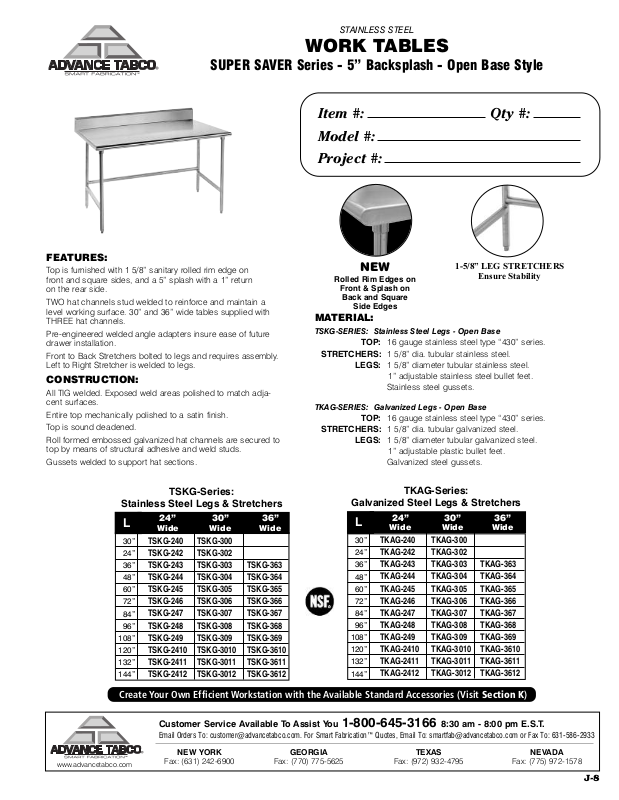

Advance Tabco TKAG-2410 Specifications
STAINLESS STEEL
WORK TABLES
SUPER SAVER Series - 5” Backsplash - Open Base Style
Item #: Qty #:
Model #:
Project #:
FEATURES:
Top is furnished with 1 5/8” sanitary rolled rim edge on
front and square sides, and a 5” splash with a 1” return
on the rear side.
TWO hat channels stud welded to reinforce and maintain a
level working surface. 30” and 36” wide tables supplied with
THREE hat channels.
Pre-engineered welded angle adapters insure ease of future
drawer installation.
Front to Back Stretchers bolted to legs and requires assembly.
Left to Right Stretcher is welded to legs.
CONSTRUCTION:
All TIG welded. Exposed weld areas polished to match adjacent surfaces.
Entire top mechanically polished to a satin finish.
Top is sound deadened.
Roll formed embossed galvanized hat channels are secured to
top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.
TSKG-Series:
Stainless Steel Legs & Stretchers
L
30”
24”
36”
48”
60”
72”
84”
96”
108”
120”
132”
144”
24” 30” 36”
Wide Wide Wide
TSKG-240
TSKG-242
TSKG-243
TSKG-244
TSKG-245
TSKG-246
TSKG-247
TSKG-248
TSKG-249
TSKG-2410
TSKG-2411
TSKG-2412
TSKG-300
TSKG-302
TSKG-303
TSKG-304
TSKG-305
TSKG-306
TSKG-307
TSKG-308
TSKG-309
TSKG-3010
TSKG-3011
TSKG-3012
TSKG-363
TSKG-364
TSKG-365
TSKG-366
TSKG-367
TSKG-368
TSKG-369
TSKG-3610
TSKG-3611
TSKG-3612
NEW
Rolled Rim Edges on
Front & Splash on
Back and Square
Side Edges
1-5/8” LEG STRETCHERS
Ensure Stability
MATERIAL:
TSKG-SERIES: Stainless Steel Legs - Open Base
TOP: 16 gauge stainless steel type “430” series.
STRETCHERS: 1 5/8” dia. tubular stainless steel.
LEGS: 1 5/8” diameter tubular stainless steel.
1” adjustable stainless steel bullet feet.
Stainless steel gussets.
TKAG-SERIES: Galvanized Legs - Open Base
TOP: 16 gauge stainless steel type “430” series.
STRETCHERS: 1 5/8” dia. tubular galvanized steel.
LEGS: 1 5/8” diameter tubular galvanized steel.
1” adjustable plastic bullet feet.
Galvanized steel gussets.
TKAG-Series:
Galvanized Steel Legs & Stretchers
L
30”
24”
36”
48”
60”
72”
84”
96”
108”
120”
132”
144”
24” 30” 36”
Wide Wide Wide
TKAG-240
TKAG-242
TKAG-243
TKAG-244
TKAG-245
TKAG-246
TKAG-247
TKAG-248
TKAG-249
TKAG-2410
TKAG-2411
TKAG-2412
TKAG-300
TKAG-302
TKAG-303
TKAG-304
TKAG-305
TKAG-306
TKAG-307
TKAG-308
TKAG-309
TKAG-3010
TKAG-3011
TKAG-3012
TKAG-363
TKAG-364
TKAG-365
TKAG-366
TKAG-367
TKAG-368
TKAG-369
TKAG-3610
TKAG-3611
TKAG-3612
Create Your Own Efficient Workstation with the Available Standard Accessories (Visit Section K)
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
J-8
DETAILS and SPECIFICATIONS
LL DIMENSIONS ARE TYPICAL TOL ± .500” All Units Shipped Unassembled (KD) for Reduced Shipping Costs.
A
TSKG & TKAG Series
Open Base Style
5” Backsplash
nits 8ft. and larger are furnished with six (6) legs
U
TSKG-Series: Stainless Steel Legs & Stretchers
J-8a
24”
L
Wide Wide Wide
TSKG-240
30”
TSKG-242
24”
TSKG-243
36”
TSKG-244
48”
TSKG-245
60”
TSKG-246
72”
TSKG-247
84”
TSKG-248
96”
TSKG-249
108”
TSKG-2410
120”
TSKG-2411
132”
TSKG-2412
144”
200 Heartland Boulevard, Edgewood, NY 11717-8380
Wt.
49 lbs.
43 lbs.
55 lbs.
67 lbs.
77 lbs.
89 lbs.
107 lbs.
119 lbs.
135 lbs.
234 lbs.
258 lbs.
273 lbs.
30”
TSKG-300
TSKG-302
TSKG-303
TSKG-304
TSKG-305
TSKG-306
TSKG-307
TSKG-308
TSKG-309
TSKG-3010
TSKG-3011
TSKG-3012
Wt.
55 lbs.
48 lbs.
62 lbs.
75 lbs.
89 lbs.
97 lbs.
118 lbs.
131 lbs.
150 lbs.
249 lbs.
276 lbs.
291 lbs.
36”
TSKG-363
TSKG-364
TSKG-365
TSKG-366
TSKG-367
TSKG-368
TSKG-369
TSKG-3610
TSKG-3611
TSKG-3612
Wt.
80 lbs.
85 lbs.
99 lbs.
112 lbs.
131 lbs.
145 lbs.
165 lbs.
268 lbs.
298 lbs.
313 lbs.
TKAG-Series: Galvanized Steel Legs & Stretchers
24”
L
Wide Wide Wide
TKAG-240
30”
TKAG-242
24”
TKAG-243
36”
TKAG-244
48”
TKAG-245
60”
TKAG-246
72”
TKAG-247
84”
TKAG-248
96”
TKAG-249
108”
TKAG-2410
120”
TKAG-2411
132”
TKAG-2412
144”
Wt.
49 lbs.
43 lbs.
55 lbs.
67 lbs.
77 lbs.
89 lbs.
107 lbs.
119 lbs.
135 lbs.
234 lbs.
258 lbs.
273 lbs.
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
30”
TKAG-300
TKAG-302
TKAG-303
TKAG-304
TKAG-305
TKAG-306
TKAG-307
TKAG-308
TKAG-309
TKAG-3010
TKAG-3011
TKAG-3012
© ADVANCE TABCO, SEPTEMBER 2005
Wt.
55 lbs.
48 lbs.
62 lbs.
75 lbs.
89 lbs.
97 lbs.
118 lbs.
131 lbs.
150 lbs.
249 lbs.
276 lbs.
291 lbs.
36”
TKAG-363
TKAG-364
TKAG-365
TKAG-366
TKAG-367
TKAG-368
TKAG-369
TKAG-3610
TKAG-3611
TKAG-3612
Wt.
80 lbs.
85 lbs.
99 lbs.
112 lbs.
131 lbs.
145 lbs.
165 lbs.
268 lbs.
298 lbs.
313 lbs.
