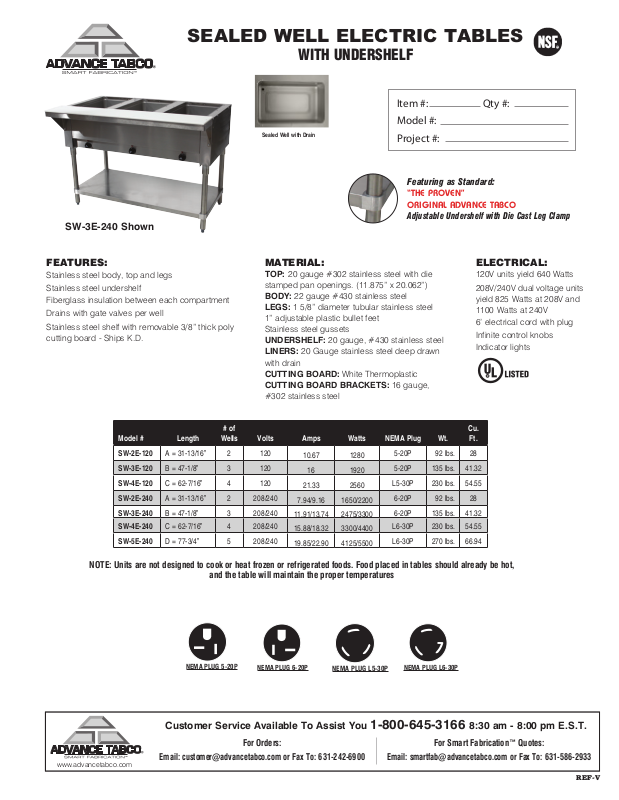

Advance Tabco SW4E240X Specifications

SW-3E-240 Shown

SEALED WELL ELECTRIC TABLES

WITH UNDERSHELF

Item #: Qty #:

Model #:

Sealed Well with Drain

Project #:

Featuring as Standard:

“THE PROVEN”
ORIGINAL ADVANCE TABCO

Adjustable Undershelf with Die Cast Leg Clamp

FEATURES:

Stainless steel body, top and legs
Stainless steel undershelf
Fiberglass insulation between each compartment
Drains with gate valves per well

Stainless steel shelf with removable 3/8” thick poly
cutting board - Ships K.D.

Model # Length

SW-2E-120

SW-3E-120

SW-4E-120

SW-2E-240

SW-3E-240

SW-4E-240

SW-5E-240

A = 31-13/16” 2 120

B = 47-1/8” 3 120

C = 62-7/16” 4 120

A = 31-13/16” 2 208/240

B = 47-1/8” 3 208/240

C = 62-7/16” 4 208/240

D = 77-3/4” 5 208/240

# of

Wells Volts Amps Watts NEMA Plug Wt.

MATERIAL:

TOP: 20 gauge #302 stainless steel with die
stamped pan openings. (11.875” x 20.062”)

BODY: 22 gauge #430 stainless steel
LEGS: 1 5/8” diameter tubular stainless steel

1” adjustable plastic bullet feet
Stainless steel gussets

UNDERSHELF: 20 gauge, #430 stainless steel
LINERS: 20 Gauge stainless steel deep drawn

with drain

CUTTING BOARD: White Thermoplastic
CUTTING BOARD BRACKETS: 16 gauge,

#302 stainless steel

10.67 1280

16 1920

21.33 2560

7.94/9.16 1650/2200

11.91/13.74 2475/3300

15.88/18.32 3300/4400

19.85/22.90 4125/5500

5-20P 92 lbs. 28

5-20P 135 lbs. 41.32

L5-30P 230 lbs. 54.55

6-20P 92 lbs. 28

6-20P 135 lbs. 41.32

L6-30P 230 lbs. 54.55

L6-30P 270 lbs. 66.94

ELECTRICAL:

120V units yield 640 Watts

208V/240V dual voltage units
yield 825 Watts at 208V and
1100 Watts at 240V

6’ electrical cord with plug
Infinite control knobs
Indicator lights

Cu.

Ft.

NOTE: Units are not designed to cook or heat frozen or refrigerated foods. Food placed in tables should already be hot,

www.advancetabco.com

www.advancetabco.com

and the table will maintain the proper temperatures

NEMA PLUG 5-20P

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

For Orders & Customer Service:

Email: [e-mail] or Fax: [phone]

Email: [e-mail] or Fax To: 631-242-6900

NEMA PLUG 6-20P

For Orders:

NEMA PLUG L5-30P

NEMA PLUG L6-30P

For Smart Fabrication™ Quotes:

For Smart Fabrication™ Quotes:

Email: [e-mail] or Fax: [phone]

Email: [e-mail] or Fax To: 631-586-2933

REF-V

DIMENSIONS and SPECIFICATIONS

TOL ± .125” ALL DIMENSIONS ARE TYPICAL

D

C

B

A

5

"

22

8

8

"

POLY CUTTING BOARD SHELF

PROVIDED WITH 6' CORD AND PLUG

D

C

B

A

3

6

"

5

"

9

8

16

34"

1

"

21

8

10” Wide Buet Shelf

Model Length

TBS-2

TBS-3

TBS-4

TBS-5

CONTROL KNOBS

19-1/4” Height

with Built-In Food Shield

31-13/16”

47-1/8”

62-7/16”

77-3/4”

Approx

32 lbs. 3

35 lbs. 4

38 lbs. 5

43 lbs. 6

Wt.

Cu.

Ft.

Food Table Shelving

Acrylic Side Panels

for Buet Shelf

Add side panels to meet

additional NSF requirements

(2 panels per side)

TBP-1 One Side
TBP-2 Two Sides

Field Installation Available

1

"

3

4

3

34

S/S LEGS W /
PLASTIC BULLET FEET

15” Height

10” Wide Serving Shelf

with Built-In Food Shield

Model Length

TSS-2

TSS-3

TSS-4

TSS-5

31-13/16”

47-1/8”

62-7/16”

77-3/4”

Approx

Wt.

20 lbs. 3

23 lbs. 4

26 lbs. 5

29 lbs. 6

"

8

S/S ADJUSTABLE
UNDERSHELF

Acrylic Side Panel

Cu.

Ft.

for Serving Shelf

Add side panels to meet

additional NSF requirements

(1 panel per side)

TSP-1 One Side
TSP-2 Two Sides

Field Installation Available

TCB-OMIT

REF-V

Visit our website for additional Food Table Accessories

SU-25

Portable Kit (Includes 4 -5” Swivel Casters, 2 w/ Brakes &

Universal Mount Push Handle)

SU-26

Heavy Duty Portable Kit (Includes 4 -5” Heavy Duty Swivel

Casters, 2 w/ Brakes & Universal Mount Push Handle)

Remove Poly Cutting Board

200 Heartland Boulevard, Edgewood, NY 11717-8380

Food Table Accessories

SP-A

Aluminum Spillage Pan

SP-S

Stainless Steel Spillage Pan

SU-45A

SU-45B

12” x 1” Adapter Bar

20” x 3” Adapter Bar

Manifold Drain Shown (-M)

-T

Thermostatic Control (Per Well)

-M

Manifold Drains (Per Well)

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, APRIL 2016
