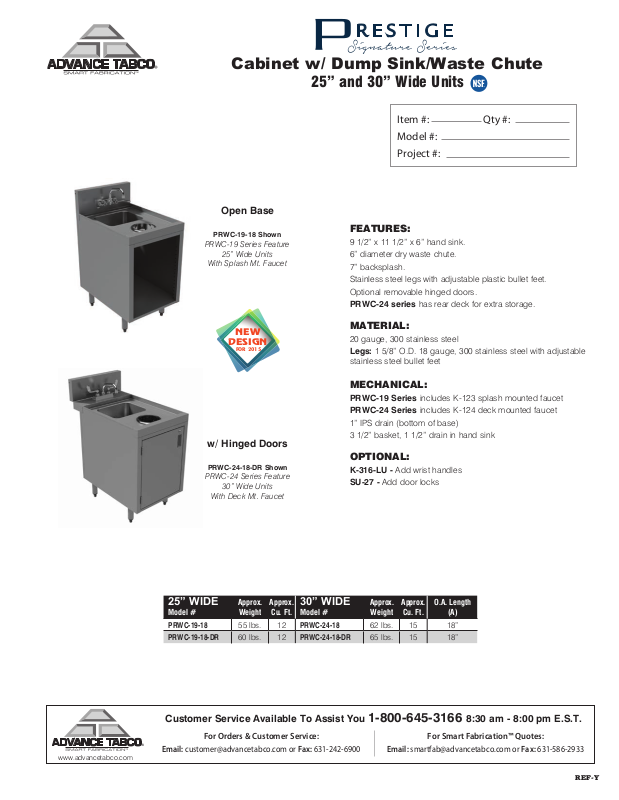

Advance Tabco PRWC-19-18 User Manual
Cabinet w/ Dump Sink/Waste Chute
25” and 30” Wide Units
Item #: Qty #:
Model #:
Project #:
Open Base
PRWC-19-18 Shown
PRWC-19 Series Feature
25” Wide Units
With Splash Mt. Faucet
NEW
DESIGN
FOR 2015
w/ Hinged Doors
PRWC-24-18-DR Shown
PRWC-24 Series Feature
30” Wide Units
With Deck Mt. Faucet
FEATURES:
9 1/2” x 11 1/2” x 6” hand sink.
6” diameter dry waste chute.
7” backsplash.
Stainless steel legs with adjustable plastic bullet feet.
Optional removable hinged doors.
PRWC-24 series has rear deck for extra storage.
MATERIAL:
20 gauge, 300 stainless steel
Legs: 1 5/8” O.D. 18 gauge, 300 stainless steel with adjustable
stainless steel bullet feet
MECHANICAL:
PRWC-19 Series includes K-123 splash mounted faucet
PRWC-24 Series includes K-124 deck mounted faucet
1” IPS drain (bottom of base)
3 1/2” basket, 1 1/2” drain in hand sink
OPTIONAL:
K-316-LU - Add wrist handles
SU-27 - Add door locks
www.advancetabco.com
25” WIDE
Model #
PRWC-19-18
PRWC-19-18-DR
Approx.
Weight
55 lbs. 12
60 lbs. 12
Approx.
Cu. Ft.
30” WIDE
Model #
PRWC-24-18
PRWC-24-18-DR
Approx.
Weight
62 lbs. 15 18”
65 lbs. 15 18”
Approx.
Cu. Ft.
O.A. Length
(A)
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-Y
DIMENSIONS and SPECIFICATIONS
3
TOL Overall: ± .500” Interior: ± .250” ALL DIMENSIONS ARE TYPICAL
"
1
PRWC-19 Series
4
PRWC-24 Series
25"
3
"
1
4
30"
25"
29"
1
6
"
4
18"
OPEN BASE SERIES HINGED DOORS SERIES
1
"
21
2
3
"
1
4
18"
3
"
1
4
REF-Y
30"
3
"
1
4
36"
30"
25"
1
6
"
4
29"
200 Heartland Boulevard, Edgewood, NY 11717-8380
1
"
21
2
3
"
1
4
18"
OPEN BASE SERIES HINGED DOORS SERIES
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
18"
© ADVANCE TABCO, JANUARY 2015
