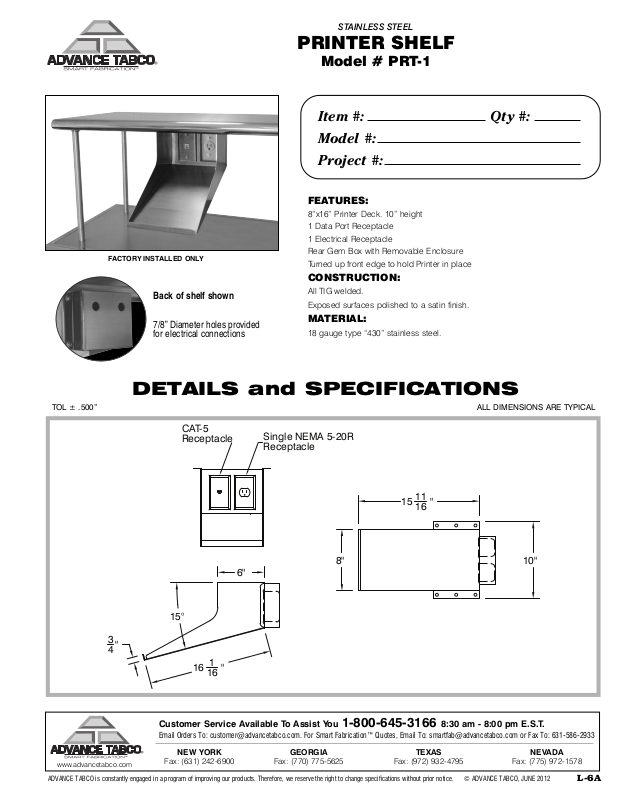

Advance Tabco PRT1X Specifications

FACTORY INSTALLED ONLY

6"

16

1

16

"

3
4

"

15°

Receptacle

CAT-5

Single NEMA 5-20R
Receptacle

8" 10"

15

11
16

"

Back of shelf shown

7/8” Diameter holes provided
for electrical connections

STAINLESS STEEL

PRINTER SHELF

Model # PRT-1

Item #: Qty #:

Model #:

Project #:

FEATURES:

8”x16” Printer Deck. 10” height
1 Data Port Receptacle
1 Electrical Receptacle
Rear Gem Box with Removable Enclosure
Turned up front edge to hold Printer in place

CONSTRUCTION:

All TIG welded.

Exposed surfaces polished to a satin finish.

MATERIAL:

18 gauge type “430” stainless steel.

DETAILS and SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

www.advancetabco.com

ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, JUNE 2012
