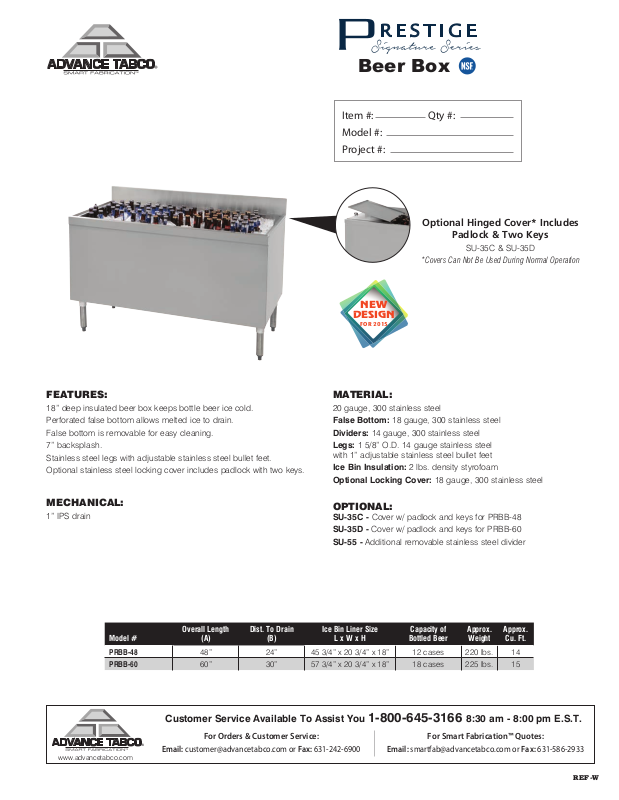

Advance Tabco PRBB-48 User Manual
Beer Box
Item #: Qty #:
Model #:
Project #:
Optional Hinged Cover* Includes
*Covers Can Not Be Used During Normal Operation
NEW
DESIGN
FOR 2015
Padlock & Two Keys
SU-35C & SU-35D
FEATURES:
18” deep insulated beer box keeps bottle beer ice cold.
Perforated false bottom allows melted ice to drain.
False bottom is removable for easy cleaning.
7” backsplash.
Stainless steel legs with adjustable stainless steel bullet feet.
Optional stainless steel locking cover includes padlock with two keys.
MECHANICAL:
1” IPS drain
Model #
PRBB-48
PRBB-60
Overall Length
(A)
48” 24”
60” 30” 57 3/4” x 20 3/4” x 18” 18 cases 225 lbs. 15
Dist. To Drain
(B)
MATERIAL:
20 gauge, 300 stainless steel
False Bottom: 18 gauge, 300 stainless steel
Dividers: 14 gauge, 300 stainless steel
Legs: 1 5/8” O.D. 14 gauge stainless steel
with 1” adjustable stainless steel bullet feet
Ice Bin Insulation: 2 lbs. density styrofoam
Optional Locking Cover: 18 gauge, 300 stainless steel
OPTIONAL:
SU-35C - Cover w/ padlock and keys for PRBB-48
SU-35D - Cover w/ padlock and keys for PRBB-60
SU-55 - Additional removable stainless steel divider
Ice Bin Liner Size
L x W x H
45 3/4” x 20 3/4” x 18” 12 cases 220 lbs. 14
Capacity of
Bottled Beer
Approx.
Weight
Approx.
Cu. Ft.
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-W
DIMENSIONS and SPECIFICATIONS
TOL Overall: ± .500” Interior: ± .250” ALL DIMENSIONS ARE TYPICAL
3
1
"
4
36"
25"
25"
20"
3
1
"
4
A
36"
29"
1
6
"
4
29"
REF-W
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JANUARY 2015
