5" Dia.

Heavy Duty

Swivel Casters

1" x 1 1/2"

Ribbed

Angle

3"

Typ.

18 1/4"

69 1/2"

20 7/8"

26"

1 1/4" Typ.

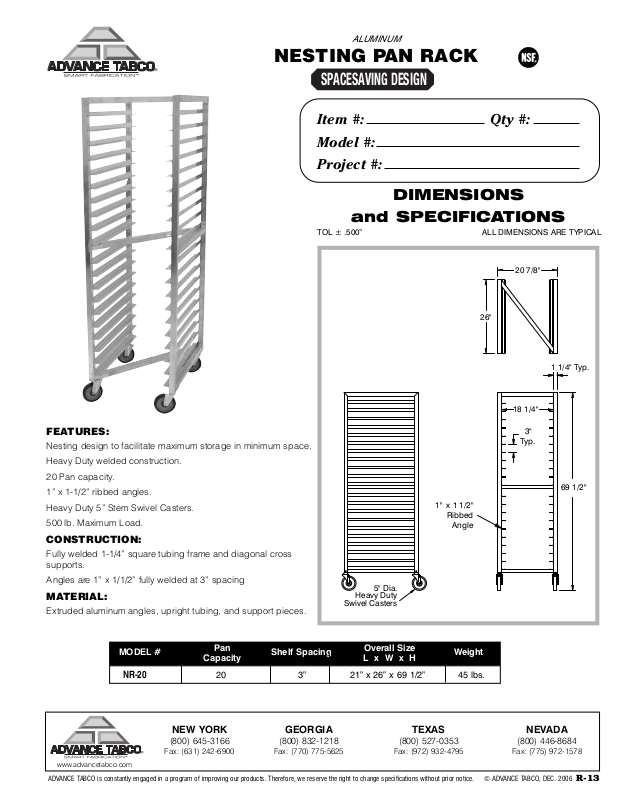

ALUMINUM

NESTING PAN RACK

SPACESAVING DESIGN

Item #: Qty #:

Model #:

Project #:

DIMENSIONS

and SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

FEATURES:

Nesting design to facilitate maximum storage in minimum space.

Heavy Duty welded construction.

20 Pan capacity.

1” x 1-1/2” ribbed angles.

Heavy Duty 5” Stem Swivel Casters.

500 lb. Maximum Load.

CONSTRUCTION:

Fully welded 1-1/4” square tubing frame and diagonal cross
supports.

Angles are 1” x 1/1/2” fully welded at 3” spacing

MATERIAL:

Extruded aluminum angles, upright tubing, and support pieces.

MODEL #

NR-20

an

P

Capacity L x W x H

20 3” 21” x 26” x 69 1/2” 45 lbs.

Shelf Spacing

Overall Size

W

eight
