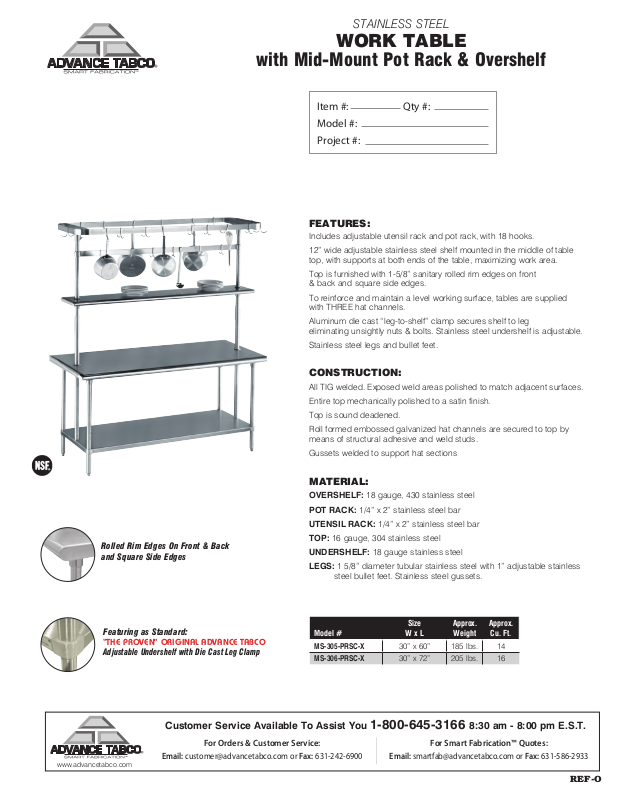

Advance Tabco MS305PRSCX Specifications

STAINLESS STEEL

WORK TABLE

with Mid-Mount Pot Rack & Overshelf

Item #: Qty #:

Model #:

Project #:

FEATURES:

Includes adjustable utensil rack and pot rack, with 18 hooks.

12” wide adjustable stainless steel shelf mounted in the middle of table
top, with supports at both ends of the table, maximizing work area.

Top is furnished with 1-5/8” sanitary rolled rim edges on front
& back and square side edges.

To reinforce and maintain a level working surface, tables are supplied
with THREE hat channels.

Aluminum die cast “leg-to-shelf” clamp secures shelf to leg
eliminating unsightly nuts & bolts. Stainless steel undershelf is adjustable.

Stainless steel legs and bullet feet.

Rolled Rim Edges On Front & Back
and Square Side Edges

Featuring as Standard:

“THE PROVEN” ORIGINAL ADVANCE TABCO

Adjustable Undershelf with Die Cast Leg Clamp

CONSTRUCTION:

All TIG welded. Exposed weld areas polished to match adjacent surfaces.

Entire top mechanically polished to a satin finish.

Top is sound deadened.

Roll formed embossed galvanized hat channels are secured to top by
means of structural adhesive and weld studs.

Gussets welded to support hat sections

MATERIAL:

OVERSHELF: 18 gauge, 430 stainless steel

POT RACK: 1/4” x 2” stainless steel bar

UTENSIL RACK: 1/4” x 2” stainless steel bar

TOP: 16 gauge, 304 stainless steel

UNDERSHELF: 18 gauge stainless steel

LEGS: 1 5/8” diameter tubular stainless steel with 1” adjustable stainless

steel bullet feet. Stainless steel gussets.

Model #

MS-305-PRSC-X

MS-306-PRSC-X

Size

W x L

30” x 60” 185 lbs. 14

30” x 72” 205 lbs. 16

Approx.

Weight

Approx.

Cu. Ft.

www.advancetabco.com

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

For Orders & Customer Service:

Email: [e-mail] or Fax: [phone]

Email: [e-mail] or Fax: [phone]

For Smart Fabrication™ Quotes:

REF-O

DETAILS and SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

"L"

30"

84"

Adjustable

1

"

35

2

10"

Adjustable

12"

REF-O

200 Heartland Boulevard, Edgewood, NY 11717-8380

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, APRIL 2015
