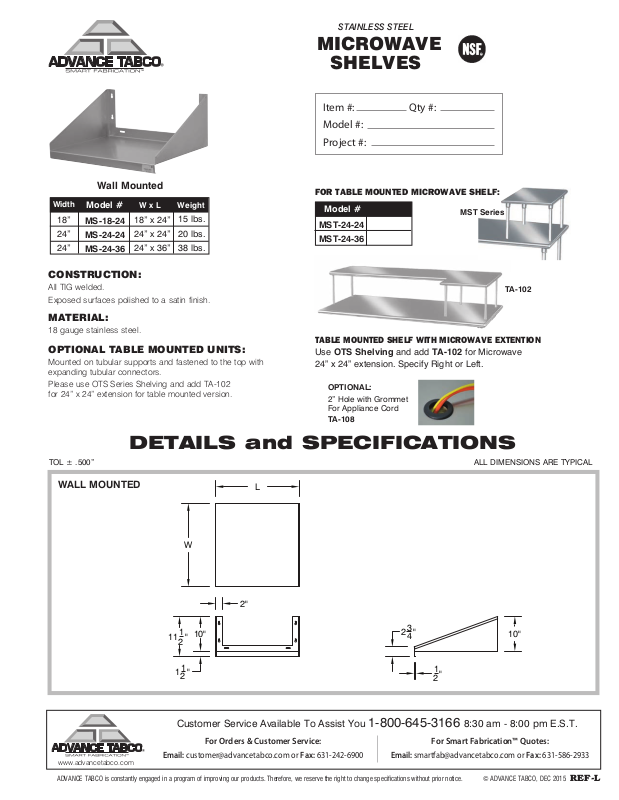

Advance Tabco MS2424X Specifications
STAINLESS STEEL
MICROWAVE
SHELVES
Item #: Qty #:
Model #:
Project #:
Width
18”
24”
24”
Wall Mounted
Model #
MS-18-24
MS-24-24
MS-24-36
W x L
18” x 24”
24” x 24”
24” x 36”
Weight
15 lbs.
20 lbs.
38 lbs.
FOR TABLE MOUNTED MICROWAVE SHELF:
Model #
MST-24-24
MST-24-36
W x L
24” x 24”
24” x 36”
MST Series
CONSTRUCTION:
All TIG welded.
Exposed surfaces polished to a satin finish.
TA-102
MATERIAL:
18 gauge stainless steel.
OPTIONAL TABLE MOUNTED UNITS:
Mounted on tubular supports and fastened to the top with
expanding tubular connectors.
Please use OTS Series Shelving and add TA-102
for 24” x 24” extension for table mounted version.
TABLE MOUNTED SHELF WITH MICROWAVE EXTENTION
Use OTS Shelving and add TA-102 for Microwave
24” x 24” extension. Specify Right or Left.
OPTIONAL:
2” Hole with Grommet
For Appliance Cord
TA-108
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
WALL MOUNTED
11
W
1
10"
"
2
1
1
"
2
L
2"
3
"
2
4
1
"
2
10"
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
www.advancetabco.com
ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, DEC 2015
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
