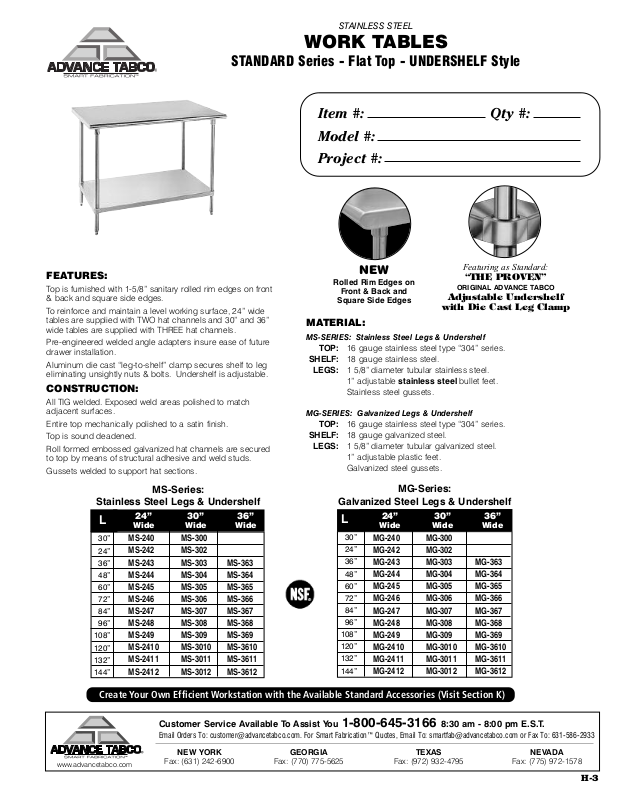

Advance Tabco MG-240 Specifications
STAINLESS STEEL
WORK TABLES
STANDARD Series - Flat Top - UNDERSHELF Style
Item #: Qty #:
Model #:
Project #:
FEATURES:
Top is furnished with 1-5/8” sanitary rolled rim edges on front
& back and square side edges.
To reinforce and maintain a level working surface, 24” wide
tables are supplied with TWO hat channels and 30” and 36”
wide tables are supplied with THREE hat channels.
Pre-engineered welded angle adapters insure ease of future
drawer installation.
Aluminum die cast “leg-to-shelf” clamp secures shelf to leg
eliminating unsightly nuts & bolts. Undershelf is adjustable.
CONSTRUCTION:
All TIG welded. Exposed weld areas polished to match
adjacent surfaces.
Entire top mechanically polished to a satin finish.
Top is sound deadened.
Roll formed embossed galvanized hat channels are secured
to top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.
MS-Series:
Stainless Steel Legs & Undershelf
L
30”
24”
36”
48”
60”
72”
84”
96”
108”
120”
132”
144”
24” 30” 36”
Wide Wide Wide
MS-240
MS-242
MS-243
MS-244
MS-245
MS-246
MS-247
MS-248
MS-249
MS-2410
MS-2411
MS-2412
MS-300
MS-302
MS-303
MS-304
MS-305
MS-306
MS-307
MS-308
MS-309
MS-3010
MS-3011
MS-3012
MS-363
MS-364
MS-365
MS-366
MS-367
MS-368
MS-369
MS-3610
MS-3611
MS-3612
NEW
Rolled Rim Edges on
Front & Back and
Square Side Edges
Featuring as Standard:
“THE PROVEN”
ORIGINAL ADVANCE TABCO
Adjustable Undershelf
with Die Cast Leg Clamp
MATERIAL:
MS-SERIES: Stainless Steel Legs & Undershelf
TOP: 16 gauge stainless steel type “304” series.
SHELF: 18 gauge stainless steel.
LEGS: 1 5/8” diameter tubular stainless steel.
1” adjustable stainless steel bullet feet.
Stainless steel gussets.
MG-SERIES: Galvanized Legs & Undershelf
TOP: 16 gauge stainless steel type “304” series.
SHELF: 18 gauge galvanized steel.
LEGS: 1 5/8” diameter tubular galvanized steel.
1” adjustable plastic feet.
Galvanized steel gussets.
MG-Series:
Galvanized Steel Legs & Undershelf
L
30”
24”
36”
48”
60”
72”
84”
96”
108”
120”
132”
144”
24” 30” 36”
Wide Wide Wide
MG-240
MG-242
MG-243
MG-244
MG-245
MG-246
MG-247
MG-248
MG-249
MG-2410
MG-2411
MG-2412
MG-300
MG-302
MG-303
MG-304
MG-305
MG-306
MG-307
MG-308
MG-309
MG-3010
MG-3011
MG-3012
MG-363
MG-364
MG-365
MG-366
MG-367
MG-368
MG-369
MG-3610
MG-3611
MG-3612
Create Your Own Efficient Workstation with the Available Standard Accessories (Visit Section K)
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
H-3
DIMENSIONS and SPECIFICATIONS
ALL DIMENSIONS ARE TYPICAL TOL ± .500” All Units Shipped Unassembled (KD) for Reduced Shipping Costs.
MS & MG Series
UNDERSHELF Style
FLAT TOP
inished size of undershelf = Length minus 5 3/4”
F
Width minus 5 3/4”
nits 8 ft. and larger are furnished with six (6) legs
U
H-3a
MS-Series: Stainless Steel Legs & Undershelf
24”
L
Wide Wide Wide
MS-240
30”
MS-242
24”
MS-243
36”
MS-244
48”
MS-245
60”
MS-246
72”
MS-247
84”
MS-248
96”
MS-249
108”
MS-2410
120”
MS-2411
132”
MS-2412
144”
200 Heartland Boulevard, Edgewood, NY 11717-8380
Wt.
49 lbs.
31 lbs.
64 lbs.
79 lbs.
92 lbs.
109 lbs.
130 lbs.
145 lbs.
161 lbs.
261 lbs.
293 lbs.
308 lbs.
30”
MS-300
MS-302
MS-303
MS-304
MS-305
MS-306
MS-307
MS-308
MS-309
MS-3010
MS-3011
MS-3012
Wt.
65 lbs.
55 lbs.
72 lbs.
89 lbs.
107 lbs.
125 lbs.
148 lbs.
166 lbs.
176 lbs.
287 lbs.
324 lbs.
339 lbs.
36”
MS-363
MS-364
MS-365
MS-366
MS-367
MS-368
MS-369
MS-3610
MS-3611
MS-3612
Wt.
88 lbs.
98 lbs.
118 lbs.
138 lbs.
164 lbs.
184 lbs.
190 lbs.
308 lbs.
358 lbs.
373 lbs.
MG-Series: Galvanized Steel Legs & Undershelf
24”
L
Wide Wide Wide
MG-240
30”
MG-242
24”
MG-243
36”
MG-244
48”
MG-245
60”
MG-246
72”
MG-247
84”
MG-248
96”
MG-249
108”
MG-2410
120”
MG-2411
132”
MG-2412
144”
Wt.
49 lbs.
31 lbs.
64 lbs.
79 lbs.
92 lbs.
109 lbs.
130 lbs.
145 lbs.
161 lbs.
261 lbs.
293 lbs.
308 lbs.
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
30”
MG-300
MG-302
MG-303
MG-304
MG-305
MG-306
MG-307
MG-308
MG-309
MG-3010
MG-3011
MG-3012
© ADVANCE TABCO, SEPTEMBER 2005
Wt.
65 lbs.
55 lbs.
72 lbs.
89 lbs.
107 lbs.
125 lbs.
148 lbs.
166 lbs.
176 lbs.
287 lbs.
324 lbs.
339 lbs.
36”
MG-363
MG-364
MG-365
MG-366
MG-367
MG-368
MG-369
MG-3610
MG-3611
MG-3612
Wt.
88 lbs.
98 lbs.
118 lbs.
138 lbs.
164 lbs.
184 lbs.
190 lbs.
308 lbs.
358 lbs.
373 lbs.
