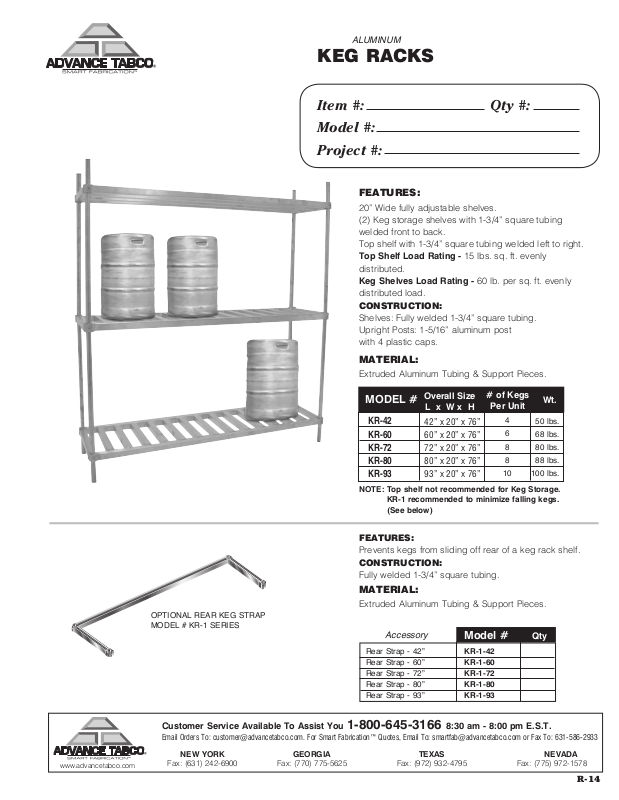

Advance Tabco KR93X Specifications
ALUMINUM
KEG RACKS
Item #: Qty #:
Model #:
Project #:
FEATURES:
20” Wide fully adjustable shelves.
(2) Keg storage shelves with 1-3/4” square tubing
welded front to back.
Top shelf with 1-3/4” square tubing welded left to right.
Top Shelf Load Rating - 15 lbs. sq. ft. evenly
distributed.
Keg Shelves Load Rating - 60 lb. per sq. ft. evenly
distributed load.
CONSTRUCTION:
Shelves: Fully welded 1-3/4” square tubing.
Upright Posts: 1-5/16” aluminum post
with 4 plastic caps.
OPTIONAL REAR KEG STRAP
MODEL # KR-1 SERIES
MATERIAL:
Extruded Aluminum Tubing & Support Pieces.
MODEL #
L x W x H
KR-42
KR-60
KR-72
KR-80
KR-93
NOTE: Top shelf not recommended for Keg Storage.
KR-1 recommended to minimize falling kegs.
(See below)
FEATURES:
Prevents kegs from sliding off rear of a keg rack shelf.
CONSTRUCTION:
Fully welded 1-3/4” square tubing.
Overall Size
42” x 20” x 76”
60” x 20” x 76”
72” x 20” x 76”
80” x 20” x 76”
93” x 20” x 76”
# of Kegs
Per Unit
10
Wt.
4
6
8
8
50 lbs.
68 lbs.
80 lbs.
88 lbs.
100 lbs.
MATERIAL:
Extruded Aluminum Tubing & Support Pieces.
Accessory
Rear Strap - 42” KR-1-42
Rear Strap - 60” KR-1-60
Rear Strap - 72” KR-1-72
Rear Strap - 80” KR-1-80
Rear Strap - 93” KR-1-93
Model #
Qty
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
R-14
DIMENSIONS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
(W) 20"
PR20-3K
"L"
Plan View of Top Shelf
1
3
3
"
1
4
"
4
Plan View of Keg Shelves
PR20-3KS
3
"
1
4
5
"
4
16
1 5/16"
Aluminum Tubing
Adjustable
REAR KEG RACK STRAP
Length
18 1/8"
76" (H)
Adjustable
MODEL # Length Wt.
KR-1-42
KR-1-60
KR-1-72
KR-1-80
KR-1-93
42”
60”
72”
80”
93”
6 lbs.
7 lbs.
8 lbs.
9 lbs.
10 lbs.
R-14a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, MARCH 2016
