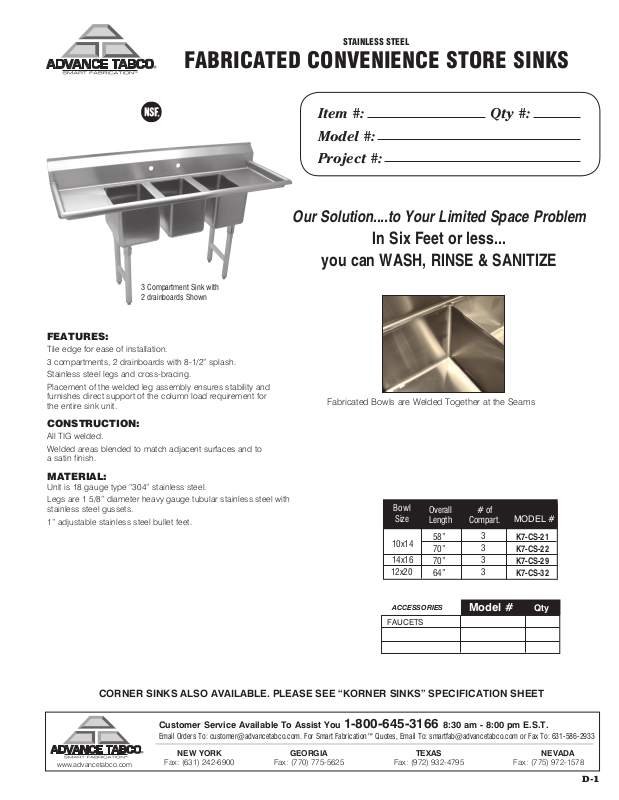

Advance Tabco K7CS32X Specifications
FABRICATED CONVENIENCE STORE SINKS
3 Compartment Sink with
2 drainboards Shown
STAINLESS STEEL
Item #: Qty #:
Model #:
Project #:
Our Solution....to Your Limited Space Problem
In Six Feet or less...
you can WASH, RINSE & SANITIZE
FEATURES:
Tile edge for ease of installation.
3 compartments, 2 drainboards with 8-1/2” splash.
Stainless steel legs and cross-bracing.
Placement of the welded leg assembly ensures stability and
furnishes direct support of the column load requirement for
the entire sink unit.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to
a satin finish.
MATERIAL:
Unit is 18 gauge type “304” stainless steel.
Legs are 1 5/8” diameter heavy gauge tubular stainless steel with
stainless steel gussets.
1” adjustable stainless steel bullet feet.
Fabricated Bowls are Welded Together at the Seams
Bowl
Size
10x14
14x16
12x20
ACCESSORIES
FAUCETS
Overall
Length
58”
70”
70”
64”
# of
Compart.
3
3
3
3
Model #
MODEL #
K7-CS-21
K7-CS-22
K7-CS-29
K7-CS-32
Qty
CORNER SINKS ALSO AVAILABLE. PLEASE SEE “KORNER SINKS” SPECIFICATION SHEET
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
D-1
DIMENSIONS and SPECIFICATIONS
36 1/2"
(Working Height)
3"
1" Adjustable
Stainless Steel
Flood
Level
(X + 2 1/2")
X
(Water Level)
8
1
2
"
42
1
2
"
Overall Length
D
A
Drain
Board
Length
2" Typ.
B
36 1/2"
(Working Height)
38"
(Faucet)
Y
C
2 1/2"
11/2"
2"
3"
1" Adjustable
Flood
Level
(X + 2 1/2")
X
(Water Level)
To
Waste
Line
C
L
C
L
P Trap
8
1
2
"
42
TOL Overall: ± .500” ALL DIMENSIONS ARE TYPICAL
Interior: ± .250”
C
LCL
8"
O.C.
1
"
8
2
C
L
C
L
Overall Length
Drain
Board
Length
2" Typ.
3 Compartment Sink with 2 drainboards Shown
BOWL Overall Drainboard WT**
MODEL # (SIZE) Length Length (lbs)
K7-CS-21
K7-CS-22
K7-CS-29
K7-CS-32
10x14
14x16
12x20
58”
70”
70”
64”
12”
18”
12”
12”
85
100
135
110
C
L
D
A
B
A B C D X Y
14”
14”
16”
20”
10”
10”
14”
12”
10”
10”
11”
13”
19 1/2”
19 1/2”
21 1/2”
25 1/2”
10”
10”
12”
12”
24”
24”
22”
22”
D-1a
** Approx. Shipping Weights
PLUMBING ROUGH-IN
2"
11/2"
2 1/2"
C
L
C
Y
P Trap
FINISHED FLOOR
200 Heartland Boulevard, Edgewood, NY 11717-8380
To
Waste
Line
C
L
38"
(Faucet)
MECHANICAL:
• Supply is 1/2” IPS hot & cold.
• Faucet holes on 8” centers.
• Faucets are not included
(see accessories).
Waste drains are 1 1/2” IPS
•
S/S basket type, located in
center of sink bowl, and are
included.
SECTION
1
"
8
2
Flood
Level
(X + 2 1/2")
36 1/2"
(Working Height)
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, AUGUST 2015
X
(Water Level)
1" Adjustable
Stainless Steel
Bullet Feet
3"
1
"
42
2
