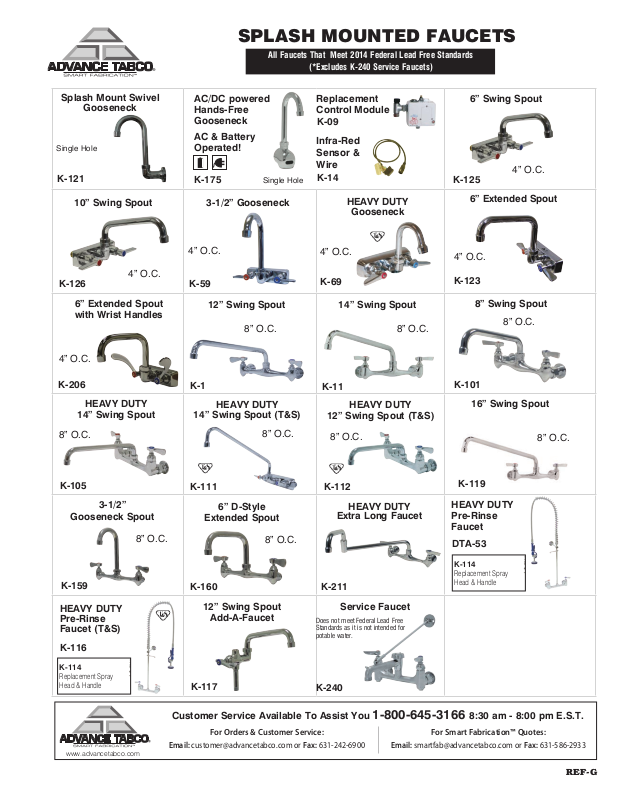

Page 1
SPLASH MOUNTED FAUCETS
All Faucets That Meet 2014 Federal Lead Free Standards
(*Excludes K-240 Service Faucets)
Splash Mount Swivel
Gooseneck
Single Hole
K-121
10” Swing Spout
4” O.C.
K-126
6” Extended Spout
with Wrist Handles
4” O.C.
AC/DC powered
Hands-Free
Gooseneck
AC & Battery
Operated!
K-175
3-1/2” Gooseneck
4” O.C.
K-59
12” Swing Spout
8” O.C.
Single Hole
Replacement
Control Module
K-09
Infra-Red
Sensor &
Wire
K-14
HEAVY DUTY
Gooseneck
4” O.C.
K-69
14” Swing Spout
8” O.C.
6” Swing Spout
4” O.C.
K-125
6” Extended Spout
4” O.C.
K-123
8” Swing Spout
8” O.C.
K-206
HEAVY DUTY
14” Swing Spout
8” O.C.
K-105
3-1/2”
Gooseneck Spout
K-159
HEAVY DUTY
Pre-Rinse
Faucet (T&S)
K-116
K-114
Replacement Spray
Head & Handle
8” O.C.
K-1
HEAVY DUTY
14” Swing Spout (T&S)
8” O.C.
K-111
6” D-Style
Extended Spout
8” O.C.
K-160
12” Swing Spout
Add-A-Faucet
K-117
K-11
HEAVY DUTY
12” Swing Spout (T&S)
8” O.C.
K-112
HEAVY DUTY
Extra Long Faucet
K-211
Service Faucet
Does not meet Federal Lead Free
Standards as it is not intended for
potable water.
K-240
K-101
16” Swing Spout
8” O.C.
K-119
HEAVY DUTY
Pre-Rinse
Faucet
DTA-53
K-114
Replacement Spray
Head & Handle
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: [email protected] or Fax: 631-242-6900
Email: [email protected] or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-G
Page 2
SPLASH MOUNTED FAUCETS
ACCESSORIES
Swing Spout Faucet
D
A
Gooseneck Faucet
C
L
D
A
C
L
C
B
B
C
L
MODEL #
K-00 Repair Kit For K-1, K-11, K-101, K-119 & 211 N/A N/A N/A N/A N/A
K-06
K-1 12” Swing Spout Faucet 12” 5” 2 1/2” 14” 8” O.C.
K-11 14” Swing Spout Faucet 14” 5 1/2” 3” 16” 8” O.C.
K-59 3 1/2” Gooseneck Faucet 3 1/2” 8” 5” 6” 4” O.C.
K-60 3 1/2” Gooseneck Faucet 3 1/2” 8 1/4” 5 1/2” 4 1/2” 4” O.C.
K-69 Heavy Duty Gooseneck Faucet 3” 5” 2 3/4” 5 1/2” 4” O.C.
K-101 8” Swing Spout Faucet 8” 4 1/4” 2 1/4” 10” 8” O.C.
K-105 Heavy Duty 14” Swing Spout Faucet 14” 5” 3” 16” 8” O.C.
K-111 Heavy Duty 14” Swing Spout (T&S) Faucet 14” 8 1/4” 5 1/2” 16 1/2” 8” O.C.
K-112 Heavy Duty 12” Swing Spout Faucet 12” 5” 3” 14” 8” O.C.
K-116 Heavy Duty Pre-Rinse (T&S) Faucet 13” 34 1/2” 13 1/2” 15 3/8” 8” O.C.
K-117 Add-A-Faucet with 12” Spout Faucet 12” N/A N/A N/A N/A
K-119 16” Swing Spout Faucet 16” 6” 4” 18 1/2” 8” O.C.
K-121 Splash Mount Swivel Gooseneck Faucet 3 1/2” 8” 5 1/2” 5 3/4” Single Hole
K-123 6” Extended Spout Faucet 6” 5” 2 1/2” 8” 4” O.C.
K-125 6” Swing Spout 6” ???” ???” ???” 4” O.C.
K-126 10” Swing Spout 10” ???” ???” ???” 4” O.C.
K-159 3 1/2” Spout Faucet 3 1/2” 8” 5” 6” 8” O.C.
K-160 6” Extended Spout Faucet 6” 5” 4” 8” 8” O.C.
K-170 Eye Wash Attachment (See Above Detail) N/A N/A N/A N/A N/A
K-175 Hands Free AC/DC Operated Faucet 4 1/2” 7” 3 3/4” 5 1/2” Single Hole
6’ Cord. INPUT: 100-240VAC 47-6Hz. < 1 Amp Draw. UL LISTED
K-206 6” Extended Spout Faucet with Wrist Handles 6” 5” 2 1/2” 8” 4” O.C.
K-211 Heavy Duty Extra Long Spout Faucet 18” 7 3/4” 5” 21” 8” O.C.
K-240* Service Faucet 6 1/2” 2 1/2” 1 3/8” 9” 8” O.C.
K-316 Wrist Handle Gooseneck Faucet 3 1/2” 8” 5” 6” 4” O.C.
K-400 Hands Free Wand N/A N/A N/A N/A N/A
DTA-53 Heavy Duty Pre-Rinse Faucet 15” 34” 5” 15” 8” O.C.
Faucet Mt. Kit for K-1, K-11, K-101, K-119 & K-211
Description
N/A N/A N/A N/A N/A
A
LEngth
B
hEight
C
C
L
C
L
C
D
On Center
Dimensions
* Does not meet Federal Lead Free Standards as it is not intended for potable water.
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
www.advancetabco.com
Email: [email protected] or Fax: 631-242-6900
N/A = Not Applicable To Faucet
For Smart Fabrication™ Quotes:
Email: [email protected] or Fax: 631-586-2933
REF-G
Page 3
DIMENSIONS and SPECIFICATIONS
TOL ± .125” ALL DIMENSIONS ARE TYPICAL
SPLASH MOUNTED FAUCET ACCESSORIES
Eye Wash Attachment*
K-170
Faucet Wall
Mounting Bracket
K-30
Repair Kit For
K-1, K-11, K-101,
K-112, K-119
& K-211
Repair Kit can only be used on faucets purchased after 12/03
K-00
Wrist handle Gooseneck
Wrist Handles
Only
K-316
K-316-LU
Low Flow Aerator
K-08
Hands-Free Wand
K-400
Faucet Mounting Kit
K-1, K-11, K-101, K-105,
K-112, K-119
& K-211
K-06
* IMPORTANT: Faucet-mounted eyewashes require two motions to operate (turn on water, pull knob to activate eyewash flow). Therefore, Advance Tabco does not believe
that these units meet the provisions of ANSI Z358.1-2004 as eyewash units. These units are intended solely as supplemental units in addition to dedicated, plumbed
eyewash equipment installed in the workplace.
Faucet-mounted eyewashes should be used with cold or warm water only. Use of hot water might cause scalding. Eyewash Faucets not to be used with Electronic Faucets.
All Faucets That Meet 2014 Federal Lead Free Standards
(*Excludes K-240 Service Faucets)
For Replacement Faucets & Upgrades, Drains & Accessories
visit our website at www.advancetabco.com
REF-G
ALL FAUCET AERATORS
CONFORM TO
ASTM.A112.18.1M
2.0 GPM/7.56 LPM
THREAD: 55/64 - 27 FEMALE
200 Heartland Boulevard, Edgewood, NY 11717-8380
K-240 SERVICE FAUCET
9.6 GPM/36.3 LPM
3/4” HOSE END SPOUT
K-170 - Eye Wash Detail
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2015
