Advance Tabco K-15 Specifications

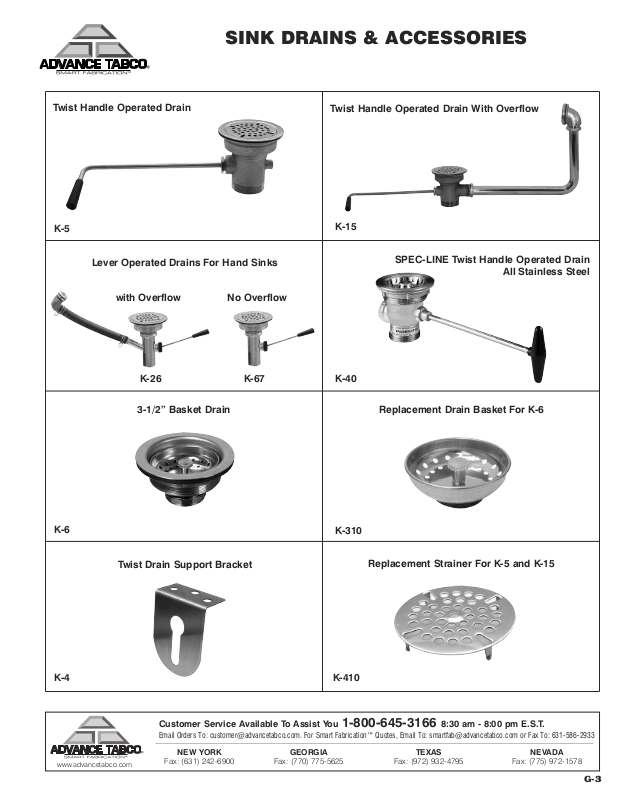

SINK DRAINS & ACCESSORIES

Twist Handle Operated Drain

K-5

Lever Operated Drains For Hand Sinks

with Overflow No Overflow

K-26

K-67

wist Handle Operated Drain With Overflow

T

K-15

SPEC-LINE Twist Handle Operated Drain

All Stainless Steel

K-40

K-6

K-4

3-1/2” Basket Drain

Twist Drain Support Bracket

Replacement Drain Basket For K-6

K-310

Replacement Strainer For K-5 and K-15

K-410
