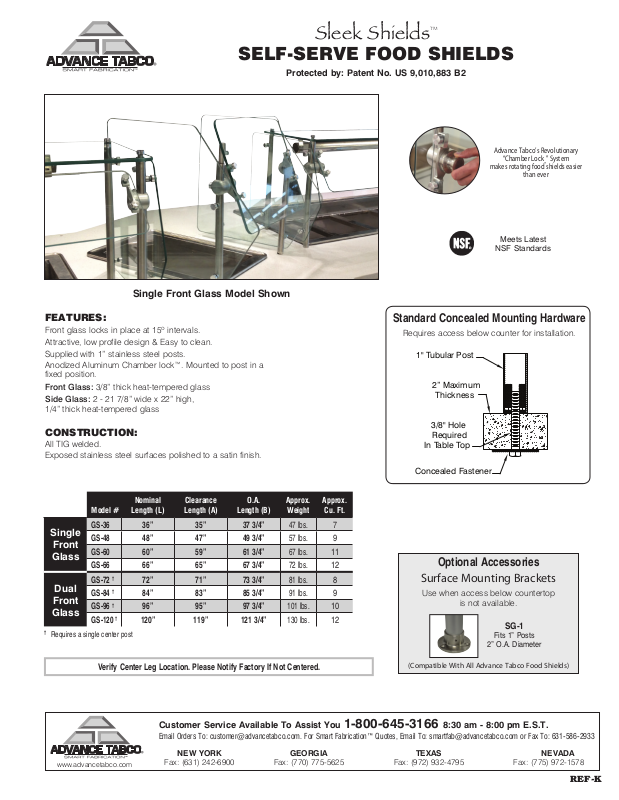

Advance Tabco GS60X Specifications
SELF-SERVE FOOD SHIELDS
Single Front Glass Model Shown
Sleek Shields
™
Protected by: Patent No. US 9,010,883 B2
Advance Tabco’s Revolutionary
“Chamber Lock™” System
makes rotating food shields easier
than ever
Meets Latest
NSF Standards
FEATURES:
Front glass locks in place at 15º intervals.
Attractive, low profile design & Easy to clean.
Supplied with 1” stainless steel posts.
Anodized Aluminum Chamber lock™. Mounted to post in a
fixed position.
Front Glass: 3/8” thick heat-tempered glass
Side Glass: 2 - 21 7/8” wide x 22” high,
1/4” thick heat-tempered glass
CONSTRUCTION:
All TIG welded.
Exposed stainless steel surfaces polished to a satin finish.
Model #
GS-36
Single
Front
Glass
Dual
Front
Glass
†
Requires a single center post
GS-48
GS-60
GS-66
GS-72
GS-84
GS-96
GS-120
†
†
†
†
Nominal
Length (L)
36” 35” 37 3/4”
48” 47” 49 3/4”
60” 59” 61 3/4”
66” 65” 67 3/4”
72” 71” 73 3/4”
84” 83” 85 3/4”
96” 95” 97 3/4”
120” 119” 121 3/4”
Clearance
Length (A)
O.A.
Length (B)
Approx.
Weight
47 lbs.
57 lbs.
67 lbs.
72 lbs.
81 lbs.
91 lbs.
101 lbs.
130 lbs.
Approx.
Cu. Ft.
7
9
11
12
8
9
10
12
Standard Concealed Mounting Hardware
Requires access below counter for installation.
1" Tubular Post
2” Maximum
Thickness
3/8" Hole
Required
In Table Top
Concealed Fastener
Optional Accessories
Surface Mounting Brackets
Use when access below countertop
is not available.
SG-1
Fits 1” Posts
2” O.A. Diameter
Verify Center Leg Location. Please Notify Factory If Not Centered.
www.advancetabco.com
(Compatible With All Advance Tabco Food Shields)
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
REF-K
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
Single Front Glass
A
(4) 1" Dia. S/S Posts
Dual Front Glass
3/8”Heat-Tempered
Front Glass
1/4" Thick Heat-
Tempered End Glass
C
L
7
"
8
16
22"
1
"
4
12"
5
9
"
8
12"
C
L
21
L
10"
Clear
B
C
L
C
L
A
REF-K
3/8”Heat-Tempered
Front Glass
(5) 1" Dia. S/S Posts
X*
C
L
* Verify Center Leg Location.
Please Notify Factory If Not Centered.
200 Heartland Boulevard, Edgewood, NY 11717-8380
1/4" Thick Heat-
Tempered End Glass
22"
1
"
16
4
12"
C
L
7
"
8
© ADVANCE TABCO, MAY 2015
12"
5
9
"
8
C
L
21
L
10"
Clear
C
L
B
X*
C
L
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
