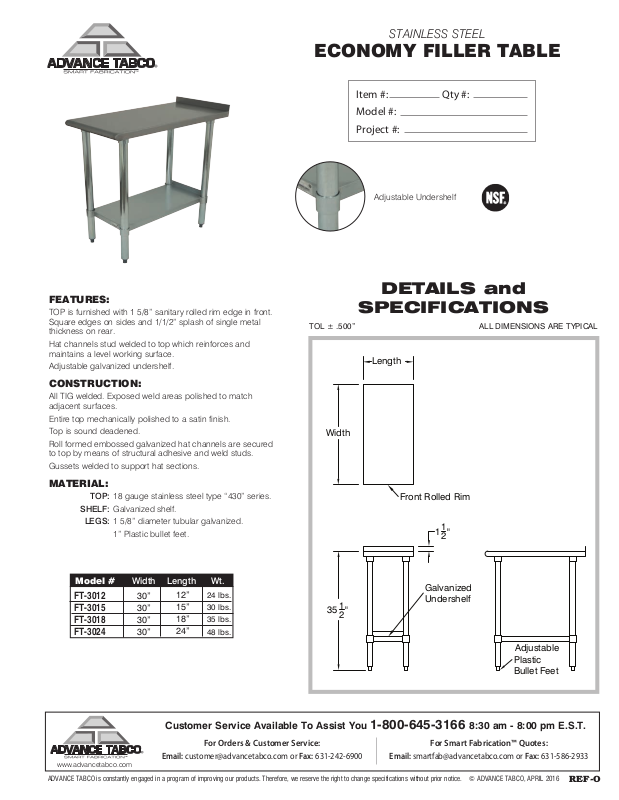

Advance Tabco FT3018X Specifications

STAINLESS STEEL

ECONOMY FILLER TABLE

Item #: Qty #:

Model #:

Project #:

Adjustable Undershelf

FEATURES:

TOP is furnished with 1 5/8” sanitary rolled rim edge in front.
Square edges on sides and 1/1/2” splash of single metal
thickness on rear.

Hat channels stud welded to top which reinforces and
maintains a level working surface.

Adjustable galvanized undershelf.

CONSTRUCTION:

All TIG welded. Exposed weld areas polished to match
adjacent surfaces.

Entire top mechanically polished to a satin finish.
Top is sound deadened.
Roll formed embossed galvanized hat channels are secured

to top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.

MATERIAL:

TOP: 18 gauge stainless steel type “430” series.
SHELF: Galvanized shelf.
LEGS: 1 5/8” diameter tubular galvanized.
1” Plastic bullet feet.

Model # Width Length Wt.

FT-3012

FT-3015

FT-3018

FT-3024

30”
30”
30”
30”

12”
15”
18”
24”

24 lbs.

30 lbs.

35 lbs.

48 lbs.

DETAILS and

SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

Length

Width

Front Rolled Rim

1

"

1

2

Galvanized
Undershelf

Adjustable
Plastic
Bullet Feet

35

1

"

2

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

For Orders & Customer Service:

www.advancetabco.com

ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, APRIL 2016
