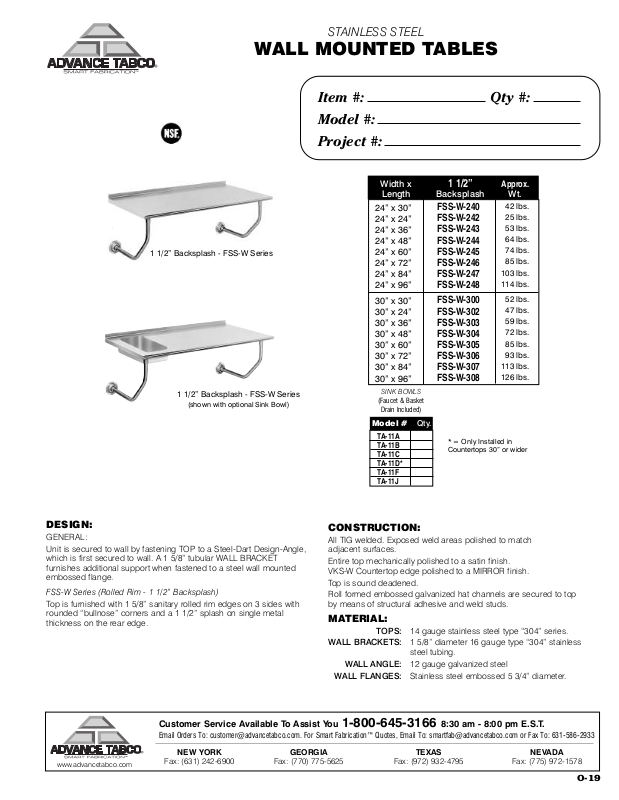

Advance Tabco FSS-W-243 Specifications
WALL MOUNTED TABLES
1 1/2” Backsplash - FSS-W Series
1 1/2” Backsplash - FSS-W Series
(shown with optional Sink Bowl)
STAINLESS STEEL
Item #: Qty #:
Model #:
Project #:
Width x 1 1/2” Approx.
Length Backsplash Wt.
24” x 30”
24” x 24”
24” x 36”
24” x 48”
24” x 60”
24” x 72”
24” x 84”
24” x 96”
30” x 30”
30” x 24”
30” x 36”
30” x 48”
30” x 60”
30” x 72”
30” x 84”
30” x 96”
SINK BOWLS
(Faucet & Basket
Drain Included)
Model # Qty.
TA-11A
TA-11B
TA-11C
TA-11D*
TA-11F
TA-11J
FSS-W-240
FSS-W-242
FSS-W-243
FSS-W-244
FSS-W-245
FSS-W-246
FSS-W-247
FSS-W-248
FSS-W-300
FSS-W-302
FSS-W-303
FSS-W-304
FSS-W-305
FSS-W-306
FSS-W-307
FSS-W-308
* = Only Installed in
Countertops 30” or wider
42 lbs.
25 lbs.
53 lbs.
64 lbs.
74 lbs.
85 lbs.
103 lbs.
114 lbs.
52 lbs.
47 lbs.
59 lbs.
72 lbs.
85 lbs.
93 lbs.
113 lbs.
126 lbs.
DESIGN:
GENERAL:
Unit is secured to wall by fastening TOP to a Steel-Dart Design-Angle,
which is first secured to wall. A 1 5/8” tubular WALL BRACKET
furnishes additional support when fastened to a steel wall mounted
embossed flange.
FSS-W Series (Rolled Rim - 1 1/2” Backsplash)
Top is furnished with 1 5/8” sanitary rolled rim edges on 3 sides with
rounded “bullnose” corners and a 1 1/2” splash on single metal
thickness on the rear edge.
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
www.advancetabco.com
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
CONSTRUCTION:
All TIG welded. Exposed weld areas polished to match
adjacent surfaces.
Entire top mechanically polished to a satin finish.
VKS-W Countertop edge polished to a MIRROR finish.
Top is sound deadened.
Roll formed embossed galvanized hat channels are secured to top
by means of structural adhesive and weld studs.
MATERIAL:
TOPS: 14 gauge stainless steel type “304” series.
WALL BRACKETS: 1 5/8” diameter 16 gauge type “304” stainless
steel tubing.
WALL ANGLE: 12 gauge galvanized steel
WALL FLANGES: Stainless steel embossed 5 3/4” diameter.
O-19
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
Wall Angle Detail
Wall Flange Detail
O-19a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2005
