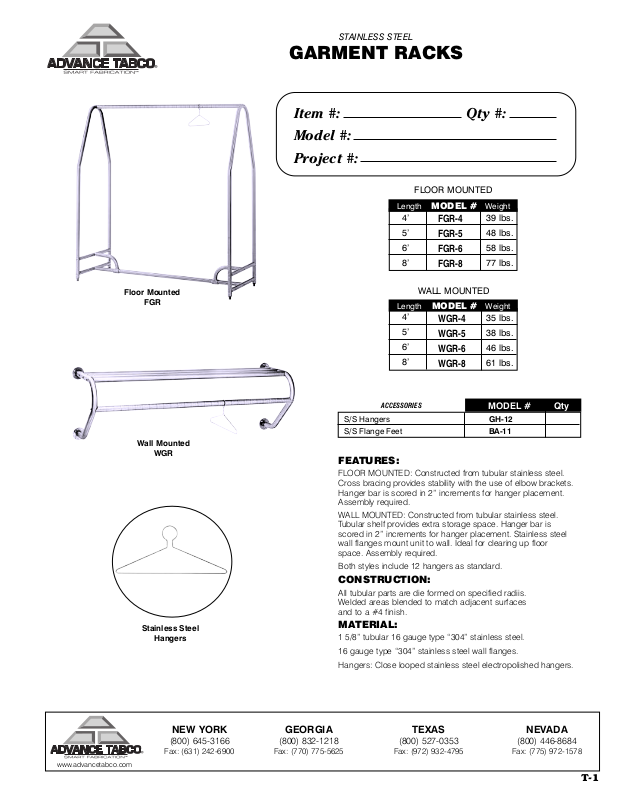

Advance Tabco FGR-4 Specifications

STAINLESS STEEL

GARMENT RACKS

Item #: Qty #:

Model #:

Project #:

FLOOR MOUNTED

Length MODEL # Weight

4’

5’

6’

8’

FGR-4

FGR-5

FGR-6

FGR-8

39 lbs.

48 lbs.

58 lbs.

77 lbs.

Floor Mounted

FGR

Wall Mounted

WGR

Stainless Steel

Hangers

WALL MOUNTED

Length MODEL # Weight

4’

5’

6’

8’

ACCESSORIES

S/S Hangers GH-12

S/S Flange Feet BA-11

WGR-4

WGR-5

WGR-6

WGR-8

35 lbs.

38 lbs.

46 lbs.

61 lbs.

MODEL #

Qty

FEATURES:

FLOOR MOUNTED: Constructed from tubular stainless steel.
Cross bracing provides stability with the use of elbow brackets.
Hanger bar is scored in 2” increments for hanger placement.
Assembly required.

WALL MOUNTED: Constructed from tubular stainless steel.
Tubular shelf provides extra storage space. Hanger bar is
scored in 2” increments for hanger placement. Stainless steel
wall flanges mount unit to wall. Ideal for clearing up floor
space. Assembly required.

Both styles include 12 hangers as standard.

CONSTRUCTION:

All tubular parts are die formed on specified radiis.
Welded areas blended to match adjacent surfaces
and to a #4 finish.

MATERIAL:

1 5/8” tubular 16 gauge type “304” stainless steel.

16 gauge type “304” stainless steel wall flanges.

Hangers: Close looped stainless steel electropolished hangers.

.advancetabco.com

www

NEW Y

[phone] [phone] [phone] [phone]

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

ORK

GEORGIA

TEXAS

NEV

A

AD

-1

T

DETAILS and SPECIFICATIONS

All Dimensions are Typical (tol. ± .500”) All Units Shipped Unassembled (KD) for Reduced Shipping Costs.

LOOR MOUNTED

F

WALL MOUNTED

T-1a

200 Heartland Boulevard, Edgewood, NY 11717-8380

CO is constantly engaged in a program of

AB

ANCE T

V

AD
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, JANUARY 2005
