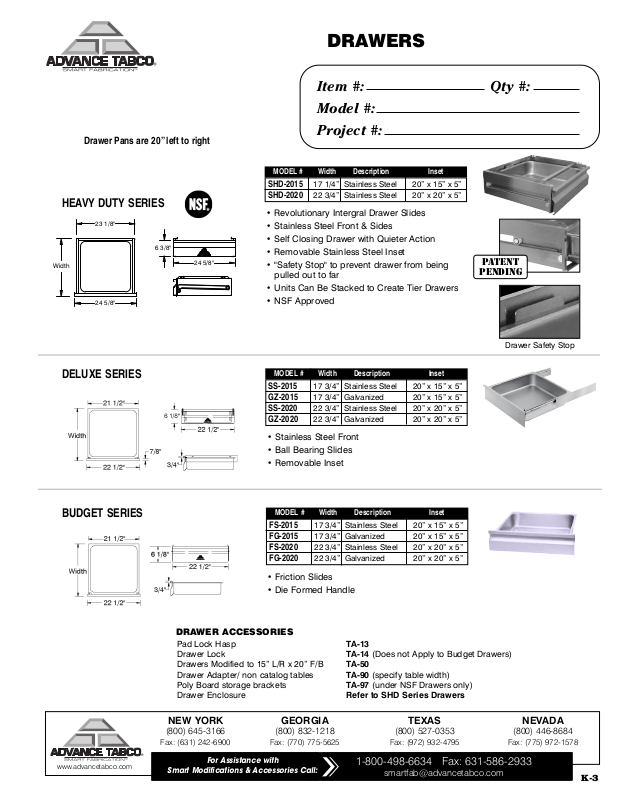

Advance Tabco ADT-2-2015, FG-2015 Specifications

DRAWERS

6 3/8"

2

3 1/8"

2

4 5/8"

2

4 5/8"

Width

Item #: Qty #:

Model #:

Drawer Pans are 20” left to right

HEAVY DUTY SERIES

DELUXE SERIES

Project #:

MODEL # Width Description Inset

SHD-2015

SHD-2020

Revolutionary Intergral Drawer Slides

•

• Stainless Steel Front & Sides

• Self Closing Drawer with Quieter Action

• Removable Stainless Steel Inset

• "Safety Stop" to prevent drawer from being
pulled out to far

• Units Can Be Stacked to Create Tier Drawers

• NSF Approved

MODEL # Width Description Inset

SS-2015

GZ-2015

SS-2020

GZ-2020

17 1/4” Stainless Steel 20” x 15” x 5”
22 3/4” Stainless Steel 20” x 20” x 5”

17 3/4” Stainless Steel 20” x 15” x 5”
17 3/4” Galvanized 20” x 15” x 5”
22 3/4” Stainless Steel 20” x 20” x 5”
22 3/4” Galvanized 20” x 20” x 5”

PATENT

PENDING

Drawer Safety Stop

BUDGET SERIES

.advancetabco.com

www

• Stainless Steel Front

• Ball Bearing Slides

• Removable Inset

MODEL # Width Description Inset

FS-2015

FG-2015

FS-2020

FG-2020

riction Slides

• F

17 3/4” Stainless Steel 20” x 15” x 5”
17 3/4” Galvanized 20” x 15” x 5”
22 3/4”
22 3/4” Galvanized 20” x 20” x 5”

Stainless Steel 20” x 20” x 5”

• Die Formed Handle

DRAWER ACCESSORIES

Pad Lock Hasp TA-13
Drawer Lock TA-14 (Does not Apply to Budget Drawers)
Drawers Modified to 15” L/R x 20” F/B TA-50
Drawer Adapter/ non catalog tables T
Poly Board storage brackets
Drawer Enclosure Refer to SHD Series Drawers

NEW Y

ORK

GEORGIA

A-90

(specify table width)

TA-97 (under NSF Drawers only)

TEXAS

NEV

AD

[phone] [phone] [phone] [phone]

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

t Modifications & Accessories Call:

Smar

Assistance with

For

1-800-498-6634 Fax: [phone]

[e-mail]

A

K-3

24 1/2"

17 1/4"

5/8"

13 1/2"

4 1/2"

16"

ADD-A-TIER DRAWERS

5/8"

20 1/2"

4

1/2"

16"

DETAILS and

ADT-3-2015 SHOWN

OUNTS UNDER

M

PEN BASE TABLE

O

STD-3-2015 SHOWN

SITS ON UNDERSHELF

FEATURES:

Stainless Steel Drawers feature roller bearing slides and
r

emovable drawer liner for easy cleaning.

ADT Model mounts to table top of open base table with
included hardware. Available in two or three drawers.

STD Model features a solid top. Place on undershelf.
No installation required. Available in three drawers only.

CONSTRUCTION:

All TIG welded.

MECHANICAL:

Roller bearing slides, drawer enclosure and removable
drawer inset.

MATERIAL:

Heavy gauge type 430 series stainless steel.

SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

DT-2-2015

A

OP VIEW FOR

T

DT-2-2015 &

A
ADT-3-2015

ADT-3-2015

Model #

ADT-2-2015

ADT-3-2015

Model #

STD-3-2015

Description Weight

Add-A-Tier (2 Tier) 70 lbs.
Add-A-Tier (3 Tier) 95 lbs.

Description Weight

3 Tier Drawer Unit 95 lbs.

FACTORY
INSTALLED

3 TIER
DRAWERS

Y

CTOR

A

F

ALLATION ONLY

INST

FEATURES:

3-Tier Drawers factory installed.
1 5/8” diameter tubular stainless steel legs & gussets.
1” adjustable stainless steel bullet feet.
Stainless Steel Drawers feature roller bearing slides and

removable drawer inset for easy cleaning.

CONSTRUCTION:

All TIG welded.

MECHANICAL:

Roller bearing slides, drawer enclosure and
removable drawer inset.

MATERIAL:

Heavy gauge type 430 series stainless steel.

Description Weight

ier Drawers

T

3-

K-3a

Model #

A-38

T

200 Heartland Boulevard, Edgewood, NY 11717-8380

STD-3-2015

TA-38

105 lbs.

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, JUNE 2006
