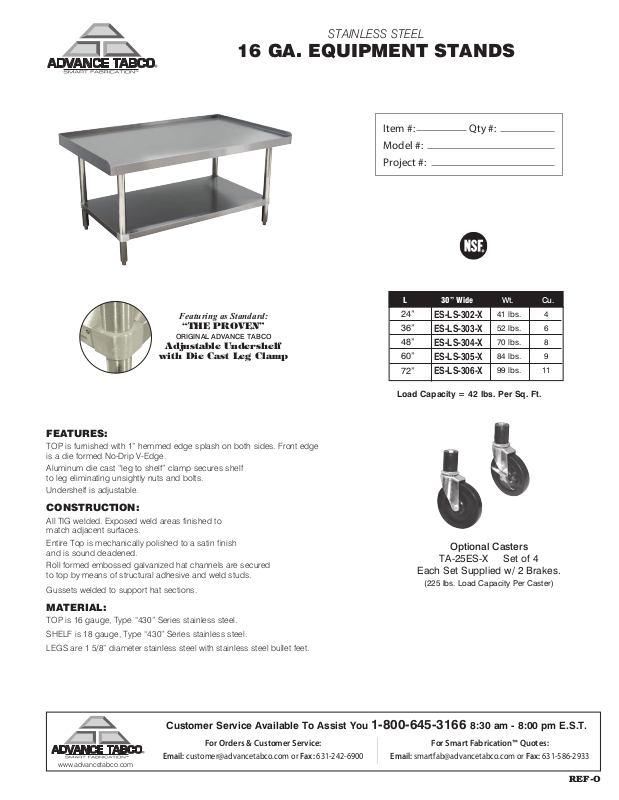

Advance Tabco ESLS306X Specifications
16 GA. EQUIPMENT STANDS
Featuring as Standard:
“THE PROVEN”
ORIGINAL ADVANCE TABCO
Adjustable Undershelf
with Die Cast Leg Clamp
STAINLESS STEEL
Item #: Qty #:
Model #:
Project #:
L 30” Wide Wt. Cu.
24”
36”
48”
60”
72”
ES-LS-302-X
ES-LS-303-X
ES-LS-304-X
ES-LS-305-X
ES-LS-306-X
41 lbs.
52 lbs.
70 lbs.
84 lbs.
99 lbs.
4
6
8
9
11
FEATURES:
TOP is furnished with 1” hemmed edge splash on both sides. Front edge
is a die formed No-Drip V-Edge.
Aluminum die cast “leg to shelf” clamp secures shelf
to leg eliminating unsightly nuts and bolts.
Undershelf is adjustable.
CONSTRUCTION:
All TIG welded. Exposed weld areas finished to
match adjacent surfaces.
Entire Top is mechanically polished to a satin finish
and is sound deadened.
Roll formed embossed galvanized hat channels are secured
to top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.
MATERIAL:
TOP is 16 gauge, Type “430” Series stainless steel.
SHELF is 18 gauge, Type “430” Series stainless steel.
LEGS are 1 5/8” diameter stainless steel with stainless steel bullet feet.
Load Capacity = 42 lbs. Per Sq. Ft.
Optional Casters
TA-25ES-X Set of 4
Each Set Supplied w/ 2 Brakes.
(225 lbs. Load Capacity Per Caster)
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-O
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
Length
25"
30"
24"
Clearance
"L" - 9 1/2"
S/S Undershelf
Adj. S/S Bullet Feet
Hem Splash on
Three Sides
24” Working Height
1"
15/8" S/S Tubing
10"
Mobile Unit
REF-O
Optional Casters
TA-25ES-X Set of 4
Each Set Supplied w/ 2 Brakes.
(225 lbs. Load Capacity Per Caster)
200 Heartland Boulevard, Edgewood, NY 11717-8380
25"
10"
1 1/2” x 5” Roller
Bearing Casters
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, APRIL 2016
