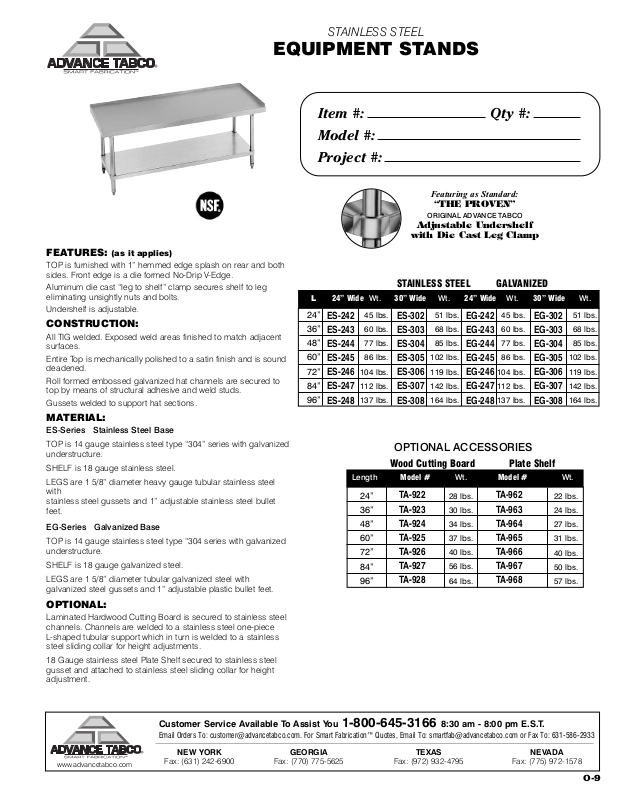

Advance Tabco EG-243 Specifications
EQUIPMENT STANDS
FEATURES: (as it applies)
TOP is furnished with 1” hemmed edge splash on rear and both
sides. Front edge is a die formed No-Drip V-Edge.
Aluminum die cast “leg to shelf” clamp secures shelf to leg
eliminating unsightly nuts and bolts.
Undershelf is adjustable.
CONSTRUCTION:
All TIG welded. Exposed weld areas finished to match adjacent
surfaces.
Entire Top is mechanically polished to a satin finish and is sound
deadened.
Roll formed embossed galvanized hat channels are secured to
top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.
MATERIAL:
ES-Series Stainless Steel Base
TOP is 14 gauge stainless steel type “304” series with galvanized
understructure.
SHELF is 18 gauge stainless steel.
LEGS are 1 5/8” diameter heavy gauge tubular stainless steel
with
stainless steel gussets and 1” adjustable stainless steel bullet
feet.
EG-Series Galvanized Base
TOP is 14 gauge stainless steel type “304 series with galvanized
understructure.
SHELF is 18 gauge galvanized steel.
LEGS are 1 5/8” diameter tubular galvanized steel with
galvanized steel gussets and 1” adjustable plastic bullet feet.
OPTIONAL:
Laminated Hardwood Cutting Board is secured to stainless steel
channels. Channels are welded to a stainless steel one-piece
L-shaped tubular support which in turn is welded to a stainless
steel sliding collar for height adjustments.
18 Gauge stainless steel Plate Shelf secured to stainless steel
gusset and attached to stainless steel sliding collar for height
adjustment.
STAINLESS STEEL
Item #: Qty #:
Model #:
Project #:
Featuring as Standard:
“THE PROVEN”
ORIGINAL ADVANCE TABCO
Adjustable Undershelf
with Die Cast Leg Clamp
STAINLESS STEEL GALVANIZED
L 24” Wide Wt. 30” Wide Wt. 24” Wide Wt. 30” Wide Wt.
24”
36”
48”
60”
72”
84”
96”
ES-242
ES-243
ES-244
ES-245
ES-246
ES-247
ES-248
45 lbs.
60 lbs.
77 lbs.
86 lbs.
104 lbs.
112 lbs.
137 lbs.
ES-302
ES-303
ES-304
ES-305
ES-306
ES-307
ES-308
51 lbs.
68 lbs.
85 lbs.
102 lbs.
119 lbs.
142 lbs.
164 lbs.
EG-242
EG-243
EG-244
EG-245
EG-246
EG-247
EG-248
45 lbs.
60 lbs.
77 lbs.
86 lbs.
104 lbs.
112 lbs.
137 lbs.
OPTIONAL ACCESSORIES
Wood Cutting Board Plate Shelf
Length Model # Wt. Model # Wt.
24”
36”
48”
60”
72”
84”
96”
TA-922
TA-923
TA-924
TA-925
TA-926
TA-927
TA-928
28 lbs.
30 lbs.
34 lbs.
37 lbs.
40 lbs.
56 lbs.
64 lbs.
TA-962
TA-963
TA-964
TA-965
TA-966
TA-967
TA-968
EG-302
EG-303
EG-304
EG-305
EG-306
EG-307
EG-308
51 lbs.
68 lbs.
85 lbs.
102 lbs.
119 lbs.
142 lbs.
164 lbs.
22 lbs.
24 lbs.
27 lbs.
31 lbs.
40 lbs.
50 lbs.
57 lbs.
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
O-9
DETAILS and SPECIFICATIONS
24"
10"
W
idth
Length
Hem Splash on
Three Sides
S/S Undershelf
Adj. S/S Bullet Feet
15/8" S/S Tubing
Clearance
"L" - 9 1/2"
1"
25"
34"
24"
19"
10"
7"
1 1/2"
10"
Length
S/S Undershelf
S/S Tubing
3“ Adjustment
S/S Adj.
Collar
Clearance "L" - 9 1/2"
WARNING: Check grease drawer clearance.
(If it applies)
34"
24"
10"
7"
1 1/2"
10"
Clearance "L" - 5"
1 1/2” x 5” Roller
Bearing Casters
400 lb. load capacity
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
7 ft. units and longer are furnished with six (6) legs.
with Plate Shelf & Cutting Board
Maximum Load Weight for Plate Shelf is 25 lbs.
Maximum Total Load = 1000 lbs.
24” Working Height
Optional X.H.D. Casters
TA-255 Set of 4
TA-256 Set of 6
Each Set supplied
with 2 brakes.
O-9a
200 Heartland Boulevard, Edgewood, NY 11717-8380
Mobile Unit
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, FEBRUARY 2008
