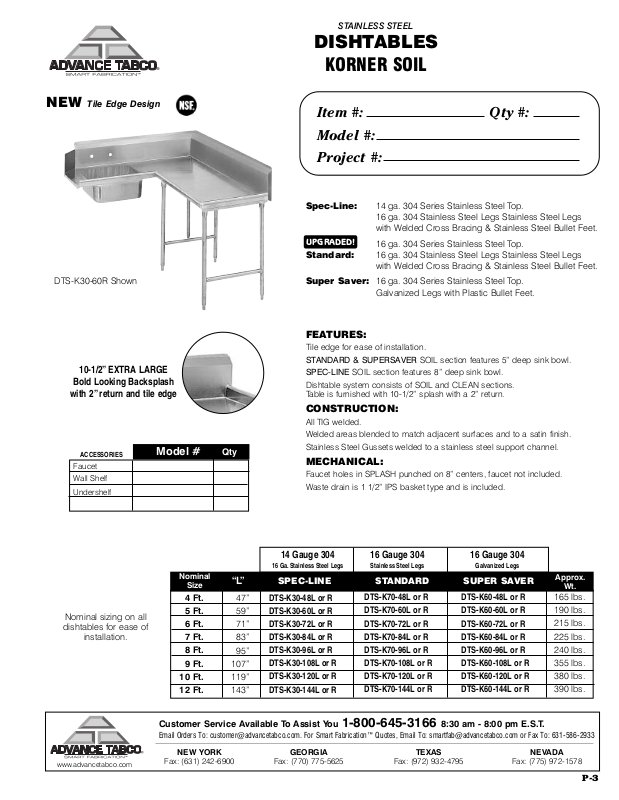

Advance Tabco DTS-K30-48L Specifications
NEW Tile Edge Design
DTS-K30-60R Shown
STAINLESS STEEL
DISHTABLES
KORNER SOIL
Item #: Qty #:
Model #:
Project #:
pec-Line: 14 ga. 304 Series Stainless Steel Top.
S
16 ga. 304 Stainless Steel Legs Stainless Steel Legs
with Welded Cross Bracing & Stainless Steel Bullet Feet.
UPGRADED!
Standard: 16 ga. 304 Stainless Steel Legs Stainless Steel Legs
Super Saver: 16 ga. 304 Series Stainless Steel Top.
16 ga. 304 Series Stainless Steel Top.
with Welded Cross Bracing & Stainless Steel Bullet Feet.
Galvanized Legs with Plastic Bullet Feet.
10-1/2” EXTRA LARGE
Bold Looking Backsplash
with 2” return and tile edge
ACCESSORIES
Faucet
Wall Shelf
Undershelf
Nominal sizing on all
dishtables for ease of
installation.
Model #
Nominal
Size
4 Ft.
5 Ft.
6 Ft.
7 Ft.
8 Ft.
9 Ft.
10 Ft.
12 Ft.
Qty
“L”
47”
59”
71”
83”
95”
107”
119”
143”
FEATURES:
Tile edge for ease of installation.
STANDARD & SUPERSAVER SOIL section features 5” deep sink bowl.
SPEC-LINE SOIL section features 8” deep sink bowl.
Dishtable system consists of SOIL and CLEAN sections.
Table is furnished with 10-1/2” splash with a 2” return.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Stainless Steel Gussets welded to a stainless steel support channel.
MECHANICAL:
Faucet holes in SPLASH punched on 8” centers, faucet not included.
Waste drain is 1 1/2” IPS basket type and is included.
14 Gauge 304 16 Gauge 304 16 Gauge 304
16 Ga. Stainless Steel Legs Stainless Steel Legs Galvanized Legs
SPEC-LINE STANDARD SUPER SAVER
DTS-K30-48L or R
DTS-K30-60L or R
DTS-K30-72L or R
DTS-K30-84L or R
DTS-K30-96L or R
DTS-K30-108L or R
DTS-K30-120L or R
DTS-K30-144L or R
DTS-K70-48L or R
DTS-K70-60L or R
DTS-K70-72L or R
DTS-K70-84L or R
DTS-K70-96L or R
DTS-K70-108L or R
DTS-K70-120L or R
DTS-K70-144L or R
DTS-K60-48L or R
DTS-K60-60L or R
DTS-K60-72L or R
DTS-K60-84L or R
DTS-K60-96L or R
DTS-K60-108L or R
DTS-K60-120L or R
DTS-K60-144L or R
Approx.
Wt.
165 lbs.
190 lbs.
215 lbs.
225 lbs.
240 lbs.
355 lbs.
380 lbs.
390 lbs.
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
P-3
34"
3"
1 1/2"
26 1/2"
2"
10 1/2"
44 1/2"
37"
10"
17"
20x20x5"
Sink
L
C
L
C
10 1/2"
2"
44 1/2"
1 1/2"
17"
26 1/2"
20x20x8"
Sink
34"
L
C
3"
37"
10"
L
C
Cross
B
race
Cross
B
race
Faucet
(Standard
Series Only)
DIMENSIONS and SPECIFICATIONS
59"
6"
L
30"
2"
1 1/2"
30"
21 3/8"
59"
30"
L
1 1/2"
2"
30"
6"
21 3/8"
20"
20"
20"
20"
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
SEE DISH MACHINE COMPATIBILITY CHART TO ENSURE PROPER FIT
Dish Machine Compatibility Chart can be found on our website at www.advancetabco.com under “Product Support”
DISH
MACHINE
OPERATOR
P-3a
KORNER SOIL LEFT
SPEC-LINE
CUSTOMIZE YOUR OWN SYSTEM
by Ordering Optional Accessories from our
Splash Detail
200 Heartland Boulevard, Edgewood, NY 11717-8380
Material
1 5/8” Dia. Legs
Gussets
Bullet Feet (1” adj.)
Cross Bracing
Prerinse Bowl Depth
Prerinse Basket
KORNER SOIL RIGHT
STANDARD & SUPER SAVER
PRODUCT & PRICE GUIDE
Description SPEC-LINE STANDARD SUPER SAVER
14 Ga. 304 Series
Stainless Steel
Stainless Steel
Stainless Steel
Welded
Included
8”
16 Ga. 304 Series
Stainless Steel
Stainless Steel
Stainless Steel
Welded
5”
Optional
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2009
16 Ga. 304 Series
Galvanized
Stainless Steel
Plastic
Optional
5”
Optional
