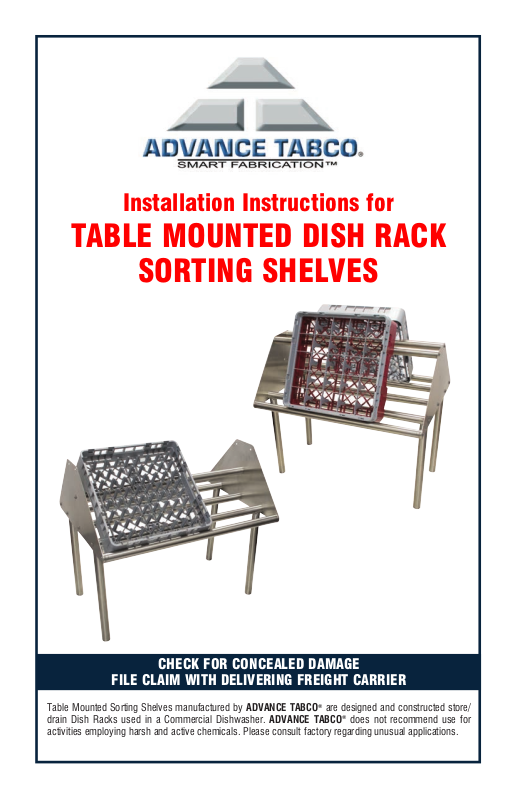

Installation Instructions for

TABLE MOUNTED DISH RACK

SORTING SHELVES

CHECK FOR CONCEALED DAMAGE

FILE CLAIM WITH DELIVERING FREIGHT CARRIER

Table Mounted Sorting Shelves manufactured by ADVANCE TABCO® are designed and constructed store/
drain Dish Racks used in a Commercial Dishwasher. ADVANCE TABCO® does not recommend use for
activities employing harsh and active chemicals. Please consult factory regarding unusual applications.

INSTALLATION INSTRUCTIONS

Contents:

(2) End Panels
(5) Stainless Steel Cross Tubes
(2) Stainless Steel Cross Tubes

Mounting Hardware:

(18 Flat Button Head Bolts)

Tools Required:

7/32” Allen Wrench

with Welded Tubular Uprights

NOTE: DTA-79 May come Pre-Assembled From Factory

Where Special Applications Exist

Step 1:

Determine type of shelf option that will be used for the DTA-79.

OPTION 1

For Single Side Use

Only 1 Cross Tube will be used across

the top using the middle single hole.

2 Cross Tubes will be installed at

the top using the two top holes.

OPTION 2

For Double Side Use

Step 2:

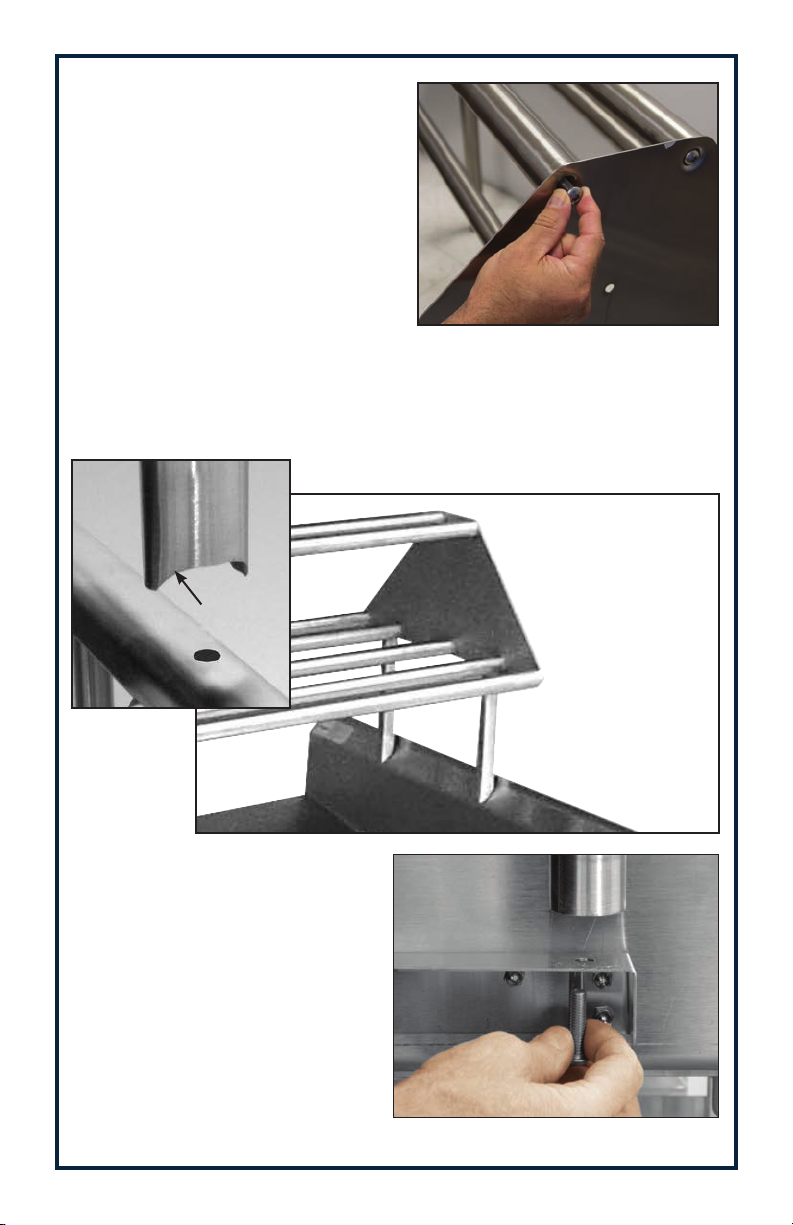

Align (2) Cross Tubes with welded Tubular Upright at the Second Hole in
on each End Panel. Secure with Button Head Bolts provided (Figure 1).
NOTE: Ensure Cross Tubes with Welded Uprights match at each end &
are perpendicular to bottom edge of side panel.

Bolt Cross Tubes with

Welded Uprights

Figure 1

at these Hole Locations
