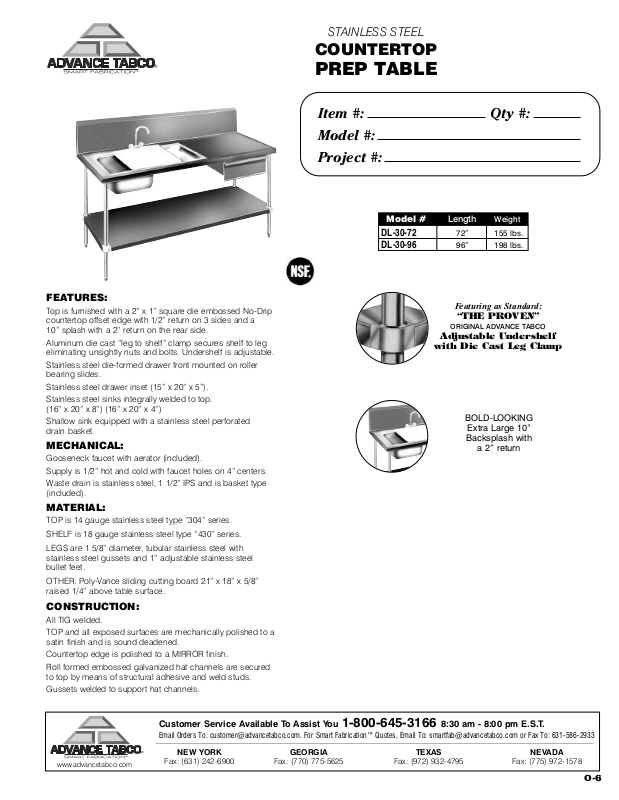

Advance Tabco DL-30-96 Specifications

STAINLESS STEEL

COUNTERTOP

PREP TABLE

Item #: Qty #:

Model #:

Project #:

FEATURES:

Top is furnished with a 2” x 1” square die embossed No-Drip
countertop offset edge with 1/2” return on 3 sides and a
10” splash with a 2” return on the rear side.

Aluminum die cast “leg to shelf” clamp secures shelf to leg
eliminating unsightly nuts and bolts. Undershelf is adjustable.

Stainless steel die-formed drawer front mounted on roller
bearing slides.

Stainless steel drawer inset (15” x 20” x 5”).
Stainless steel sinks integrally welded to top.

(16” x 20” x 8”) (16” x 20” x 4”)
Shallow sink equipped with a stainless steel perforated

drain basket.

MECHANICAL:

Gooseneck faucet with aerator (included).
Supply is 1/2” hot and cold with faucet holes on 4” centers.
Waste drain is stainless steel, 1 1/2” IPS and is basket type

(included).

MATERIAL:

TOP is 14 gauge stainless steel type “304” series.

SHELF is 18 gauge stainless steel type “430” series.

LEGS are 1 5/8” diameter, tubular stainless steel with
stainless steel gussets and 1” adjustable stainless steel
bullet feet.

OTHER: Poly-Vance sliding cutting board 21” x 18” x 5/8”
raised 1/4” above table surface.

CONSTRUCTION:

All TIG welded.
TOP and all exposed surfaces are mechanically polished to a

satin finish and is sound deadened.
Countertop edge is polished to a MIRROR finish.
Roll formed embossed galvanized hat channels are secured

to top by means of structural adhesive and weld studs.
Gussets welded to support hat channels.

Model # Length

DL-30-72

DL-30-96

72”

96”

Featuring as Standard:

“THE PROVEN”

ORIGINAL ADVANCE TABCO

Adjustable Undershelf

with Die Cast Leg Clamp

Weight

155 lbs.

198 lbs.

BOLD-LOOKING

Extra Large 10”

Backsplash with

a 2” return

www.advancetabco.com

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

Email Orders To: [e-mail]. For Smart Fabrication™ Quotes, Email To: [e-mail] or Fax To: 631-586-2933

NEW YORK GEORGIA TEXAS NEVADA

Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

O-6

DETAILS and SPECIFICATIONS

10"

2"

45°

L

ength

S/S Adj. Undershelf

30"

35 1/2"

10"

2"

1" Adj. S/S
Bullet Feet

1 5/8"

S/S Legs

10"

16 1/8"

14 7/8"

18 1/2"

8"

4"

21"

17"

22 1/8"

4"

3"

6"

Perforated Drain Basket

5/8" Sliding

P

oly-Board

15" x 20"
S/S Drawer

L

C

L

C

L

C

2"

L

CLC

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

Countertop Edge

Detail

Splash

Detail

O-6a

200 Heartland Boulevard, Edgewood, NY 11717-8380

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, JULY 2009
