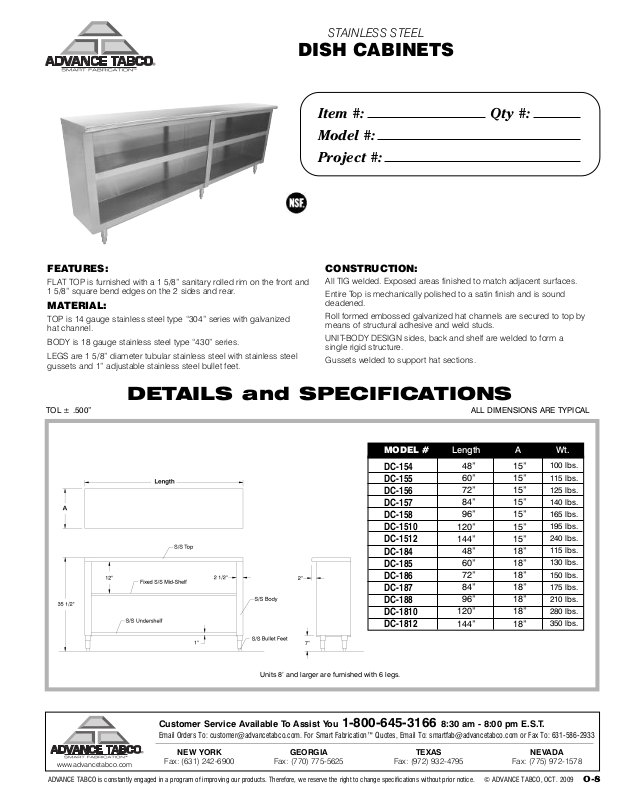

Advance Tabco DC-1510 Specifications
STAINLESS STEEL
DISH CABINETS
Item #: Qty #:
Model #:
Project #:
FEATURES:
FLAT TOP is furnished with a 1 5/8” sanitary rolled rim on the front and
1 5/8” square bend edges on the 2 sides and rear.
MATERIAL:
TOP is 14 gauge stainless steel type “304” series with galvanized
hat channel.
BODY is 18 gauge stainless steel type “430” series.
LEGS are 1 5/8” diameter tubular stainless steel with stainless steel
gussets and 1” adjustable stainless steel bullet feet.
CONSTRUCTION:
All TIG welded. Exposed areas finished to match adjacent surfaces.
Entire Top is mechanically polished to a satin finish and is sound
deadened.
Roll formed embossed galvanized hat channels are secured to top by
means of structural adhesive and weld studs.
UNIT-BODY DESIGN sides, back and shelf are welded to form a
single rigid structure.
Gussets welded to support hat sections.
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
MODEL # Length A Wt.
DC-154
DC-155
DC-156
DC-157
DC-158
DC-1510
DC-1512
DC-184
DC-185
DC-186
DC-187
DC-188
DC-1810
DC-1812
48” 15”
60” 15”
72” 15”
84” 15”
96” 15”
120” 15”
144” 15”
48” 18”
60” 18”
72” 18”
84” 18”
96” 18”
120” 18”
144” 18”
100 lbs.
115 lbs.
125 lbs.
140 lbs.
165 lbs.
195 lbs.
240 lbs.
115 lbs.
130 lbs.
150 lbs.
175 lbs.
210 lbs.
280 lbs.
350 lbs.
Units 8’ and larger are furnished with 6 legs.
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
www.advancetabco.com
ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, OCT. 2009
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
O-8
