Advance Tabco D-B User Manual

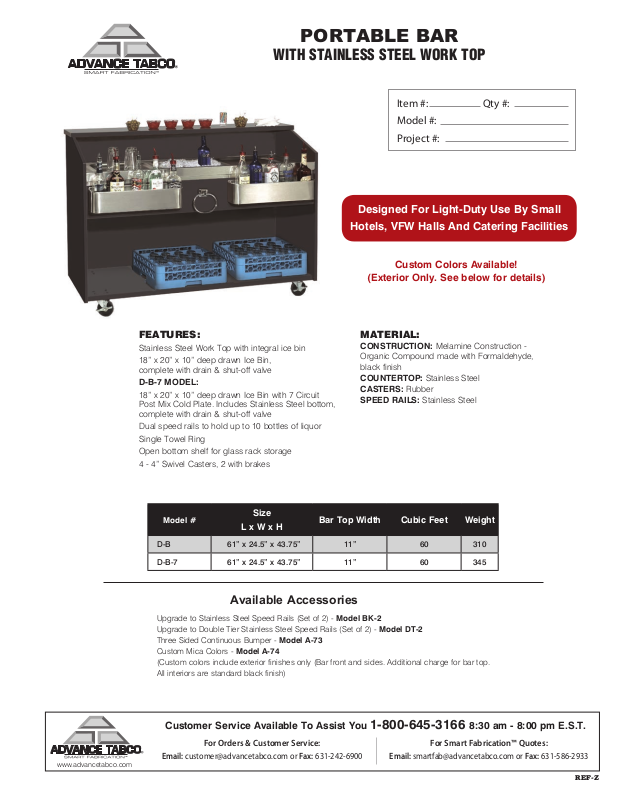

PORTABLE BAR

WITH STAINLESS STEEL WORK TOP

Item #: Qty #:

Model #:

Project #:

Designed For Light-Duty Use By Small

Hotels, VFW Halls And Catering Facilities

Custom Colors Available!

(Exterior Only. See below for details)

FEATURES:

Stainless Steel Work Top with integral ice bin
18” x 20” x 10” deep drawn Ice Bin,

complete with drain & shut-off valve

D-B-7 MODEL:

18” x 20” x 10” deep drawn Ice Bin with 7 Circuit
Post Mix Cold Plate. Includes Stainless Steel bottom,
complete with drain & shut-off valve

Dual speed rails to hold up to 10 bottles of liquor
Single Towel Ring
Open bottom shelf for glass rack storage
4 - 4” Swivel Casters, 2 with brakes

Model #

D-B 61” x 24.5” x 43.75” 11” 60 310

D-B-7 61” x 24.5” x 43.75” 11” 60 345

Size

L x W x H

Bar Top Width Cubic Feet Weight

MATERIAL:

CONSTRUCTION: Melamine Construction -
Organic Compound made with Formaldehyde,

black finish

COUNTERTOP: Stainless Steel
CASTERS: Rubber
SPEED RAILS: Stainless Steel

Available Accessories

Upgrade to Stainless Steel Speed Rails (Set of 2) - Model BK-2
Upgrade to Double Tier Stainless Steel Speed Rails (Set of 2) - Model DT-2
Three Sided Continuous Bumper - Model A-73
Custom Mica Colors - Model A-74
(Custom colors include exterior finishes only (Bar front and sides. Additional charge for bar top.
All interiors are standard black finish)

www.advancetabco.com

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

For Orders & Customer Service:

Email: [e-mail] or Fax: [phone]

Email: [e-mail] or Fax: [phone]

For Smart Fabrication™ Quotes:

REF-Z

DIMENSIONS and SPECIFICATIONS

TOL ± .125” ALL DIMENSIONS ARE TYPICAL

D-B SERIES

D-B SERIES WITH

7 CIRCUIT COLD PLATE

REF-Z

200 Heartland Boulevard, Edgewood, NY 11717-8380

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, DECEMBER 2014
