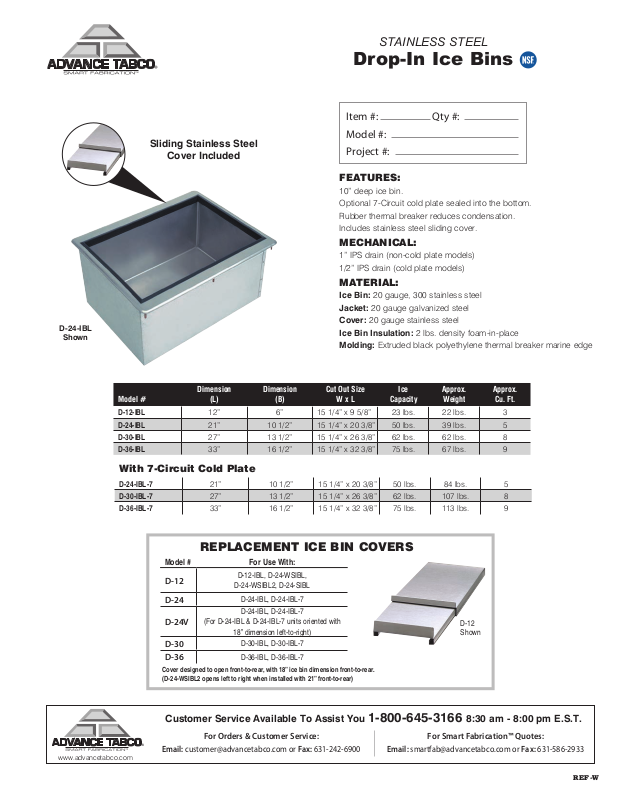

Advance Tabco D30IBL Specifications
D-24-IBL
Shown
Sliding Stainless Steel
Cover Included
STAINLESS STEEL
Drop-In Ice Bins
Item #: Qty #:
Model #:
Project #:
FEATURES:
10” deep ice bin.
Optional 7-Circuit cold plate sealed into the bottom.
Rubber thermal breaker reduces condensation.
Includes stainless steel sliding cover.
MECHANICAL:
1” IPS drain (non-cold plate models)
1/2” IPS drain (cold plate models)
MATERIAL:
Ice Bin: 20 gauge, 300 stainless steel
Jacket: 20 gauge galvanized steel
Cover: 20 gauge stainless steel
Ice Bin Insulation: 2 lbs. density foam-in-place
Molding: Extruded black polyethylene thermal breaker marine edge
Model #
D-12-IBL
D-24-IBL
D-30-IBL
D-36-IBL
Dimension
(L)
12”
21” 10 1/2” 15 1/4” x 20 3/8” 50 lbs. 39 lbs. 5
27” 13 1/2” 15 1/4” x 26 3/8” 62 lbs. 62 lbs. 8
33” 16 1/2” 15 1/4” x 32 3/8” 75 lbs. 67 lbs. 9
With 7-Circuit Cold Plate
D-24-IBL-7
D-30-IBL-7
D-36-IBL-7
21” 10 1/2” 15 1/4” x 20 3/8” 50 lbs. 84 lbs. 5
27” 13 1/2” 15 1/4” x 26 3/8” 62 lbs. 107 lbs. 8
33” 16 1/2” 15 1/4” x 32 3/8” 75 lbs. 113 lbs. 9
REPLACEMENT ICE BIN COVERS
Model # For Use With:
D-12
D-24
D-24V
(For D-24-IBL & D-24-IBL-7 units oriented with
D-30
D-36
Cover designed to open front-to-rear, with 18” ice bin dimension front-to-rear.
(D-24-WSIBL2 opens left to right when installed with 21” front-to-rear)
D-12-IBL, D-24-WSIBL,
D-24-WSIBL2, D-24-SIBL
D-24-IBL, D-24-IBL-7
D-24-IBL, D-24-IBL-7
18” dimension left-to-right)
D-30-IBL, D-30-IBL-7
D-36-IBL, D-36-IBL-7
Dimension
(B)
6”
Cut Out Size
W x L
15 1/4” x 9 5/8” 23 lbs. 22 lbs. 3
Ice
Capacity
Approx.
Weight
Approx.
Cu. Ft.
D-12
Shown
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-W
DIMENSIONS and SPECIFICATIONS
TOL Overall: ± .500” Interior: ± .250” ALL DIMENSIONS ARE TYPICAL
Non-Cold Plate Models
Cold Plate Models
REF-W
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, MAY 2017
