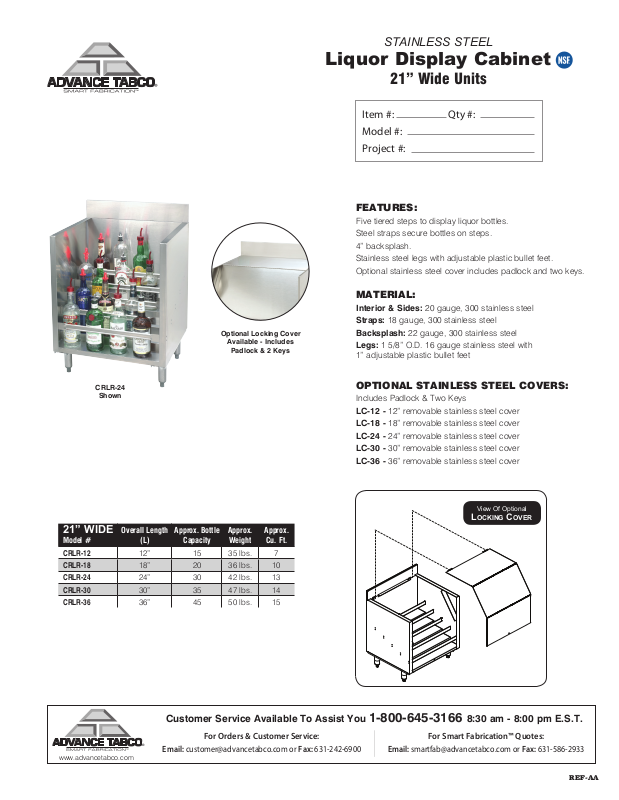

Advance Tabco CRLR24X Specifications

Optional Locking Cover

Available - Includes

Padlock & 2 Keys

STAINLESS STEEL

Liquor Display Cabinet

21” Wide Units

Item #: Qty #:

Model #:

Project #:

FEATURES:

Five tiered steps to display liquor bottles.
Steel straps secure bottles on steps.
4” backsplash.
Stainless steel legs with adjustable plastic bullet feet.
Optional stainless steel cover includes padlock and two keys.

MATERIAL:

Interior & Sides: 20 gauge, 300 stainless steel
Straps: 18 gauge, 300 stainless steel
Backsplash: 22 gauge, 300 stainless steel
Legs: 1 5/8” O.D. 16 gauge stainless steel with

1” adjustable plastic bullet feet

CRLR-24

Shown

21” WIDE

Model #

CRLR-12

CRLR-18

CRLR-24

CRLR-30

CRLR-36

Overall Length

(L)

12” 15 35 lbs. 7

18” 20 36 lbs. 10

24” 30 42 lbs. 13

30” 35 47 lbs. 14

36” 45 50 lbs. 15

Approx. Bottle

Capacity

Approx.

Weight

OPTIONAL STAINLESS STEEL COVERS:

Includes Padlock & Two Keys

LC-12 - 12” removable stainless steel cover
LC-18 - 18” removable stainless steel cover
LC-24 - 24” removable stainless steel cover
LC-30 - 30” removable stainless steel cover
LC-36 - 36” removable stainless steel cover

View Of Optional

LOCKING COVER

Approx.

Cu. Ft.

www.advancetabco.com

Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.

For Orders & Customer Service:

Email: [e-mail] or Fax: [phone]

Email: [e-mail] or Fax: [phone]

For Smart Fabrication™ Quotes:

REF-AA

DIMENSIONS and SPECIFICATIONS

1

"

33"

TOL Overall: ± .500” Interior: ± .250” ALL DIMENSIONS ARE TYPICAL

CRLR Series

3

20

"

4

3

"

20

4

5

5

"

8

Optional Stainless Steel Cover (LC Series)

29"

L

20

8

1

"

13

8

REF-AA

L

1

"

23

4

3

"

12

4

200 Heartland Boulevard, Edgewood, NY 11717-8380

ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.

© ADVANCE TABCO, OCTOBER 2015
