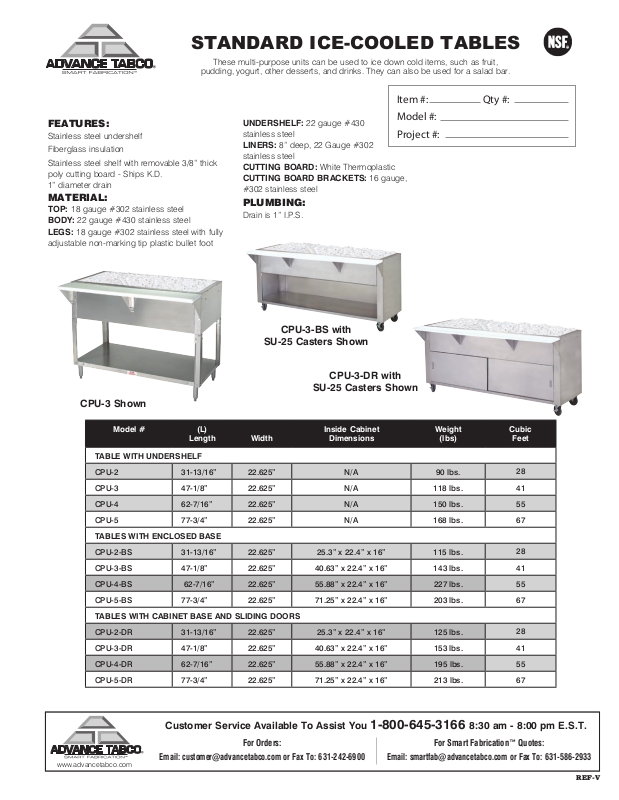

STANDARD ICE-COOLED TABLES
These multi-purpose units can be used to ice down cold items, such as fruit,
pudding, yogurt, other desserts, and drinks. They can also be used for a salad bar.
FEATURES:
Stainless steel undershelf
Fiberglass insulation
Stainless steel shelf with removable 3/8” thick
poly cutting board - Ships K.D.
1” diameter drain
MATERIAL:
TOP: 18 gauge #302 stainless steel
BODY: 22 gauge #430 stainless steel
LEGS: 18 gauge #302 stainless steel with fully
adjustable non-marking tip plastic bullet foot
Item #: Qty #:
UNDERSHELF: 22 gauge #430
stainless steel
LINERS: 8” deep, 22 Gauge #302
stainless steel
CUTTING BOARD: White Thermoplastic
CUTTING BOARD BRACKETS: 16 gauge,
#302 stainless steel
PLUMBING:
Drain is 1” I.P.S.
CPU-3-BS with
SU-25 Casters Shown
Model #:
Project #:
CPU-3-DR with
SU-25 Casters Shown
CPU-3 Shown
Model # (L)
Length Width
TABLE WITH UNDERSHELF
CPU-2 31-13/16” 22.625” N/A 90 lbs.
CPU-3 47-1/8” 22.625” N/A 118 lbs. 41
CPU-4 62-7/16” 22.625” N/A 150 lbs. 55
CPU-5 77-3/4” 22.625” N/A 168 lbs. 67
TABLES WITH ENCLOSED BASE
CPU-2-BS 31-13/16” 22.625” 25.3” x 22.4” x 16” 115 lbs.
CPU-3-BS 47-1/8” 22.625” 40.63” x 22.4” x 16” 143 lbs. 41
CPU-4-BS 62-7/16” 22.625” 55.88” x 22.4” x 16” 227 lbs. 55
CPU-5-BS 77-3/4” 22.625” 71.25” x 22.4” x 16” 203 lbs. 67
TABLES WITH CABINET BASE AND SLIDING DOORS
CPU-2-DR 31-13/16” 22.625” 25.3” x 22.4” x 16” 125 lbs.
CPU-3-DR 47-1/8” 22.625” 40.63” x 22.4” x 16” 153 lbs. 41
CPU-4-DR 62-7/16” 22.625” 55.88” x 22.4” x 16” 195 lbs. 55
CPU-5-DR 77-3/4” 22.625” 71.25” x 22.4” x 16” 213 lbs. 67
Inside Cabinet
Dimensions
Weight
(lbs)
Cubic
Feet
28
28
28
www.advancetabco.com
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: customer@advancetabco.com or Fax To: 631-242-6900
For Orders:
Email: smartfab@advancetabco.com or Fax: 631-586-2933
Email: smartfab@advancetabco.com or Fax To: 631-586-2933
For Smart Fabrication™ Quotes:
For Smart Fabrication™ Quotes:
REF-V
DIMENSIONS and SPECIFICATIONS
TOL ± .125” ALL DIMENSIONS ARE TYPICAL
Model Length
TBS-2
TBS-3
TBS-4
TBS-5
REF-V
Food Table Shelving & Accessories
Visit our website for additional accessories
19-1/4” Height
10” Wide Buffet Shelf
with Built-In Food Shield
Approx
31-13/16”
47-1/8”
62-7/16”
77-3/4”
200 Heartland Boulevard, Edgewood, NY 11717-8380
15 lbs. 3
17 lbs. 4
19 lbs. 5
21 lbs. 6
Wt.
Cu.
ft.
Acrylic Side Panels
for Buet Shelf
Add side panels to meet
additional NSF requirements
(2 panels per side)
TBP-1 One Side
TBP-2 Two Sides
Field Installation Available Field Installation Available
10” Wide Serving Shelf
with Built-In Food Shield
Model Length
TSS-2
TSS-3
TSS-4
TSS-5
31-13/16”
47-1/8”
62-7/16”
77-3/4”
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
15” Height
Approx
Wt.
15 lbs. 3
17 lbs. 4
19 lbs. 5
21 lbs. 6
Acrylic Side Panel
Cu.
ft.
© ADVANCE TABCO, MARCH 2015
for Serving Shelf
Add side panels to meet
additional NSF requirements.
(1 panel per side)
TSP-1 One Side
TSP-2 Two Sides
