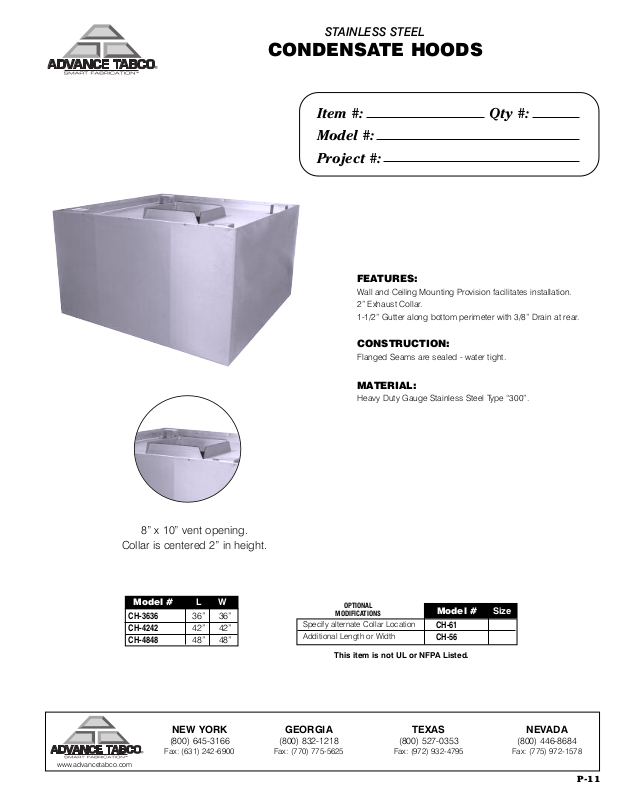

Advance Tabco CH-3636 Specifications
STAINLESS STEEL
CONDENSATE HOODS
Item #: Qty #:
Model #:
Project #:
FEATURES:
Wall and Ceiling Mounting Provision facilitates installation.
2” Exhaust Collar
1-1/2” Gutter along bottom perimeter with 3/8” Drain at rear.
.
8” x 10” vent opening.
Collar is centered 2” in height.
Model # LW
CH-3636 36” 36”
CH-4242 42” 42”
CH-4848 48” 48”
CONSTRUCTION:
Flanged Seams are sealed - water tight.
MATERIAL:
Heavy Duty Gauge Stainless Steel Type “300”.
OPTIONAL
TIONS
MODIFICA
Specify alternate Collar Location
Additional Length or Width
This item is not UL or NFPA Listed.
Model # Size
CH-61
CH-56
.advancetabco.com
www
NEW Y
(800) 645-3166 (800) 832-1218 (800) 527-0353 (800) 446-8684
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
ORK
GEORGIA
TEXAS
NEV
A
AD
P-11
DIMENSIONS and SPECIFICATIONS
8"
3
5
1
2
3
4
"
1
2
"
1
2
"
35
1
3 3/4”
10"
M
ounting
Bracket
8"
41
1
6 3/4"
1
0"
Mounting
B
racket
1
2
"
1
5
3
4
"
41
1
2
"
8"
19 3/4”
A
B
B
A
10"
Mounting
Bracket
47
1
2
"
18
3
4
"
47
1
2
"
20
ALL DIMENSIONS ARE TYPICAL
CH-3636
Aprox. Wt. 120 lbs.
CH-4242
TOL ± .500”
P-11a
Aprox. Wt. 140 lbs.
CH-4848
Aprox. Wt. 160 lbs.
200 Heartland Boulevard, Edgewood, NY 11717-8380
ABCO is constantly engaged in a program of
ANCE T
V
AD
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, APRIL 2006
