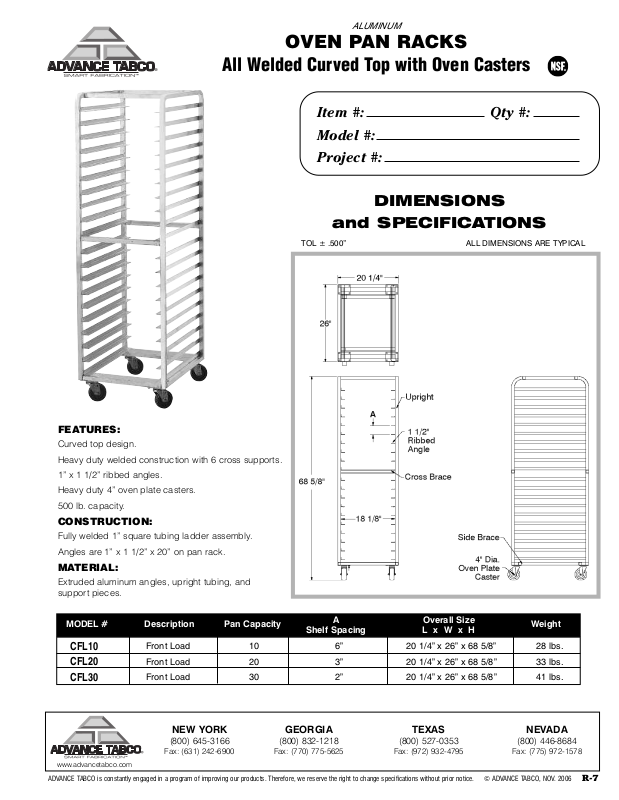

Advance Tabco CFL10 Specifications

ALUMINUM

OVEN PAN RACKS

All Welded Curved Top with Oven Casters

Item #: Qty #:

Model #:

Project #:

DIMENSIONS

and SPECIFICATIONS

TOL ± .500” ALL DIMENSIONS ARE TYPICAL

FEATURES:

Curved top design.

Heavy duty welded construction with 6 cross supports.

1” x 1 1/2” ribbed angles.

Heavy duty 4” oven plate casters.

500 lb. capacity.

CONSTRUCTION:

Fully welded 1” square tubing ladder assembly.

Angles ar

MA

Extruded aluminum angles, upright tubing, and
support pieces.

MODEL # Description Pan Capacity

e 1” x 1 1/2” x 20” on pan rack.

TERIAL:

CFL10

CFL20

CFL30

Front Load

Front Load 20 3” 20 1/4” x 26” x 68 5/8” 33 lbs.

Front Load 30 2” 20 1/4” x 26” x 68 5/8” 41 lbs.

10 6” 20 1/4” x 26” x 68 5/8” 28 lbs.

A Overall Size

Shelf Spacing L x W x H

Weight
