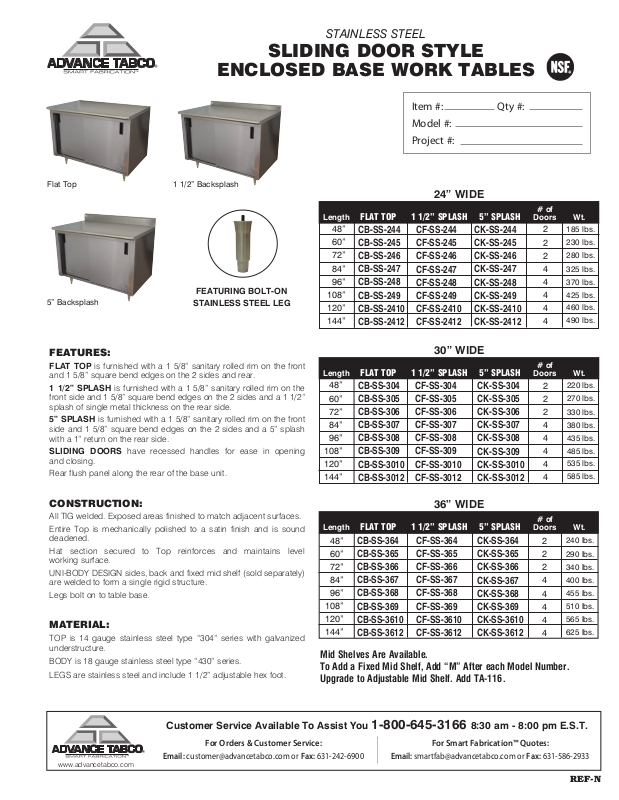

ENCLOSED BASE WORK TABLES
Flat Top 1 1/2” Backsplash
FEATURING BOLT-ON
5” Backsplash
STAINLESS STEEL LEG
STAINLESS STEEL
SLIDING DOOR STYLE
Item #: Qty #:
Model #:
Project #:
24” WIDE
# of
Length FLAT TOP 1 1/2” SPLASH 5” SPLASH Doors Wt.
48”
60”
72”
84”
96”
108”
120”
144”
CB-SS-244
CB-SS-245
CB-SS-246
CB-SS-247
CB-SS-248
CB-SS-249
CB-SS-2410
CB-SS-2412
CF-SS-244
CF-SS-245
CF-SS-246
CF-SS-247
CF-SS-248
CF-SS-249
CF-SS-2410
CF-SS-2412
CK-SS-244
CK-SS-245
CK-SS-246
CK-SS-247
CK-SS-248
CK-SS-249
CK-SS-2410
CK-SS-2412
185 lbs.
2
230 lbs.
2
280 lbs.
2
325 lbs.
4
370 lbs.
4
425 lbs.
4
460 lbs.
4
490 lbs.
4
FEATURES:
FLAT TOP is furnished with a 1 5/8” sanitary rolled rim on the front
and 1 5/8” square bend edges on the 2 sides and rear.
1 1/2” SPLASH is furnished with a 1 5/8” sanitary rolled rim on the
front side and 1 5/8” square bend edges on the 2 sides and a 1 1/2”
splash of single metal thickness on the rear side.
5” SPLASH is furnished with a 1 5/8” sanitary rolled rim on the front
side and 1 5/8” square bend edges on the 2 sides and a 5” splash
with a 1” return on the rear side.
SLIDING DOORS have recessed handles for ease in opening
and closing.
Rear flush panel along the rear of the base unit.
CONSTRUCTION:
All TIG welded. Exposed areas finished to match adjacent surfaces.
Entire Top is mechanically polished to a satin finish and is sound
deadened.
Hat section secured to Top reinforces and maintains level
working surface.
UNI-BODY DESIGN sides, back and fixed mid shelf (sold separately)
are welded to form a single rigid structure.
Legs bolt on to table base.
MATERIAL:
TOP is 14 gauge stainless steel type “304” series with galvanized
understructure.
BODY is 18 gauge stainless steel type “430” series.
LEGS are stainless steel and include 1 1/2” adjustable hex foot.
30” WIDE
# of
Length FLAT TOP 1 1/2” SPLASH 5” SPLASH Doors Wt.
48”
60”
72”
84”
96”
108”
120”
144”
CB-SS-304
CB-SS-305
CB-SS-306
CB-SS-307
CB-SS-308
CB-SS-309
CB-SS-3010
CB-SS-3012
CF-SS-304
CF-SS-305
CF-SS-306
CF-SS-307
CF-SS-308
CF-SS-309
CF-SS-3010
CF-SS-3012
CK-SS-304
CK-SS-305
CK-SS-306
CK-SS-307
CK-SS-308
CK-SS-309
CK-SS-3010
CK-SS-3012
220 lbs.
2
270 lbs.
2
330 lbs.
2
380 lbs.
4
435 lbs.
4
485 lbs.
4
535 lbs.
4
585 lbs.
4
36” WIDE
# of
Length FLAT TOP 1 1/2” SPLASH 5” SPLASH Doors Wt.
48”
60”
72”
84”
96”
108”
120”
144”
CB-SS-364
CB-SS-365
CB-SS-366
CB-SS-367
CB-SS-368
CB-SS-369
CB-SS-3610
CB-SS-3612
CF-SS-364
CF-SS-365
CF-SS-366
CF-SS-367
CF-SS-368
CF-SS-369
CF-SS-3610
CF-SS-3612
CK-SS-364
CK-SS-365
CK-SS-366
CK-SS-367
CK-SS-368
CK-SS-369
CK-SS-3610
CK-SS-3612
Mid Shelves Are Available.
To Add a Fixed Mid Shelf, Add “M” After each Model Number.
Upgrade to Adjustable Mid Shelf. Add TA-116.
240 lbs.
2
290 lbs.
2
340 lbs.
2
400 lbs.
4
455 lbs.
4
510 lbs.
4
565 lbs.
4
625 lbs.
4
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: customer@advancetabco.com or Fax: 631-242-6900
Email: smartfab@advancetabco.com or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-N
DETAILS and SPECIFICATIONS
TOL ± .500” Units 7’ and larger are furnished with 6 legs. ALL DIMENSIONS ARE TYPICAL
CB-Series Flat Top
L
CF- Series 1 1/2” Rear Splash
L
5
1
Sliding Doors
"
8
2"
1
"
35
W
W
2
S/S Legs W/
S/S Fixed Undershelf
1
"
1
2
1
"
35
2
Sliding Doors
S/S Fixed Undershelf
Adj. S/S Bullet
Feet
5
"
1
8
S/S Legs W/
Adj. S/S Bullet
Feet
6"
2"
6"
CK-Series 5” Rear Splash
L
OPTIONAL MID SHELF DETAILS
1"
13"
13"
1"
1"
6"
35
4 Door Model Shown
1"
1
35
"
W
2
S/S Fixed Undershelf
1
"
2
2
1"
5"
S/S Legs W/
Adj. S/S Bullet
Feet
2"
6"
OPTIONAL ENCLOSED BASE ACCESSORIES
____ TA-20L ........ Replacement Bolt-on Leg
____ TA-19L ........ Replacement Bolt-on Leg
With Flanged Bullet Foot
____ TA-255P ...... 5” Heavy Duty Polyurethane Casters
(set of 4 - 2 w/ Brakes)
____ TA-255AP .... 5” Heavy Duty Polyurethane Casters
1
2
(set of 6 - 2 w/ Brakes)
"
____ TA-46 ......... Door Locks
____ TA-54 ......... Removable Kick Plate
TA-116 ADJUSTABLE ENCLOSED BASE
CABINET MID SHELF
(Sold Separately)
NEW!
Shelves Over 36” In Length Require Multiple Sections With Center Partition.
REF-N
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, OCTOBER 2015
