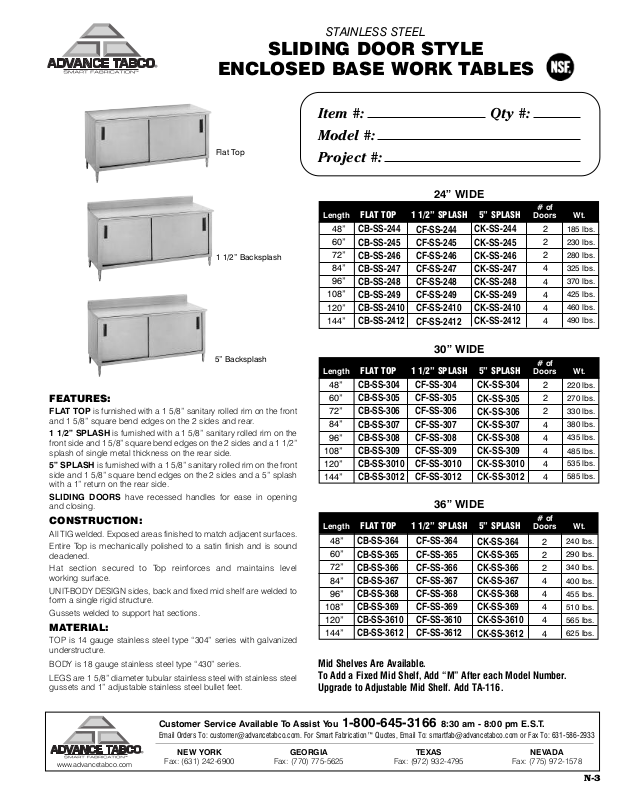

Advance Tabco CB-SS-2410 Specifications
STAINLESS STEEL
SLIDING DOOR STYLE
ENCLOSED BASE WORK TABLES
Item #: Qty #:
Model #:
Flat Top
1 1/2” Backsplash
Project #:
24” WIDE
Length FLAT TOP 1 1/2” SPLASH 5” SPLASH Doors Wt.
48”
60”
72”
84”
96”
108”
120”
144”
CB-SS-244
CB-SS-245
CB-SS-246
CB-SS-247
CB-SS-248
CB-SS-249
CB-SS-2410
CB-SS-2412
CF-SS-244
CF-SS-245
CF-SS-246
CF-SS-247
CF-SS-248
CF-SS-249
CF-SS-2410
CF-SS-2412
CK-SS-244
CK-SS-245
CK-SS-246
CK-SS-247
CK-SS-248
CK-SS-249
CK-SS-2410
CK-SS-2412
# of
2
2
2
4
4
4
4
4
185 lbs.
230 lbs.
280 lbs.
325 lbs.
370 lbs.
425 lbs.
460 lbs.
490 lbs.
5” Backsplash
FEATURES:
FLAT TOP is furnished with a 1 5/8” sanitary rolled rim on the front
and 1 5/8” square bend edges on the 2 sides and rear.
1 1/2” SPLASH is furnished with a 1 5/8” sanitary rolled rim on the
front side and 1 5/8” square bend edges on the 2 sides and a 1 1/2”
splash of single metal thickness on the rear side.
5” SPLASH is furnished with a 1 5/8” sanitary rolled rim on the front
side and 1 5/8” square bend edges on the 2 sides and a 5” splash
with a 1” return on the rear side.
SLIDING DOORS have recessed handles for ease in opening
and closing.
CONSTRUCTION:
All TIG welded. Exposed areas finished to match adjacent surfaces.
Entire Top is mechanically polished to a satin finish and is sound
deadened.
Hat section secured to Top reinforces and maintains level
working surface.
UNIT-BODY DESIGN sides, back and fixed mid shelf are welded to
form a single rigid structure.
Gussets welded to support hat sections.
MATERIAL:
TOP is 14 gauge stainless steel type “304” series with galvanized
understructure.
BODY is 18 gauge stainless steel type “430” series.
LEGS are 1 5/8” diameter tubular stainless steel with stainless steel
gussets and 1” adjustable stainless steel bullet feet.
30” WIDE
Length FLAT TOP 1 1/2” SPLASH 5” SPLASH Doors Wt.
48”
60”
72”
84”
96”
108”
120”
144”
CB-SS-304
CB-SS-305
CB-SS-306
CB-SS-307
CB-SS-308
CB-SS-309
CB-SS-3010
CB-SS-3012
CF-SS-304
CF-SS-305
CF-SS-306
CF-SS-307
CF-SS-308
CF-SS-309
CF-SS-3010
CF-SS-3012
CK-SS-304
CK-SS-305
CK-SS-306
CK-SS-307
CK-SS-308
CK-SS-309
CK-SS-3010
CK-SS-3012
# of
2
2
2
4
4
4
4
4
36” WIDE
Length FLAT TOP 1 1/2” SPLASH 5” SPLASH Doors Wt.
48”
60”
72”
84”
96”
108”
120”
144”
CB-SS-364
CB-SS-365
CB-SS-366
CB-SS-367
CB-SS-368
CB-SS-369
CB-SS-3610
CB-SS-3612
CF-SS-364
CF-SS-365
CF-SS-366
CF-SS-367
CF-SS-368
CF-SS-369
CF-SS-3610
CF-SS-3612
CK-SS-364
CK-SS-365
CK-SS-366
CK-SS-367
CK-SS-368
CK-SS-369
CK-SS-3610
CK-SS-3612
Mid Shelves Are Available.
To Add a Fixed Mid Shelf, Add “M” After each Model Number.
Upgrade to Adjustable Mid Shelf. Add TA-116.
# of
2
2
2
4
4
4
4
4
240 lbs.
290 lbs.
340 lbs.
400 lbs.
455 lbs.
510 lbs.
565 lbs.
625 lbs.
220 lbs.
270 lbs.
330 lbs.
380 lbs.
435 lbs.
485 lbs.
535 lbs.
585 lbs.
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
N-3
DETAILS and SPECIFICATIONS
13 1/4"
10 3/4"
1 1/2"
35 1/2"
2"
7"
2"
TOL ± .500” Units 7’ and larger are furnished with 6 legs. ALL DIMENSIONS ARE TYPICAL
B-Series Flat Top
C
CF- Series 1 1/2” Rear Splash
CK-Series 5” Rear Splash
OPTIONAL MID SHELF DETAILS OPTIONAL ENCLOSED BASE ACCESSORIES
____ TA-25P .......... Plate Casters for Enclosed Base Units
____ TA-46 ........... Door Locks
____ TA-54 ........... Removable Kick Plate
____ TA-109 .......... Rear Flush Finished Inset Panel
TA-116 ADJUSTABLE ENCLOSED
BASE CABINET MID SHELF
Add To Price of Enclosed Base Table
with Fixed Mid Shelf (M).
Shelves Over 36" In Length Require
Multiple Sections With Center Partition.
NEW!
N-3a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JUNE 2010
