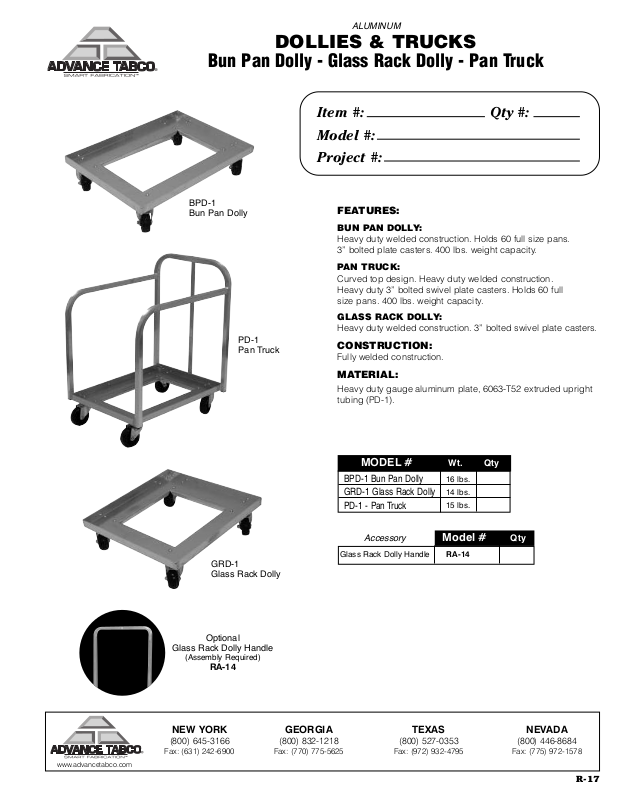

Advance Tabco BPD-1 Specifications
ALUMINUM
DOLLIES & TRUCKS
Bun Pan Dolly - Glass Rack Dolly - Pan Truck
Item #: Qty #:
Model #:
Project #:
PD-1
B
Bun Pan Dolly
PD-1
Pan Truck
FEATURES:
BUN PAN DOLLY:
Heavy duty welded construction. Holds 60 full size pans.
3” bolted plate casters. 400 lbs. weight capacity.
PAN TRUCK:
Curved top design. Heavy duty welded construction.
Heavy duty 3” bolted swivel plate casters. Holds 60 full
size pans. 400 lbs. weight capacity.
GLASS RACK DOLLY:
Heavy duty welded construction. 3” bolted swivel plate casters.
CONSTRUCTION:
Fully welded construction.
GRD-1
Glass Rack Dolly
Optional
Glass Rack Dolly Handle
(Assembly Required)
RA-14
MATERIAL:
Heavy duty gauge aluminum plate, 6063-T52 extruded upright
tubing (PD-1).
MODEL #
BPD-1 Bun Pan Dolly
GRD-1 Glass Rack Dolly
PD-1 - Pan Truck
Accessory
Glass Rack Dolly Handle RA-14
Wt. Qty
16 lbs.
14 lbs.
15 lbs.
Model #
Qty
www.advancetabco.com
NEW YORK GEORGIA TEXAS NEVADA
(800) 645-3166 (800) 832-1218 (800) 527-0353 (800) 446-8684
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
R-17
DIMENSIONS and SPECIFICATIONS
20 3/4"
26 5/8"
31 5/8"
28"
3" DIA. PLATE CASTER
1 3/8"
18 3/4"
HANDLE
SIDE SUPPORT
27 3/4"
26 3/4"
REAR STRAP
3" DIA. PLATE CASTER
18 3/4"
5"
26 3/4"
1 3/8"
20 3/4"
20 3/4"
5"
3" DIA. PLATE CASTER
1 3/8"
3" DIA. PLATE CASTER
31 5/8"
1 3/8"
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
BPD-1
PD-1
GRD-1
R-17a
200 Heartland Boulevard, Edgewood, NY 11717-8380
Glass Rack Dolly Handle
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
Optional
(Assembly Required)
RA-14
© ADVANCE TABCO, SEPTEMBER 2008
