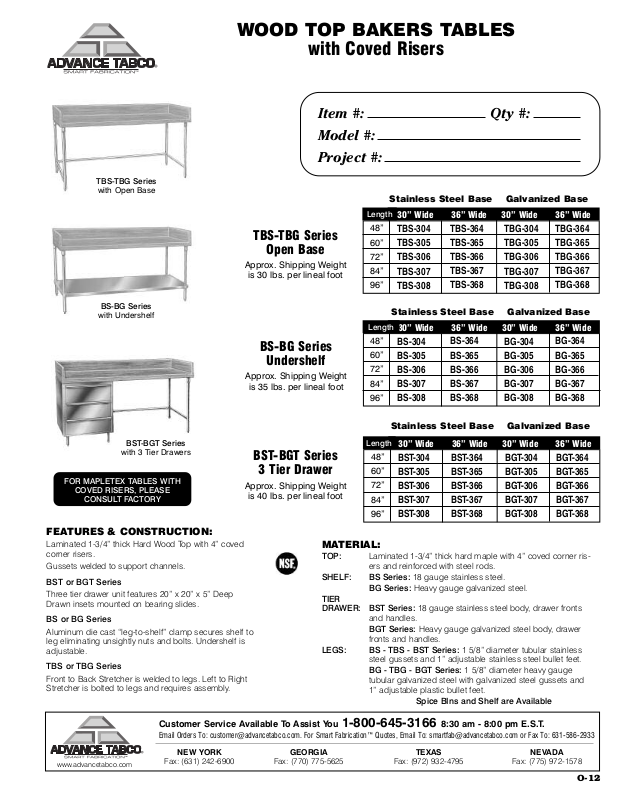

Advance Tabco BG-304 Specifications
TBS-TBG Series
with Open Base
WOOD TOP BAKERS TABLES
with Coved Risers
Item #: Qty #:
Model #:
Project #:
Stainless Steel Base Galvanized Base
Length
TBS-TBG Series
Open Base
Approx. Shipping Weight
is 30 lbs. per lineal foot
30” Wide 36” Wide 30” Wide 36” Wide
48”
60”
72”
84”
96”
TBS-304
TBS-305
TBS-306
TBS-307
TBS-308
TBS-364
TBS-365
TBS-366
TBS-367
TBS-368
TBG-304
TBG-305
TBG-306
TBG-307
TBG-308
TBG-364
TBG-365
TBG-366
TBG-367
TBG-368
BS-BG Series
with Undershelf
Approx. Shipping Weight
BST-BGT Series
with 3 Tier Drawers
FOR MAPLETEX TABLES WITH
COVED RISERS, PLEASE
CONSULT FACTORY
Approx. Shipping Weight
FEATURES & CONSTRUCTION:
Laminated 1-3/4” thick Hard Wood Top with 4” coved
corner risers.
Gussets welded to support channels.
BST or BGT Series
Three tier drawer unit features 20” x 20” x 5” Deep
Drawn insets mounted on bearing slides.
BS or BG Series
Aluminum die cast “leg-to-shelf” clamp secures shelf to
leg eliminating unsightly nuts and bolts. Undershelf is
adjustable.
TBS or TBG Series
Front to Back Stretcher is welded to legs. Left to Right
Stretcher is bolted to legs and requires assembly.
BS-BG Series
Undershelf
is 35 lbs. per lineal foot
BST-BGT Series
3 Tier Drawer
is 40 lbs. per lineal foot
MATERIAL:
TOP: Laminated 1-3/4” thick hard maple with 4” coved corner ris-
SHELF: BS Series: 18 gauge stainless steel.
TIER
DRAWER: BST Series: 18 gauge stainless steel body, drawer fronts
LEGS: BS - TBS - BST Series: 1 5/8” diameter tubular stainless
Stainless Steel Base Galvanized Base
Length
30” Wide 36” Wide 30” Wide 36” Wide
48”
BS-304
60”
BS-305
72”
BS-306
84”
BS-307
96”
BS-308
Stainless Steel Base Galvanized Base
Length
30” Wide 36” Wide 30” Wide 36” Wide
48”
BST-304
60”
BST-305
72”
BST-306
84”
BST-307
96”
BST-308
ers and reinforced with steel rods.
BG Series: Heavy gauge galvanized steel.
and handles.
BGT Series: Heavy gauge galvanized steel body, drawer
fronts and handles.
steel gussets and 1” adjustable stainless steel bullet feet.
BG - TBG - BGT Series: 1 5/8” diameter heavy gauge
tubular galvanized steel with galvanized steel gussets and
1” adjustable plastic bullet feet.
Spice BIns and Shelf are Available
BS-364
BS-365
BS-366
BS-367
BS-368
BST-364
BST-365
BST-366
BST-367
BST-368
BG-304
BG-305
BG-306
BG-307
BG-308
BGT-304
BGT-305
BGT-306
BGT-307
BGT-308
BG-364
BG-365
BG-366
BG-367
BG-368
BGT-364
BGT-365
BGT-366
BGT-367
BGT-368
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
O-12
DETAILS and SPECIFICATIONS
TOL ± .500” Units 8 ft. & larger are furnished with six (6) legs. ALL DIMENSIONS ARE TYPICAL
TBS-TBG Series
Open Base
BS-BG Series
Undershelf
BST-BGT Series
3 Tier Drawer
O-12a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JANUARY 2007
