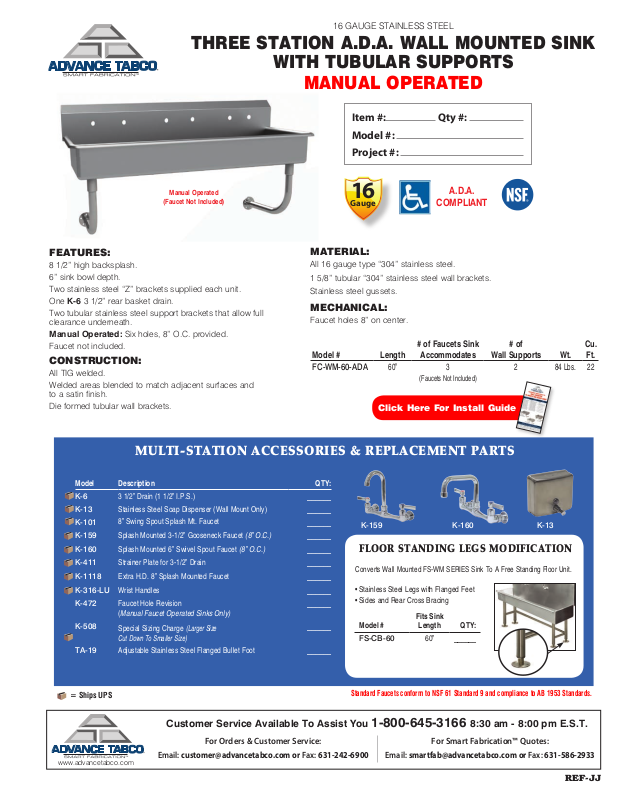

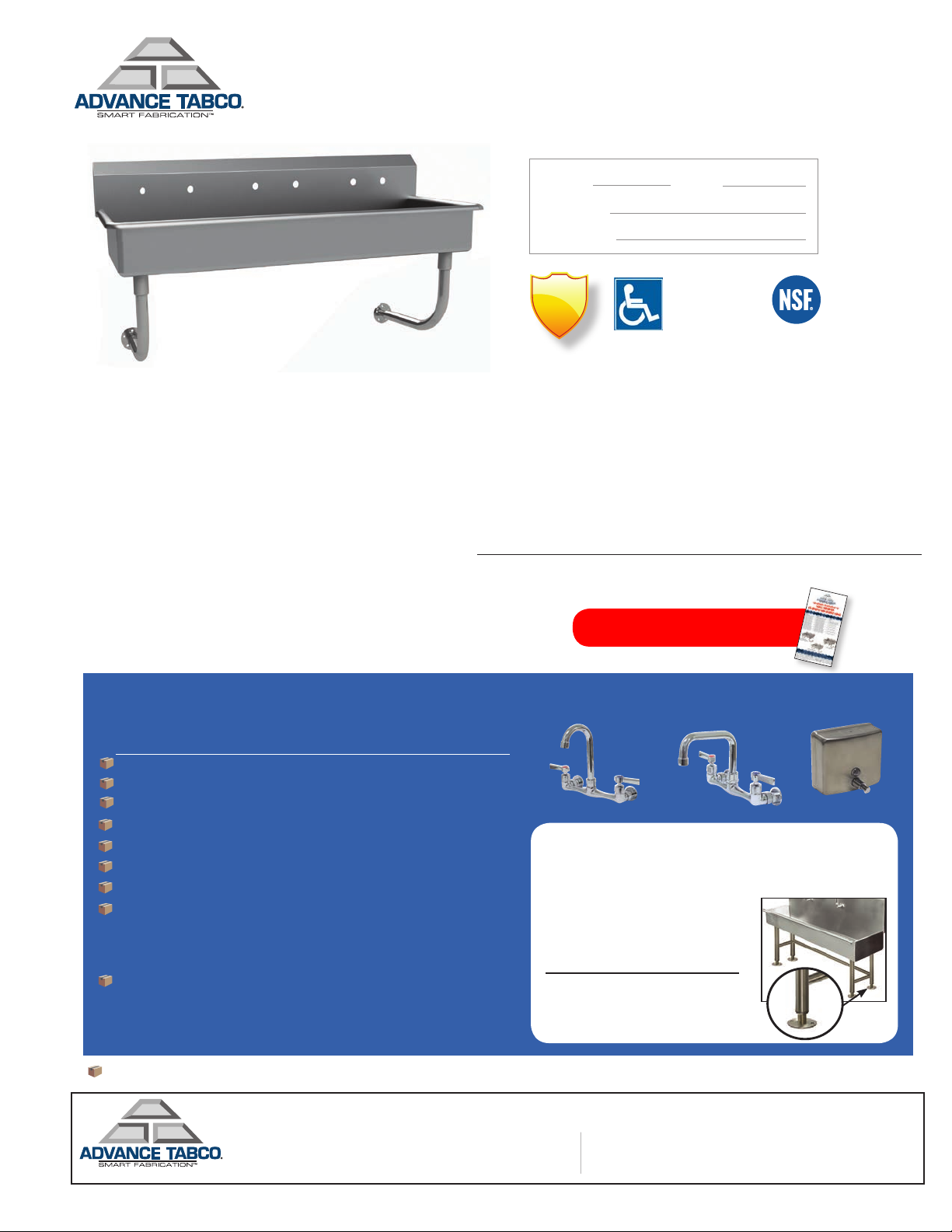

16 GAUGE STAINLESS STEEL
16
14
Gauge
THREE STATION A.D.A. WALL MOUNTED SINK
WITH TUBULAR SUPPORTS
MANUAL OPERATED
Item #: Qty #:
Model #:
Project #:
Manual Operated
(Faucet Not Included)
FEATURES:
8 1/2” high backsplash.
6” sink bowl depth.
Two stainless steel “Z” brackets supplied each unit.
One K-6 3 1/2” rear basket drain.
Two tubular stainless steel support brackets that allow full
clearance underneath.
Manual Operated: Six holes, 8” O.C. provided.
Faucet not included.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and
to a satin finish.
Die formed tubular wall brackets.
MULTI-STATION ACCESSORIES & REPLACEMENT PARTS
Model Description QTY:
K-6
K-13
K-101
K-159
K-160
K-411
K-1118
K-316-LU
K-472
K-508
TA-19
3 1/2” Drain (1 1/2” I.P.S.)
Stainless Steel Soap Dispenser (Wall Mount Only)
8” Swing Spout Splash Mt. Faucet
Splash Mounted 3-1/2” Gooseneck Faucet (8” O.C.)
Splash Mounted 6” Swivel Spout Faucet (8” O.C.)
Strainer Plate for 3-1/2” Drain
Extra H.D. 8” Splash Mounted Faucet
Wrist Handles
Faucet Hole Revision
(Manual Faucet Operated Sinks Only)
Special Sizing Charge
Cut Down To Smaller Size)
Adjustable Stainless Steel Flanged Bullet Foot
(Larger Size
A.D.A.
Gauge
COMPLIANT
MATERIAL:
All 16 gauge type “304” stainless steel.
1 5/8” tubular “304” stainless steel wall brackets.
Stainless steel gussets.
MECHANICAL:
Faucet holes 8” on center.
# of Faucets Sink
Model # Length
FC-WM-60-ADA
Click Here For Install Guide
______
______
______
______
______
______
______
______
______
______
______
K-159 K-160 K-13
FLOOR STANDING LEGS MODIFICATION
Converts Wall Mounted FS-WM SERIES Sink To A Free Standing Floor Unit.
• Stainless Steel Legs with Flanged Feet
• Sides and Rear Cross Bracing
Model #
FS-CB-60
60” 3
Accommodates
(Faucets Not Included)
Fits Sink
Length QTY:
60”
______
# of
Wall Supports Wt.
2 84 Lbs. 22
K-13
Cu.
Ft.
= Ships UPS
www.advancetabco.com
Standard Faucets conform to NSF 61 Standard 9 and compliance to AB 1953 Standards.
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: [email protected] or Fax: 631-242-6900
Email: [email protected] or Fax: 631-586-2933
For Smart Fabrication™ Quotes:
REF-JJ
Page 2
L

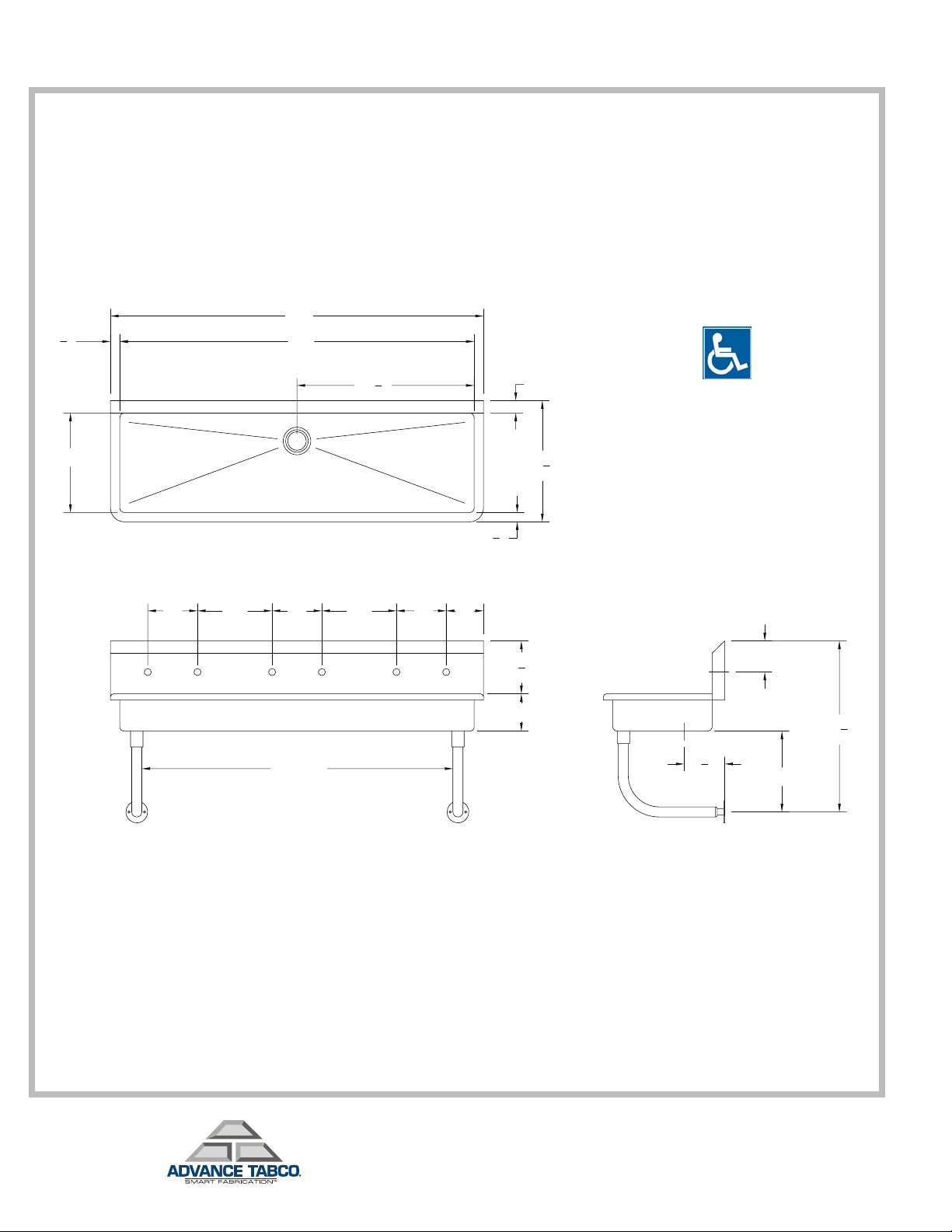

DETAILS and SPECIFICATIONS
