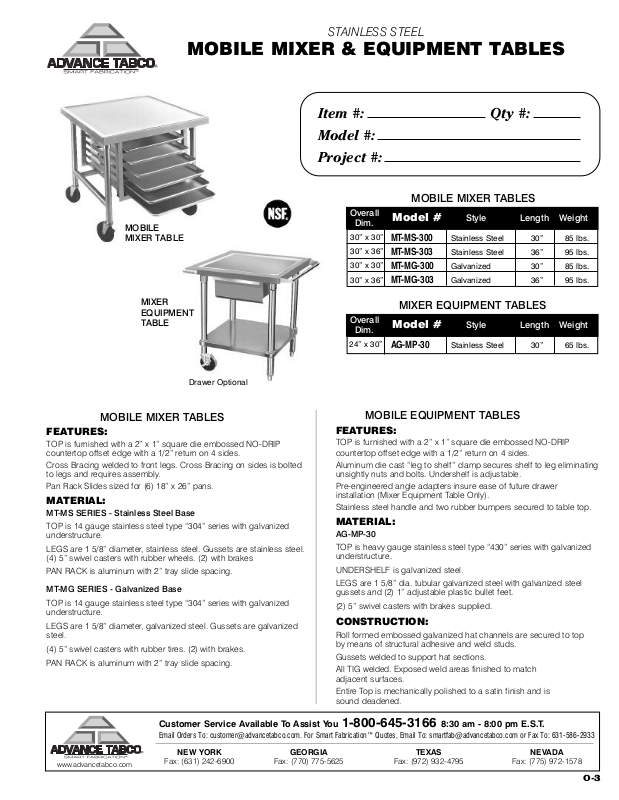

Advance Tabco AG-MP-30 Specifications
MOBILE
MIXER TABLE
STAINLESS STEEL
MOBILE MIXER & EQUIPMENT TABLES
Item #: Qty #:
Model #:
Project #:
MOBILE MIXER TABLES
Overall
Dim.
30” x 30”
30” x 36”
30” x 30”
30” x 36”
Model #
MT-MS-300
MT-MS-303
MT-MG-300
MT-MG-303
Style Length Weight
Stainless Steel
Stainless Steel
Galvanized
Galvanized
30”
36”
30”
36”
85 lbs.
95 lbs.
85 lbs.
95 lbs.
MIXER
EQUIPMENT
TABLE
Drawer Optional
MOBILE MIXER TABLES
FEATURES:
TOP is furnished with a 2” x 1” square die embossed NO-DRIP
countertop offset edge with a 1/2” return on 4 sides.
Cross Bracing welded to front legs. Cross Bracing on sides is bolted
to legs and requires assembly.
Pan Rack Slides sized for (6) 18” x 26” pans.
MATERIAL:
MT-MS SERIES - Stainless Steel Base
TOP is 14 gauge stainless steel type “304” series with galvanized
understructure.
LEGS are 1 5/8” diameter, stainless steel. Gussets are stainless steel.
(4) 5” swivel casters with rubber wheels. (2) with brakes
PAN RACK is aluminum with 2” tray slide spacing.
MT-MG SERIES - Galvanized Base
TOP is 14 gauge stainless steel type “304” series with galvanized
understructure.
LEGS are 1 5/8” diameter, galvanized steel. Gussets are galvanized
steel.
(4) 5” swivel casters with rubber tires. (2) with brakes.
PAN RACK is aluminum with 2” tray slide spacing.
MIXER EQUIPMENT TABLES
Overall
Dim.
24” x 30”
Model # Style Length Weight
AG-MP-30
Stainless Steel
30”
65 lbs.
MOBILE EQUIPMENT TABLES
FEATURES:
TOP is furnished with a 2” x 1” square die embossed NO-DRIP
countertop offset edge with a 1/2” return on 4 sides.
Aluminum die cast “leg to shelf” clamp secures shelf to leg eliminating
unsightly nuts and bolts. Undershelf is adjustable.
Pre-engineered angle adapters insure ease of future drawer
installation (Mixer Equipment Table Only).
Stainless steel handle and two rubber bumpers secured to table top.
MATERIAL:
AG-MP-30
TOP is heavy gauge stainless steel type “430” series with galvanized
understructure.
UNDERSHELF is galvanized steel.
LEGS are 1 5/8” dia. tubular galvanized steel with galvanized steel
gussets and (2) 1” adjustable plastic bullet feet.
(2) 5” swivel casters with brakes supplied.
CONSTRUCTION:
Roll formed embossed galvanized hat channels are secured to top
by means of structural adhesive and weld studs.
Gussets welded to support hat sections.
All TIG welded. Exposed weld areas finished to match
adjacent surfaces.
Entire Top is mechanically polished to a satin finish and is
sound deadened.
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
O-3
DETAILS and SPECIFICATIONS
TOL ± .500” ALL DIMENSIONS ARE TYPICAL
MOBILE MIXER TABLE
TOP VIEW
FRONT VIEW
MOBILE EQUIPMENT TABLE
TOP VIEW
FRONT VIEW
SIDE VIEW
SIDE VIEW
Countertop
Edge Detail
O-3a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, SEPTEMBER 2005
