TAINLESS STEEL
S
Fabricated Economy SINKS
One & Two Compartments
Item #: Qty #:
Model #:
Project #:
Fa b r i c a t e d Bowls are W e lded T o g e t h e r a t the Sea m s
MATERIAL:
1 5/8" diameter stainless steel legs with 1" adjustable
stainless steel bullet feet.
Entire unit is 16 gauge 304 stainless steel.
Gussets - stainless steel.
MECHANICAL:
• Supply is 1/2" IPS hot & cold.
• Faucet holes on 8" centers.
• Faucets are not included (see accessories).
• Waste drains are 1 1/2" IPS S/S basket type, located in
center of sink bowl, and are included.
K-700
Rem o v a b l e
Side Splashes
Fi ts Left OR
Right Side
FEATURES:
Backsplash has tile edge for ease of installation.
Sink bowls are 3/4" coved corner and meet NSF requirements.
Rolled Rim Edge for additional strength.
Sink Bowls are 14" deep for greater capacity.
NOTE: 15" x 15" bowls are 12" deep.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to a
satin finish.
Gussets welded to a die-formed reinforced plate.
www.advancetabco.com
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
E-1

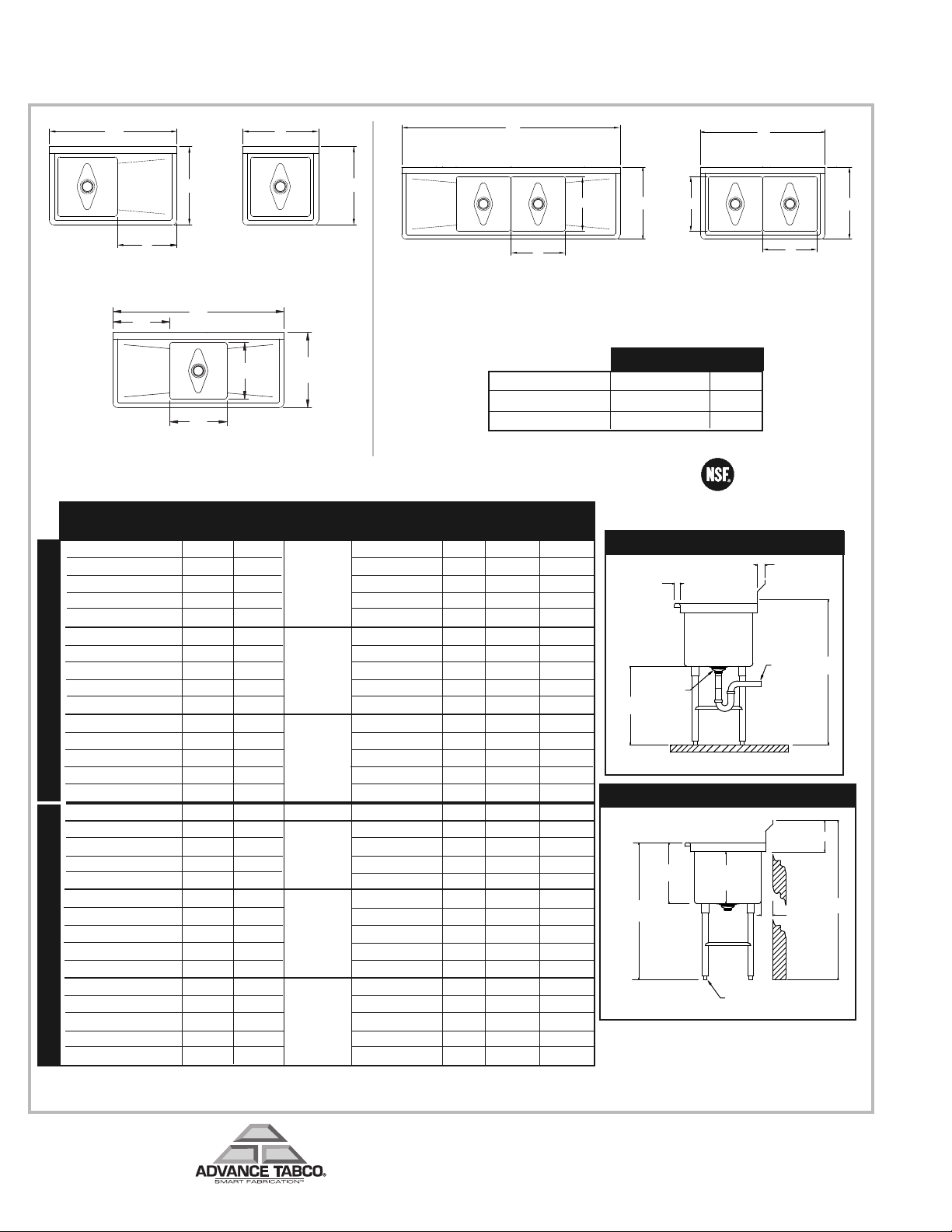

DIMENSIONS and SPECIFICATIONS
L
L
A
W
B
W
B
A
W
C
W
L
L
C
L
A
B
W
43"
8 1/2"
16 1/2"
(Flood Level)
37"
(Working Height)
Stainless Steel Bullet Feet
1" Adjustable
3 3/16"
*14"
(Water Level)
*15” x 15” Bowls are 12” Deep
FINISHED
FLOOR
1 1/2"
20 1/2
(CLEAR)
D
RAIN
43"
8 1/2"
16 1/2"
(Flood Level)
37"
(
Working Height)
38"
(Faucet)
LINE
WASTE
TO
Stainless Steel Bullet Feet
1" Adjustable
3 3/16"
*14"
(
Water Level)
2"
TOL Overall: ± .500" ALL DIMENSIONS ARE TYPICAL
Interior: ± .250"
1 COMP - 1 DRBD
1 COMP
2 COMP - 2 DRBD
1 COMP - 2 DRBDS
MODEL #
Length Width Bowl Size Drbd. Length # of Drbrd.
LWA & B C Drbrds. Location
FC-1-1818 23" 24" N/A 0 None 60 lbs.
FC-1-1818-18RorL 38 1/2" 24" 18" 1 Specify 65 lbs.
FC-1-1818-24RorL 44 1/2" 24" 24" 1 Specify 70 lbs.
18"x18"
FC-1-1818-18RL 54" 24" 18" 2 R & L 90 lbs.
FC-1-1818-24RL 66" 24" 24" 2 R & L 100 lbs.
FC-1-1824 23" 30" N/A 0 None 67 lbs.
FC-1-1824-18RorL 38 1/2" 30" 18" 1 Specify 105 lbs.
FC-1-1824-24RorL 45" 30" 24" 1 Specify 115 lbs.
18"x24"
FC-1-1824-18RL 54" 30" 18" 2 R & L 120 lbs.
FC-1-1824-24RL 66" 30" 24" 2 R & L 130 lbs.
FC-1-2424 29" 30" N/A 0 None 90 lbs.
ONE COMPARTMENT
FC-1-2424-18RorL 45" 30" 18" 1 Specify 118 lbs.
24"x24"
FC-1-2424-24RorL 50 1/2" 30" 24" 1 Specify 123 lbs.
FC-1-2424-18RL 60" 30" 18" 2 R & L 135 lbs.
FC-1-2424-24RL 72" 30" 24" 2 R & L 145 lbs.
FC-2-1515** 35" 20 1/2" N/A 0 None 78 lbs.
15"x15"
FC-2-1818 41" 24" N/A 0 None 83 lbs.
FC-2-1818-18RorL 56 1/2" 24" 18" 1 Specify 90 lbs.
FC-2-1818-18RL 72" 24" 18" 2 R & L 105 lbs.
18"x18"
FC-2-1818-24RL 84" 24" 24" 2 R & L 115 lbs.
FC-2-1824 41" 30" N/A 0 None 115 lbs.
FC-2-1824-18RorL 56 1/2" 30" 24" 1 Specify 130 lbs.
FC-2-1824-24RorL 62 1/2" 30" 24" 1 Specify 140 lbs.
18"x24"
FC-2-1824-18RL 72" 30" 18" 2 R & L 145 lbs.
FC-2-1824-24RL 84" 30" 24" 2 R & L 160 lbs.
FC-2-2424 53" 30" N/A 0 None 138 lbs.
TWO COMPARTMENTS
FC-2-2424-18RorL 68 1/2" 30" 18" 1 Specify 155 lbs.
FC-2-2424-18RL 84" 30" 18" 2 R & L 210 lbs.
FC-2-2424-24RorL 74 1/2" 30" 24" 1 Specify 195 lbs.
FC-2-2424-24RL 96" 30" 24" 2 R & L 225 lbs.
24"x24"
ACCESSORIES
DRAINS
FAUCETS
Wt
2 COMP
Model #
Qty
PLUMBING ROUGH-IN
SECTION
**15" x 15" Bowls are 12" Deep
E-1a
200 Heartland Boulevard, Edgewood, NY 11717-8380
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, JULY 2012
