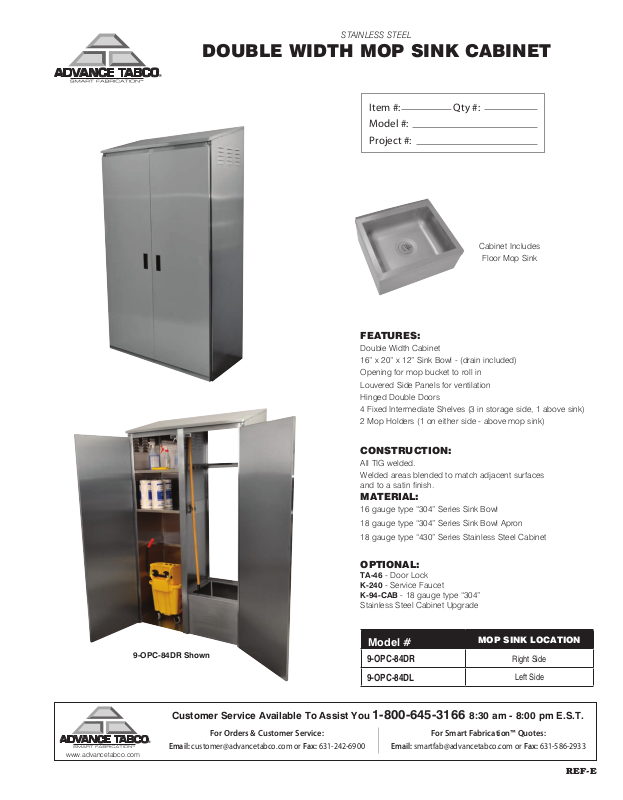

Advance Tabco 9OPC84DRX Specifications
STAINLESS STEEL
DOUBLE WIDTH MOP SINK CABINET
Item #: Qty #:
Model #:
Project #:
Cabinet Includes
Floor Mop Sink
FEATURES:
Double Width Cabinet
16” x 20” x 12” Sink Bowl - (drain included)
Opening for mop bucket to roll in
Louvered Side Panels for ventilation
Hinged Double Doors
4 Fixed Intermediate Shelves (3 in storage side, 1 above sink)
2 Mop Holders (1 on either side - above mop sink)
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces
and to a satin finish.
MATERIAL:
16 gauge type “304” Series Sink Bowl
18 gauge type “304” Series Sink Bowl Apron
18 gauge type “430” Series Stainless Steel Cabinet
OPTIONAL:
TA-46 - Door Lock
K-240 - Service Faucet
K-94-CAB - 18 gauge type “304”
Stainless Steel Cabinet Upgrade
www.advancetabco.com
9-OPC-84DR Shown
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email: customer@advancetabco.com or Fax: 631-242-6900
For Orders & Customer Service:
Model #
9-OPC-84DR
9-OPC-84DL
For Smart Fabrication™ Quotes:
Email: smartfab@advancetabco.com or Fax: 631-586-2933
MOP SINK LOCATION
Right Side
Left Side
REF-E
DIMENSIONS and SPECIFICATIONS
25"
12"
50"
22
5
8
"
84"
64"
15°
78
1
8
"
S/S Storage Shelf
12"
Louvered End Panels
On Both Sides
& Center Partition
20x16x12 Mop Sink
S/S Hinged Doors
Open In Rear
S/S Rear Panel
20"
Clear
S/S Floor Panel
Interior Partition
Fixed S/S
Storage Shelves
16"
Mop Holder
(Two Supplied)
12"
33"
9
7
16
"
15"
15"
Door Magnet
48"
5
1
2
"
sher
t
ead
ead
adder
g
ALL DIMENSIONS ARE TYPICAL
TOL ± .500”
REF-E
1
10
C
"
2
L
Mop Sink Detail
21"
200 Heartland Boulevard, Edgewood, NY 11717-8380
3
"
2
4
2" IPS Pipe
Exterior Thr
Rubber Gasket
Fiber Wa
Die Cast Nu
MOP SINK DRAIN
ASSEMBLY
Flat Strainer Plat
Interior Compression Rin
Interior Thr
Interior Rubber Bl
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2015
