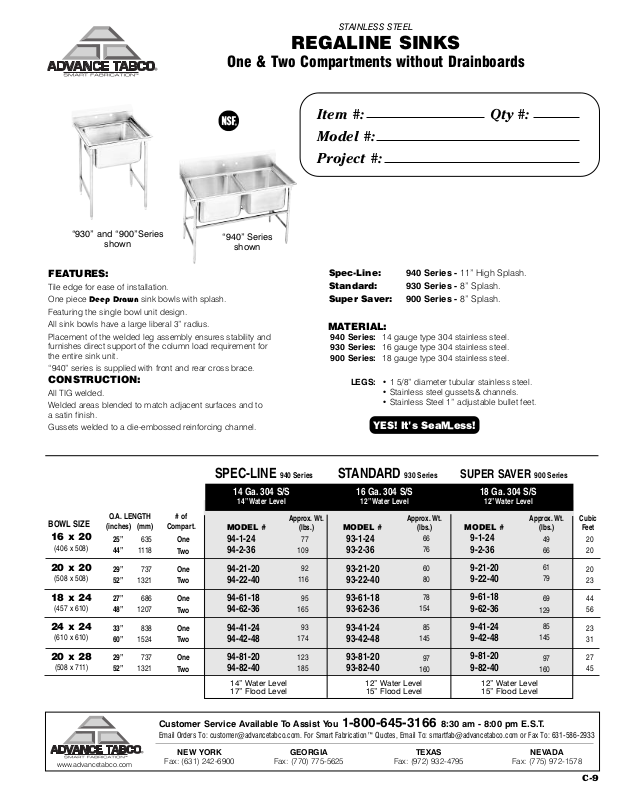

Advance Tabco 9-41-24 Specifications
STAINLESS STEEL
YES! It's SeaM ess!
YES! It's SeaM ess!
YES! It's SeaM ess!
REGALINE SINKS
One & Two Compartments without Drainboards
Item #: Qty #:
Model #:
Project #:
“930” and “900”Series
shown
“940” Series
shown
FEATURES:
Tile edge for ease of installation.
One piece Deep Drawn sink bowls with splash.
Featuring the single bowl unit design.
All sink bowls have a large liberal 3” radius.
Placement of the welded leg assembly ensures stability and
furnishes direct support of the column load requirement for
the entire sink unit.
“940” series is supplied with front and rear cross brace.
CONSTRUCTION:
All TIG welded.
Welded areas blended to match adjacent surfaces and to
a satin finish.
Gussets welded to a die-embossed reinforcing channel.
SPEC-LINE 940 Series STANDARD 930 Series SUPER SAVER 900 Series
14 Ga. 304 S/S 16 Ga. 304 S/S 18 Ga. 304 S/S
14”Water Level 12”Water Level 12”Water Level
BOWL SIZE
16 x 20
(406 x 508)
20 x 20
(508 x 508)
18 x 24
(457 x 610)
24 x 24
(610 x 610)
O.A. LENGTH # of
(inches) (mm) Compart.
25”
44”
29”
52”
27”
48”
33”
60”
635
1118
737
1321
686
1207
838
1524
One
Two
One
Two
One
Two
One
Two
MODEL #
94-1-24
94-2-36
94-21-20
94-22-40
94-61-18
94-62-36
94-41-24
94-42-48
Spec-Line: 940 Series - 11” High Splash.
Standard: 930 Series - 8” Splash.
Super Saver: 900 Series - 8” Splash.
MATERIAL:
940 Series: 14 gauge type 304 stainless steel.
930 Series: 16 gauge type 304 stainless steel.
900 Series: 18 gauge type 304 stainless steel.
LEGS: • 1 5/8” diameter tubular stainless steel.
Approx. Wt. Approx. Wt. Approx. Wt. Cubic
(lbs.)
77
109
92
116
95
165
93
174
MODEL #
93-1-24
93-2-36
93-21-20
93-22-40
93-61-18
93-62-36
93-41-24
93-42-48
• Stainless steel gussets& channels.
• Stainless Steel 1” adjustable bullet feet.
(lbs.)
66
76
60
80
78
154
85
145
MODEL #
9-1-24
9-2-36
9-21-20
9-22-40
9-61-18
9-62-36
9-41-24
9-42-48
(lbs.) Feet
49
66
61
79
69
129
85
145
20
20
20
23
44
56
23
31
20 x 28
(508 x 711)
www.advancetabco.com
29”
52”
737
1321
One
Two
94-81-20
94-82-40
14” Water Level 12” Water Level 12” Water Level
17” Flood Level 15” Flood Level 15” Flood Level
123
185
93-81-20
93-82-40
97
160
9-81-20
9-82-40
97
160
Customer Service Available To Assist You 1-800-645-3166 8:30 am - 8:00 pm E.S.T.
Email Orders To: customer@advancetabco.com. For Smart Fabrication™ Quotes, Email To: smartfab@advancetabco.com or Fax To: 631-586-2933
NEW YORK GEORGIA TEXAS NEVADA
Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578
27
45
C-9
DIMENSIONS and SPECIFICATIONS
O
verall
Length
Overall
Length
TOL Overall: ± .500” ALL DIMENSIONS ARE TYPICAL
Interior: ± .250”
1 Compartment
DESCRIPTION
BOWL # of Overall Recommended
SIZE) Compart. Length Use
(
16x20
20x20
18x24
24x24
20x28
One
Two
One
Two
One
Two
One
Two
One
Two
25”
44”
29”
52”
27”
48”
33”
60”
29”
52”
DISH
SINKS
DISH &
POT SINKS
POT & PAN
SINKS
POT SINKS
PAN SINKS
2 Compartment
Front
940 Series Cross Bracing
940 SERIES 900 & 930 SERIES
AB C DVWXYZVWXYZ
20”
20”
24”
24”
28”
16”
20”
18”
24”
20”
13 5/8”
13 5/8”
15 5/8”
15 5/8”
17 5/8”
27”
27”
31”
31”
35”
38”
38”
38”
38”
38”
11”
11”
11”
11”
11”
14”
14”
14”
14”
14”
20”
20”
20”
20”
20”
45”
45”
45”
45”
45”
38”
38”
38”
38”
38”
8”
12”
22”
42”
8”
12”
22”
42”
8”
12”
22”
42”
8”
12”
22”
42”
8”
12”
22”
42”
C-9a
PLUMBING ROUGH-IN
MECHANICAL:
• Supply is 1/2” IPS hot & cold.
• Faucet holes on 8” centers.
• Faucets are not included
(see accessories).
• Waste drains are 1 1/2” IPS
S/S basket type, located in
center of sink bowl, and are
included.
200 Heartland Boulevard, Edgewood, NY 11717-8380
SECTION
ADVANCE TABCO is constantly engaged in a program of
improving our products. Therefore, we reserve the right to
change specifications without prior notice.
© ADVANCE TABCO, DECEMBER 2006
